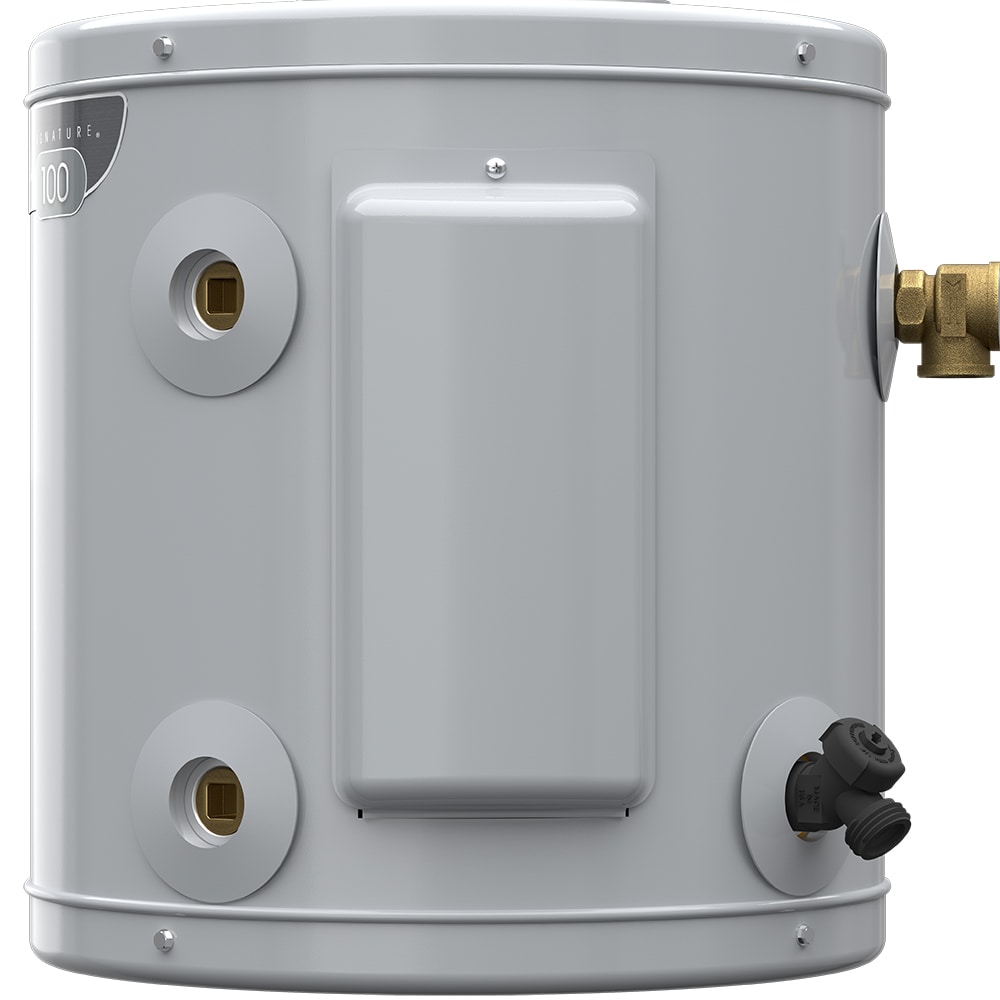

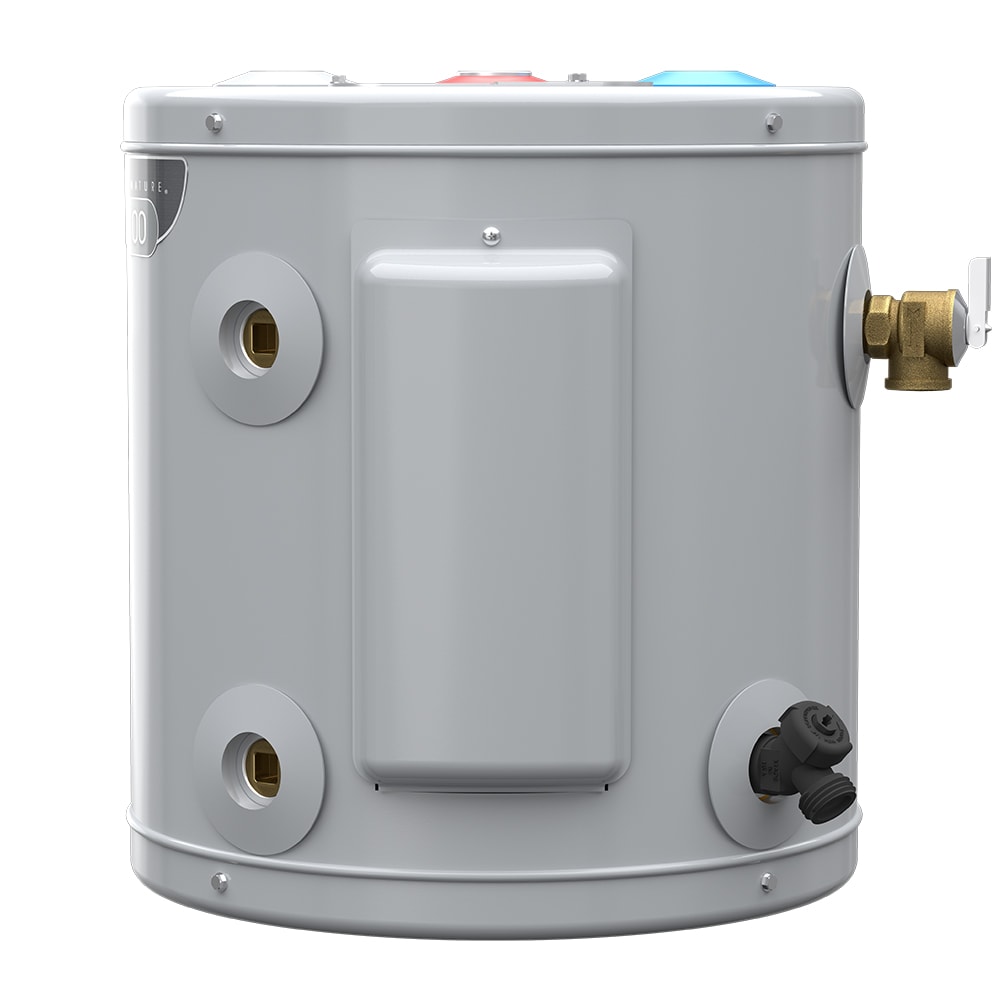

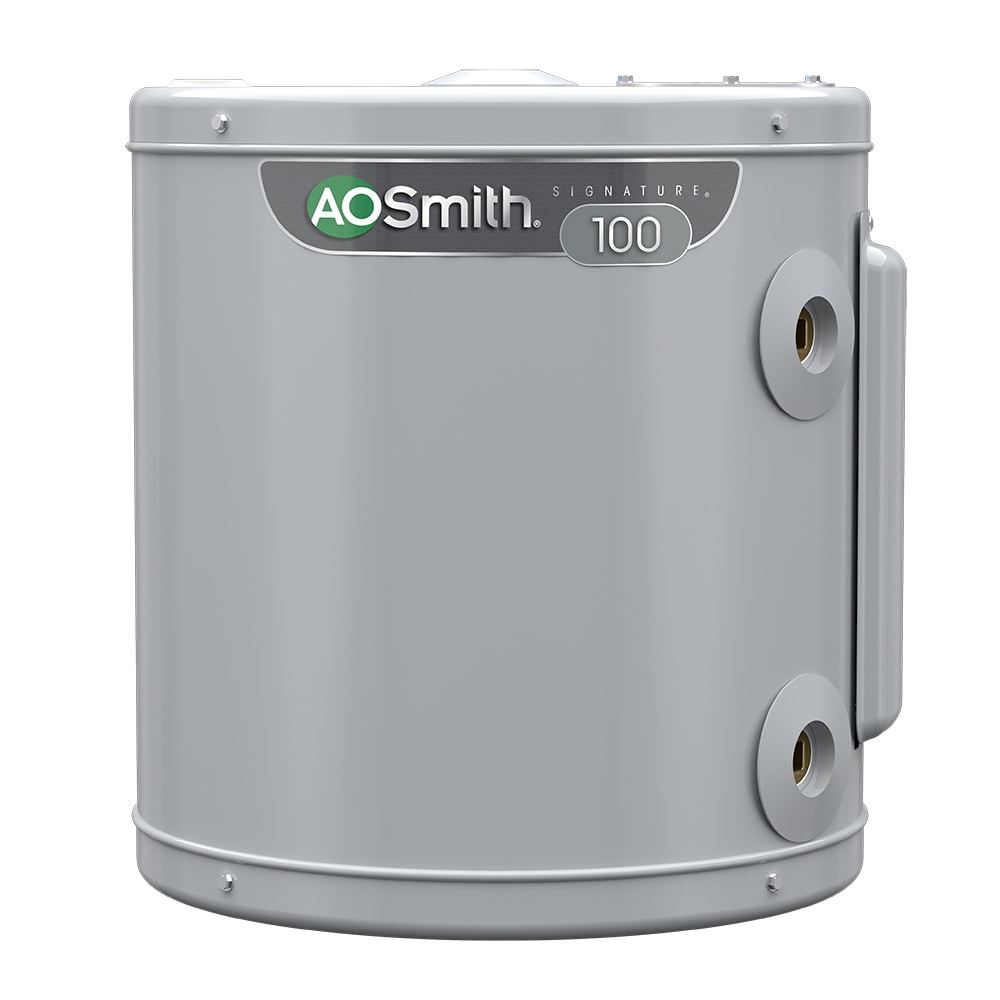

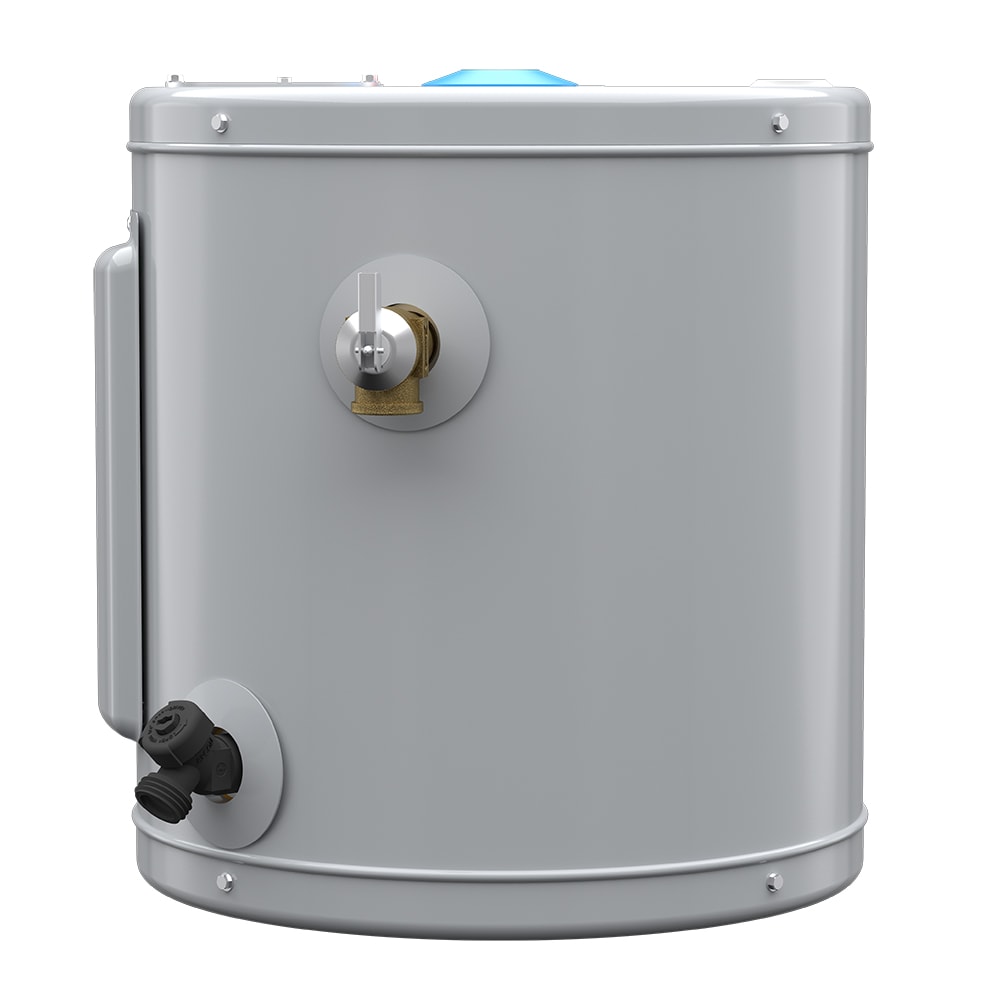

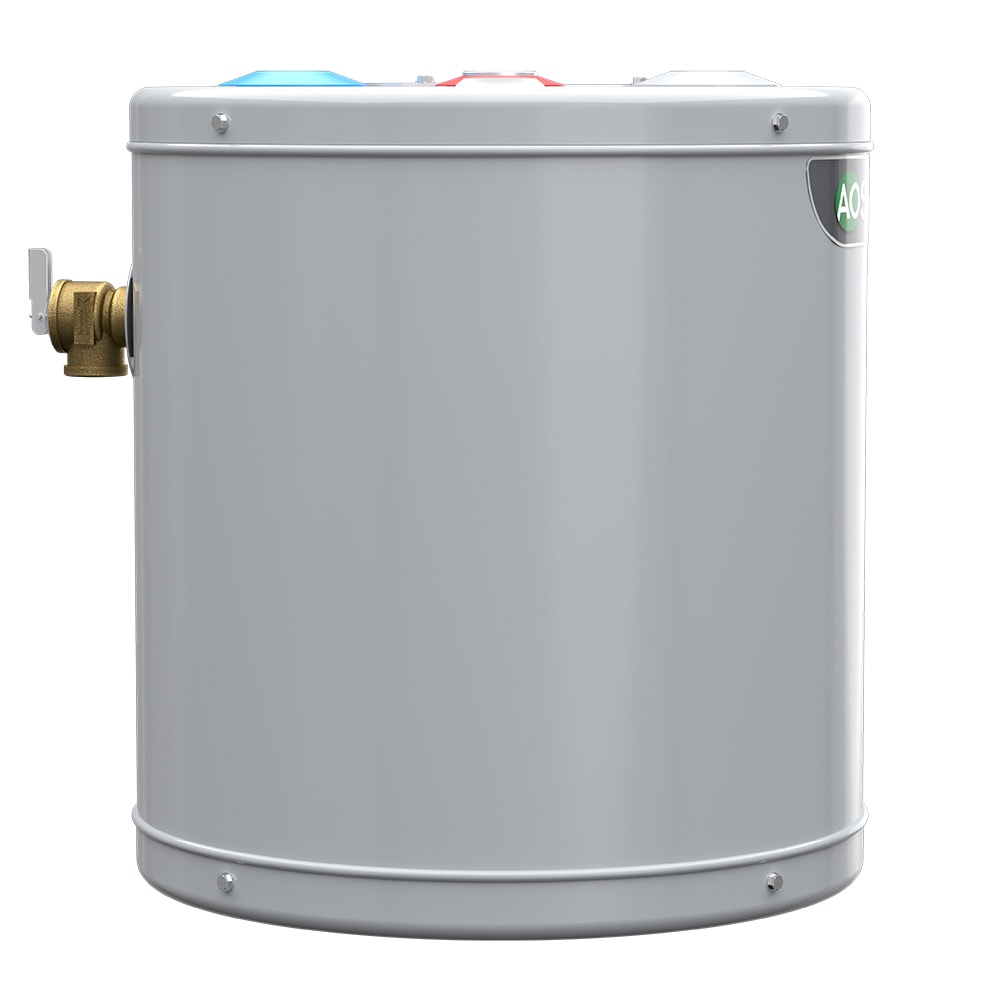

A.O. Smith Signature 100 Series 6-Gallon Compact 6-year Limited Warranty Point Of Use Electric Water Heater
A. O. Smith’s Signature 100 Series 6-gallon compact water heater is a good fit for specialized applications and small capacity needs. Its low-profile design with top water connections is ideally suited for installations in garages, workshops and under sinks. Made to last, this water heater has a single 1,500-watt copper heating element, protective anode rod and fused ceramic tank shield that provide superior tank protection and extends water heater life. For added peace of mind, it comes with a 6-year limited tank and parts guarantee and a 1-year limited labor warranty. Call 1-877-GOLowes to get this water heater installed.
Highlights
- Delivers the ideal amount of hot water for specialized applications and small capacity needs
- Features a single 1,500-watt copper heating element that provides a first hour delivery of 7 gallons at 90 degrees Fahrenheit
- Low-profile 15.25-in high x 14.25-in diameter design allows for easy installation under counters or inside cabinets
- Optional side or top connections are available
- Provides superior tank protection and extends water heater life with premium heating elements, anode rod and fused ceramic tank shield
- Reduces heat loss with non-CFC polyurethane foam insulation for maximum efficiency and energy savings
- Features easy temperature control with adjustable thermostat you can set higher or lower for dishwashers and laundry machines

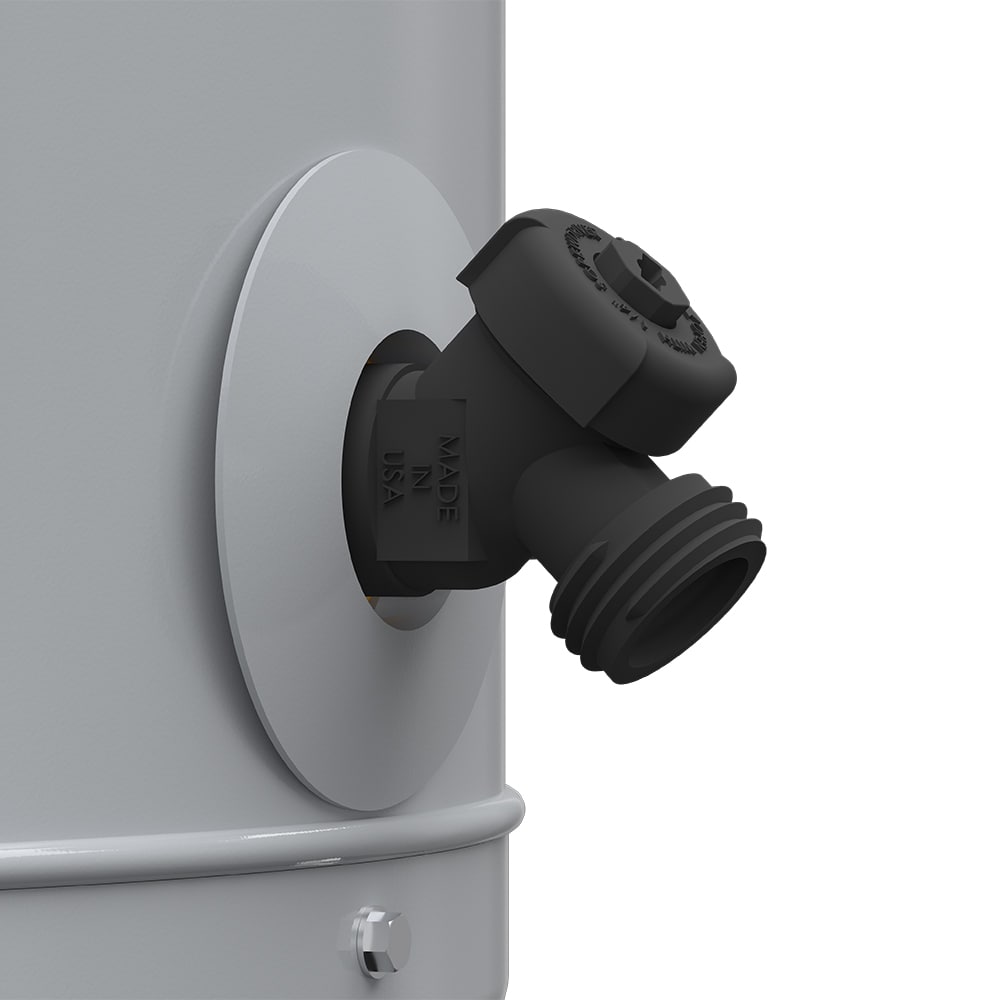

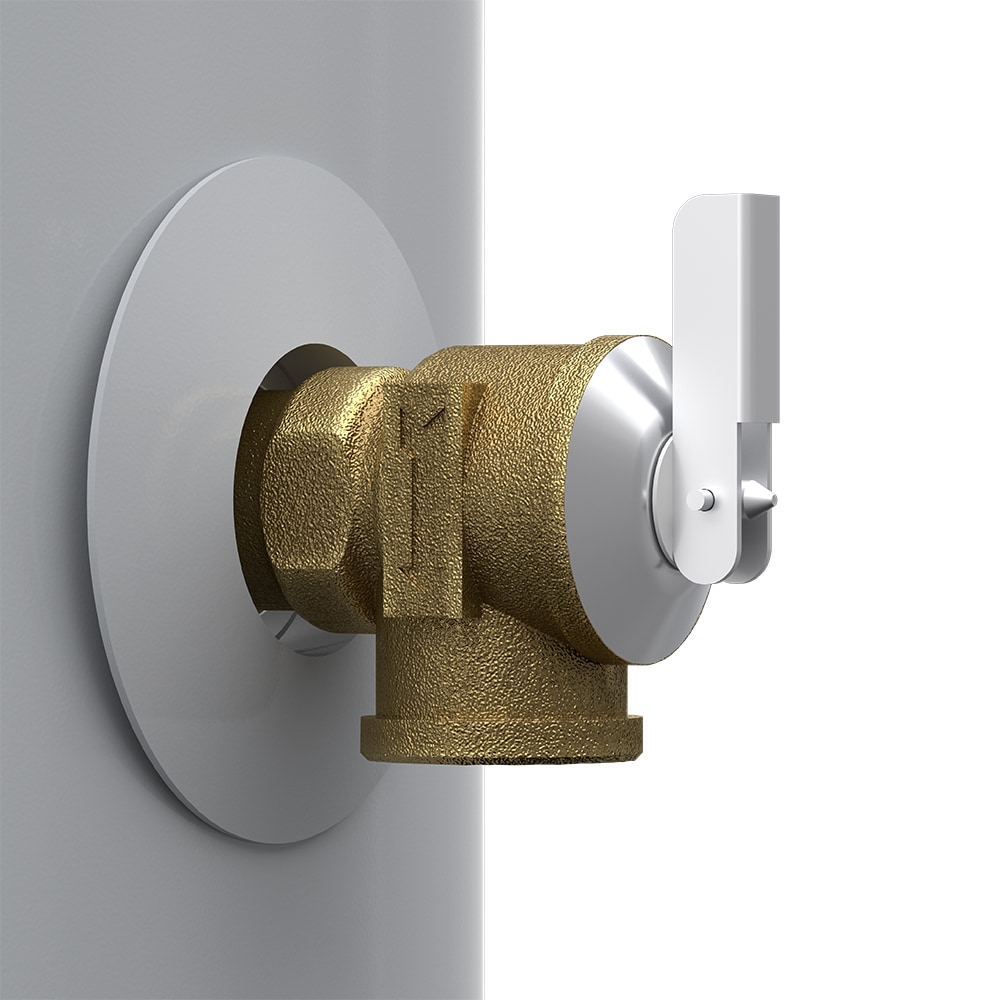

- Factory-installed temperature and pressure relief valve and tamper-proof drain valve ensure safe operation
- Provides peace of mind with a 6-year limited tank and parts guarantee and a 1-year limited labor warranty
Specifications
| General | |||
|---|---|---|---|
| Series Name | Signature100 | Type | Tank |
| Dimensions | |||
|---|---|---|---|
| Depth (Inches) | 14.25 | Nominal Capacity (Gallons) | 6 |
| Diameter (Inches) | 14.25 | Rated Storage Capacity | Not applicable |
| Family Size | 1 | Water Connection Size | 3/4-in |
| Height (Inches) | 15.5 | Weight (lbs.) | 35 |
| Insulation Thickness (Inches) | 1.125 | Width (Inches) | 14.25 |
| Features | |||
|---|---|---|---|
| Annual Fuel Utilization Efficiency % (Percentage) | 0 | Point of Use | Yes |
| Foam Insulation | Yes | Power Source | Electric |
| For Use with Mobile Homes | Yes | Super High Efficiency | No |
| For Use with RVs | No | Temperature and Pressure Relief Valve | Yes |
| GPH Recovery at 90 Degrees F (Gallons) | 7 | Uniform Energy Factor | 0.98 |
| Grade | Residential | Use Location | Indoor |
| Grid Capable | No | Voltage (Volts) | 120 |
| Hybrid Heat Pump Technology | No | Water Connection Location | Top |
| Installation Location | N/A (Portable) | Water Heater Style | Mini tank |
| Compatibility | |||
|---|---|---|---|
| Bluetooth Compatibility | No | Works with Apple HomeKit | No |
| Smart Compatible | No | Works with iOS | No |
| Wi-Fi Compatibility | No | Works with SmartThings | No |
| Works with Amazon Alexa | No | Works with the Google Assistant | No |
| Works with Android | No |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | Safety Listing | CSA safety listing | |
| ENERGY STAR Certified | No |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 40101800 |





















Reviews
There are no reviews yet.
