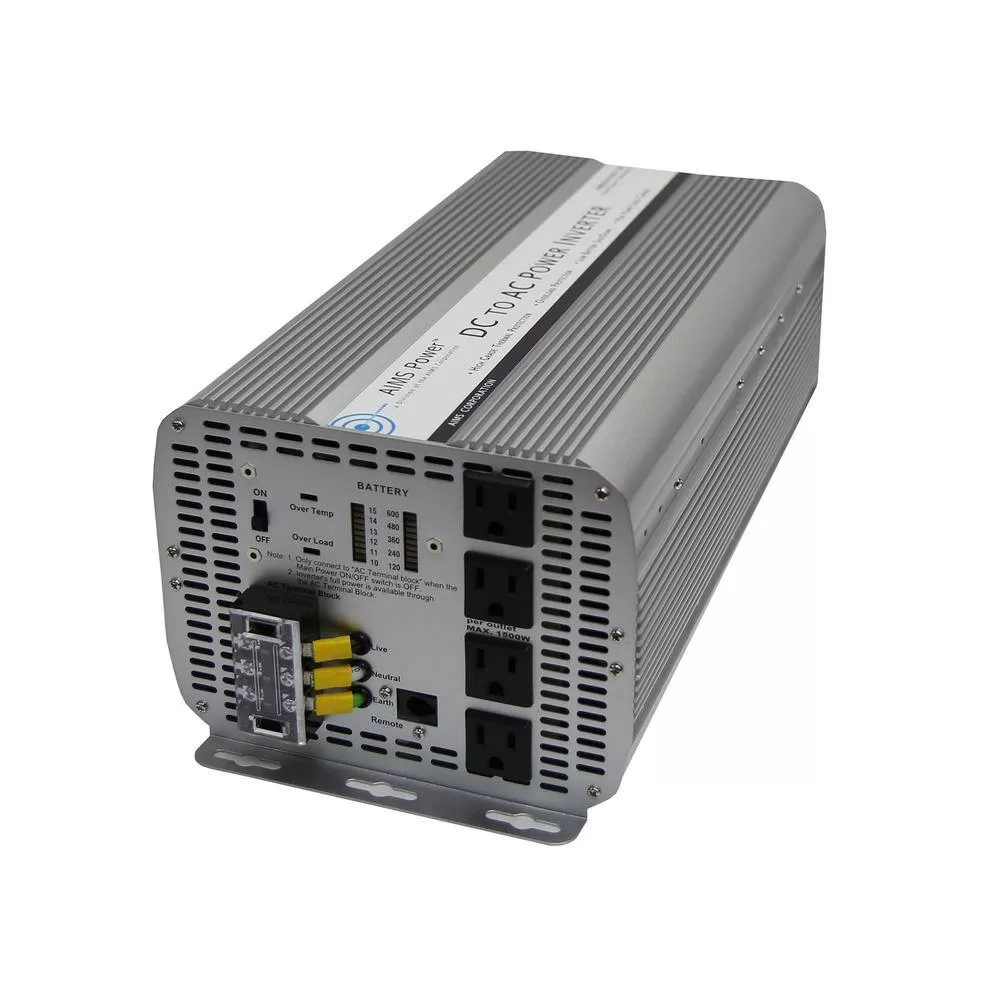

AIMS POWER 5,000-Watt Modified Sine Inverter 12-Volt DC to 120-Volt

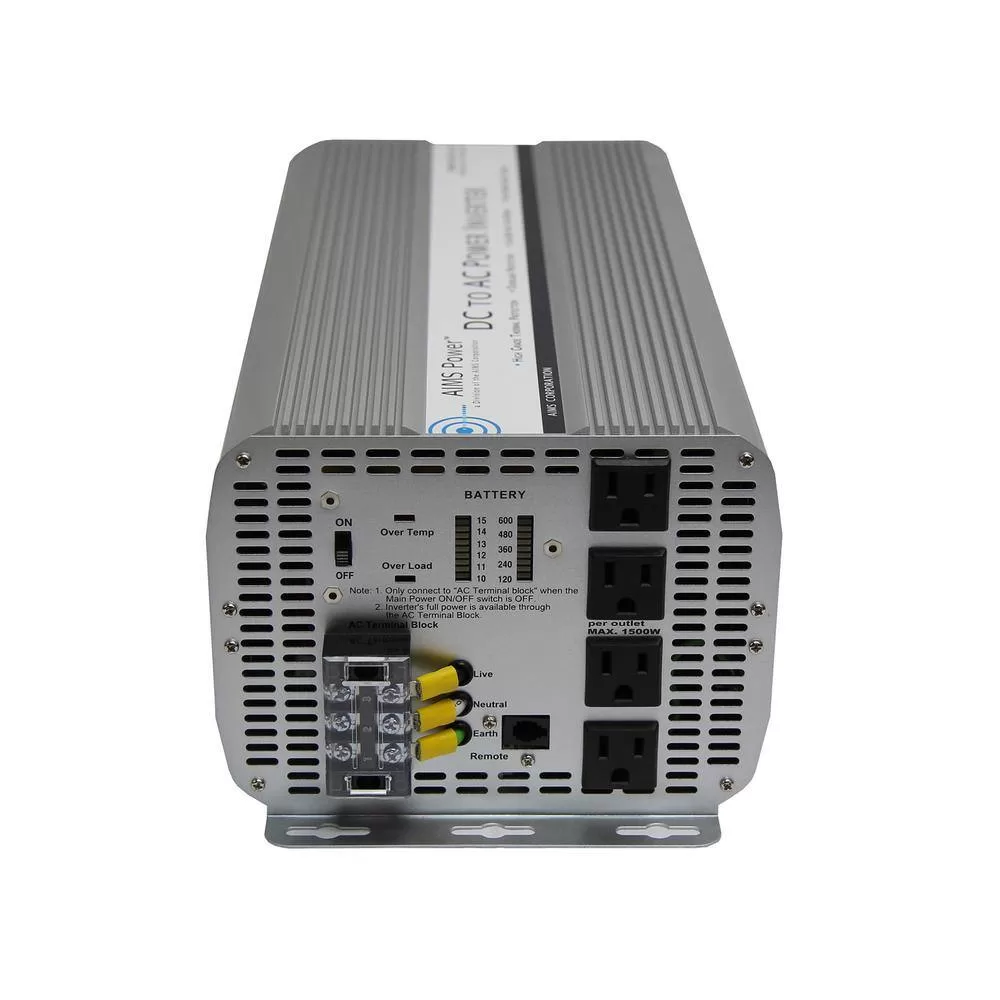

The AIMS POWER 5000-Watt modified sine wave power inverter 12-Volt DC. This inverter is packed with power but still small enough to fit in small spaces. This inverter is capable of providing up to 41.6 Amp AC, which is perfect for larger pumps, tools, compressors and refrigerators/freezers. Includes volt and Amp meter, optional remote, AC direct connect terminal block and 4 AC receptacles. This is a great whole-house inverter or large RV or toy hauler inverter.
- 5000-Watt continuous power
- 10000-Watt surge power (not recommended for start up applications)
- Modified sine wave
- 12-Volt DC input
- 120-Volt AC output
- Volt meter on front panel to monitor your battery Voltage
- Ampere meter on front panel to monitor your current use (rate at which battery is drained)
- AC direct connect terminal
- Overtemperature LED indicator
- Overload LED indicator
- Quadruple AC receptacle that can be used with any separate splitter to provide even more outlets
- On/off switch
- Overtemperature protection
- Overload protection
- Single cooling fan operation thermally controlled only kicks on when needed
- Internally fuse protected
- AC output short circuit protection
- Pre-slotted mounting plate
- California residentssee Prop 65 WARNINGS
Dimensions
Product Depth (in.) | 16.75 in | Product Height (in.) | 6.1 in |
---|---|---|---|
Product Width (in.) | 7.88 in |
Details
Amperage (amps) | 41.6 A | Automotive Part Type | Power Inverter |
---|---|---|---|
Features | Mountable | Frequency | 60 Hz |
Included | No Additional Items Included | Number of Outlets | 4 |
Product Weight (lb.) | 18 lb | ||
Running Wattage | 5000 | Start Type | Electric Switch |
Starting Wattage | 10000 | Voltage (volts) | 120 |
