Breezary HVLS Industrial PMSM Motor 120-in Matte Black with Black Aluminum Blades Ceiling Fan Without Light and Remote Control Included 8 -Blade
Engineered for high-volume, low-speed air movement in large-scale environments, this 120-inch HVLS ceiling fan is powered by a high-efficiency Permanent Magnet Synchronous Motor (PMSM), delivering superior torque density, enhanced magnetic efficiency, and significantly reduced thermal buildup compared to conventional induction or copper-wound motors. The advanced PMSM drive system ensures smoother acceleration, stable load control, and extended operational lifespan, while the integrated 8-second soft-start function protects internal components during high-torque startup. Featuring eight precision-balanced aluminum blades with an optimized 11° pitch, the fan maximizes air displacement while minimizing drag and mechanical stress. Operating at just 63W under 120V/60Hz, it provides powerful, energy-efficient airflow ideal for warehouses, agricultural facilities, gymnasiums, workshops, and high-ceiling residential spaces. Installation flexibility is supported with included 6″, 12″, and 24″ downrods and compatibility with up to 14° sloped ceilings, while remote-controlled 6-speed settings and programmable timers allow precise airflow management in demanding industrial and commercial applications.
- Ultra-Large 120-Inch Diameter – Engineered for maximum airflow in warehouses, barns, gyms, or oversized residential areas.
- 8 Industrial-Grade Aluminum Blades – High-strength, rust-resistant blades ensure long-lasting performance and premium airflow.
- Sleek No-Light Design – For users who prefer fan-only functionality without integrated lighting.
- Three Downrods Included – 6″, 12″, and 24″ downrods offer flexible height customization for ceilings of various heights.

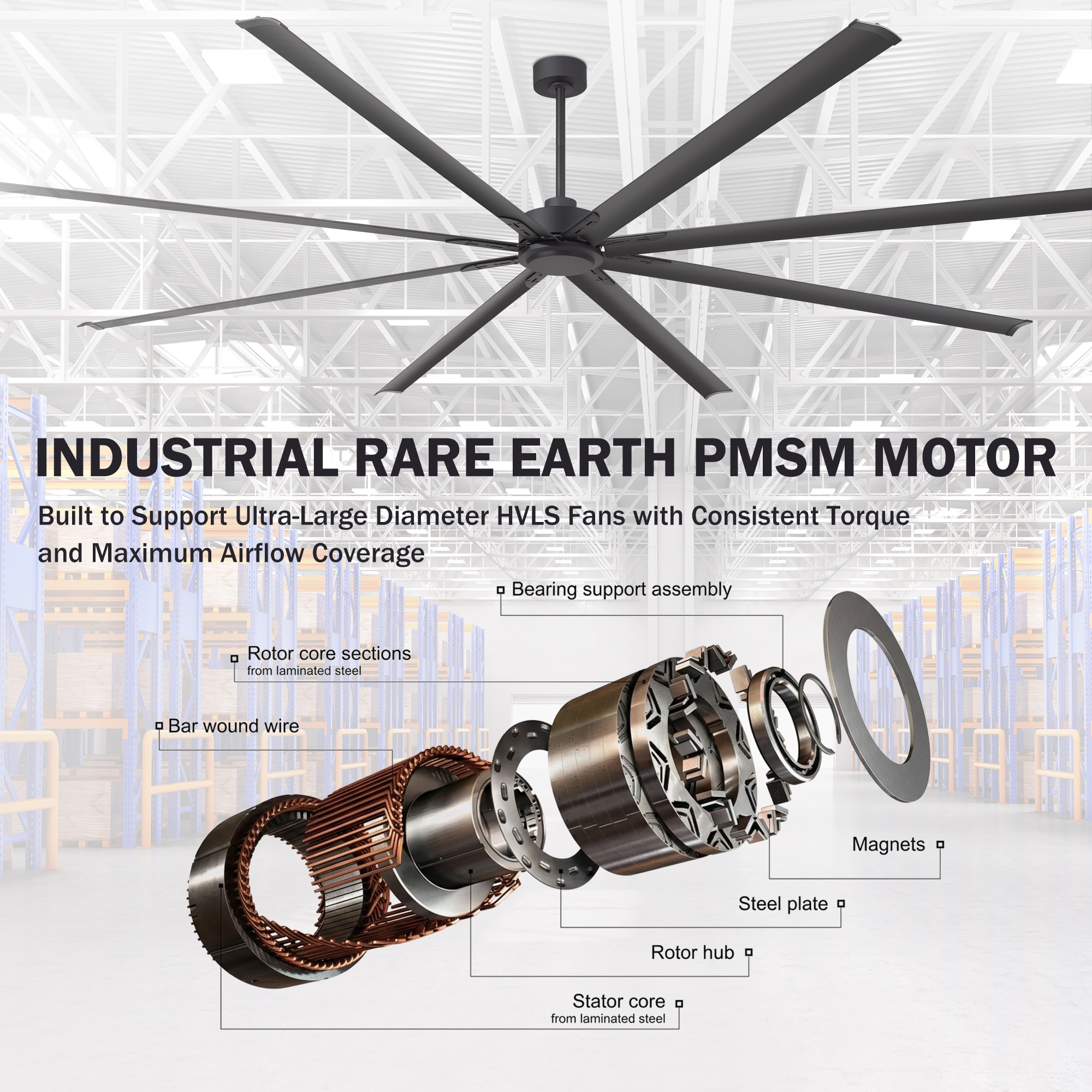

- Energy-Efficient 63W PMSM Motor – Advanced Permanent Magnet Synchronous technology delivers powerful airflow, lower energy consumption, smoother operation, and quieter performance than traditional induction motors.

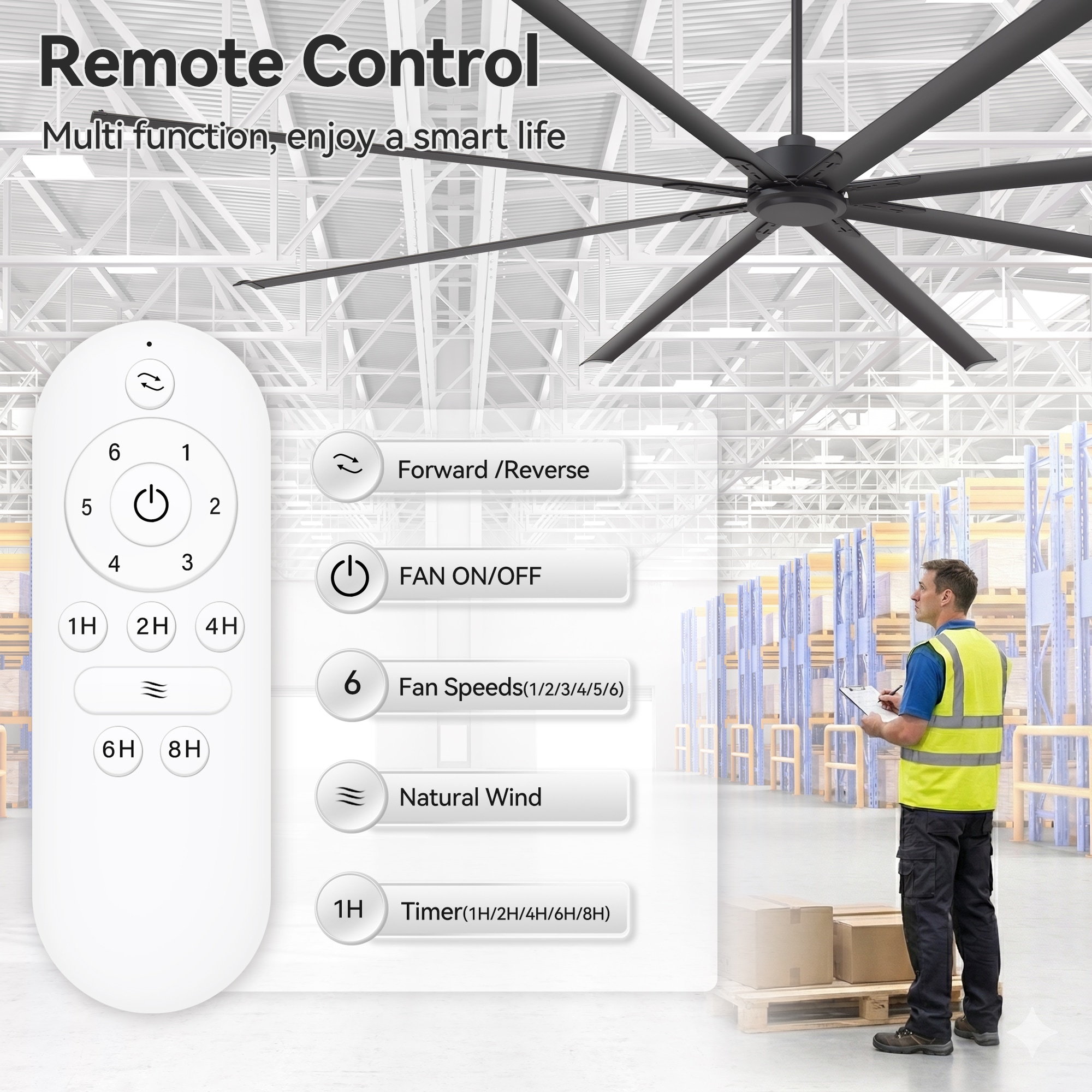

- Full Remote Control Functionality – Adjust 6 speeds and timers (1/2/4/6/8H) without leaving your seat.
- 14° Mounting Angle Support – Compatible with sloped ceiling installations up to 14° for more spaces.
- 11° Blade Pitch – Optimized for wide air distribution while reducing resistance and noise.
- Perfect for Industrial & Large Residential Use – Combines commercial-grade strength with residential style.
Specifications
| General | |||
|---|---|---|---|
| Blade Color | Black | Power Source | Hardwired |
| Collection Name | HVLS Industrial PMSM Motor | Style | Industrial |
| Color-Changing | No | Package Quantity | 1 |
| Fixture Color Family | Black | Use Location | Indoor/Outdoor |
| Fixture Finish | Matte | Motor Type | DC Motor |
| Housing Color/Finish | Matte Black | Mounting Type | Downrod mount |
| Type | Windmill | Control Type | Remote control |
| Number of Bulbs Required | 0 | Number of Fan Speeds | 6+ |
| Dimensions | |||
|---|---|---|---|
| Depth (Inches) | 120 | Weight (lbs.) | 38.6 |
| Downrod Length (Inches) | 24 | Width (Inches) | 120 |
| Fan Diameter (Inches) | 120 | Maximum Hanging Height (Inches) | 31.6 |
| Maximum Motor Speed (RPM) | 170 | Minimum Hanging Height (Inches) | 13.6 |
| Suggested Room Size | Great Room (over 400 sq. ft.) |
| Features | |||
|---|---|---|---|
| Blade Finish | Black Aluminum | Number of Blades | 8 |
| Bulb(s) Included | No | Number of Lights | 0 |
| Commercial/Residential | Commercial/Residential | Oscillating | No |
| Dimmable | No | Retractable Blades | No |

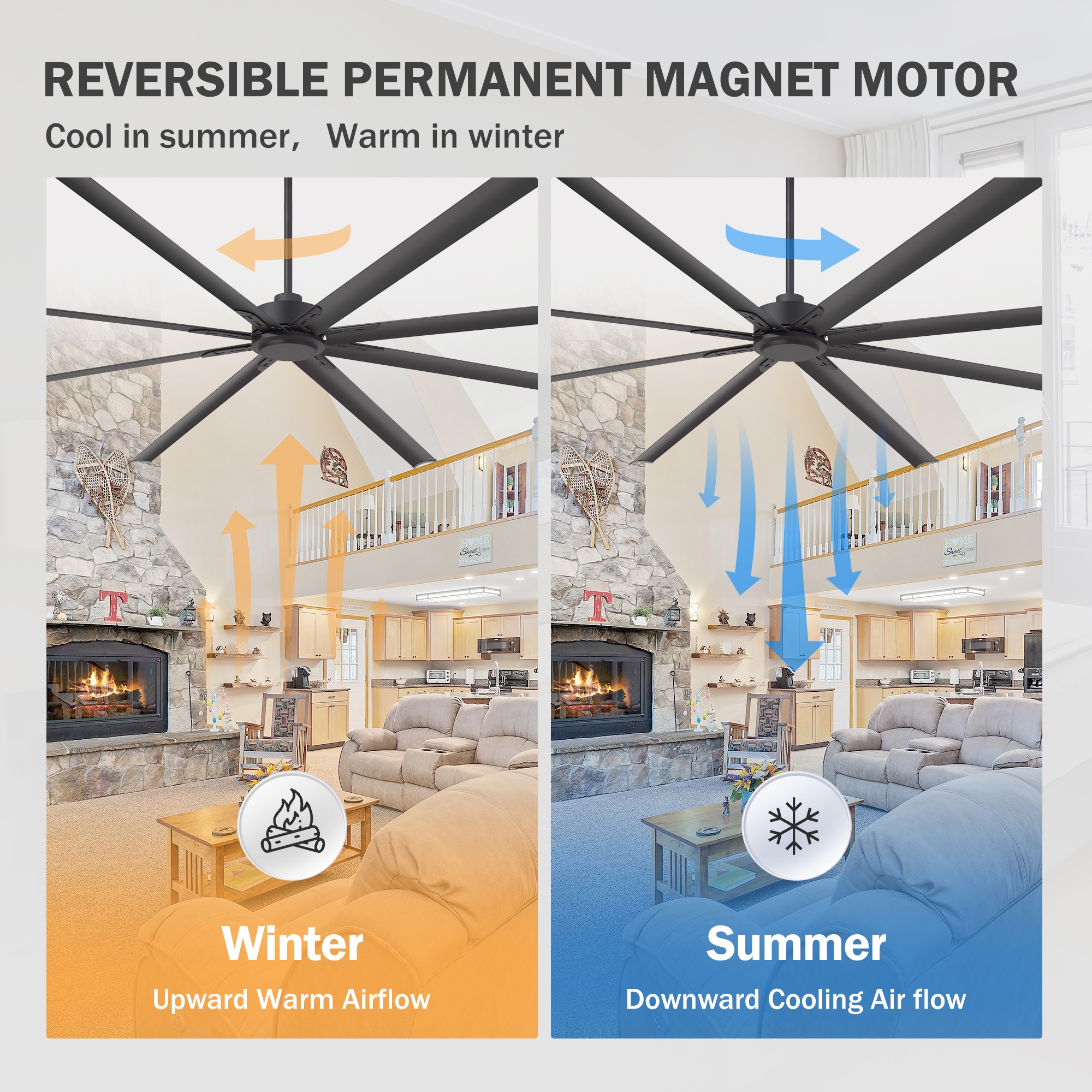

| Downrod Included | Yes | Reverse Air Flow | Yes |
| Dual Fan Heads | No | Reversible Blades | No |
| High Speed Electricity Use (Watts) | 63 | Usage Rating | Dry |
| Integrated LED Fixture | No | Voice Controlled | No |
| Light Kit | Without Light | Maximum Airflow (CFM) | 28000 |
| Minimum Airflow (CFM) | 3500 | ||
| Lumens | 0 | Matter Certified | No |
| Maximum Bulb Wattage | 0 |
| Compatibility | |||
|---|---|---|---|
| App Compatibility | No | Works with SmartThings | No |
| Bluetooth Compatibility | No | Works with the Google Assistant | No |
| Smart Compatible | No | For Use in Bathrooms | No |
| Wi-Fi Compatibility | No | For Use in Bedrooms | No |
| Works with Amazon Alexa | No | For Use in Living Rooms | Yes |
| Works with Android | No | For Use in Kitchens | Yes |
| Works with Apple HomeKit | No | For Use in Dining Rooms | Yes |
| Works with iOS | No | Slope Ceiling Compatibility | Yes |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | Safety Listing | ETL safety listing |
| ENERGY STAR Certified | No | Title 24 Compliant | Yes |
| Brand | Breezary |
|---|
