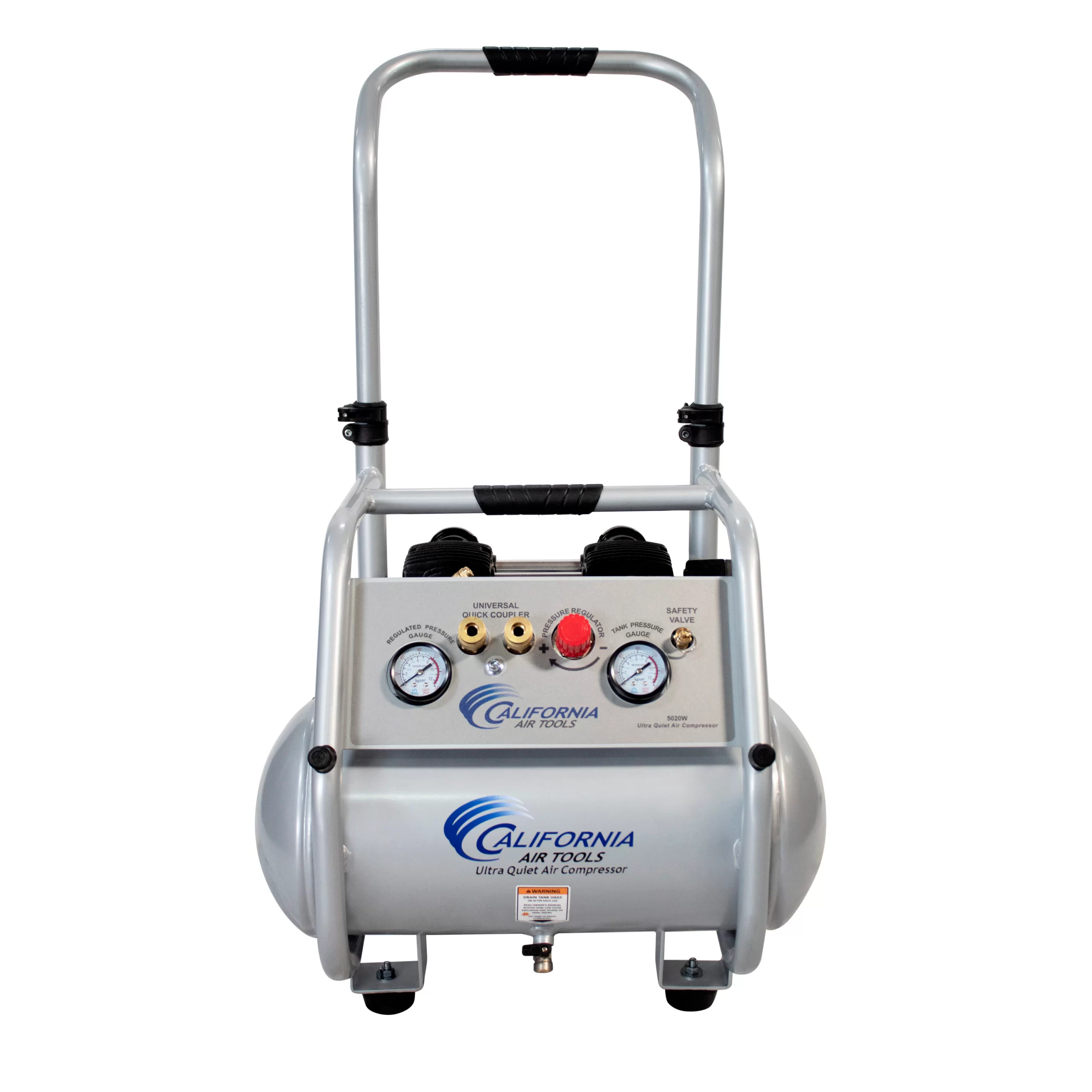

California Air Tools 5-Gallon Portable Electric 125 PSI Horizontal Air Compressor

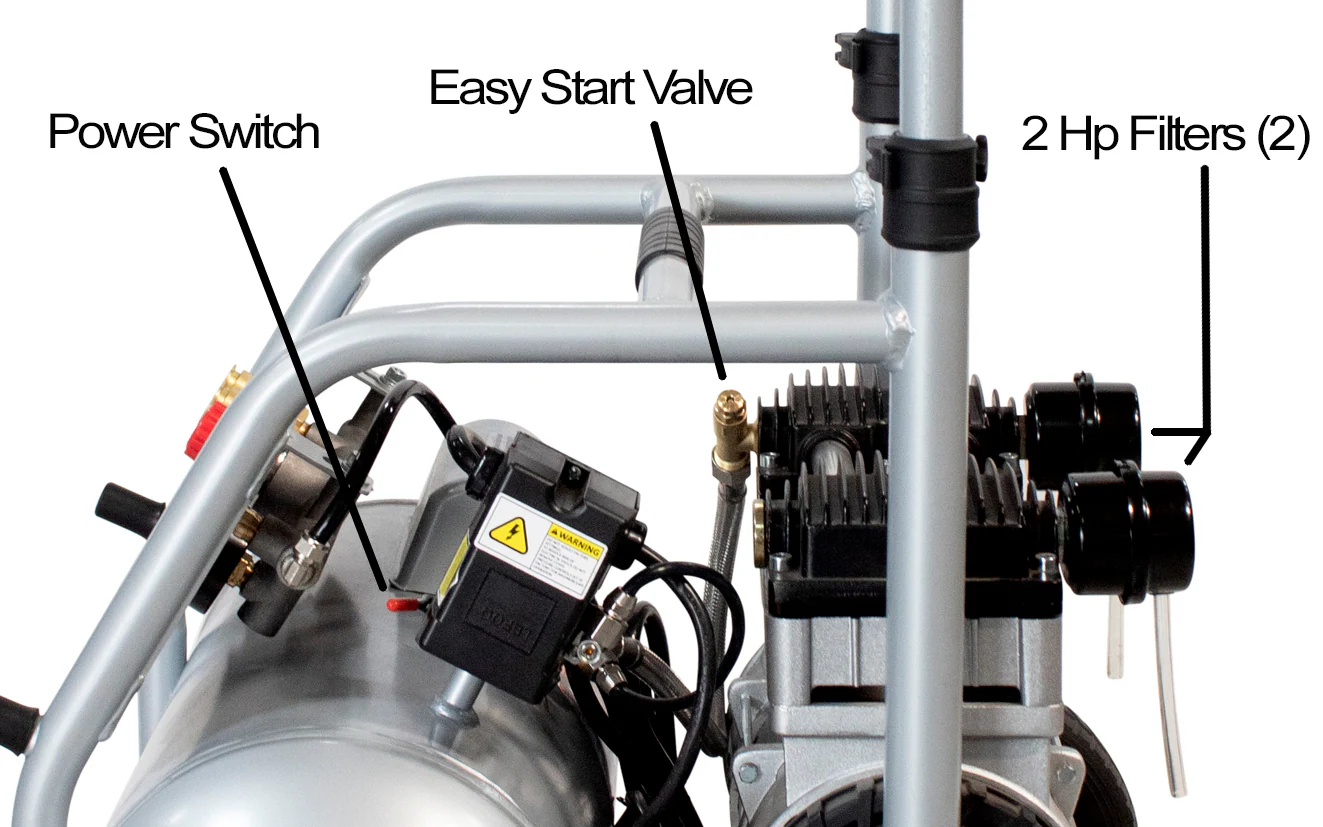

Ideal for any Job Site, the CALIFORNIA AIR TOOLS 5020W Ultra Quiet & Oil-Free Rugged Air Compressor is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound and features extra large 7.6″ wheels. The Powerful 2.0 HP (SP-9421) motor operates at only 1680 RPM creating less noise and less wear. Motor has been designed to increase duty cycle and allow for longer continuous run times.* The Oil-Free Dual Piston Pump System is engineered for high performance, durability and provides up to 135 PSI. The CAT-5020W Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the SP-9421 motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures. The large 5.0 Gallon Steel Air Compressor is only 82 pounds making it very easy to move around the jobsite and is lighter and quieter than all competitive models in the same class. Designed for the person looking for Rugged Durability, Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise! May be used for Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Cutting, Drilling, Finish Nailing, Framing Nailing, Grinding, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Sanding, Spraying, Stapling, Surface Prep, Trim and Wrenching.
- Ultra Quiet – Only 70 decibels
- Oil-Free Pump
- Protective Roll Cage
- Telescope Handle for adjustable height:Â 19.5″ To 27.5″
- Easy to Lift and Easy to move around on Job Sites

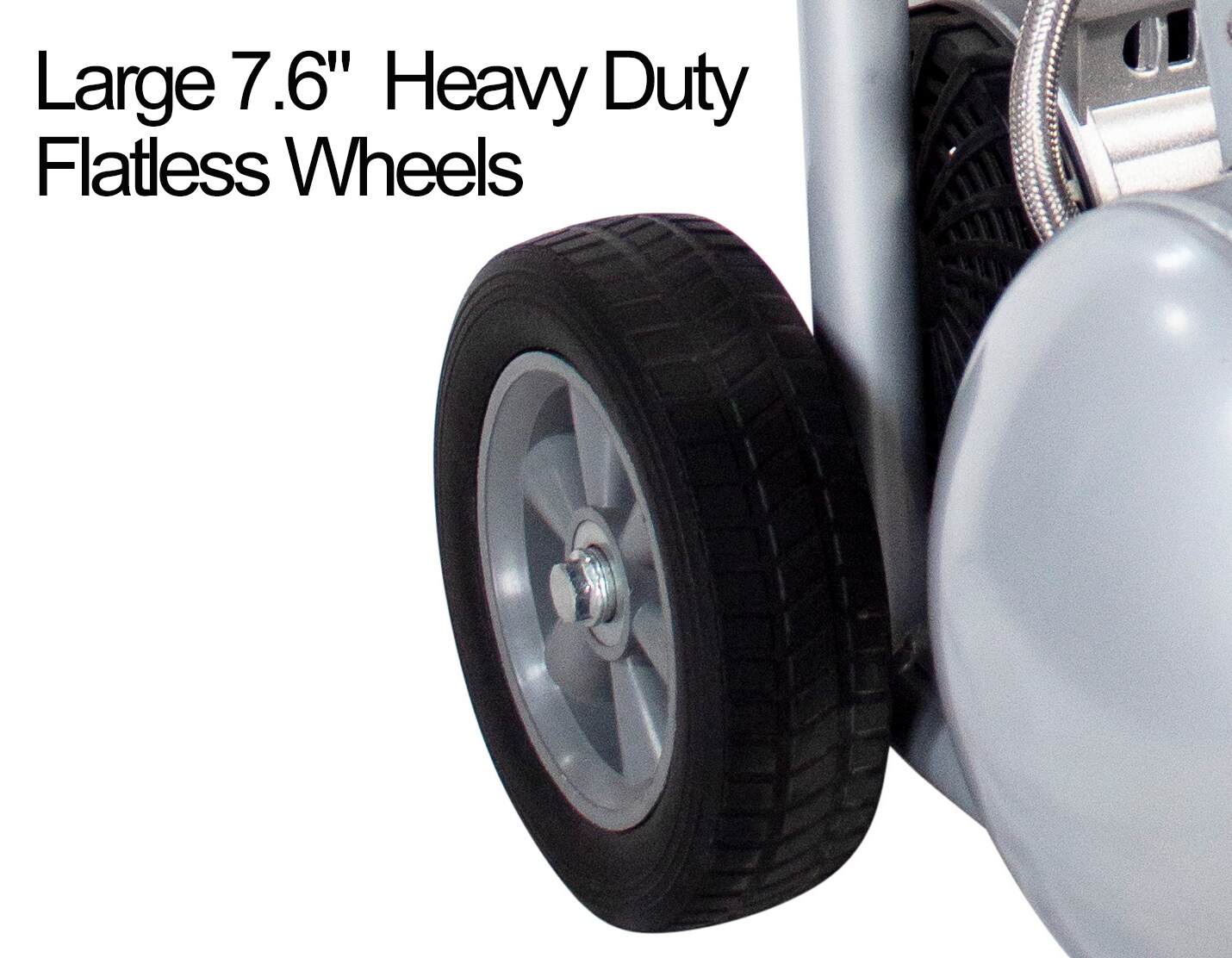

- Large Rugged Flatless Wheels 7.6 in
- Two pressure control gauges
- Two – Female industrial “Push to Connect” quick connectors

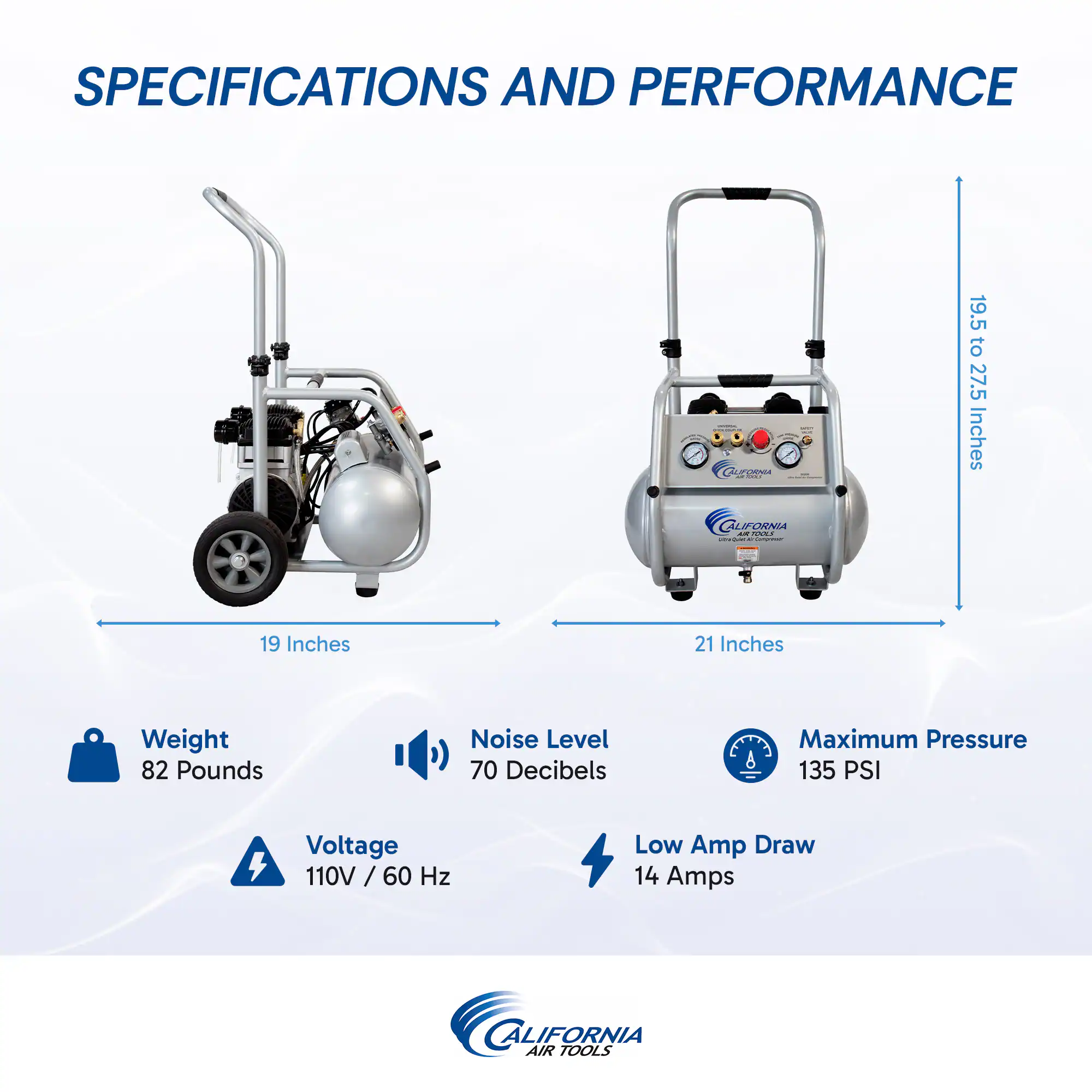

- L (19.0″) x W/D (21″) x H (19.5″ To 27.5″)
| Â Dimensions | |||
|---|---|---|---|
| Fitting Size | 1/4-in | Weight (lbs.) | 82 |
| Tank Capacity (Gallons) | 5 |
| Â Features | |||
|---|---|---|---|
| Accessories Included | No | For Use with Sanding | Yes |
| Air Delivery SCFM @ 100PSI (CFM) | 0 | For Use with Spraying | Yes |
| Air Delivery SCFM @ 175PSI (CFM) | 0 | For Use with Surface Prep | Yes |
| Air Delivery SCFM @ 90PSI (CFM) | 5.3 | Maximum Pressure | 125 PSI |
| Amperage | 15 | Motor Type | DC |
| Cordless | No | Noise Rating | Quiet (70 decibels or below) |
| Decibel Rating (Decibels) | 70 | Number of Tools Included | 0 |
| Engine Displacement (Cu. Centimeters) | 0 | Phase | Single-phase |
| For Use with Air Brushing | Yes | Portable | Yes |
| For Use with Bolting | Yes | Pump Type | Oil-free |
| For Use with Brad Nailing/Stapling | Yes | Rechargeable | No |
| For Use with Cutting | Yes | Running Horsepower | 2 |
| For Use with Drilling | Yes | Stage | Single stage |
| For Use with Finish Nailing | Yes | Start Type | Electric start |
| For Use with Framing Nailing | Yes | Tank Style | Horizontal |
| For Use with Grinding | Yes | Voltage (Volts) | 110 |
| For Use with HVLP Painting | Yes | For Use with Roof Nailing | Yes |
