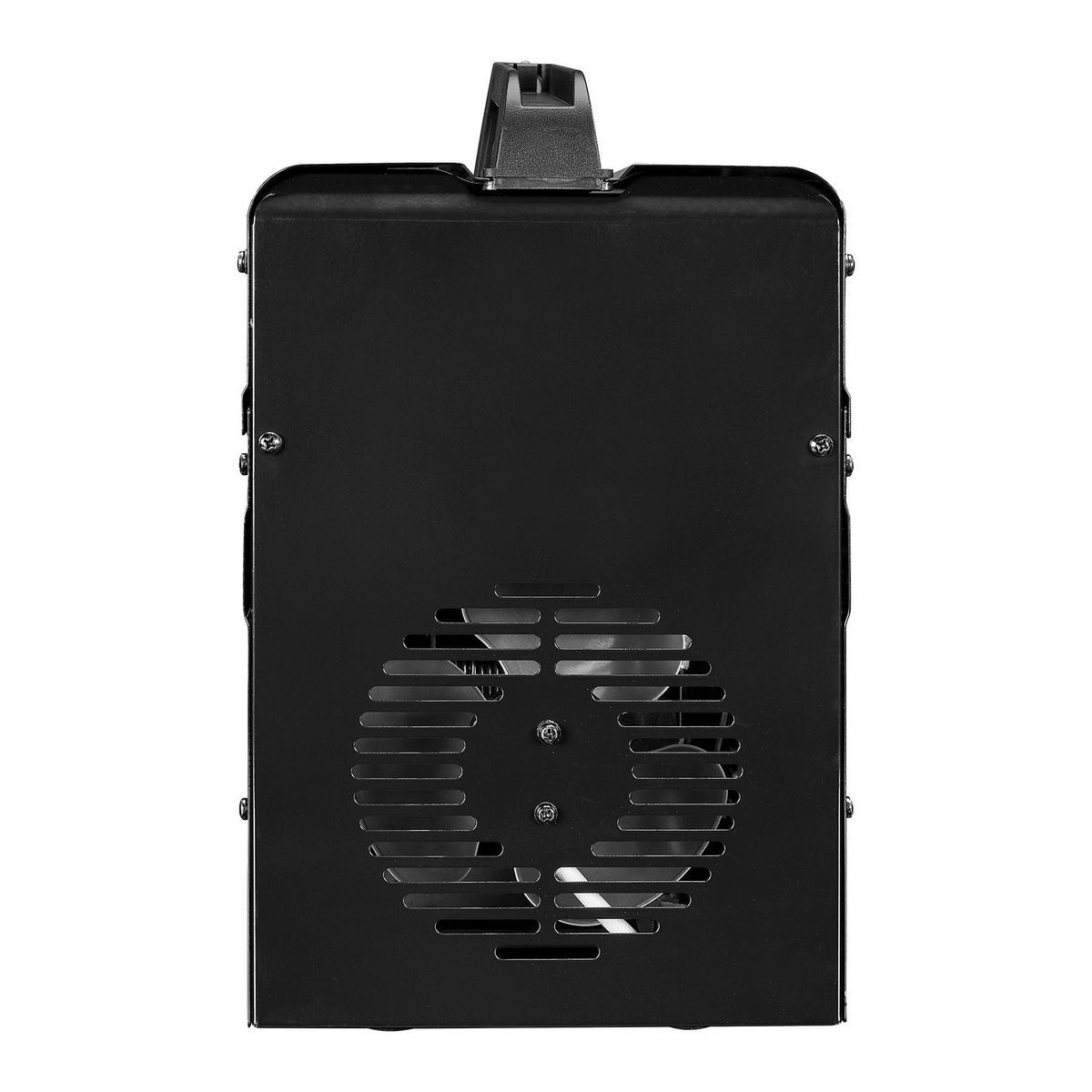

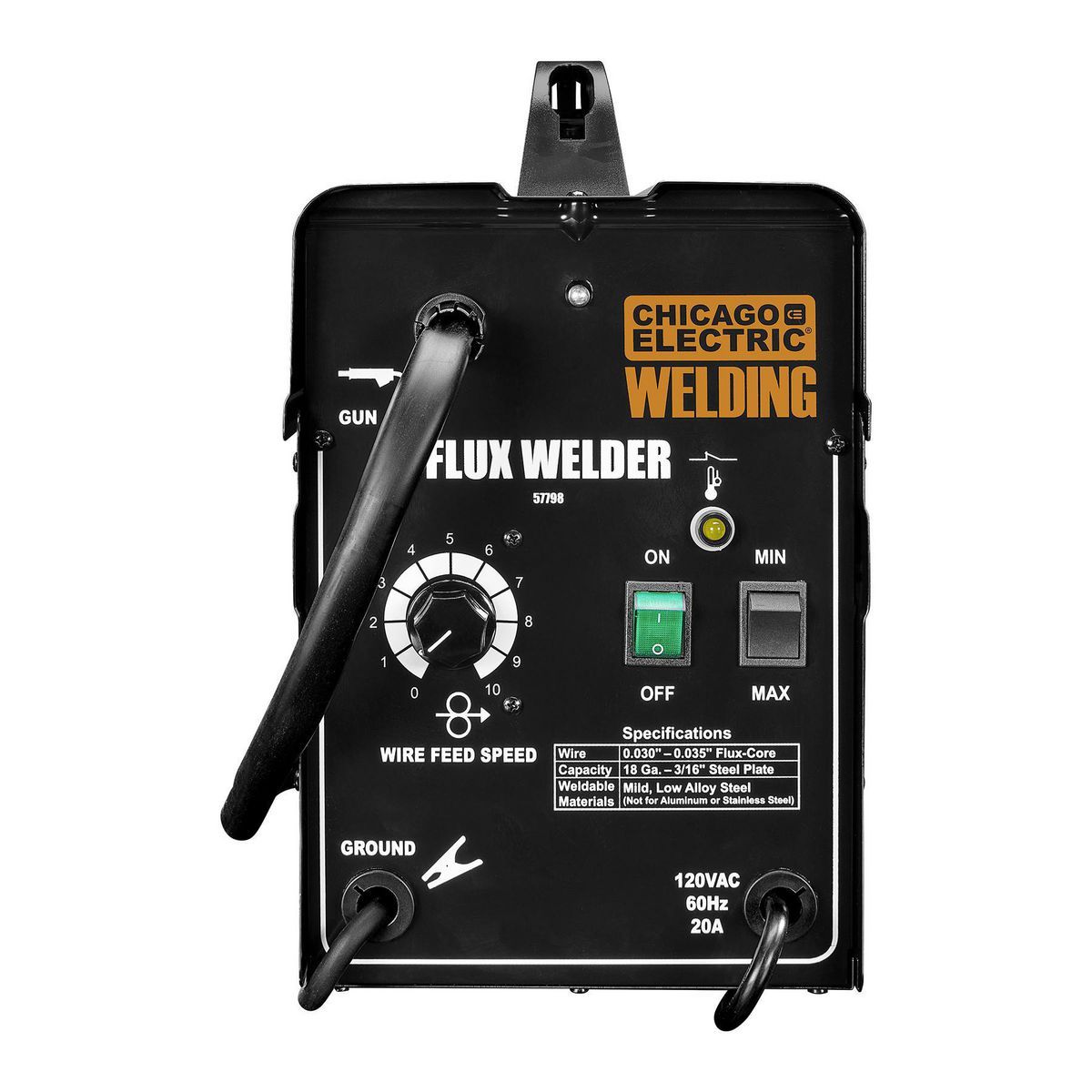

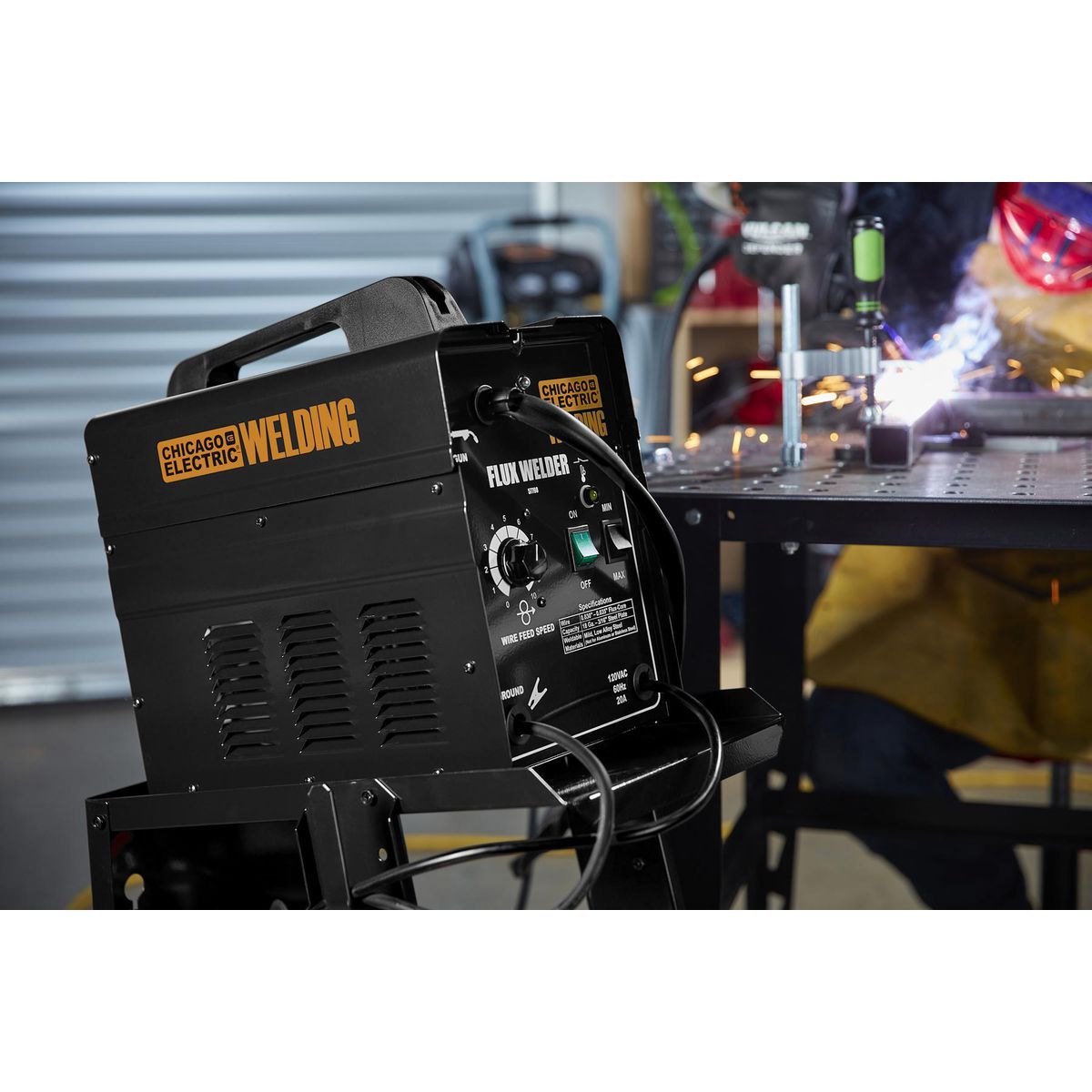

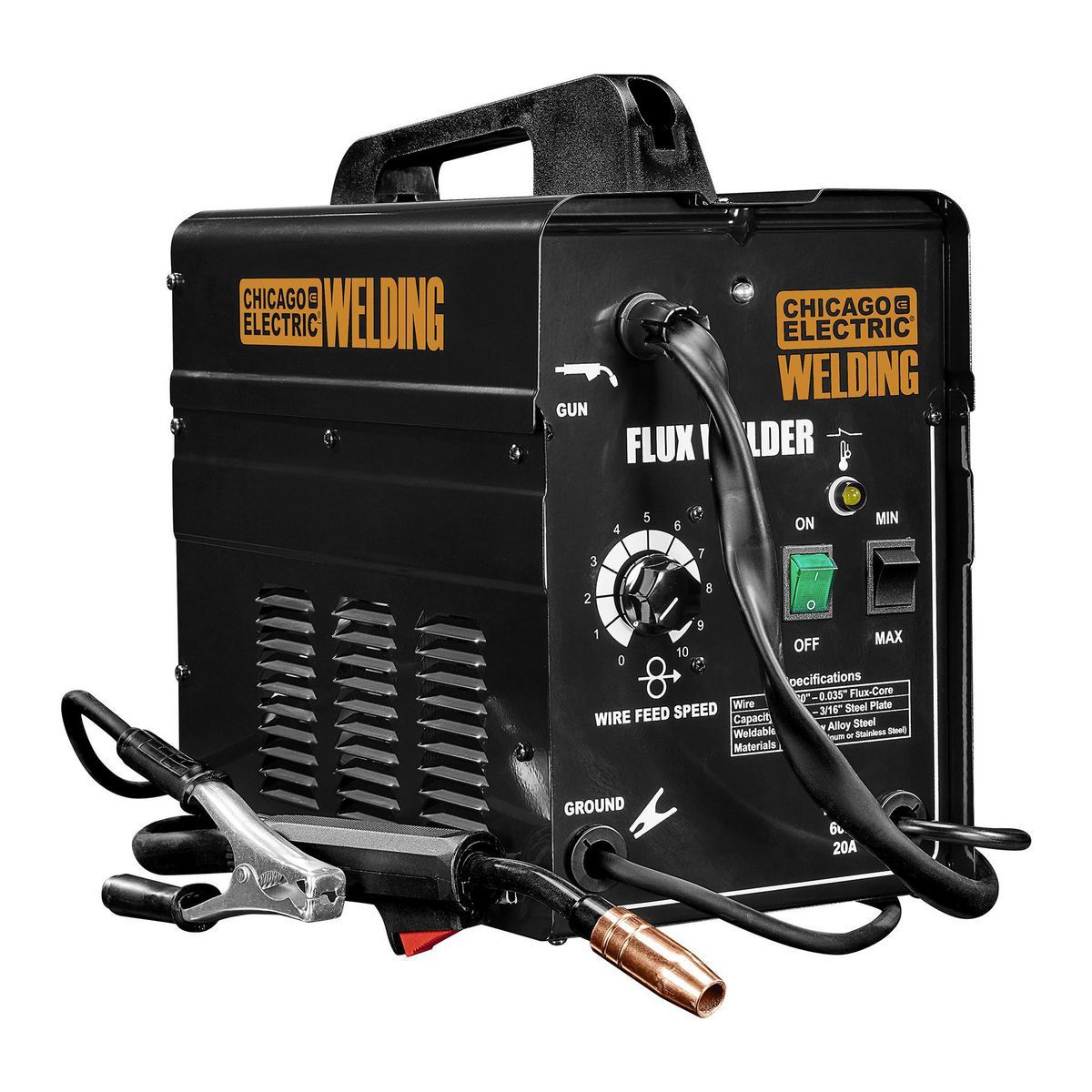

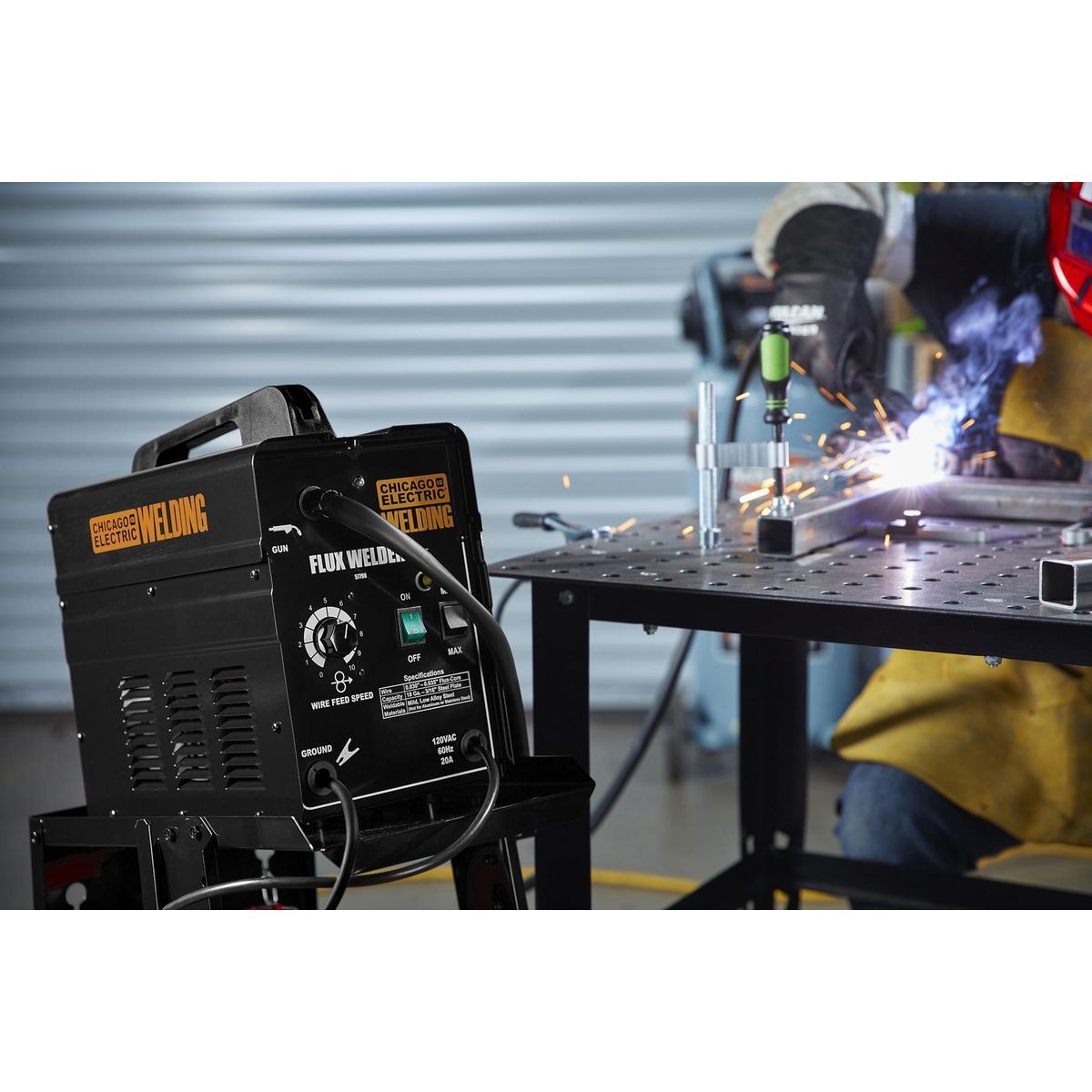

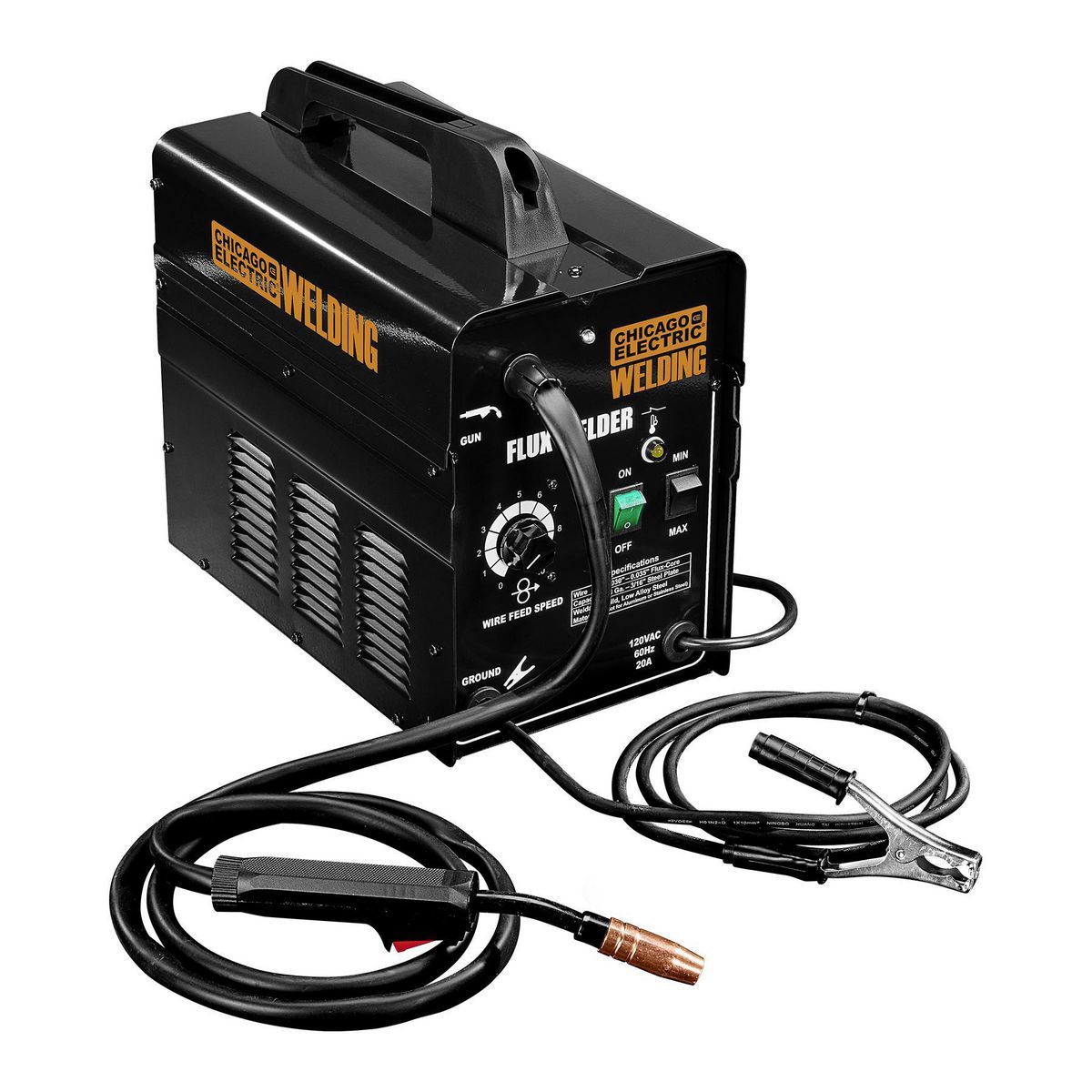

CHICAGO ELECTRIC Flux 125 Welder

CHICAGO ELECTRIC Flux 125 Welder

Get the benefit of wire welding without the hassle of gas. The Flux 125 Welder is a versatile flux core arc welder (FCAW) specifically designed to use self-shielding flux-cored welding wire. This eliminates the need for gas and regulators that normal MIG welders require. Set-up is easy for gasless flux-cored welding. With variable speed wire control and thermal overload protection, this flux wire welder provides dependable performance in a compact, lightweight package. The Flux 125 welder can weld mild steel from 18 gauge up to 3/16in. thick which makes it ideal for jobs around the yard, shop or house.

• The perfect welder for outdoor use and on dirty metals
• Output up to 125 amps
• Best in class duty cycle: 90A AC @17V, 20%
• Shielding gas NOT required – no need to buy gas bottles or regulators
• Trigger activated gun prevents accidental arc flash
• Compact, portable and lightweight – weighs just 38 lbs!
• Continuous wire feed speed control for optimal welding performance
• Built in overload protection to prevent overheating

Specifications

• Maximum Amperage Output: 125
• Product Height: 14-1/4 in.
• Product Length: 14-3/8 in.
• Product Weight: 38 lb.
• Product Width: 8-1/4 in.
• Shipping Weight: 34.90 lb.
• Thermal Overload Protection (y/n): Yes
• Minimum Amperage Output: 60
• Open Circuit Voltage: 27
• Weldable Metals: Mild, low alloy steel (not suitable for aluminum or stainless steel)
• Welding Capacities: 18 gauge to 3/16 in. thick (0.047 in.– 0.187 in.)
• Wire Size: 0.030 in. (0.8mm), 0.035 in. (0.9mm)
• Input Voltage: 120
