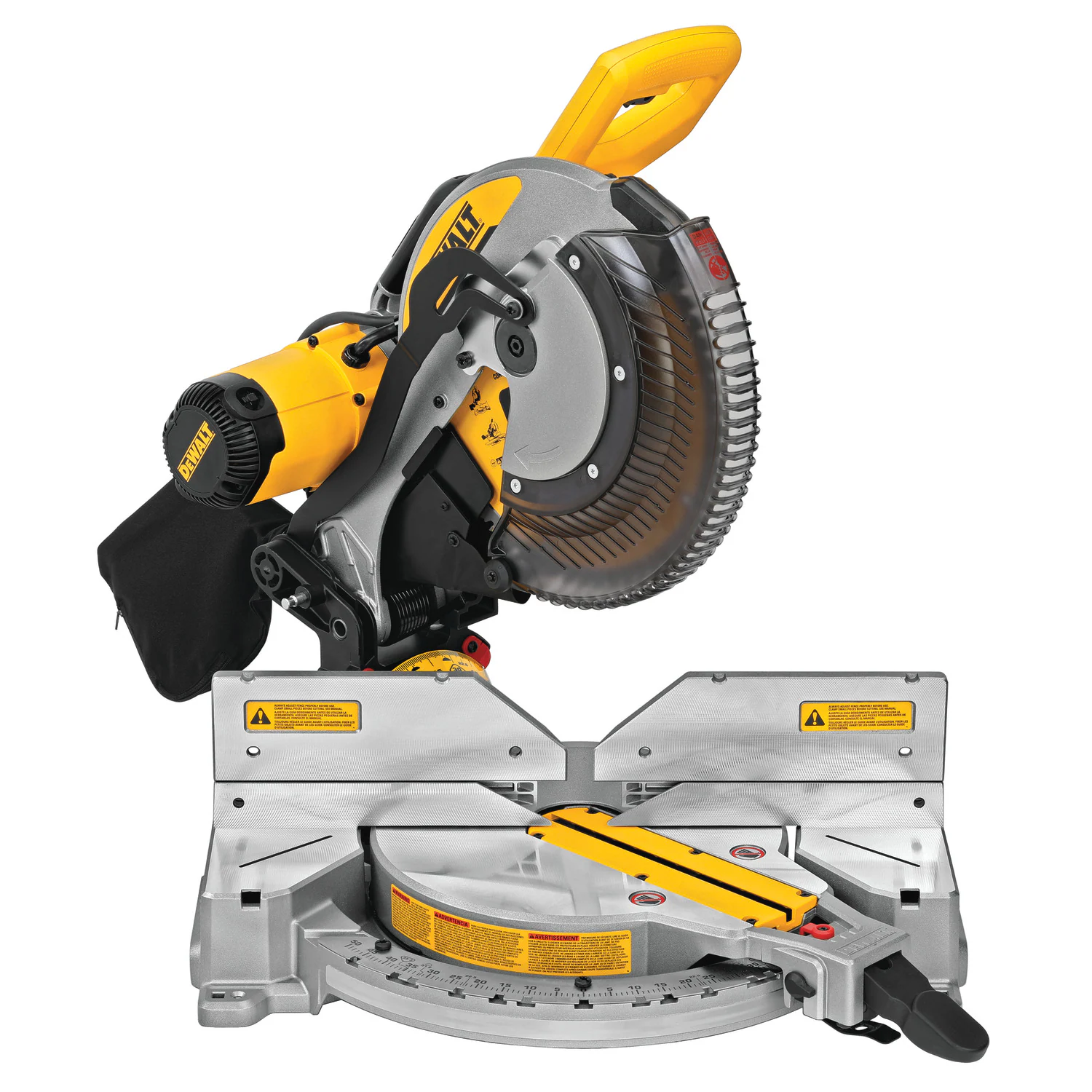

DEWALT DWS716XPS 12-in 15-Amp Dual Bevel Compound Corded Miter Saw (Battery and Charger Not Included)
The DWS716XPS 12-in double-bevel compound miter saw is powered by a 15 Amp motor that drives 3,800 rpm to deliver extended power and durability. Integrated Cutline LED work light system provides adjustment-free cut line indication for accuracy and visibility. This saw features a stainless steel miter detent plate with 14 positive stops and cam miter lock system that provides repeatable accuracy and durability with easy adjustments. Tall sliding fences support 6-1/2-in of base molding vertically and 6-5/8-in of crown molding vertically nested. High efficiency dust duct is concentrated at the point of cut for maximum collection. Lightweight design and built-in carry handle for portability.

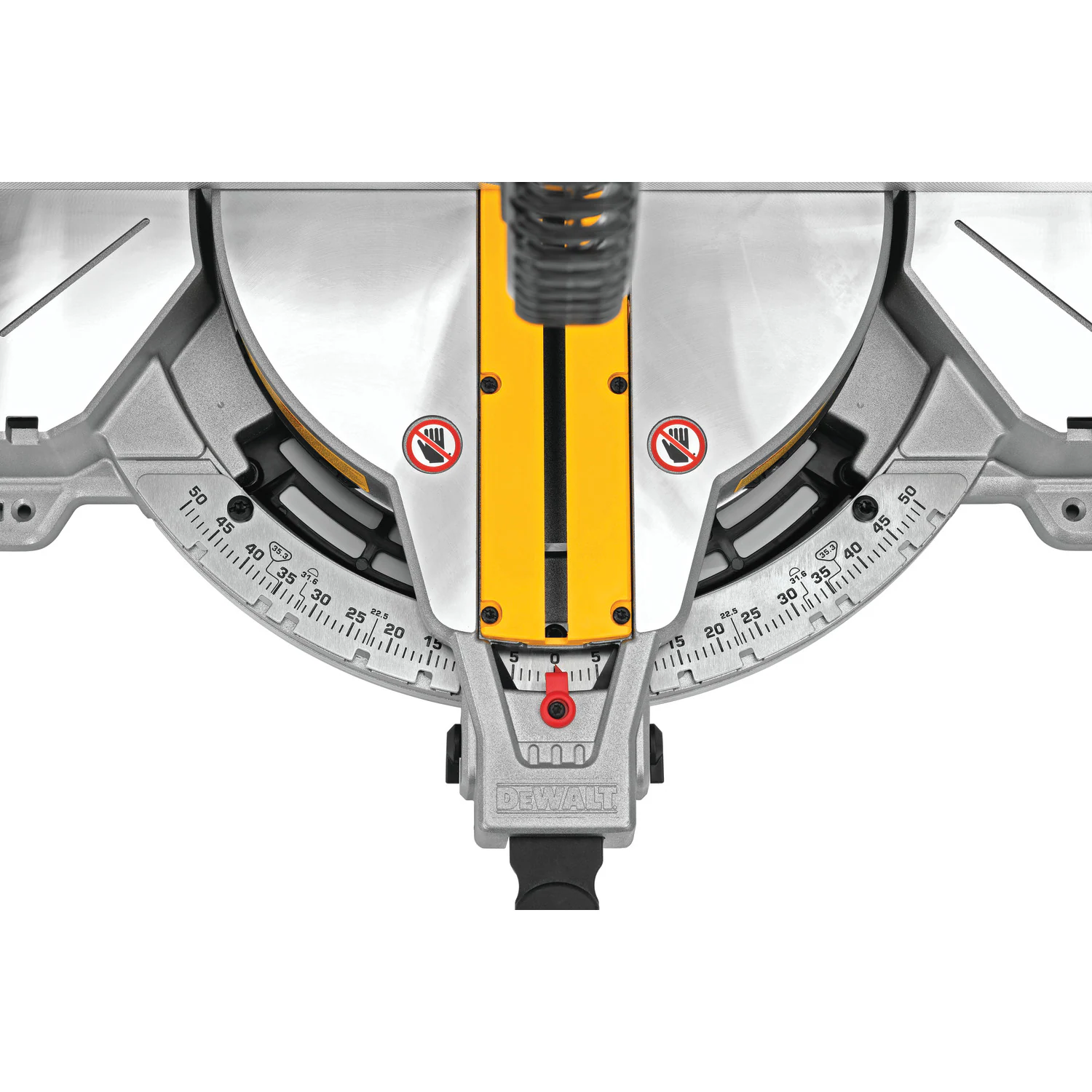

- Stainless steel miter detent plate with 14 positive stops delivers repeatable accuracy and work site durability
- Tall sliding fences support crown molding up to 6-5/8-in nested and base molding up to 6-1/2-in vertically against fence
- Double-bevel design allows saw to bevel 0°-48° to the left and right with positive stops at 0°, 22.5°, 33.9°, and 45°
- 0°-50° Left and right miter capacity
- Cam lock miter handle with detent override delivers quick and accurate miter angles
- Integrated cutline LED work light system provides adjustment-free cut line indication for accuracy and visibility

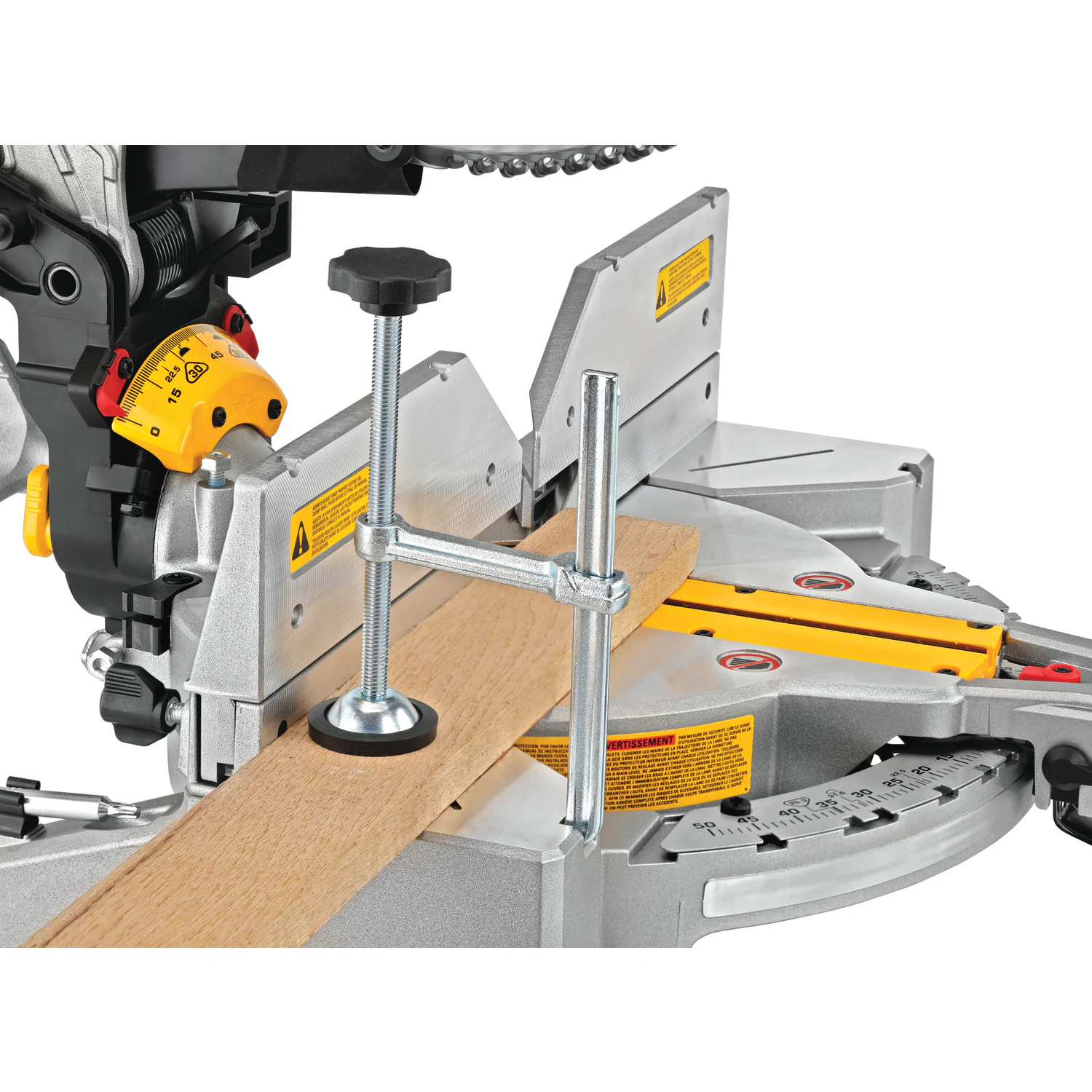

- Includes DWS716XPS double-bevel compound miter saw, 12-in carbide tipped blade, wrench, dust bag and vertical clamp
General | |||
---|---|---|---|
Laser Color | XPS light | Sub-Brand | N/A |
Dimensions | |||
---|---|---|---|
Arbor Diameter | 5/8-in and 1-in | Length (Inches) | 15 |
Bevel Capacity (Degrees) | 50 | Maximum Fence Height (Inches) | 6.625 |
Cord Length (Feet) | 6 | Saw Blade Diameter | 12-in |
Depth of Cut at 45 Degrees (Inches) | 6 | Tool Weight (lbs.) | 41 |
Depth of Cut at 90 Degrees (Inches) | 8 | Width (Inches) | 22.5 |
Height (Inches) | 16.5 |
Features | |||
---|---|---|---|
Amperage (Amps) | 15 | Laser Guide | No |
Battery Included | No | Maximum Miter Cut – Left (Degrees) | 50 |
Bevel | Dual | Maximum Miter Cut – Right (Degrees) | 50 |
Bevel Lock Style | Clamp | Maximum Speed (RPM) | 3800 |
Blade Included | Yes | Miter Stop | Yes |
Charger Included | No | Power Rating (HP) | 0 |
Compound | Yes | Quick Release Vise | Yes |
Cordless | No | Slide | No |
Dust Handling | Port | Sliding Fence | Yes |
Electric Brake | Yes | Spindle Lock | Yes |
Folding | No | Worm Drive | No |
Hybrid Capable | No |
