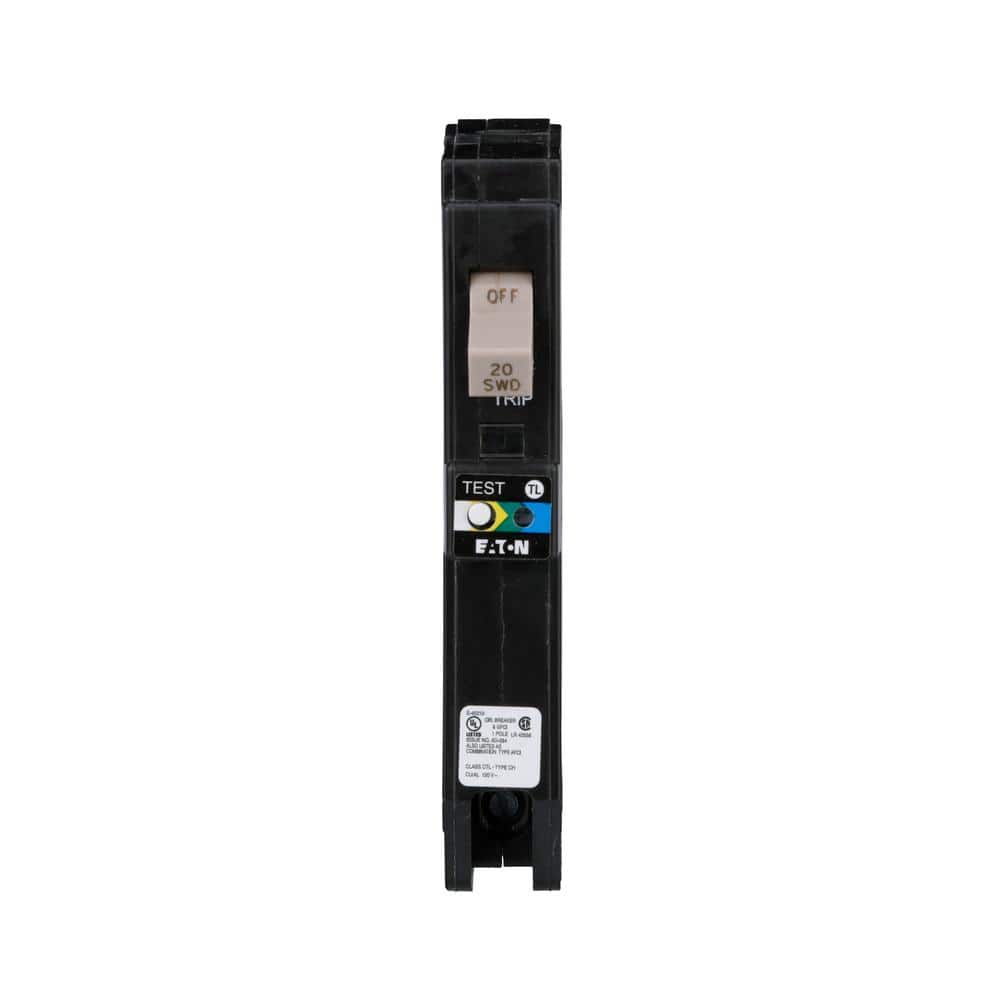

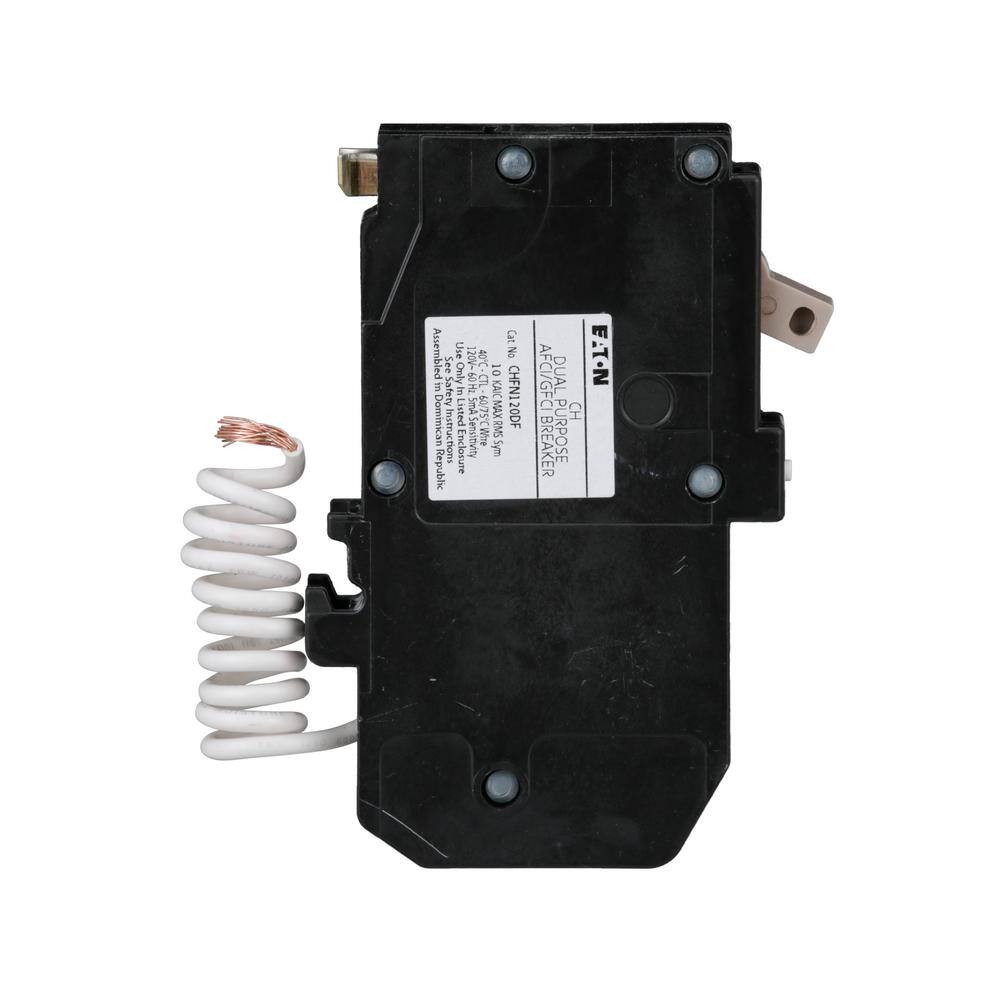

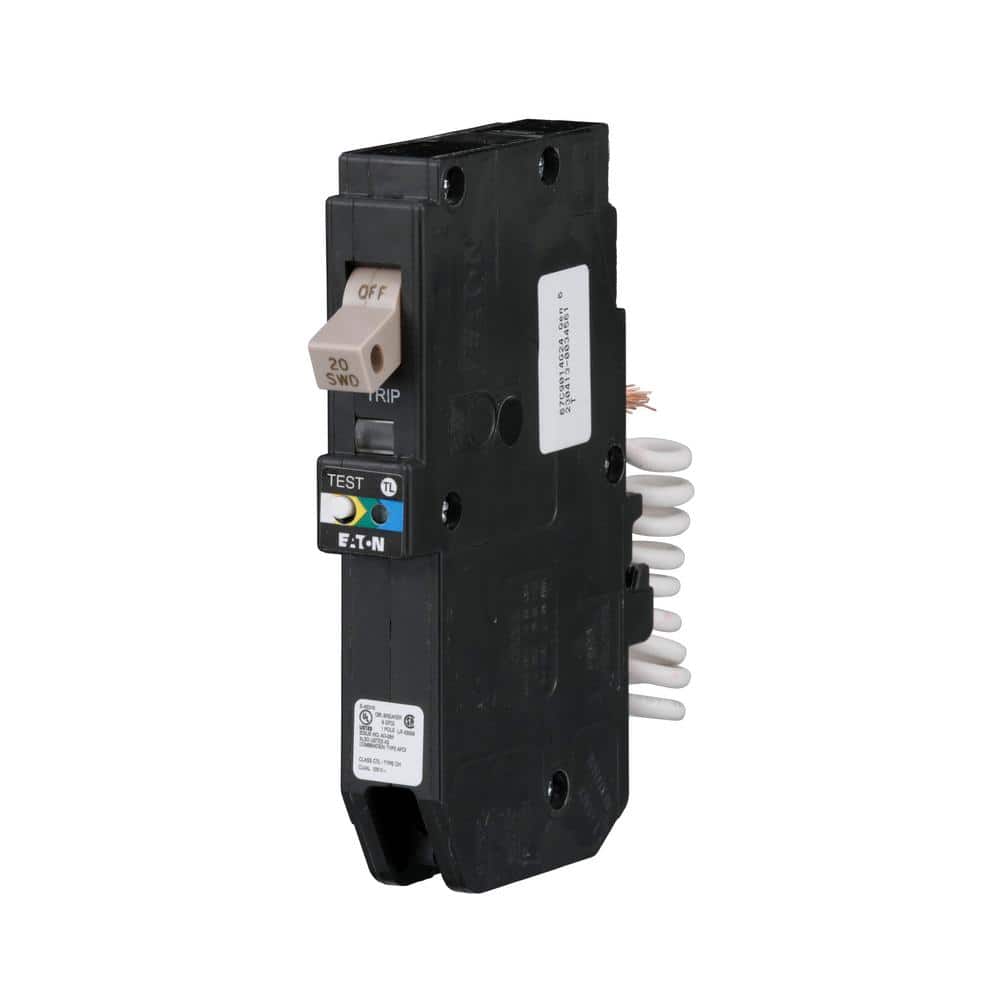

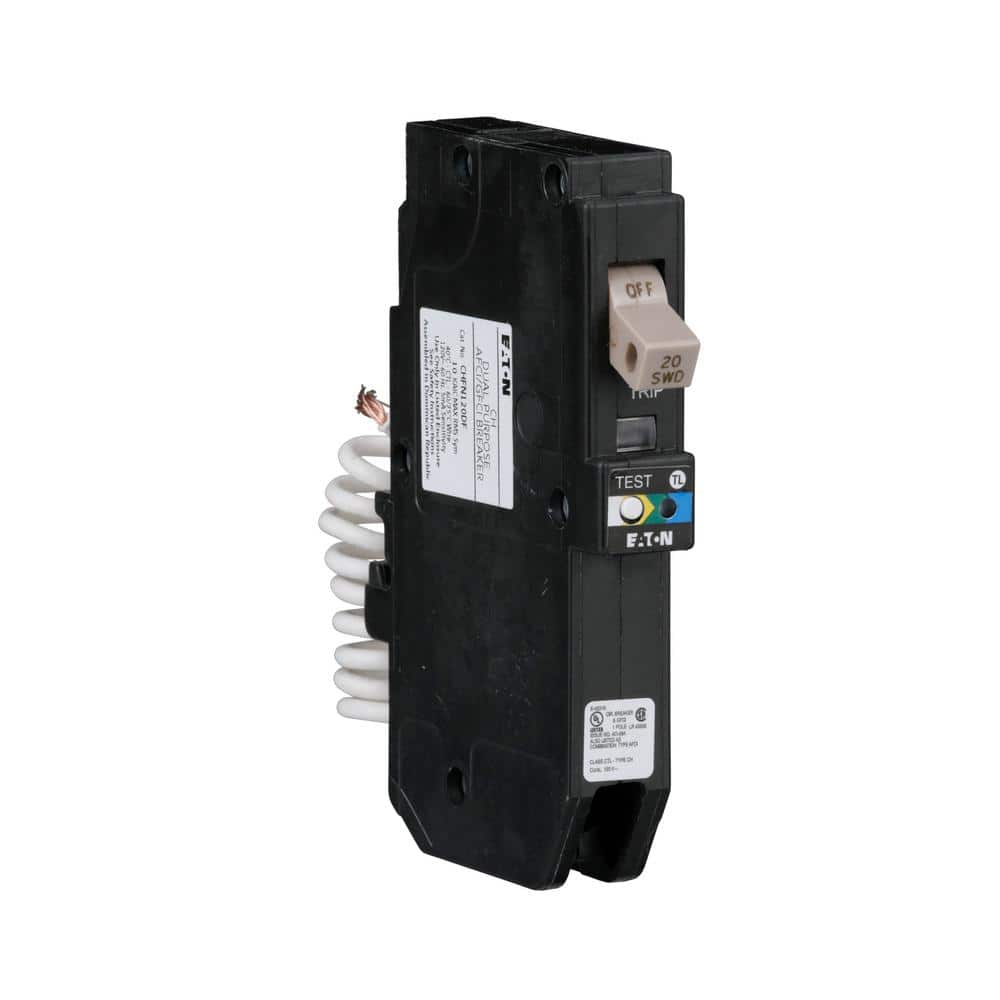

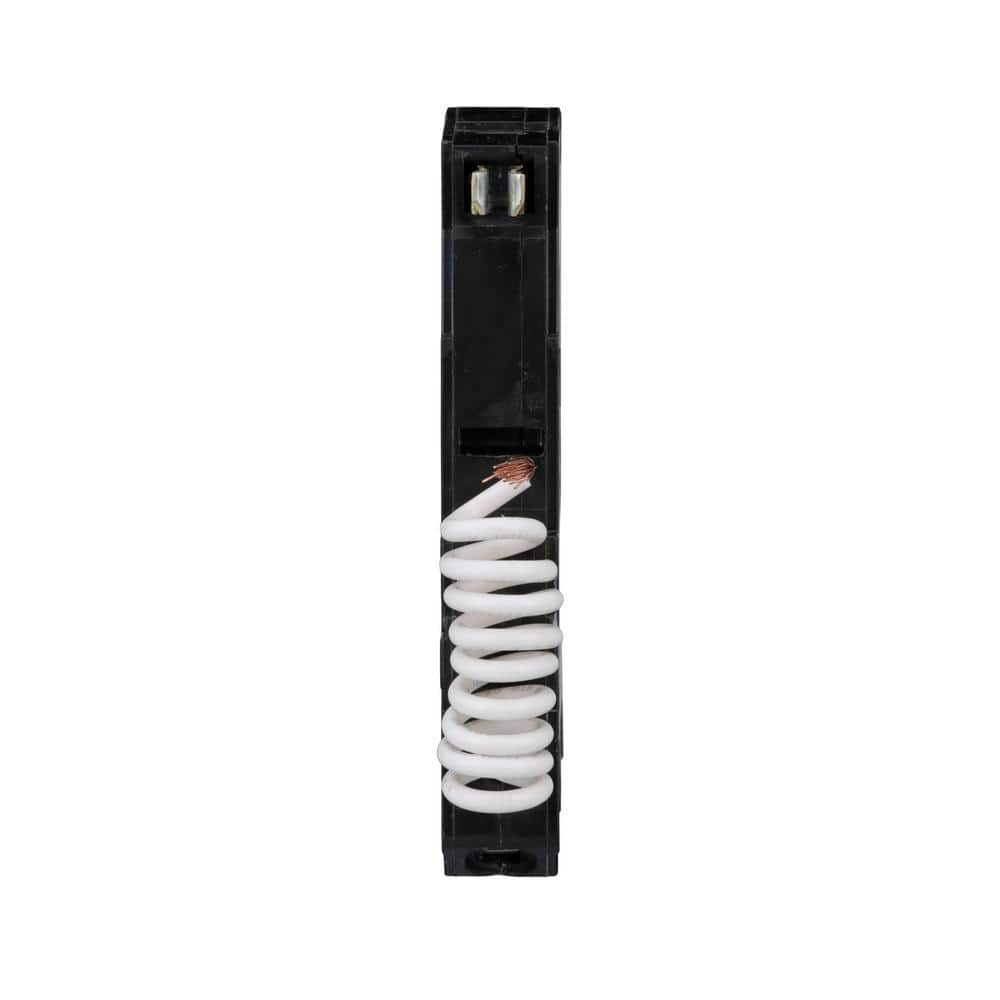

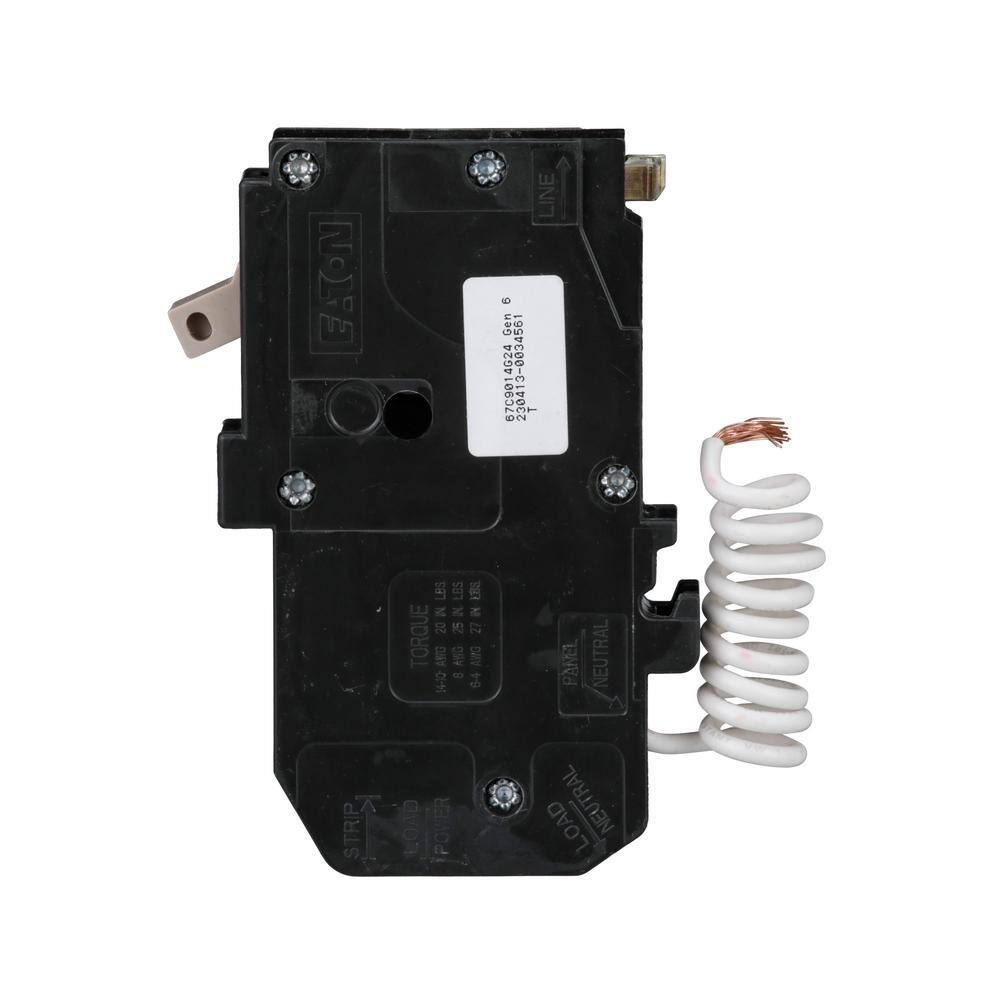

Eaton 20 Amp All in One AF/GF Breaker CHFN120A1CS
Eaton’s dual purpose arc fault/ground fault (AF/GF) circuit interrupter for residential and light commercial applications. The AF/GF circuit interrupter was developed in response to the 2017 National Electrical Code (NEC) that now requires AFCI protection in kitchens and laundry areas as well as the historical requirement of ground fault protection. Eatons AF/GF circuit interrupter will offer both types of protection in one familiar package. The AF/GF circuit interrupter provides quick installation and a single location to easily access and identify tripped circuits. Eatons short-body AF/GF breaker can replace or fulfill all AFCI, GFCI or AF/GF requirements in an Eaton panel.
Highlights
- Provides both AFCI and GFCI protection in one breaker, allowing for a single point of reset
- Integral LED indicates different trip causes reducing troubleshooting time
- CH breakers provide 2 position handle with simple 1 step reset
- Trip flag visibly indicates breaker status
Specifications
Dimensions
| Product Depth (in.) | .75 in | Product Height (in.) | 4.7 in |
|---|---|---|---|
| Product Width (in.) | 3.25 in |
| AIC Rating | 10000 | Breaker Type | Standard |
|---|---|---|---|
| Connection Type | Neutral | Interruption Type | AFCI/GFCI |
| Maximum Amperage (A) | 20 A | Mounting Type | Plug-On |
| Number of Poles | Single | Number of Spaces | 1 |
| Pack Size | 1 | Power Distribution Features | No Additional Features |
| Product Weight (lb.) | .5 lb | Voltage (V) | 120/240 V |
| Series Type | CH | Trip Unit | Electronic |
| Brand | Eaton |
|---|
