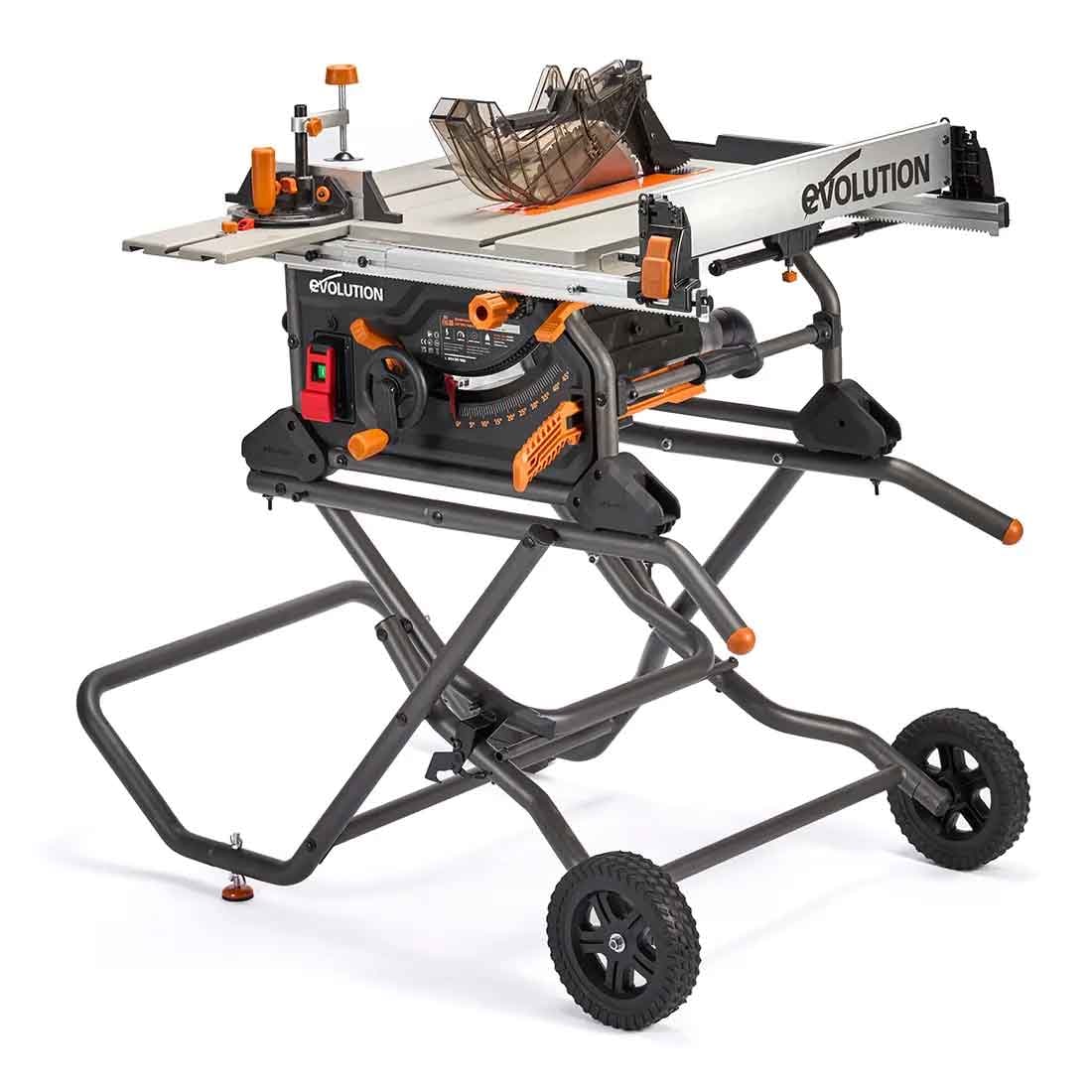

Evolution Table Saws 10-in 15 -Amp 120 -Volt Portable Jobsite Table Saw
- Powerful: Fine-tuned 15A motor delivers maximum torque to rip through the toughest materials including mild steel.
- Portable: Lightweight steel frame with carry handles design makes it easy to transport to and from job sites.
- Accurate: Dual rack and pinion fence rails, tool-free parallel blade alignment and sway-free blade height adjustment deliver the perfect cuts first time, every time.
- Safe: Advanced safety features include a split blade guard with anti-kickback pawls, a large paddle switch for quick shutoff, and an electronic blade brake to stop the blade in seconds.
Specifications
| General | |||
|---|---|---|---|
| Series Name | Table Saws | Blade Material | Carbide-tipped |
| Type | Jobsite |
| Dimensions | |||
|---|---|---|---|
| Arbor Diameter | 5/8-in | Maximum Depth at 90 Degrees (Inches) | 3.34 |
| Bevel Capacity (Degrees) | 45 | Right Rip Capacity (Inches) | 25.6 |
| Blade Size (Inches) | 10 | Saw Blade Diameter | 10-in |
| Cutting Depth (Inches) | 3.3 | Table Height (Inches) | 14 |
| Depth Control | Yes | Table Length (Inches) | 22.7 |
| Height (Inches) | 13 | Table Width (Inches) | 22 |
| Left Rip Capacity (Inches) | 14.5 | Weight (lbs.) | 30 |
| Maximum Depth at 45 Degrees (Inches) | 2.3 |
| Features | |||
|---|---|---|---|
| Amps | 15 | Maximum Blade Speed (RPM) | 3300 |
| Auxiliary Handle | No | Micro Adjust Rip Fence | No |
| Battery Included | No | Portable | Yes |
| Blade Included | Yes | Repetitive Cut Marking System | No |
| Caster Platform Included | No | Spindle Lock | No |
| Charger Included | No | Voltage | 120 |
| Cordless | No | Worm Drive | No |
| Dust Handling | Port |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | Safety Listing | TUV safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 23101500 |









Reviews
There are no reviews yet.
