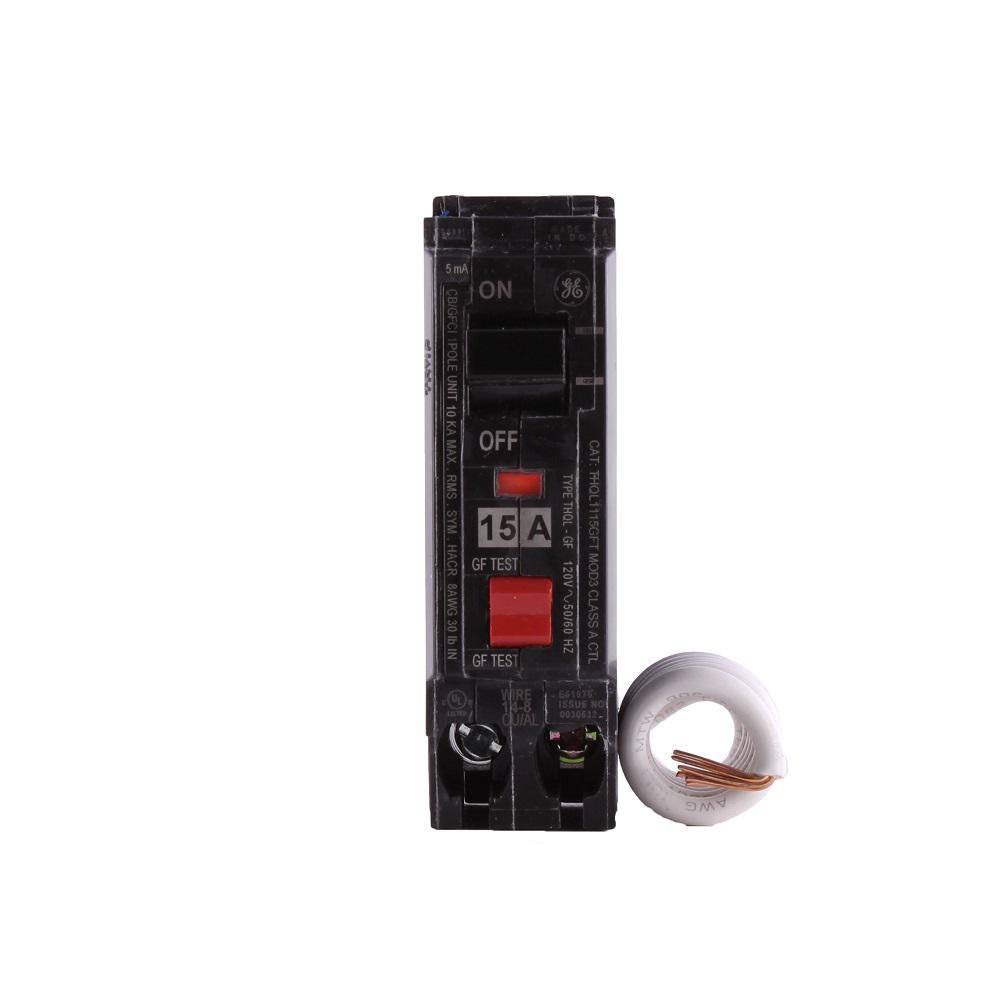

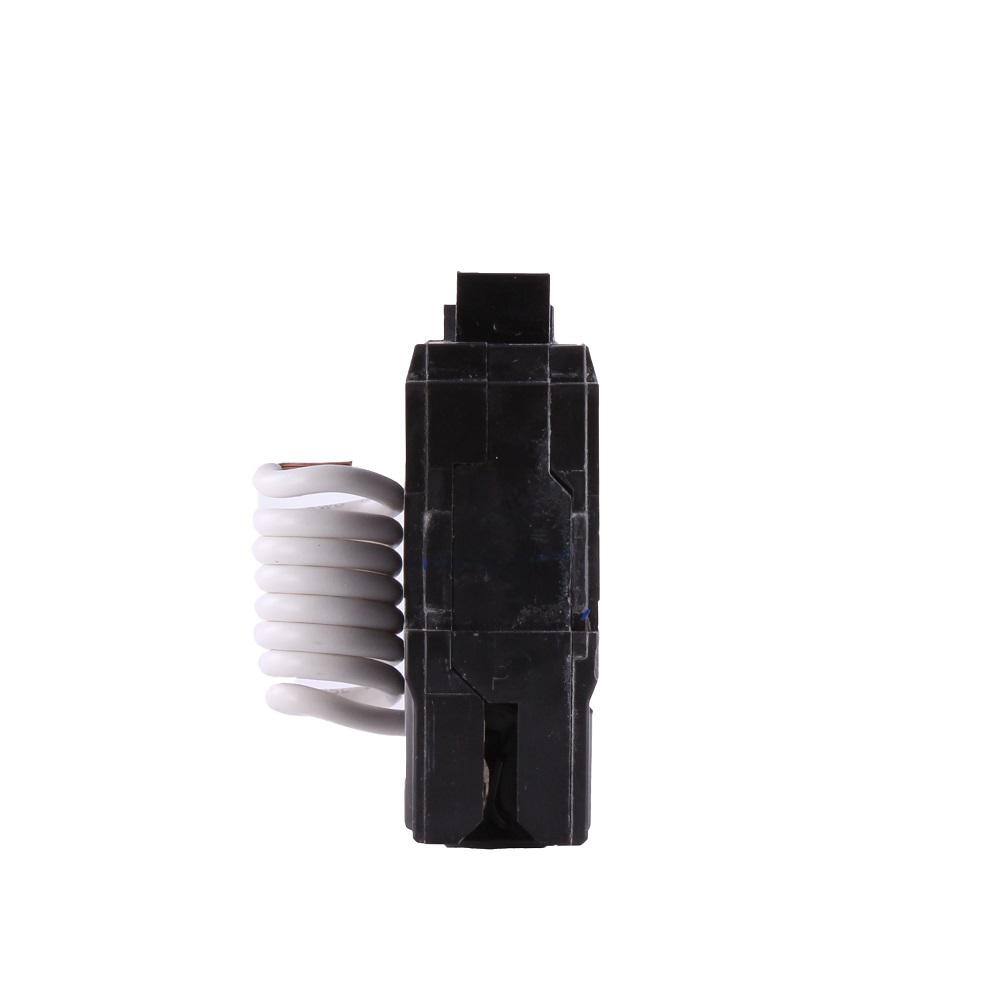

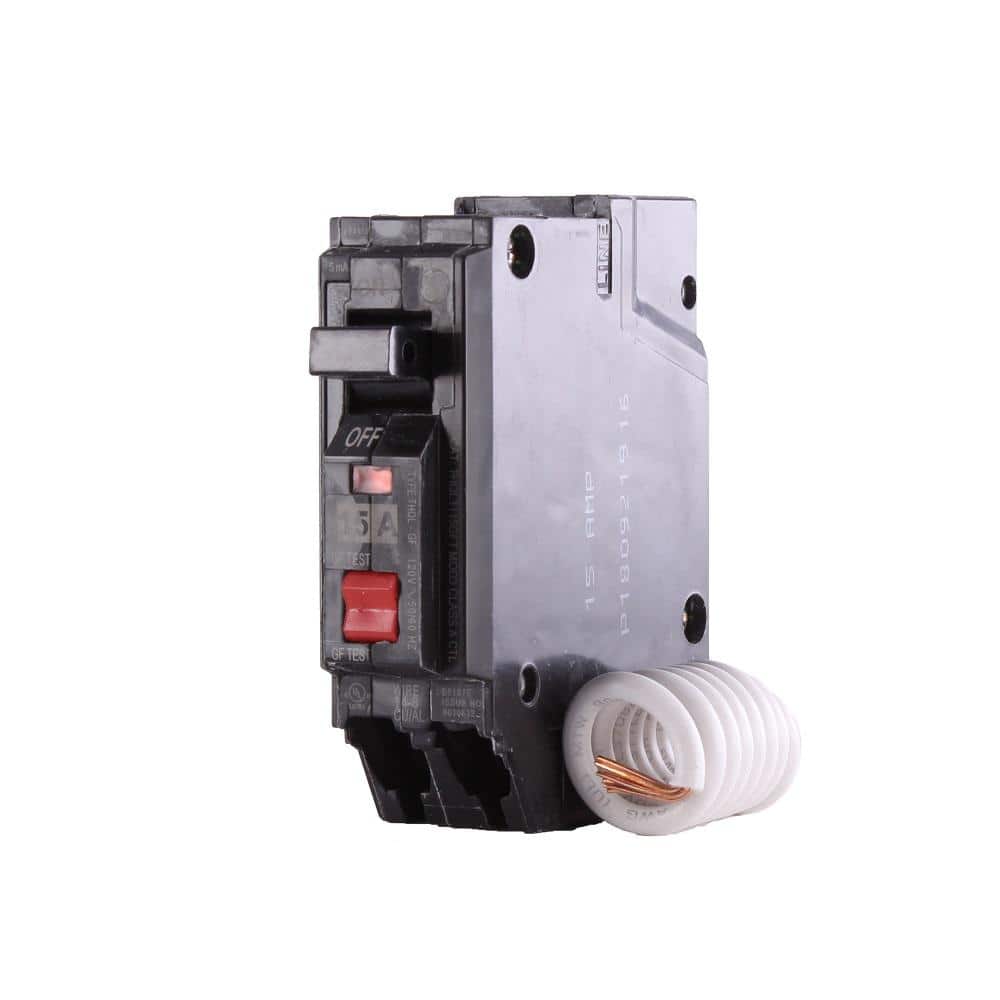

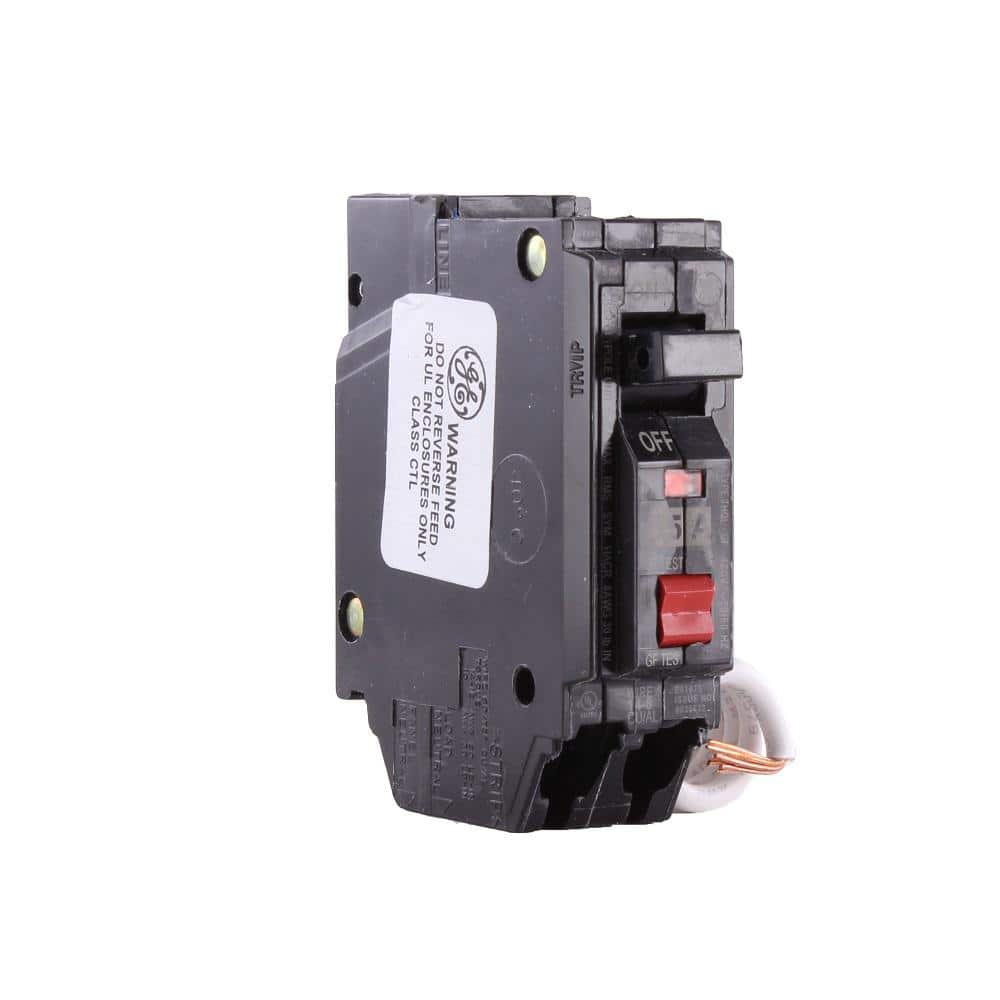

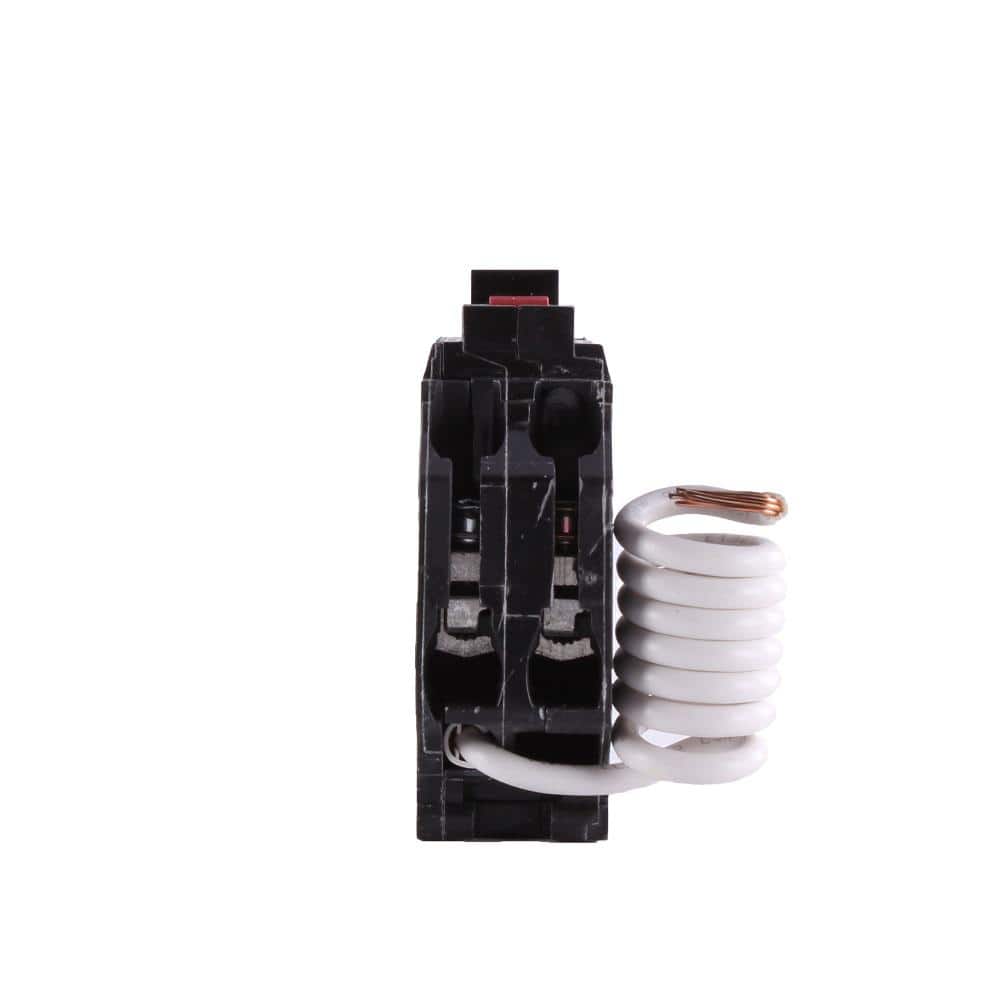

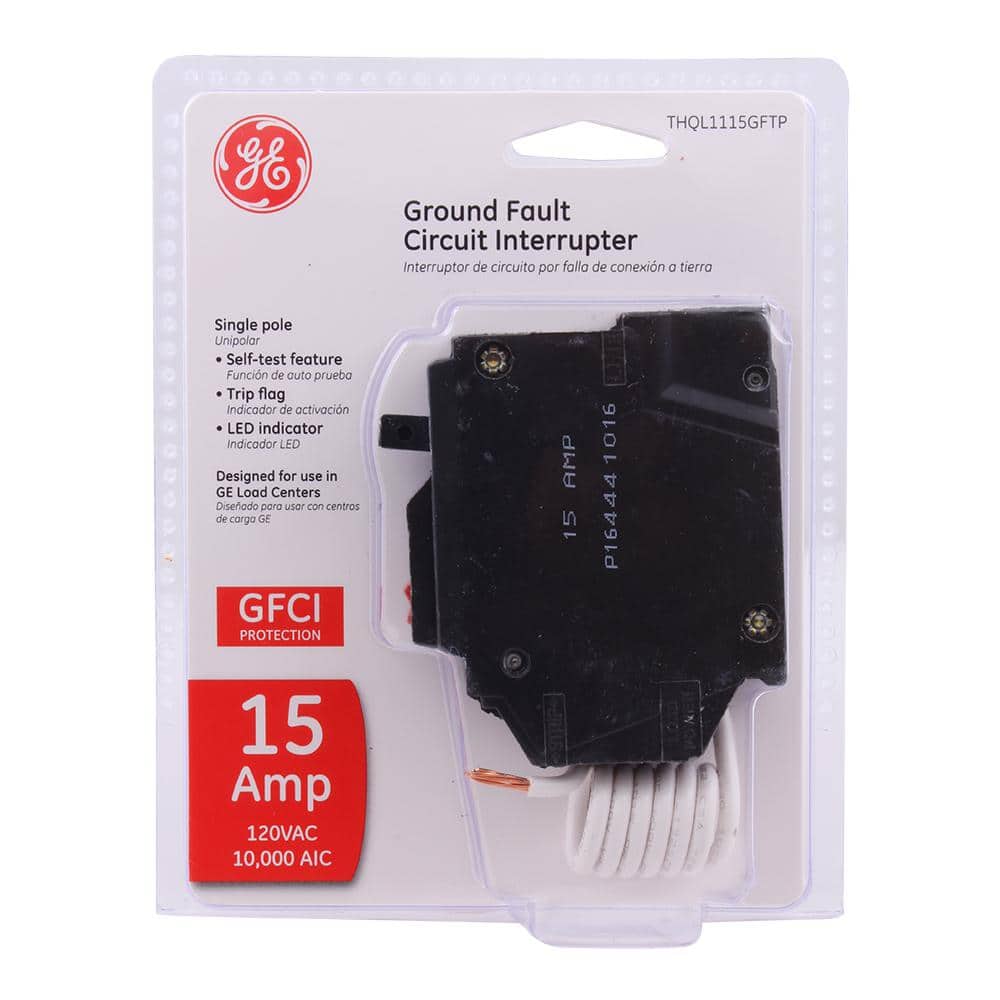

GE 15 Amp Single Pole Ground Fault Breaker with Self-Test THQL1115GFTP
The GE 15 Amp Single Pole Ground Fault Circuit Breaker with Self-Test has a tin plated copper stab to create a reliable, permanent and corrosion resistant connection. It is used as a substitute to GFCI wall outlets allowing the customer to know exactly where to go (back to electrical panel) in the event of a tripped circuit. No more searching for the correct wall outlet to reset. The Self-Test functionality is a UL requirement on all GFCI devices commencing in June 2015. This variant of the GFCI ensures its ground circuitry is functioning properly by automatically running diagnostic testing on a periodic basis. Should a problem be detected, the circuit breaker will trip and will need to be replaced.
Highlights
- Unit provides protection against overloads, short circuits and ground faults
- Detects very low levels of electrical current leakage (ground faults) and acts quickly to shut off power, preventing serious shock
- Class A 5mA ground fault circuit interrupter
- Wire range is #14-8 AWG CU/#12-8 AWG AL
- UL listed n0. E51075
Specifications
Dimensions
| Product Depth (in.) | 3 in | Product Height (in.) | 4.5 in |
|---|---|---|---|
| Product Width (in.) | 1.25 in |
| AIC Rating | 10000 | Breaker Type | Standard |
|---|---|---|---|
| Connection Type | Pigtail | Interruption Type | GFCI |
| Maximum Amperage (A) | 15 A | Mounting Type | Plug-On |
| Number of Poles | Single | Number of Spaces | 1 |
| Pack Size | 1 | Product Weight (lb.) | .479 lb |
| Voltage (V) | 120 V | Series Type | Not Specified |
| Trip Unit | Electronic |
| Brand | GE |
|---|
