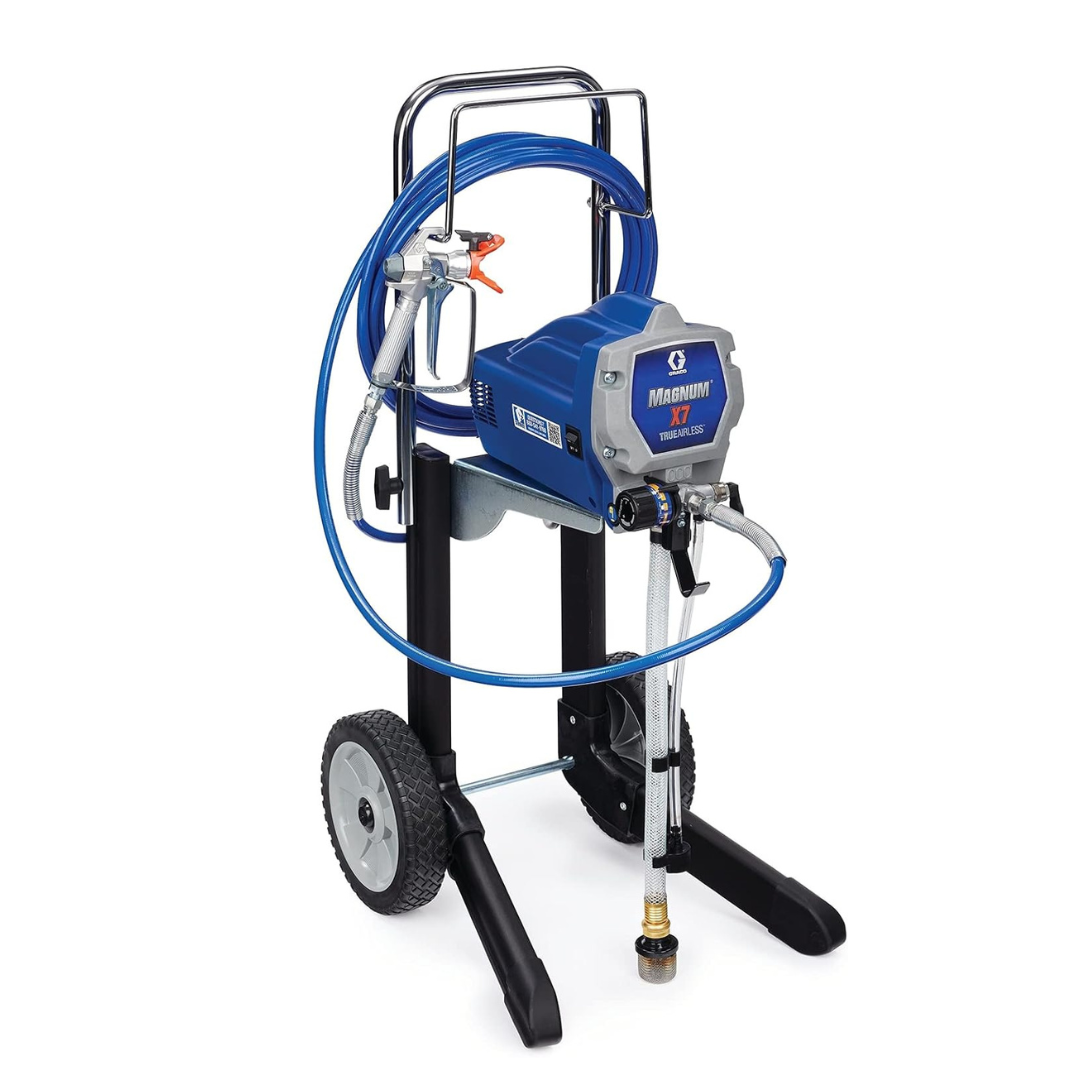

Graco Magnum 262805 X7 Cart Airless Paint Sprayer, Gray

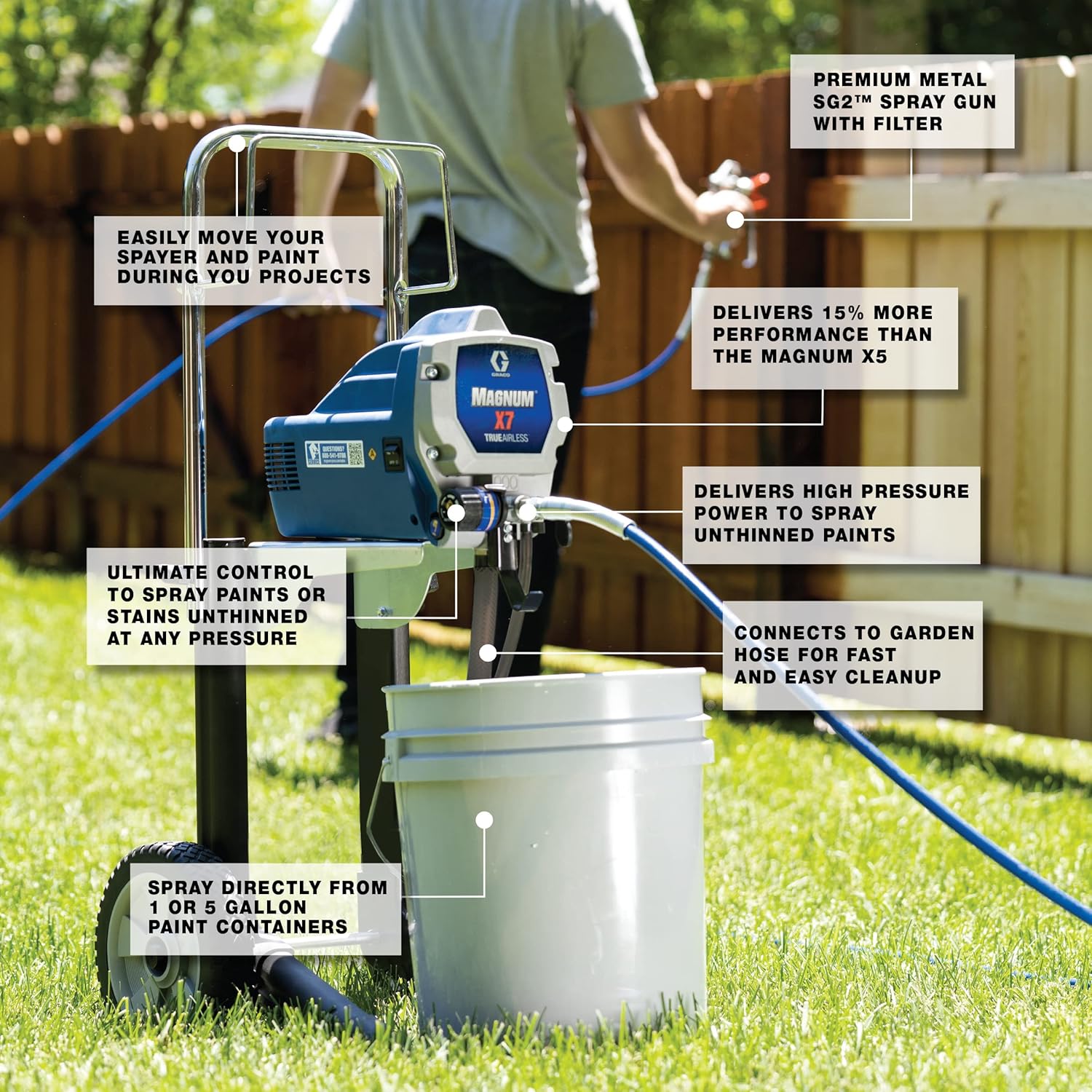

The Graco Project Series sprayers make it easy for avid DIY homeowners and handymen to power through small to midsize jobs with speed and finesse. DIY homeowners and handymen are equipped to save time and money with the Magnum X7. Tackle any indoor project, exterior homes, fences or decks. Includes SG2 Metal Spray Gun, RAC IV 515 Switch Tip, 25 ft. Durable paint hose, Pump Armor storage fluid, Power Flush adapter, Quick Start-Up Guide and Operation Manual. Inlet Paint Strainer- 35 Mesh Stainless Steel Screen.

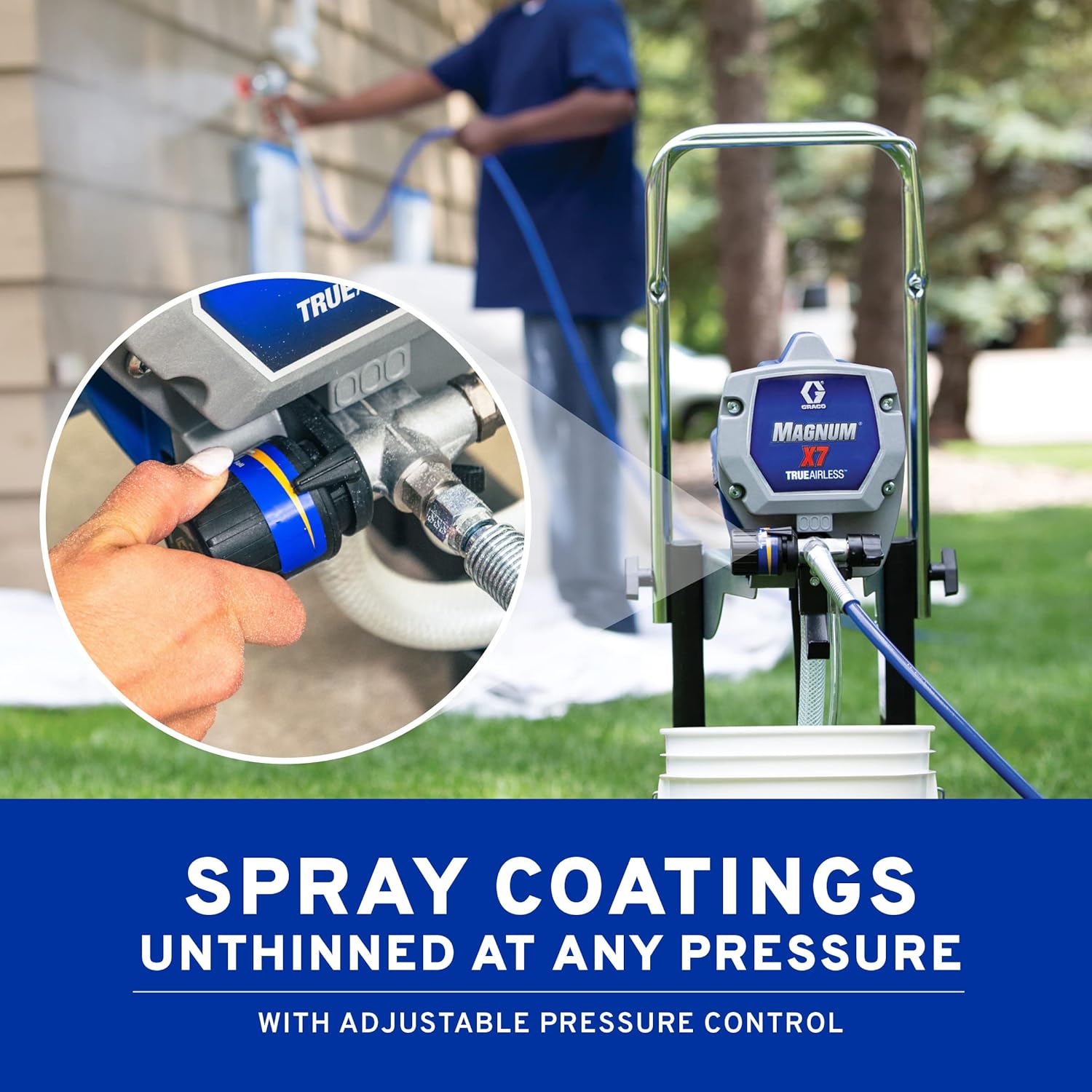

- CONTROL PAINT FLOW: Fully adjustable pressure to give you ultimate control of paint flow for any project size; RAC IV SwitchTip allows you to reverse the tip when clogged to keep you spraying
- SPRAY PAINT UNTHINNED: Stainless Steel Piston Pump allows you to spray paint unthinned at high pressure
- SPRAY DIRECTLY FROM PAINT BUCKET: Flexible suction tube allows you to spray directly from a 1 or 5 gallon paint bucket
- SPRAY MORE PROJECTS EACH YEAR: Annual use recommendation is up to 125 gallons per year
- FAST AND EASY CLEAN-UP: PowerFlush Adapter connects to a garden hose for fast and easy cleaning
- IDEAL FOR MULTI STORY HOMES: Can support up to 100 ft of paint hose allowing you to spray second and third story homes
- CONTINUOUS SPRAYING: RAC IV SwitchTip allows you to reverse the tip when clogged to keep you spraying
- VOLTAGE: 110 volts. PushPrime – Fast and reliable start-up every time.
- Convenient Cart – Easily move sprayer around on the job

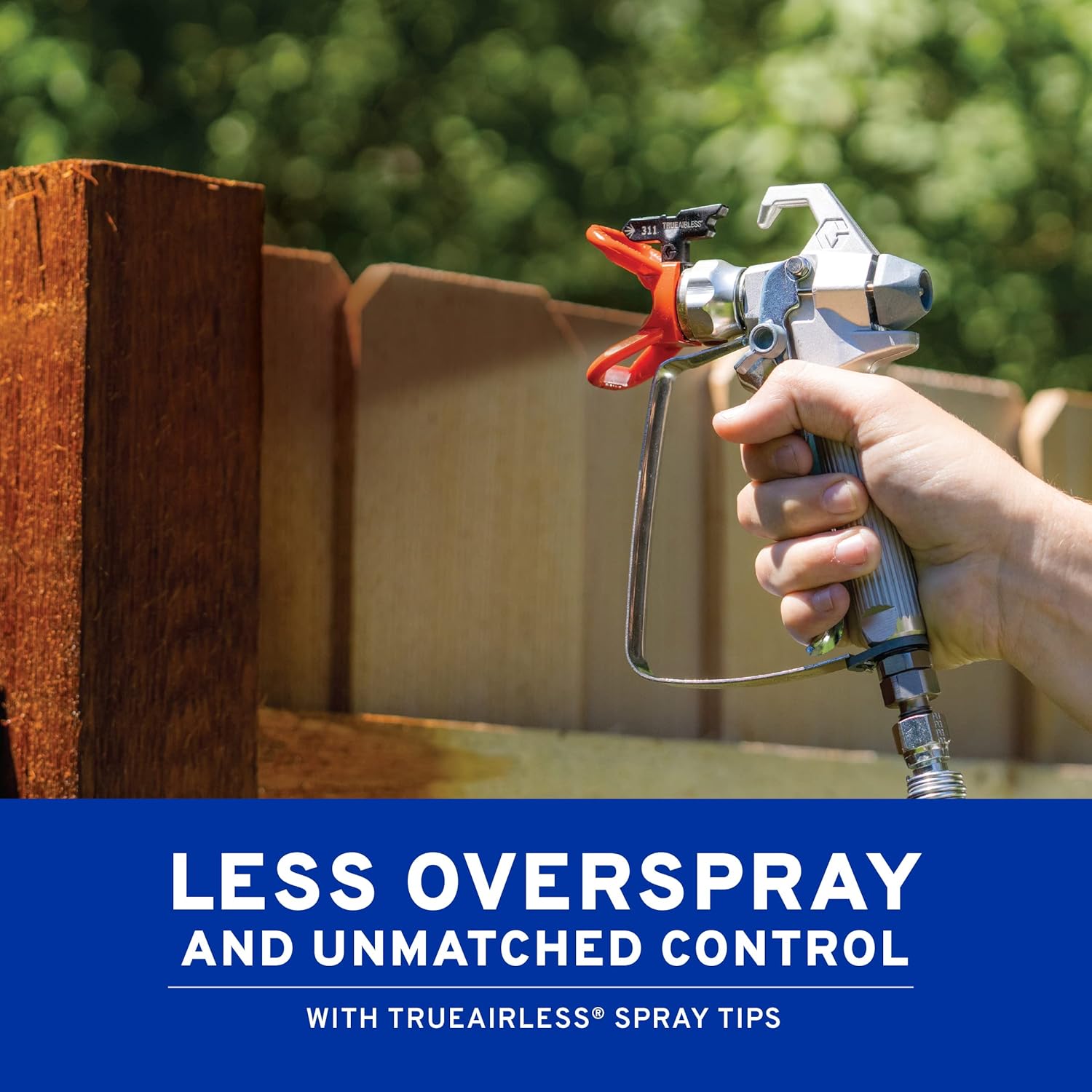

- TrueAirless Spray Tip with SoftSpray Technology – greater control and less overspray with a wide range of coatings
Specifications
| General | |||
|---|---|---|---|
| Collection/Series Name | Magnum X7 | Pump Type | Piston |
| Series Name | Magnum X7 | Filter Type | 30-mesh |
| Type | Stationary | Gun Trigger Type | 4-finger |
| Power Source | Electric | Cup Fed | No |
| Grade | Residential | Direct Syphon | Yes |
| Use Location | Indoor/Outdoor | Spray Gun Material | Metal |
| Airflow (CFM) | 0 | Material Flow Control | Yes |
| Housing Material | Plastic | ||
| Dimensions | |||
|---|---|---|---|
| Depth (Inches) | 19.5 | Minimum Fan Pattern Width (Inches) | 4 |
| Direct Syphon Capacity | 1-5 gallon | Minimum Tip Size (Inches) | 0.009 |
| Height (Inches) | 36.75 | Tip Size | 0.015-in |
| Hose Length (Feet) | 25 | Tip Size Code | 515 |
| Maximum Fan Pattern Width (Inches) | 10 | Weight (lbs.) | 26 |
| Maximum Hose Length (Feet) | 100 | Width (Inches) | 15.5 |
| Maximum Hose Length Capability (Feet) | 100 | Battery Amp Hours | 0 |
| Maximum Tip Size (Inches) | 0.017 | Diameter of Hose Included | 1/4-in |
| Features | |||
|---|---|---|---|
| Actual Gallons per Minute | 0.31 | Multi-Directional Spray | Yes |
| Adjustable Fan Pattern Control | Yes | Pressure Rating (PSI) | 3000 |
| Adjustable Spray Pattern | Yes | Pump Replaceable | No |
| Battery(s) Included | No | Spray Gun Filter | Yes |
| Built-In Hose Swivel | No | Variable PSI | Yes |
| Cordless | No | Voltage (Volts) | 110 |
| Engine Horsepower | 0.625 | Wheeled | Yes |
| Flow Rate (GPM) | 0.31 | ||
| Compatibility | |||
|---|---|---|---|
| For Use with Stains | Yes | For Use with Walls | Yes |
| For Use with Latex Paints | Yes | For Use with Floors & Ceilings | Yes |
| For Use with Oil Paints | Yes | For Use with Woodworking Projects | Yes |
| For Use with Doors | Yes | For Use with Furniture & Cabinets | Yes |
| For Use with Acrylic Paints | Yes | For Use with Decking | Yes |
| For Use with Lacquers | No | For Use with Fencing | Yes |
| For Use with Water-Based Paints | Yes | For Use with Oil-Based Stains | Yes |
| For Use with Elastomerics | No | Use with Material Flash Point (Degrees) | 100 |
| For Use with Urethanes and Varnishes | Yes | ||
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | Safety Listing | ETL safety listing | |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 31211900 | ||





















Chase –
I recently purchased the Magnum X7 sprayer. The sprayer flawlessly painted a large garage and a garden shed. The user guide was easy to follow. The clean-up was a snap
