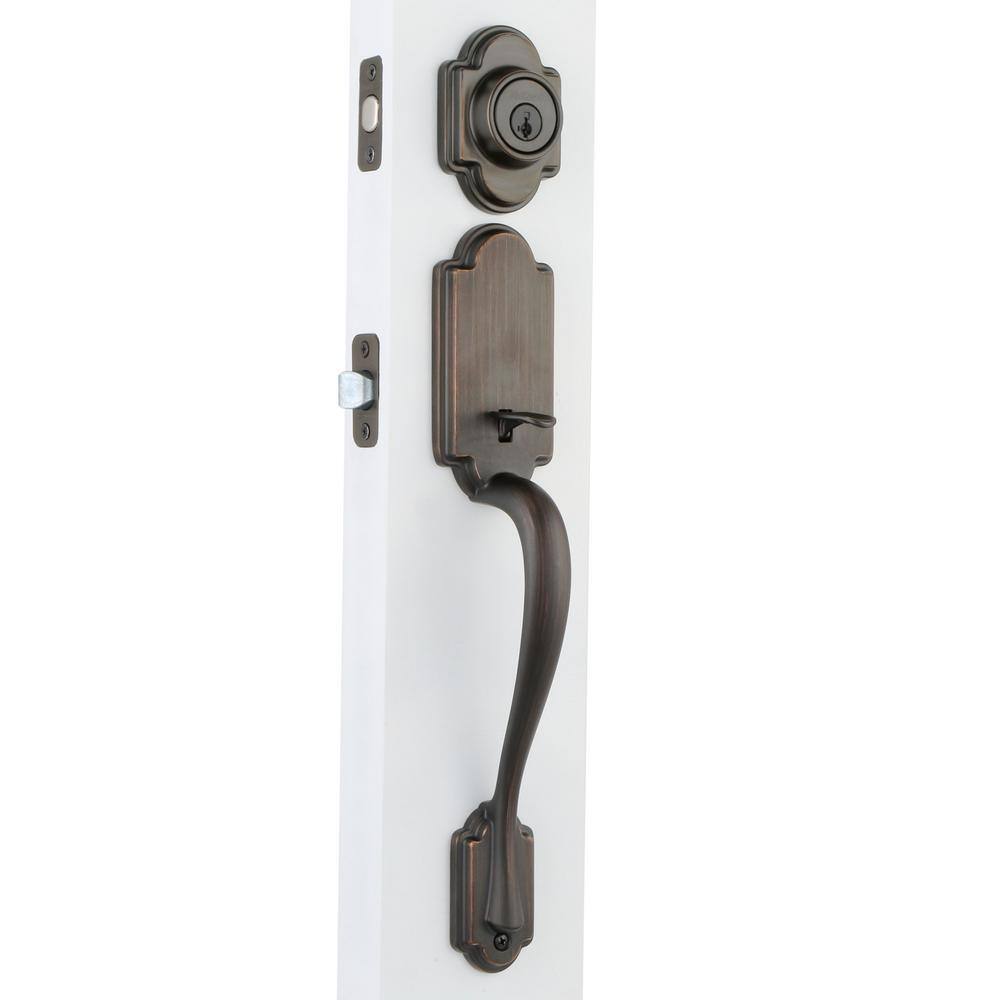

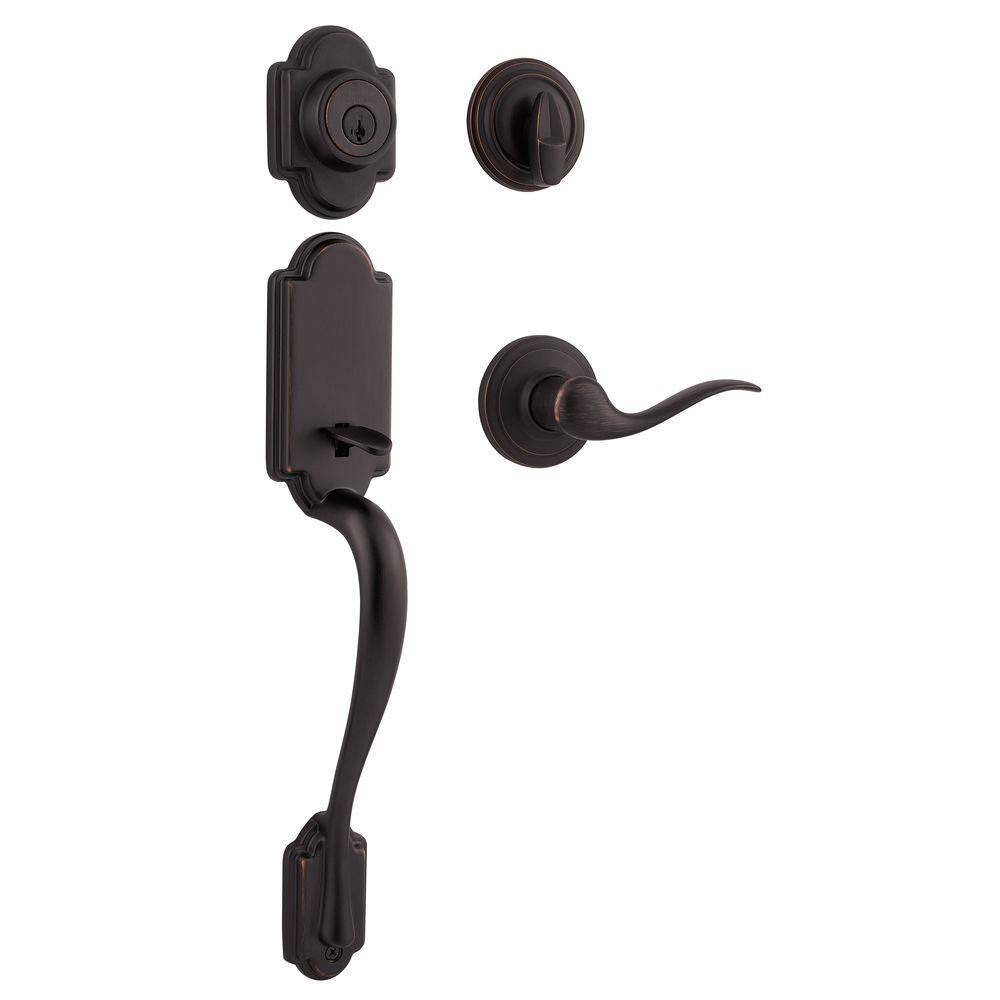

Kwikset Arlington Venetian Bronze Single Cylinder Door Handleset with Tustin Door Handle Featuring SmartKey Security

Kwikset Arlington Venetian Bronze Single Cylinder Door Handleset with Tustin Door Handle Featuring SmartKey Security

$167.63

Universal handing fits both right & left-handed door preparations
SmartKey Security re-key allows you to rekey your lock in seconds
Fits door thickness of 1-3/8 in. to 1-3/4 in.

Free shipping on $25+ orders
Estimated Delivery: 5-10 days
Pickup not available

SKU: 800ANXTNL 11P SMT CP Categories: Hardware, Home Improvement

Kwikset Arlington Venetian Bronze Single Cylinder Door Handleset with Tustin Door Handle Featuring SmartKey Security

Step up to designer styles and superior security with Kwikset Signature Series products. The detailed styling of the Arlington is a welcome enhancement to your entry doors. The latch bolt is operated by the thumb piece on the outside and the grip on the inside. The deadbolt is operated by a key on the outside and a thumb turn on the inside. The Venetian Bronze finish is hand-rubbed to reveal unique bronze highlights and provides a rich and warm complement to the product’s style.

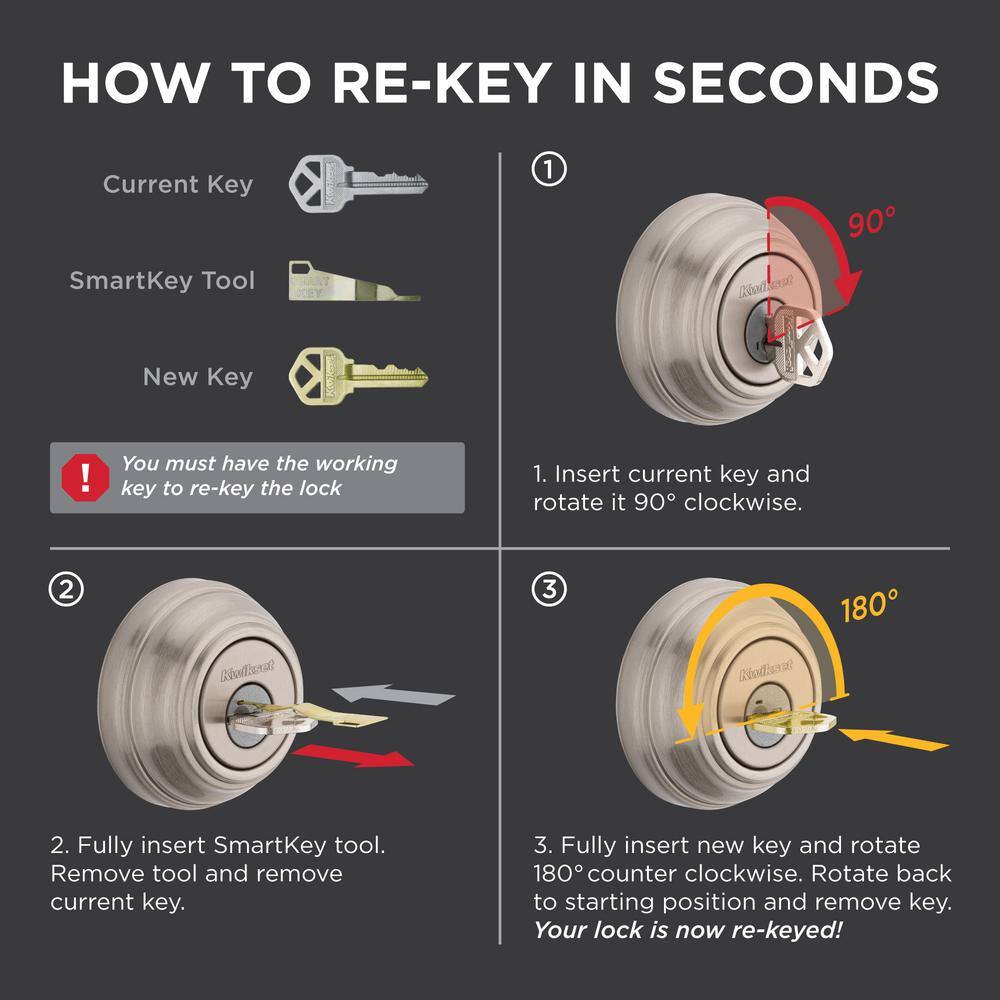

Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
Microban protection keeps door hardware 99.9% cleaner than unprotected surfaces
SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
Kwikset signature series product
Fits door thickness of 1-3/4 in.
For use on exterior doors where keyed entry and security is needed
Fully reversible lever; fits both right-handed and left-handed doors
Venetian bronze finish
Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin and tumbler locks

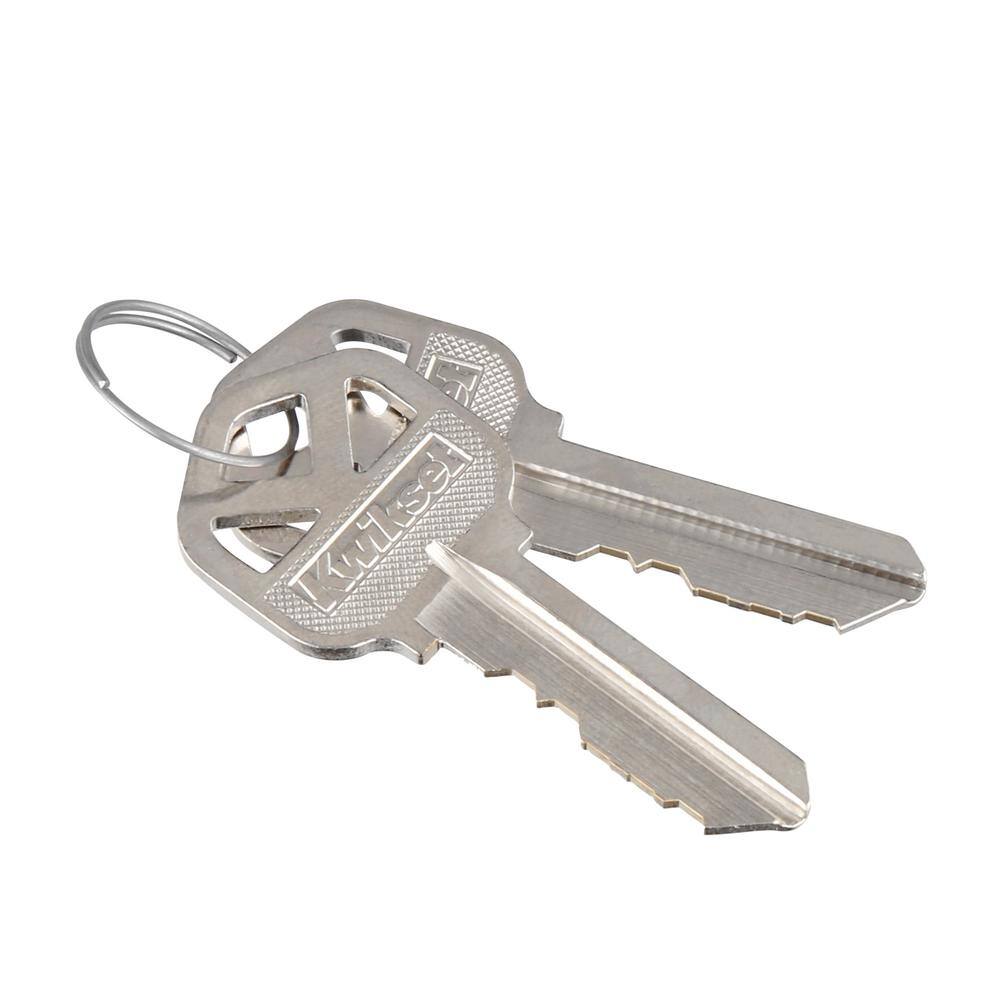

2-keys included
Easy installation – installs in minutes with just a screwdriver
ANSI/BHMA grade 2 deadbolt

Dimensions

Assembled Depth (in.)	3 in	Assembled Height (in.)	19.06 in
Assembled Width (in.)	2.75 in	Backset Size (in.)	Adjustable
Deadbolt Bore Hole Diameter (in.)	18 in	Deadbolt Cross Bore Diameter (in.)	2.125 in
Deadbolt Strike Height (in.)	2.25 in	Deadbolt Strike Width (in.)	1 in
Deadbolt Throw Length (in.)	1 in	Deadbolt Trim Ring Diameter (in.)	3 in
Handle grip length (in.)	4.21875	Inside top plate length (in.)	2.5625
Inside top plate width (in.)	2.5625	Knob/lever bore hole diameter (in.)	2.125
Knob/lever cross bore diameter (in.)	1.0	Knob/lever housing height (in.)	2.625
Knob/lever housing width (in.)	2.625	Knob/lever strike height (in.)	2.25
Knob/lever strike width (in.)	1.0	Knob/lever throw length (in.)	0.5
Lever Grip Length (in.)	3.75 in	Maximum Door Thickness (in.)	1.75 in
Minimum Door Thickness (in.)	1.75 in	Outside bottom handle plate length (in.)	4.0
Outside bottom handle plate width (in.)	2.25	Outside key plate length (in.)	1.0
Outside key plate width (in.)	1.0	Outside top handle plate length (in.)	1.0
Outside top handle plate width (in.)	1.0	Projection (in.)	2.09375 in

Details

Backplate Shape	Round Backplate	Commercial/Residential	Residential
Deadbolt strike	Round corner	Deadbolt Type	Single Cylinder Deadbolt
Door Handing	Universal	Door Lock Style	Classic
Door Locks & Knobs Product Type	Keyed Handlesets	Door Type	Keyed Entry
Electronic/Mechanical	Mechanical	Features	Easy Installation, Kwikset SmartKey
Finish	Venetian Bronze	Handleset Product Type	2 Piece Front & Back
Hardware Color Family	Bronze	Hardware Finish Family	Venetian
Included	Hardware, Installation Instructions	Keying Type	Keyed Different
Keyway	KW1	Knob/lever strike	Round corner
Lever style	Wave	Lock Type	Keyed
Material	Metal	Product Weight (lb.)	6 lb
Total Number of Keys Included	2	Security/ANSI Grade	ANSI Grade 1 (Best)
Tools/Hardware Collections	Kwikset SmartKey
