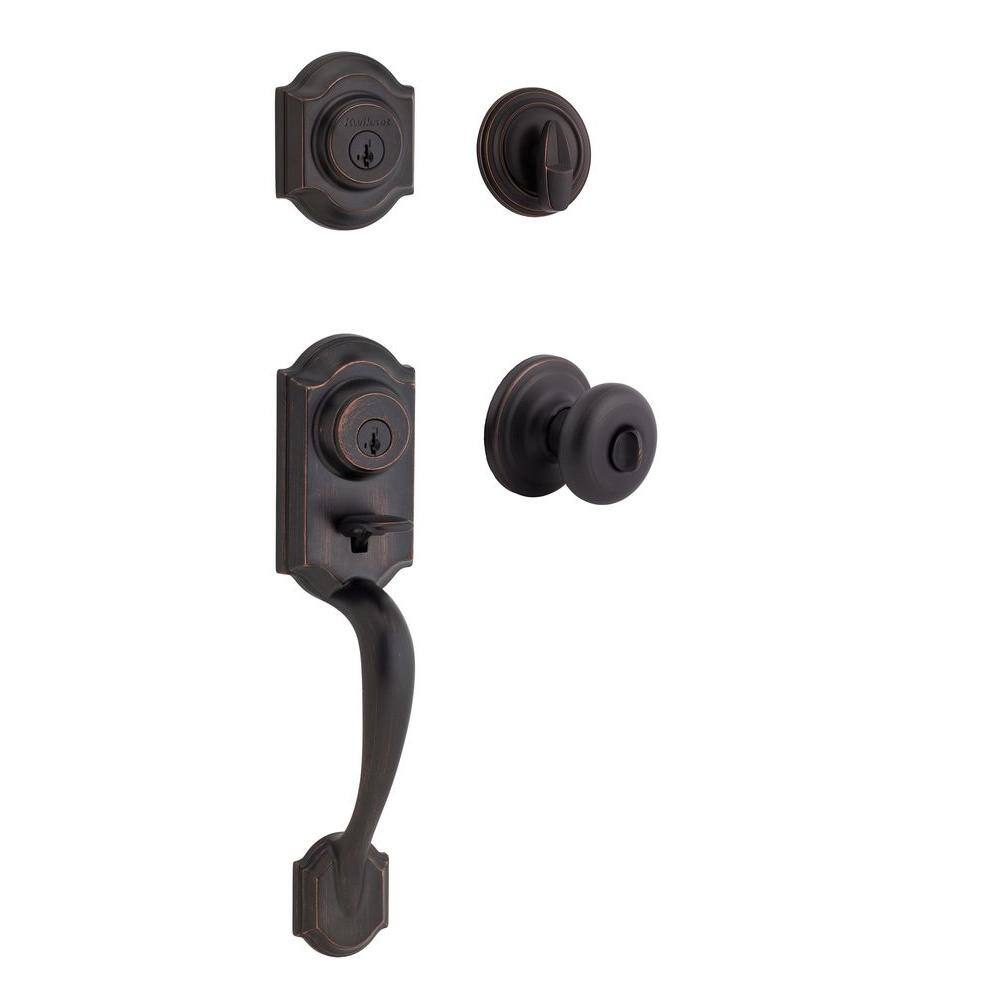

Kwikset Montara Venetian Bronze Single Cylinder Door Handleset with Juno Entry Door Knob Featuring SmartKey Security
Step up to designer styles and superior security with Kwikset Signature Series products. Enjoy increased security and easy fit with the Montara handleset. 2 points of locking, on the deadbolt and the handleset, provide double the security. And the adjustable through bolt at the bottom of the handleset allows for easy installation and provides you peace of mind knowing that it will adjust to fit the bottom hole in your door. With the arched design, the Montara handleset will add both security and style to your front door. The latch bolt is operated by the thumb piece on the outside and the grip on the inside. The deadbolt is operated by a key on the outside and a thumb turn on the inside. The Venetian Bronze finish is hand-rubbed to reveal unique bronze highlights and provides a rich and warm complement to the product’s style.

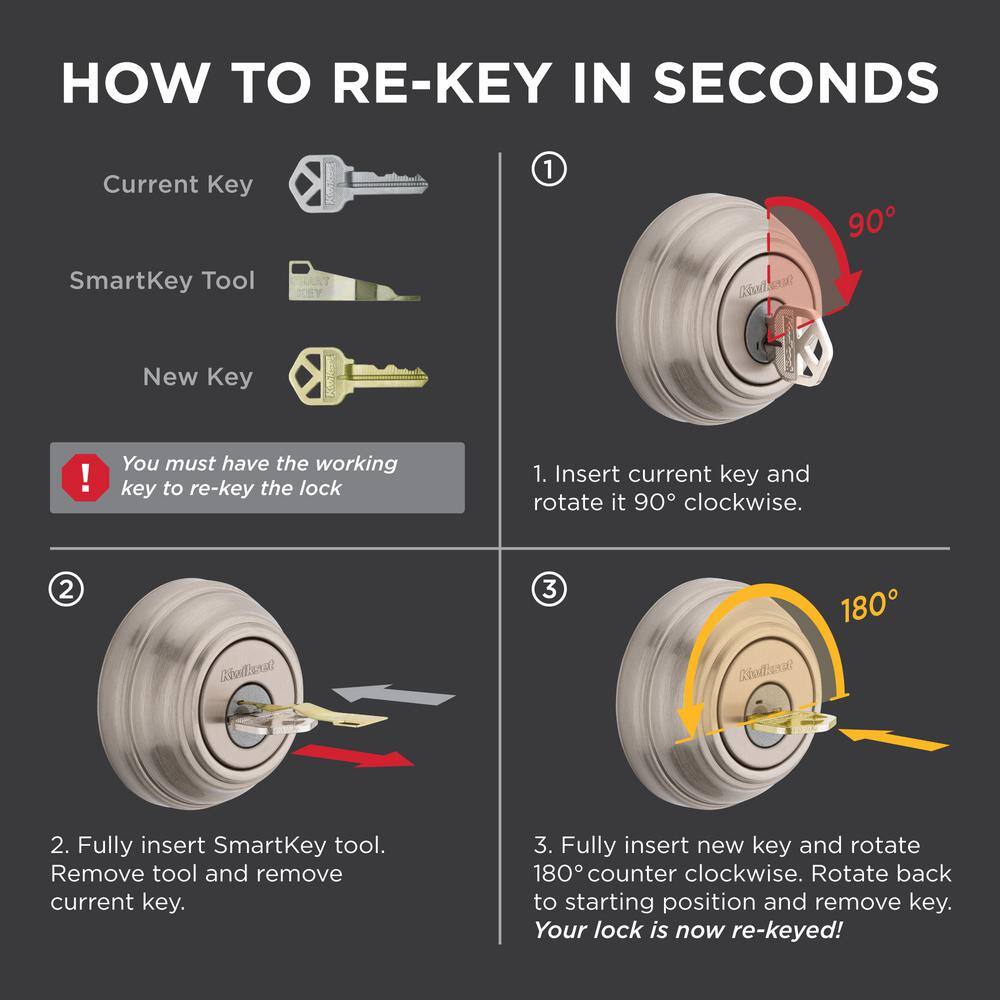

- Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
- For use on exterior doors where keyed entry and security is needed
- 2-points of locking one lock on the deadbolt and 1 on the handleset for added security
- Single cylinder deadbolt operates by key outside and a thumb turn inside
- Fits door thickness of 1-3/4 in.
- Features an adjustable latch to fit all standard door preparations
- ANSI/BHMA grade 2 security
- Easily installs in minutes with just a screwdriver
- Fully reversible lever; fits both right-handed and left-handed doors
Dimensions
| Assembled Depth (in.) | 2.59375 in | Assembled Height (in.) | 17.81 in |
|---|---|---|---|
| Assembled Width (in.) | 2.783 in | Backset Size (in.) | Adjustable |
| Deadbolt Bore Hole Diameter (in.) | 1 in | Deadbolt Cross Bore Diameter (in.) | 2.125 in |
| Deadbolt Strike Height (in.) | 2.25 in | Deadbolt Strike Width (in.) | 1 in |
| Deadbolt Throw Length (in.) | 1 in | Deadbolt Trim Ring Diameter (in.) | 3 in |
| Handle grip length (in.) | 9.6875 | Inside top plate length (in.) | 2.5 |
| Inside top plate width (in.) | 2.5 | Knob Diameter (in.) | 2.375 in |
| Knob/lever bore hole diameter (in.) | 1 | Knob/lever cross bore diameter (in.) | 2.125 |
| Knob/lever housing height (in.) | 2.625 | Knob/lever housing width (in.) | 2.625 |
| Knob/lever strike height (in.) | 2.25 | Knob/lever strike width (in.) | 1 |
| Knob/lever throw length (in.) | 0.5 | Maximum Door Thickness (in.) | 1.75 in |
| Minimum Door Thickness (in.) | 1.75 in | Outside bottom handle plate length (in.) | 1.75 |
| Outside bottom handle plate width (in.) | 1.75 | Outside key plate length (in.) | 2.5 |
| Outside key plate width (in.) | 2.5 | Outside top handle plate length (in.) | 3.1968 |
| Outside top handle plate width (in.) | 3.1968 | Projection (in.) | 2.59375 in |
Details
| Backplate Shape | Round Backplate | Commercial/Residential | Residential |
|---|---|---|---|
| Deadbolt strike | Round corner | Deadbolt Type | Single Cylinder Deadbolt |
| Door Handing | Universal | Door Lock Style | Classic |
| Door Locks & Knobs Product Type | Keyed Handlesets | Door Type | Keyed Entry |
| Electronic/Mechanical | Mechanical | Features | Easy Installation, Kwikset SmartKey |
| Finish | Venetian Bronze | Handleset Product Type | 2 Piece Front & Back |
| Hardware Color Family | Bronze | Hardware Finish Family | Venetian |
| Included | Hardware, Installation Instructions | Keying Type | Keyed Different |
| Knob Shape | Oval | Knob style | Flat ball |
| Knob/lever strike | Round corner | Lock Type | Keyed |
| Material | Metal | Product Weight (lb.) | 10.3 lb |
| Total Number of Keys Included | 2 | Security/ANSI Grade | ANSI Grade 2 (Better) |
| Tools/Hardware Collections | Kwikset SmartKey |
| Brand | Kwikset |
|---|
