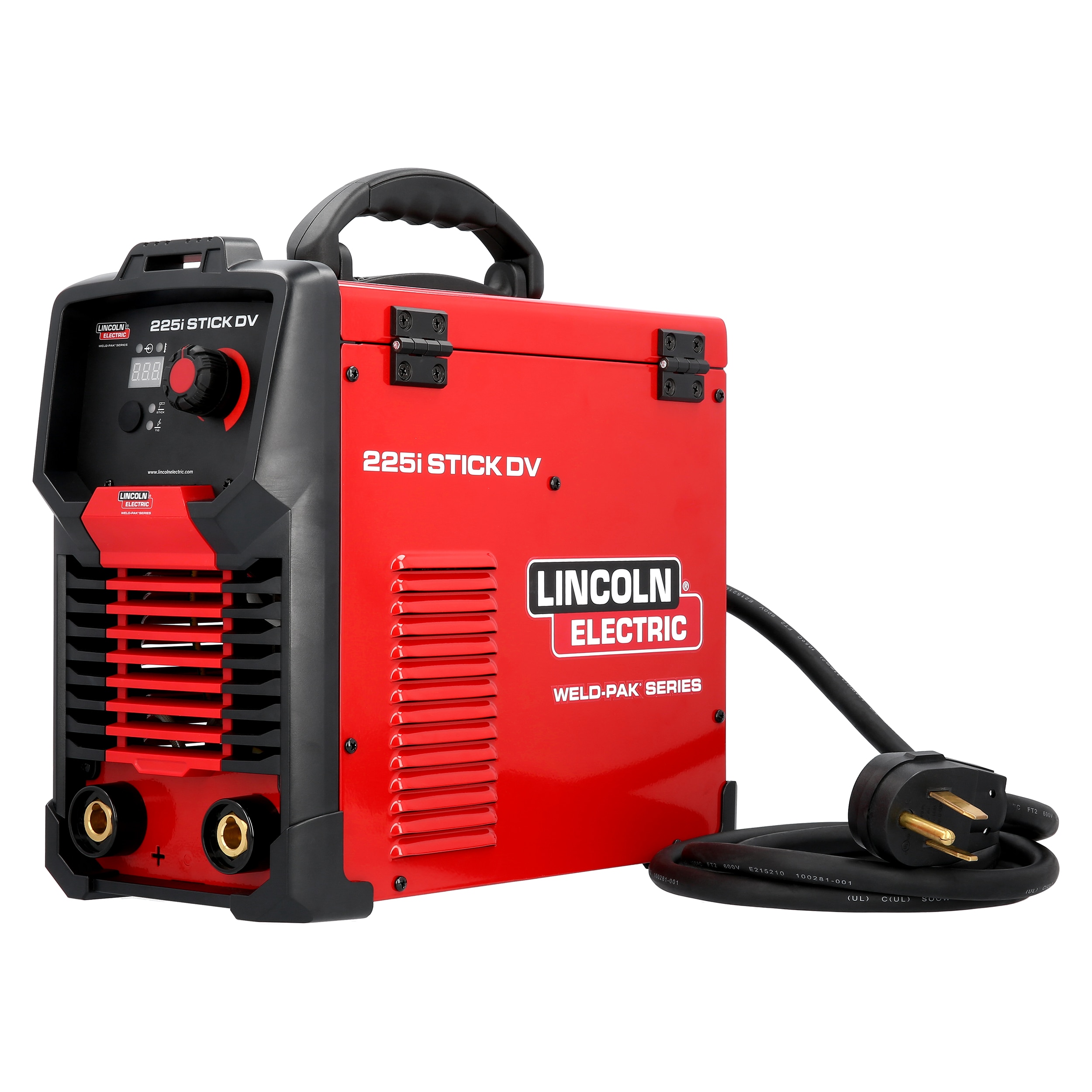

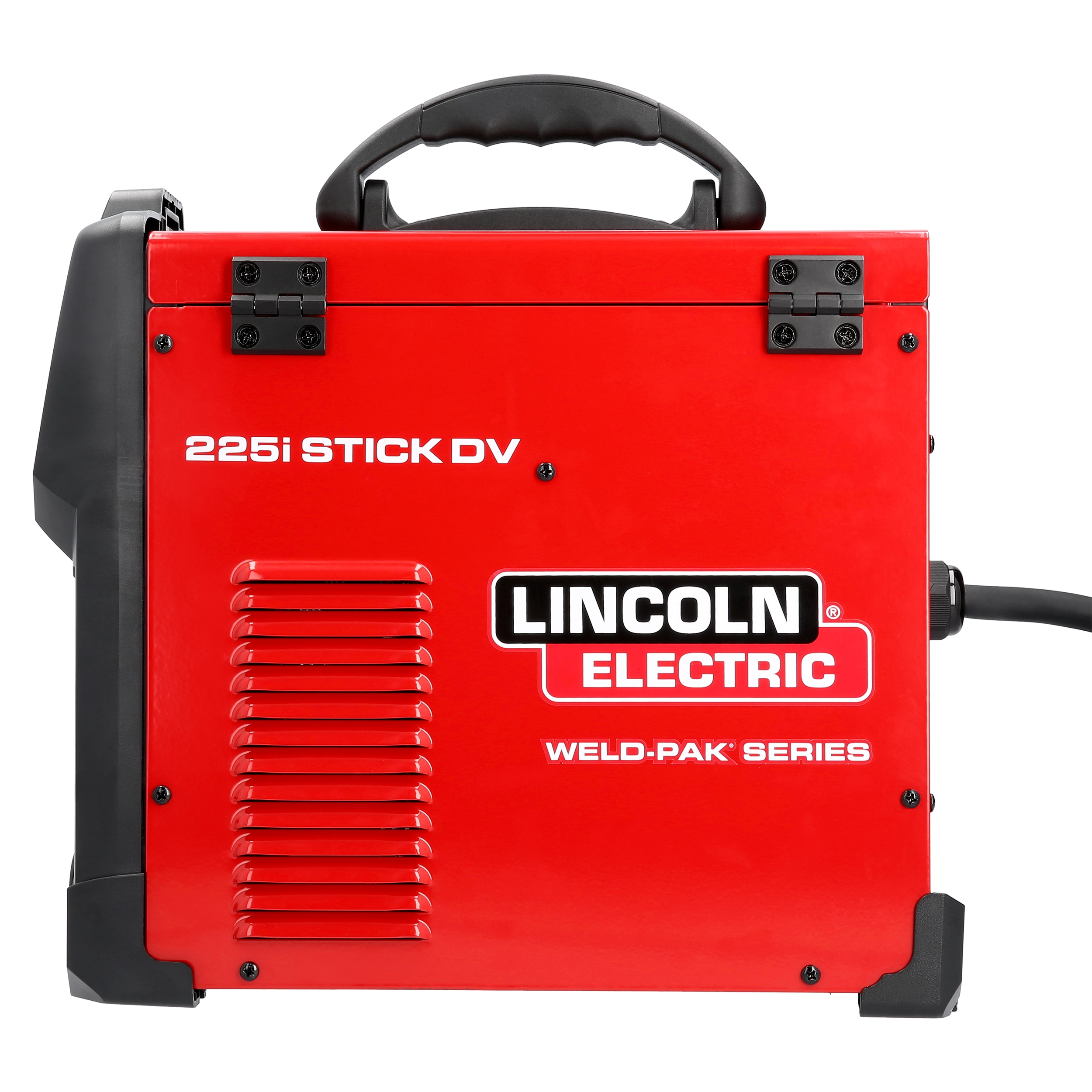

Lincoln Electric 120 -Volt / 225 -Amp Stick Welder

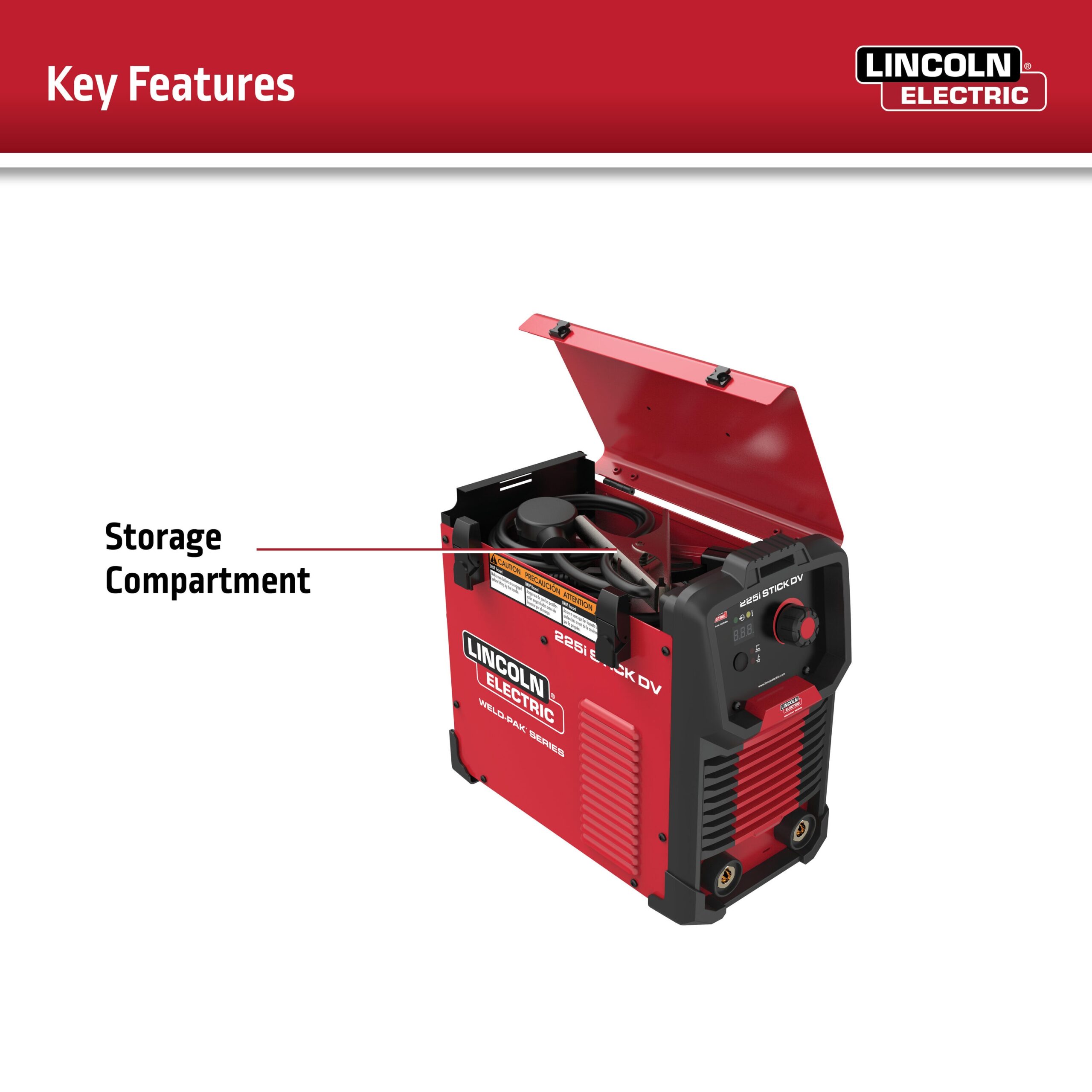

The dual voltage Weld-Pak 225i Stick DV stick/TIG Welder has a 10 to 225 amp DC output that supports mild steel stick electrode diameters from 5/64″ to 5/32″. Weighing in at 20 lbs., it is lightweight and portable. The case has a tool box top for storing cables or tools. The smooth arc provides strong welds on 12 gauge sheet metal to 5/16″ thick steel. It has a 30% duty cycle at 225 amps when connected to 230VAC. Touch Start TIG welding is supported. A simple display allows you to dial in the weld settings so you can get started quickly and easily on any job, anywhere – maintenance work, fabrication, light structural and everything in between.

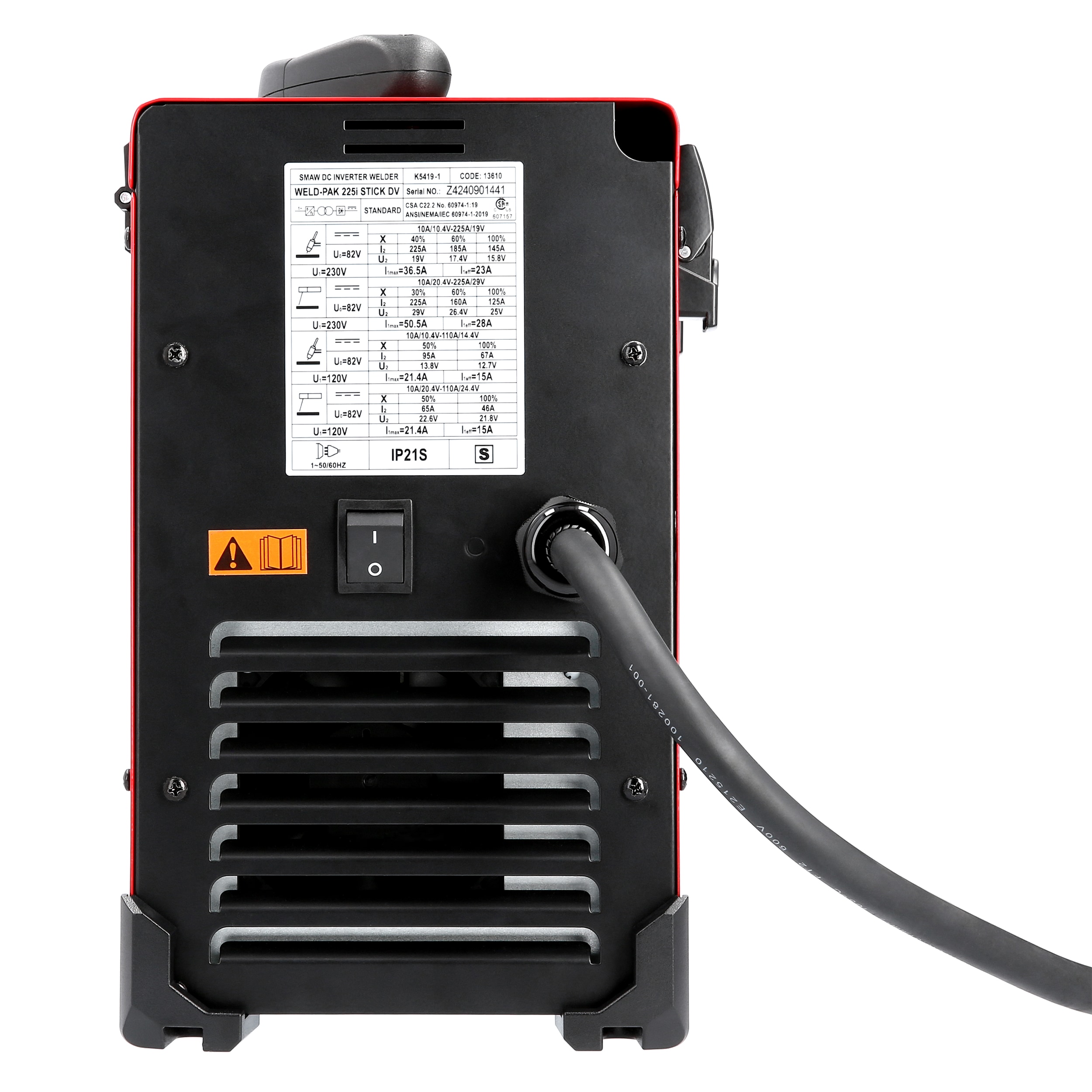

- 120VAC/230VAC input, 120/230/1/60
- 10-225 amp DC welding output range
- 30% duty cycle at 225 amps
- Weighs 20 lbs.

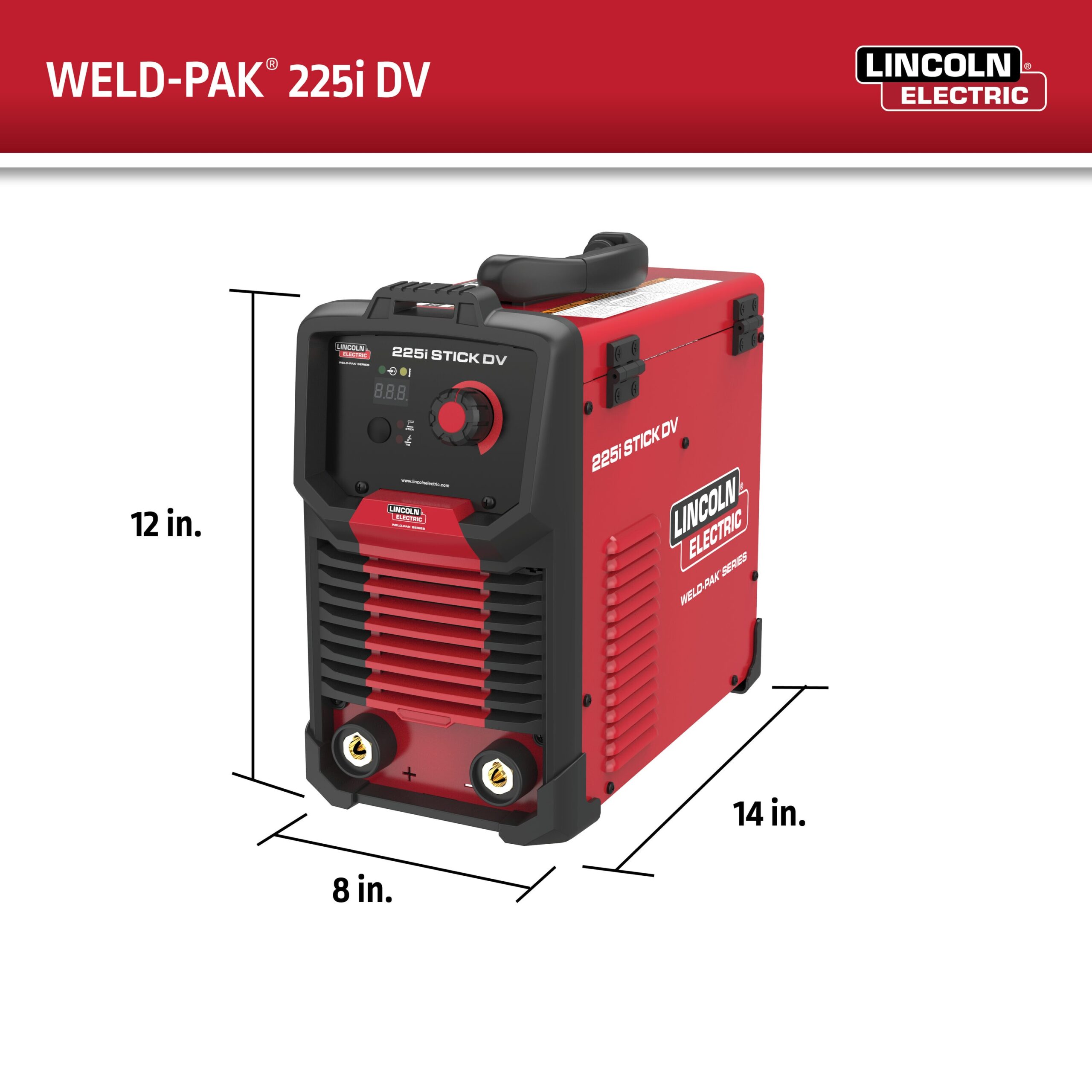

- Dimensions of unit 12H x 8W x 14L inches
- Welds 12 gauge to 5/16″ single pass

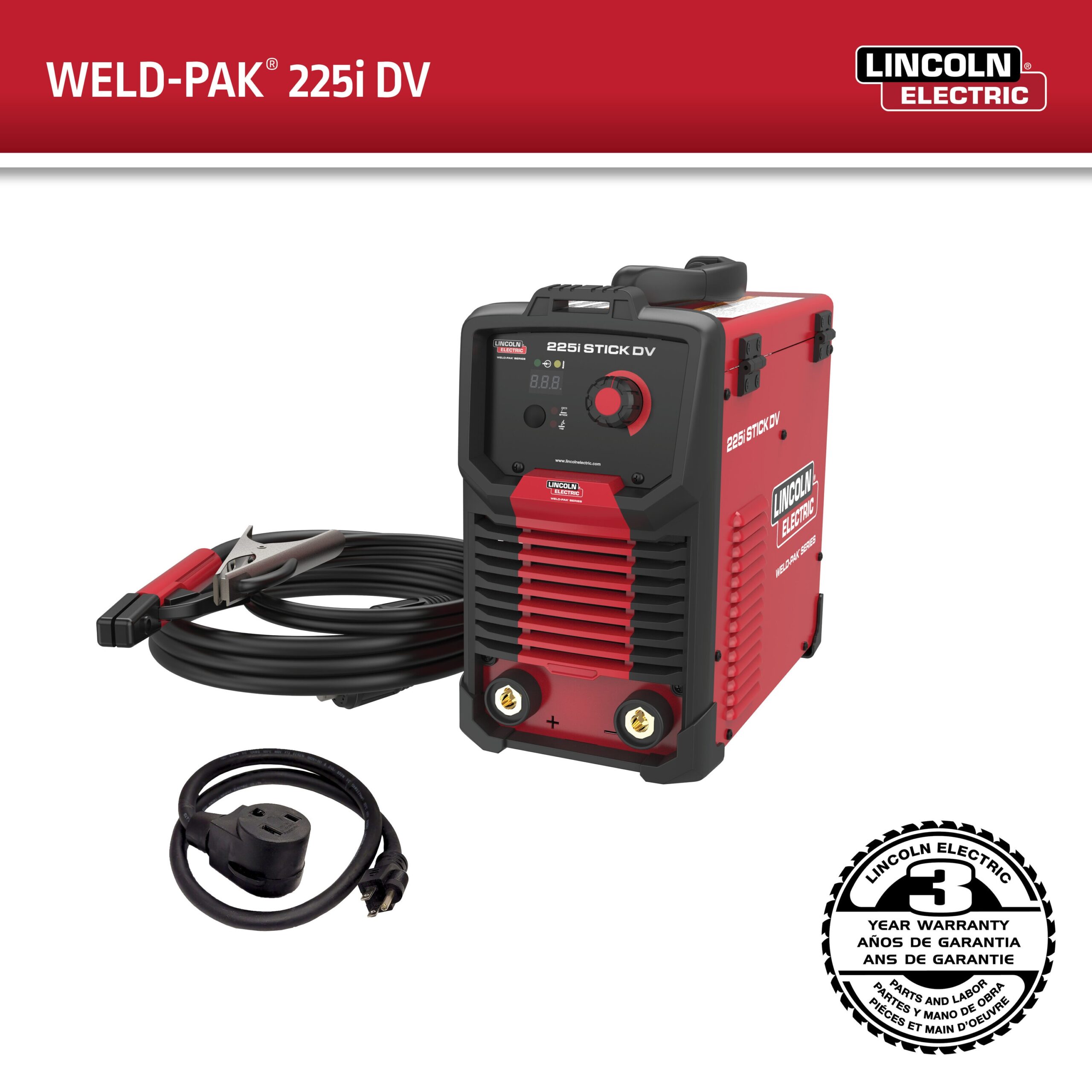

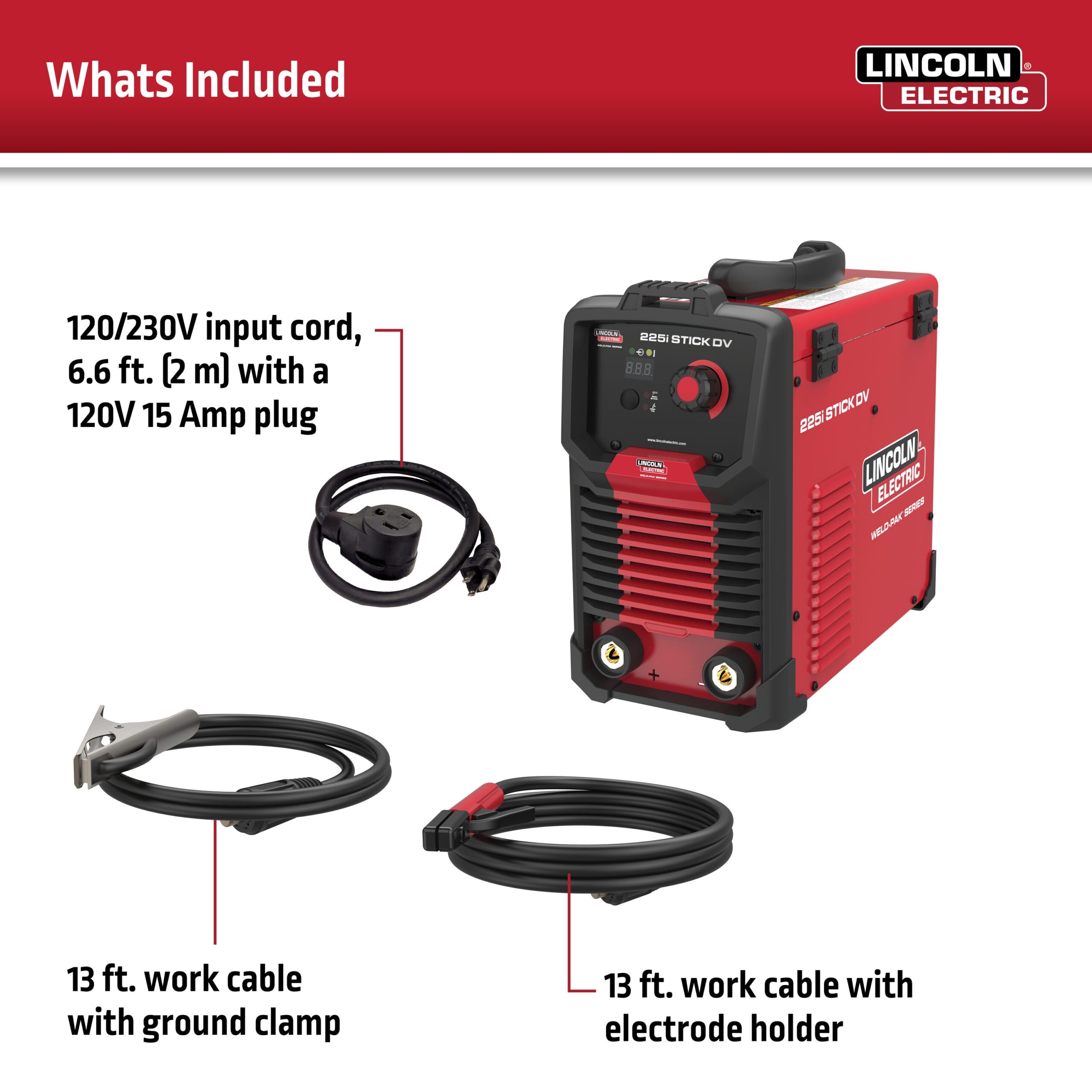

- Comes with a shoulder strap, 13 foot work cable & clamp, 13 foot electrode cable & electrode holder, and 6 foot input cable with attached three-prong 230VAC 6-50P plug with 5-15P 120VAC adapter
- TIG capability with additional attachments
Specifications
| Dimensions | |||
|---|---|---|---|
| Depth (Inches) | 14 | Minimum Weldable Thickness (Mild Steel) | 12-gauge |
| Ground Cable Length | 13 feet | Weight (lbs.) | 2 |
| Height (Inches) | 12 | Welding Gun Cable Assembly Length | 13 feet |
| Maximum Electrode Thickness | 5/32-in | Width (Inches) | 8 |
| Maximum Weldable Thickness (Mild Steel) | 5/16-in | Amperage | 225 |
| Minimum Electrode Thickness | 5/64-in |
| Features | |||
|---|---|---|---|
| Helmet Included | No | Process | Stick |
| Input AC Voltage | 120 | Thermal Overload Protection | Yes |
| Instructional Media Included | No | Work Clamp Included | Yes |
| Primary Circuit Breaker | Yes |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | Safety Listing | CSA safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 23271400 |
| Brand | Lincoln Electric |
|---|
