Lincoln Electric WELD-PAK 120 -Volt 120 -Amp Flux-cored Wire Feed Welder
Original price was: $332.00.$288.84Current price is: $288.84.
- Series Name: WELD-PAK
- Depth (Inches): 13
- Ground Cable Length: 6 feet
- Height (Inches): 11
- Maximum Weldable Thickness (Mild Steel): 1/4-in
- Maximum Wire Thickness: 0.035mm
Lincoln Electric WELD-PAK 120 -Volt 120 -Amp Flux-cored Wire Feed Welder

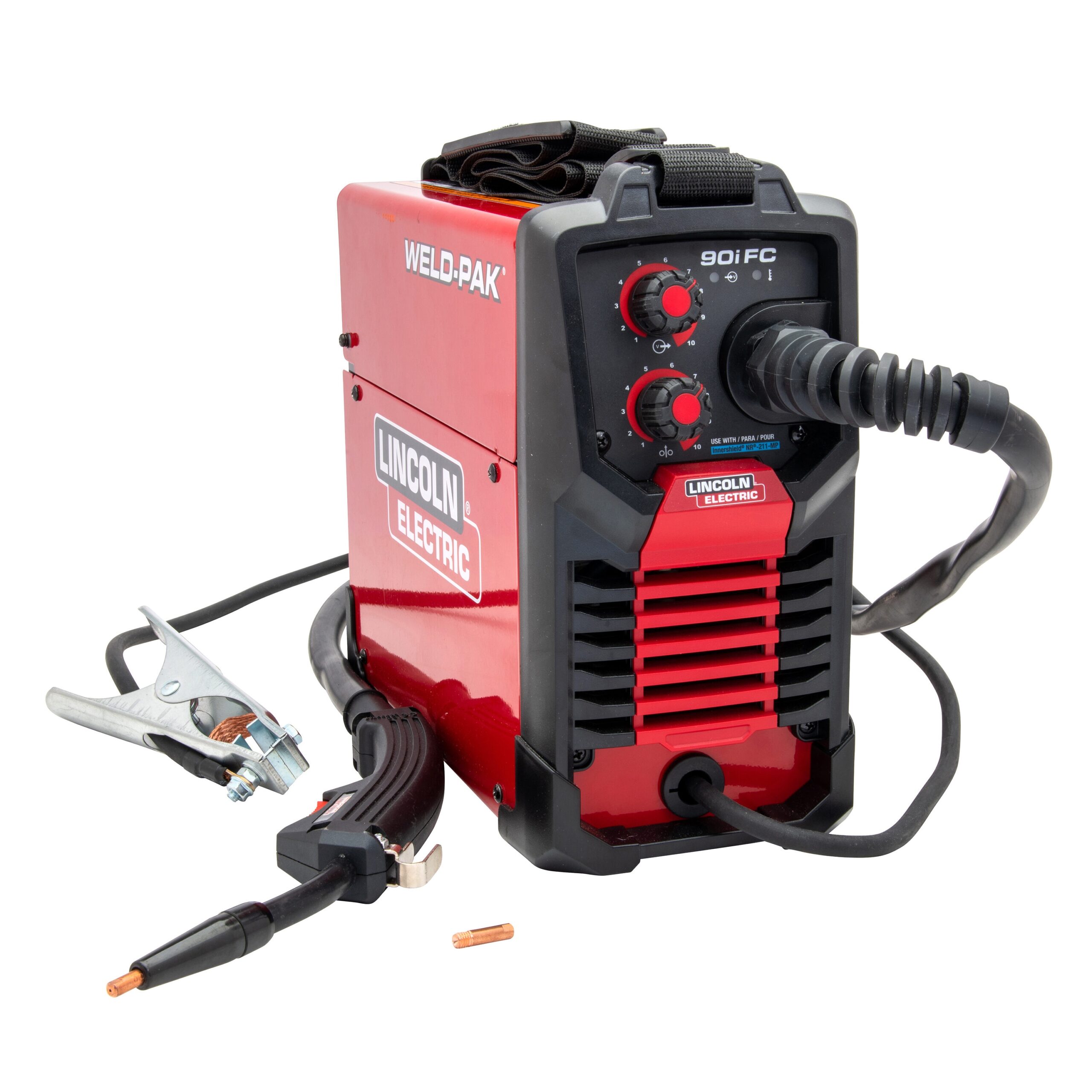

The WELD-PAK 90i FC welding machine is a compact and lightweight wire feed welder that can easily connect to 120V power source. It’s designed to be used with flux-cored welding wire and is well-suited for light to medium welding projects. One of the advantages of the WELD-PAK 90i FC is its interface, which makes it easy to set up and start welding in no time. The machine comes with a full list of accessories including a welding gun, nozzle, contact tip, work cable and clamp. The WELD-PAK 90i FC has a number of features that make it a good choice for beginners or anyone looking for a simple, easy-to-use welding machine. The WELD-PAK 90i FC is a versatile and user-friendly welder that can be used in a variety of settings from home workshops to construction sites.

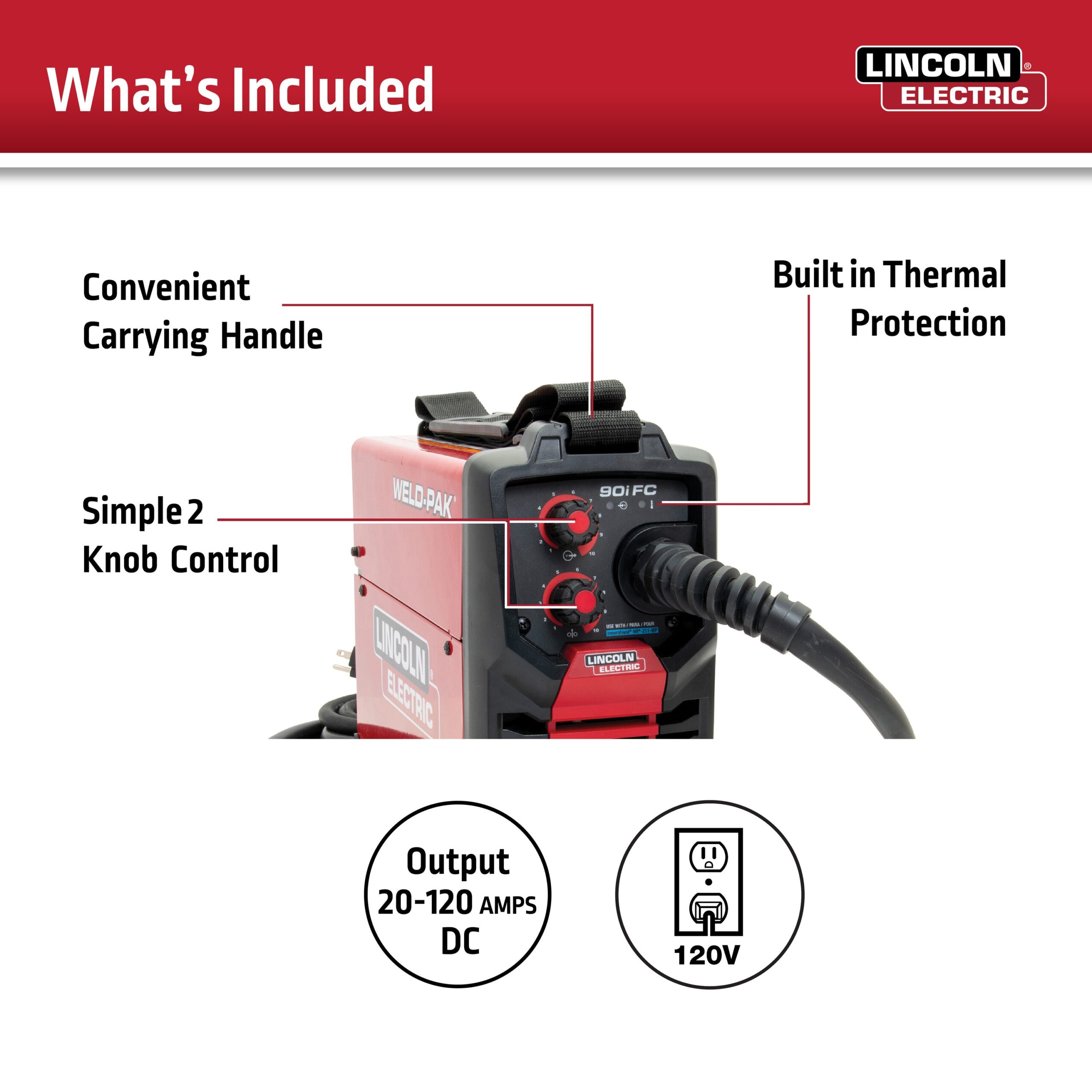

Highlights
- WELD ANYWHERE: Plug in the Weld-Pak 90i MIG wire feed welder anywhere 120V input power is available

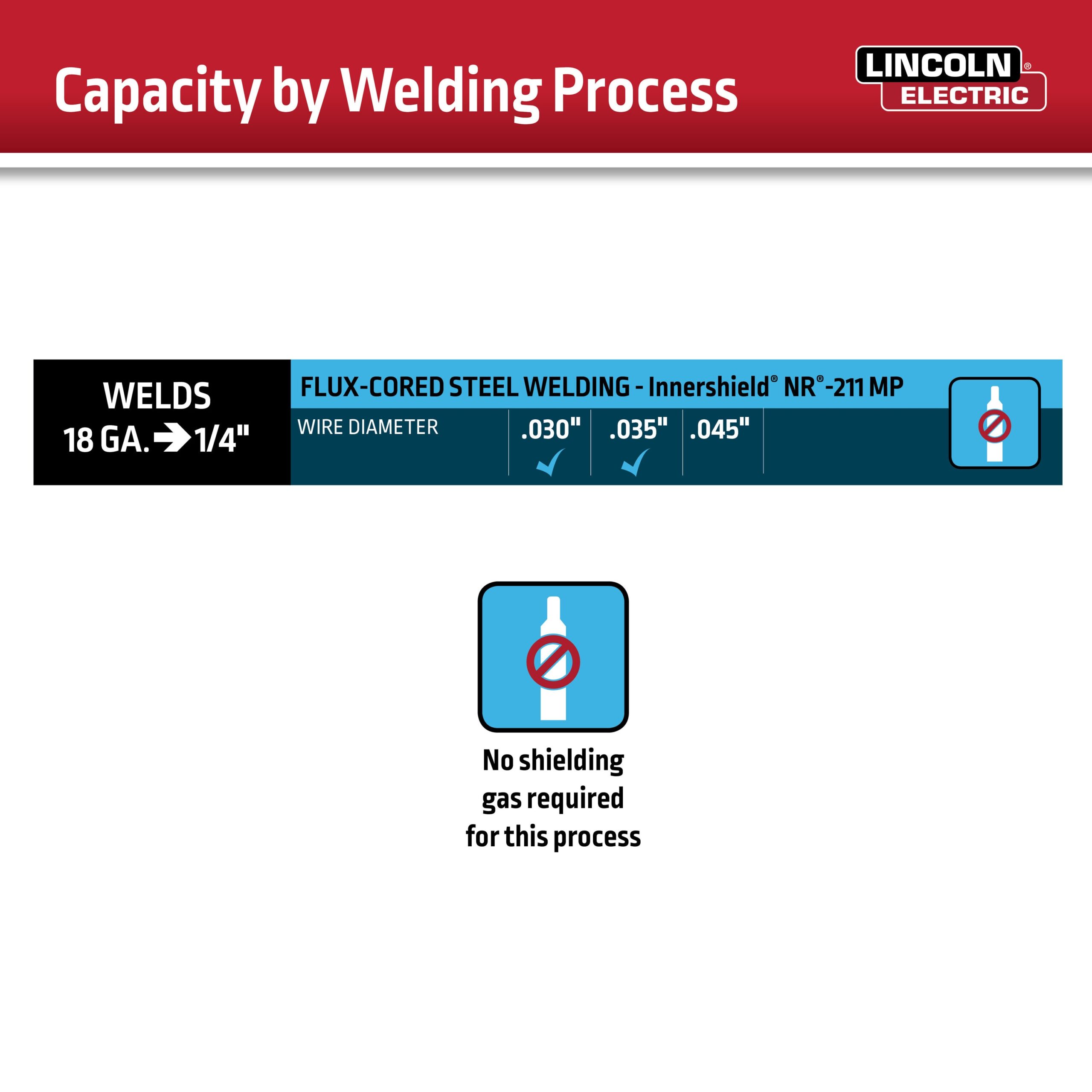

- WELDING CAPABILITES: Flux-cored welding up to 120Amps and a maximum thickness of 1/4in
- EXTRA PROTECTION: Metal case provides protection from the elements
- LIGHTWEIGHT AND PORTABLE: Ideal for maintenance and mobile welders, thanks to its small and lightweight inverter design and shoulder strap for portability

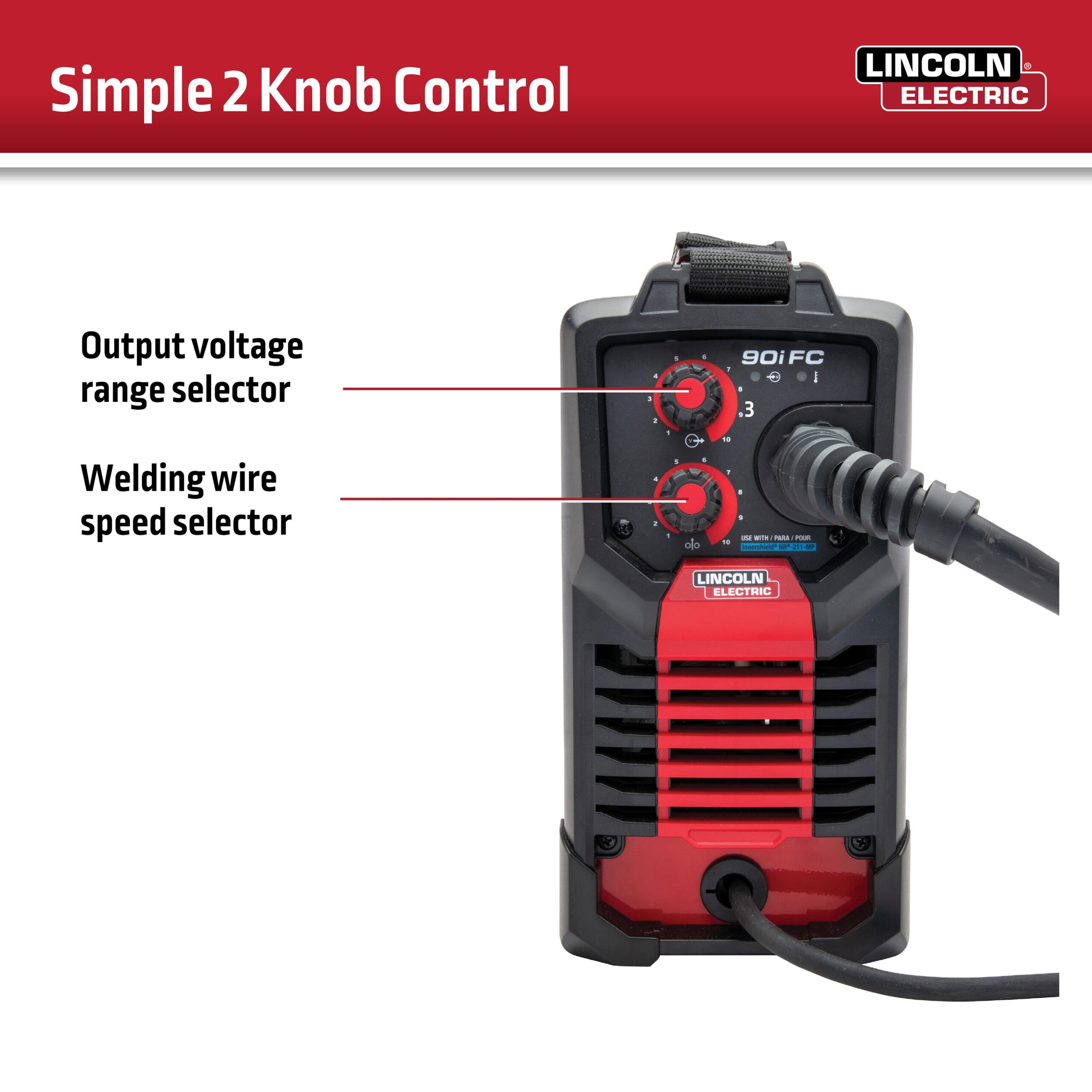

- EASY-TO-USE: Simple two-knob control for wire speed and voltage
- PERFECT FOR SMALL WELD JOBS: This machine is best for DIY projects, hobbyists, home repairs and more; Infinite welding voltage allows fine-tuning of weld characteristics
- SMOOTH OPERATION: Inverter power source makes it more efficient to operate and provides smoother weld characteristics compared to traditional welders

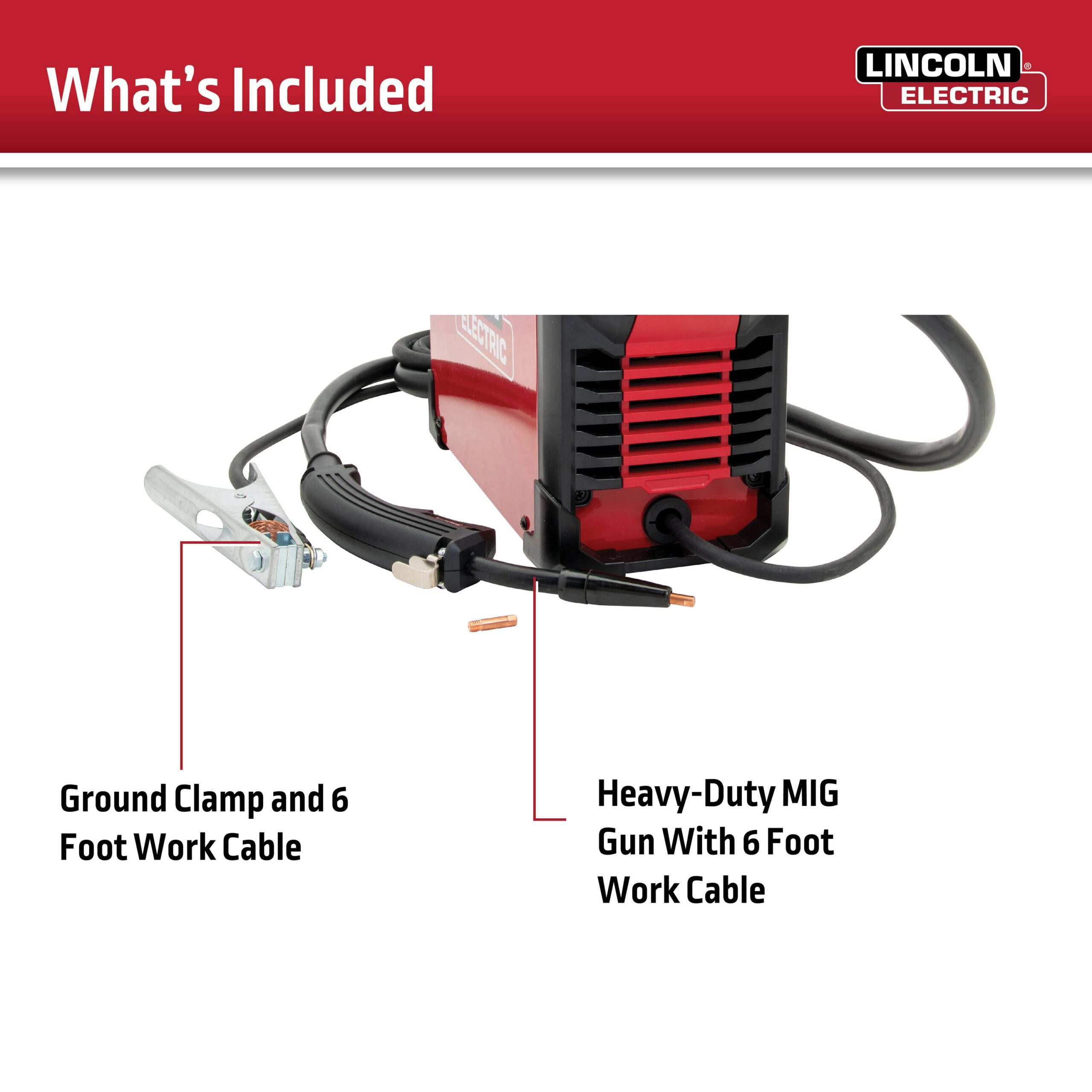

- Includes: Instruction manual, Gun with 6ft cable, .030 contact tip, .035 contact tip, Gasless nozzle, Drive roll for flux-cored welding, Ground clamp with 6ft cable

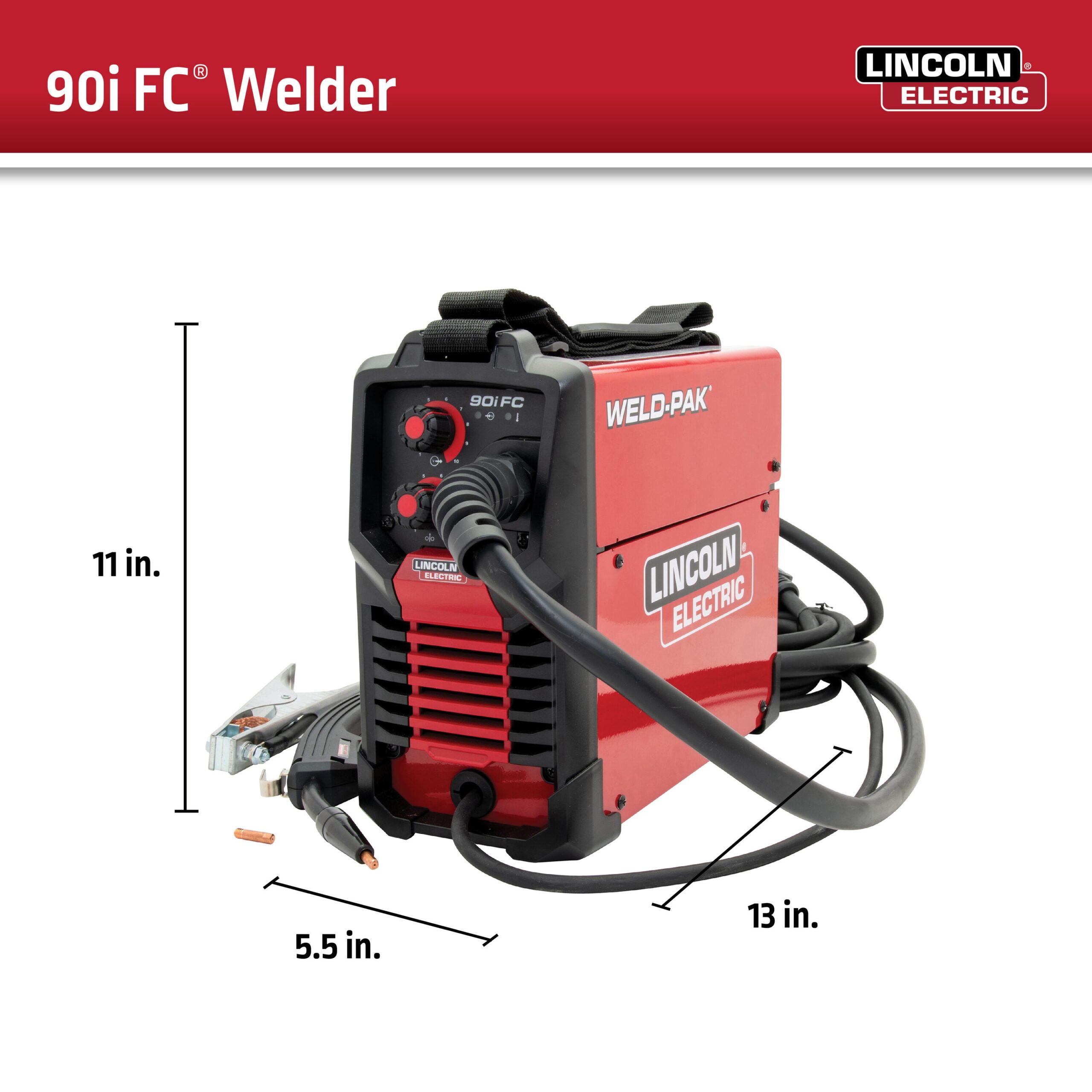

Specifications
| General | |||
|---|---|---|---|
| Series Name | WELD-PAK |
| Dimensions | |||
|---|---|---|---|
| Depth (Inches) | 13 | Minimum Wire Thickness | 0.030mm |
| Ground Cable Length | 6 feet | Weight (lbs.) | 15 |
| Height (Inches) | 11 | Welding Gun Cable Assembly Length | 6 feet |
| Maximum Weldable Thickness (Mild Steel) | 1/4-in | Width (Inches) | 5.5 |
| Maximum Wire Thickness | 0.035mm | Amperage | 120 |
| Minimum Weldable Thickness (Mild Steel) | 18 gauge |
| Features | |||
|---|---|---|---|
| Contact Tips Included | Yes | Minimum Wire Feed (Inches per minute) | 20 |
| Drive Motor Overload | Yes | Primary Circuit Breaker | Yes |
| Duty Cycle (Percentage) | 30 | Process | Flux-cored |
| Hand Shield Included | No | Sample Flux Wire Included | No |
| Helmet Included | No | Sample MIG Wire Included | No |
| Input AC Voltage | 120 | Thermal Overload Protection | Yes |
| Instructional Media Included | No | Work Clamp Included | Yes |
| Maximum Wire Feed (Inches per minute) | 200 |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | Safety Listing | CSA safety listing |
| Compatibility | |||
|---|---|---|---|
| Uses Argon Gas | No | Uses Argon/Carbon Dioxide Mixed Gas | No |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 23271400 |
| Brand | Lincoln Electric |
|---|
