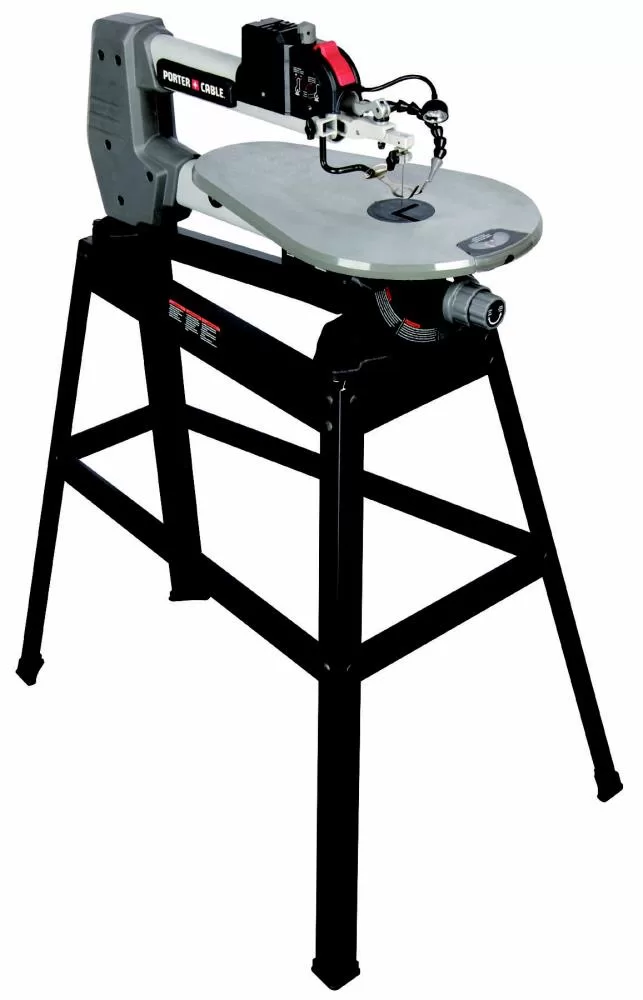

PORTER-CABLE 18-in 1.6-Amp Variable Speed Corded Scroll Saw
When you need to make detailed cuts in a variety of materials, this 1.6-amp scroll saw is the solution. The variable-speed controls can be set from 500-1,500-SPM to handles most applications. Upfront controls mean quicker access to speed, blade tension and work light. The cam action blade tension adjustment allows for quick blade changes of standard 5″ long plain-end and pinned blades. The die-cast aluminum dual-tilt table allows up to 45° cuts, while the patented tabletop bevel scale provides accurate angle readings. The built-in LED lamp illuminates the work area allowing you the visibility needed to create detailed and decorative items. The adjustable dust blower keeps your cut line visible. The included steel stand is durable and sturdy, so you won’t take up space on a table or other work surface.

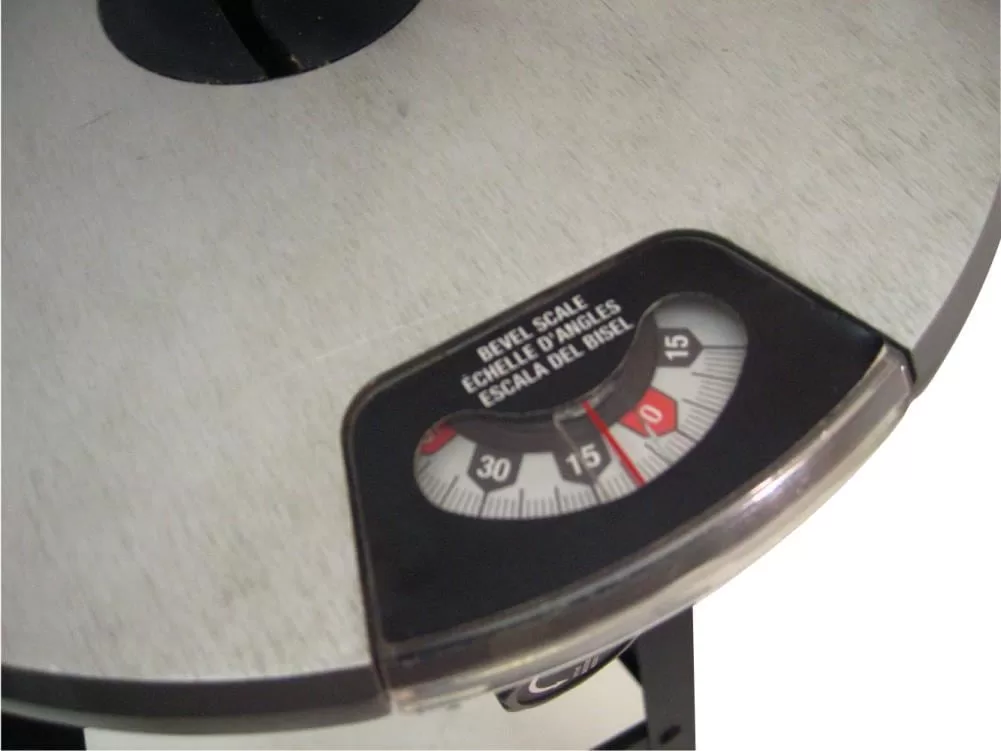

- Patented upfront table top bevel scale for ease of adjustment and accurate readings
- Sturdy steel stand is included for stable operation
- Variable speeds ranging from 500~1500 strokes per minute, for cutting soft or hard woods, plastic and soft metals
- Large die-cast aluminum dual-tilt tabletop allows up to 45° bevel cuts to the left and 15 to the right

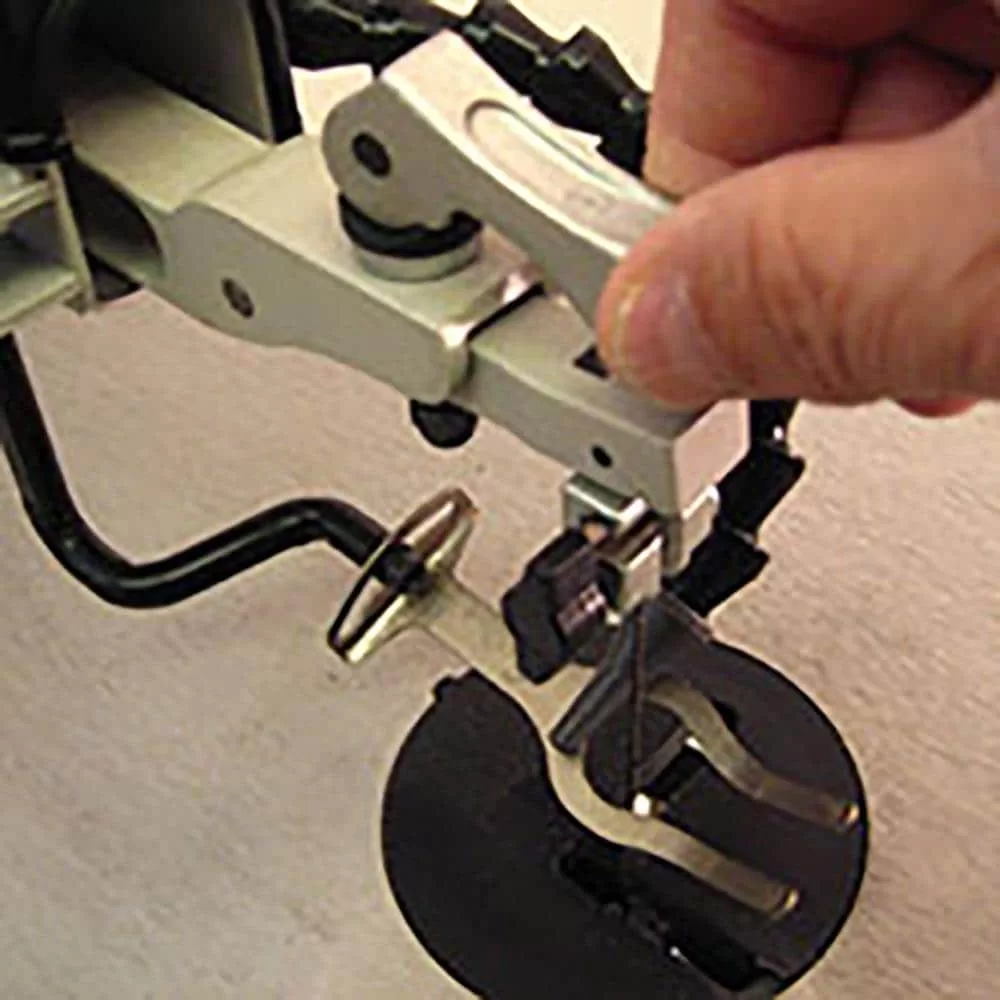

- Upfront tool-less blade holder for easy and quick 5-in pin or plain end blade changes

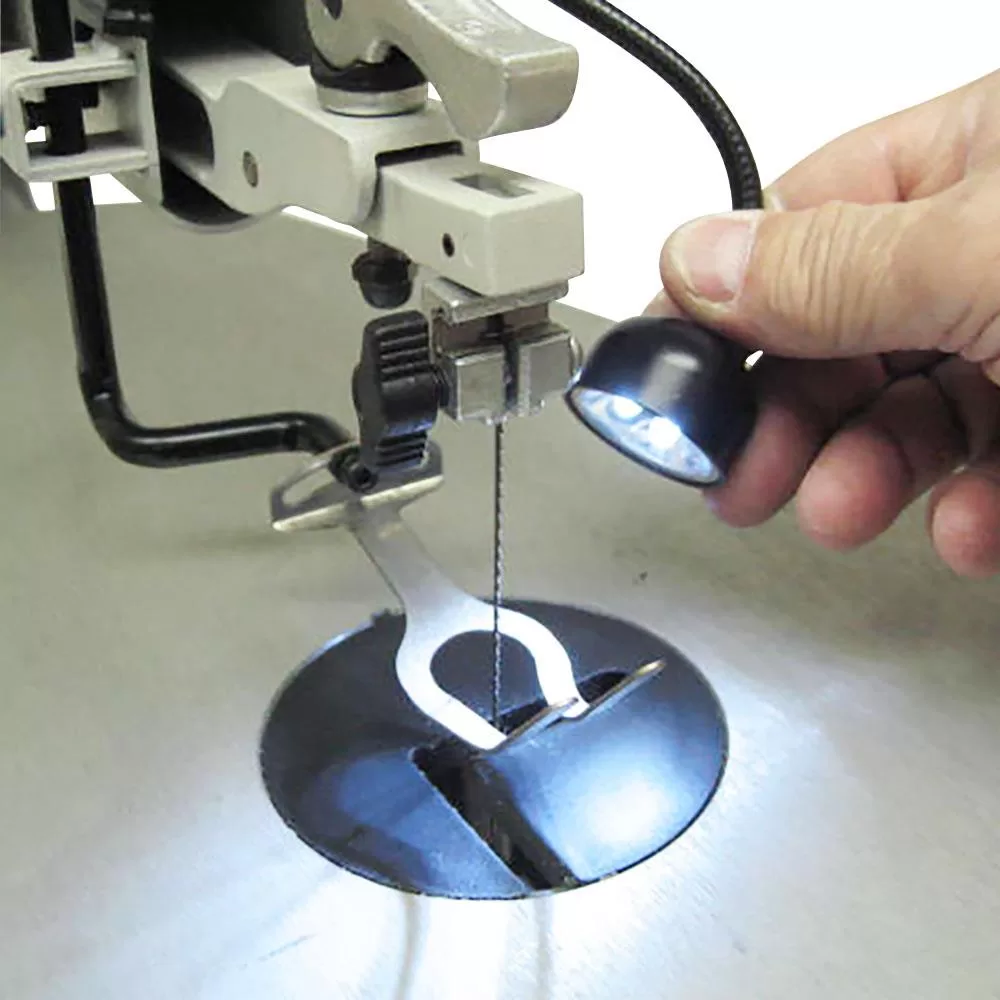

- Built-in adjustable LED lamp illuminates the work area
- Oversized, upfront controls; on/off switch, work light, and speed controller

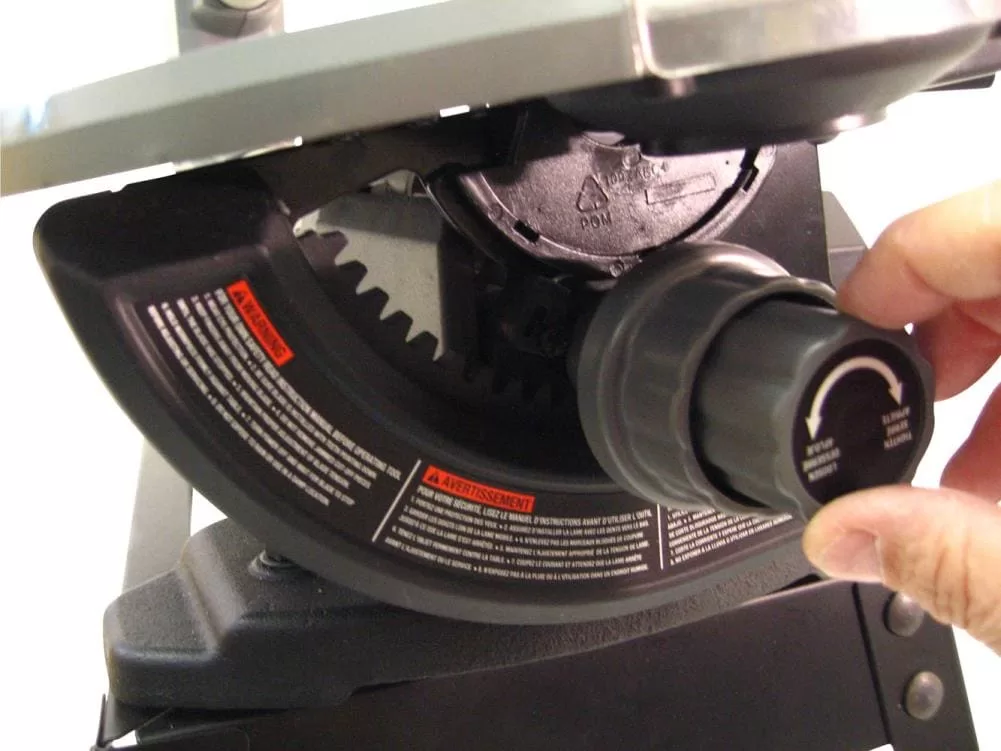

- Quick tool-free blade changes and cam action for easy blade tension adjustment means finishing the job faster
- Includes: saw, stand, dust blower, LED work light, wrench, manual
Specifications
Features | |
---|---|
Adjustable Shoe | Yes |
Amperage | 1.6 |
Blade Included | Yes |
Blade Type | Pin and straight |
Built-In Light | Yes |
Chuck Key Storage | Yes |
Chuck Type | Keyed |
Cordless | No |

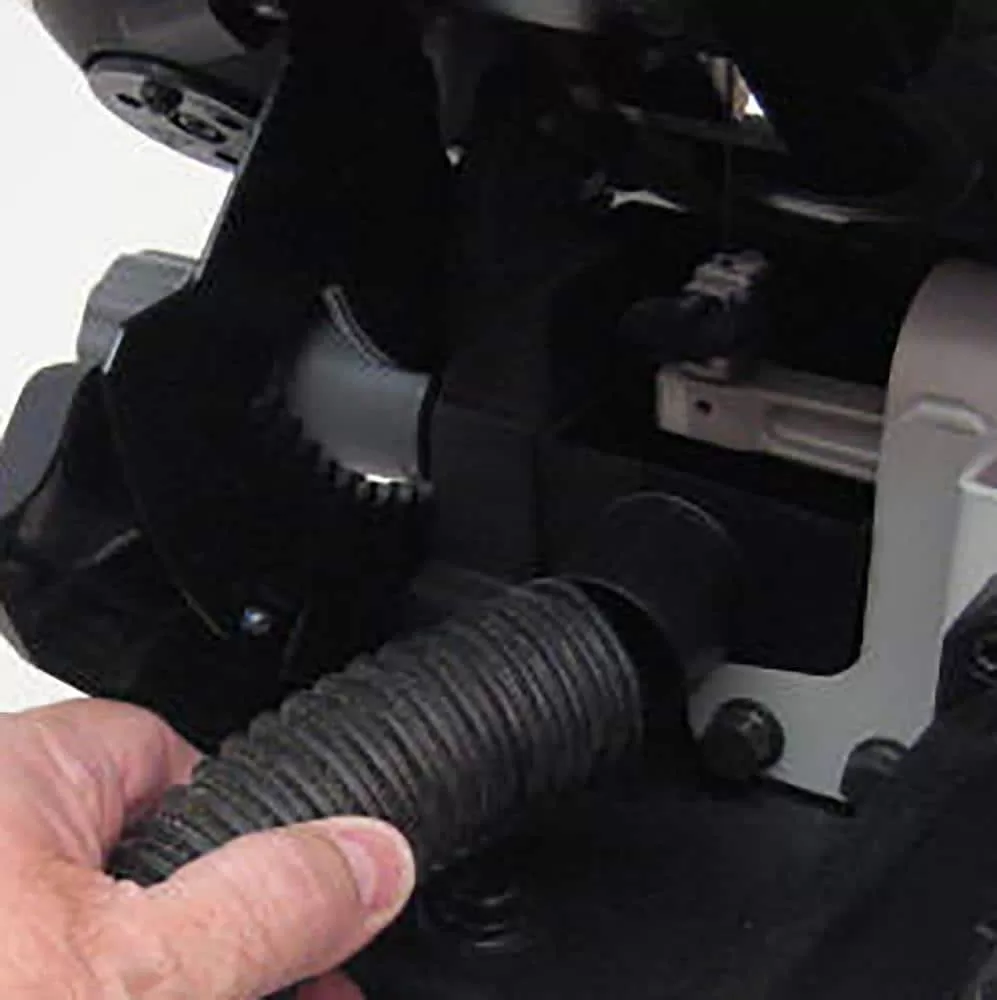

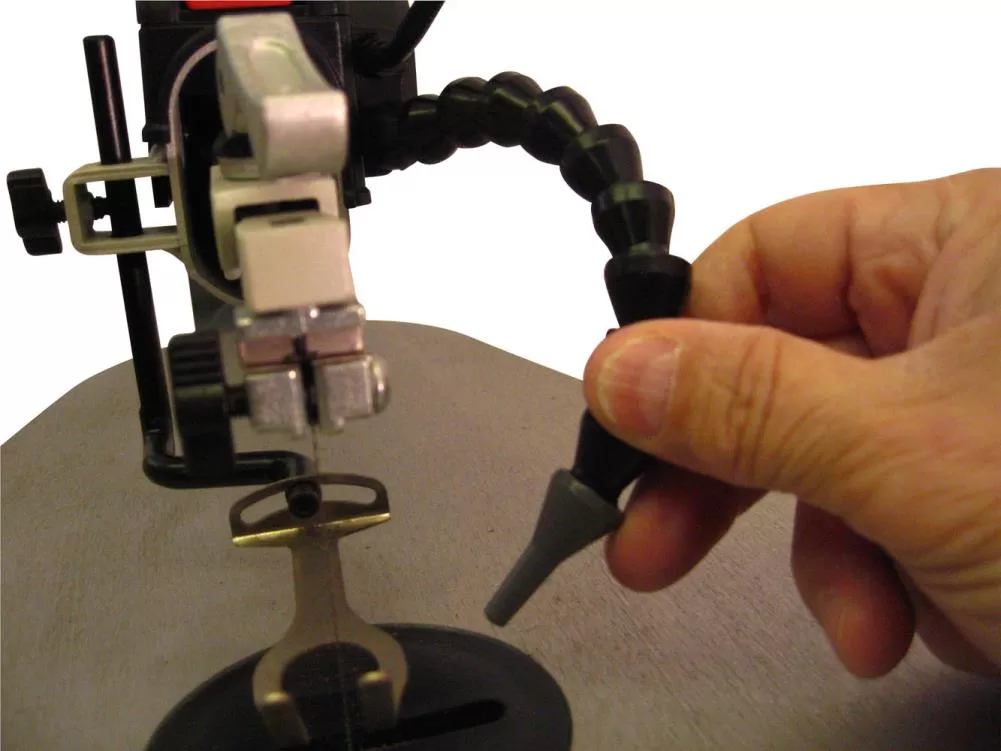

Dust Blower | Yes |
Dust Chute | Yes |
Dust Collection | No |
Guide(s) | N/A |
Hold Down Foot Included | Yes |
Keyed/Keyless | Keyless |
Package Contents | Scroll saw, stand, two 5-in blades, hex wrench, manual |
Speed Range High (SPM) | 1500 |
Speed Range Low (SPM) | 500 |
Table Tilt Range Left (Degrees) | 45 |
Table Tilt Range Right (Degrees) | 15 |
Variable Speed | Yes |
General | |
---|---|
Color/Finish Family | Gray |
Dimensions | |
---|---|
Depth (Inches) | 23.25 |
Dust Chute Diameter(OD) | 1.25 |
Height (Inches) | 45 |
Length (Inches) | 23.25 |
Maximum Depth of 45 Degree Cut (Inches) | 1.25 |
Maximum Depth of 90 Degree Cut (Inches) | 2.25 |
Maximum Metal Cutting Capacity (Inches) | 0.25 |
Maximum Throat Width/Depth (Inches) | 18 |
Maximum Wood Cutting Capacity (Inches) | 2.25 |
Stroke Length (Inches) | 0.75 |
Weight (lbs.) | 45.9 |
Width (Inches) | 18 |
Certifications | |
---|---|
CA Residents: Prop 65 Warning(s) | |
Safety Listing | CSA safety listing |
Miscellaneous | |
---|---|
UNSPSC | 27112700 |
