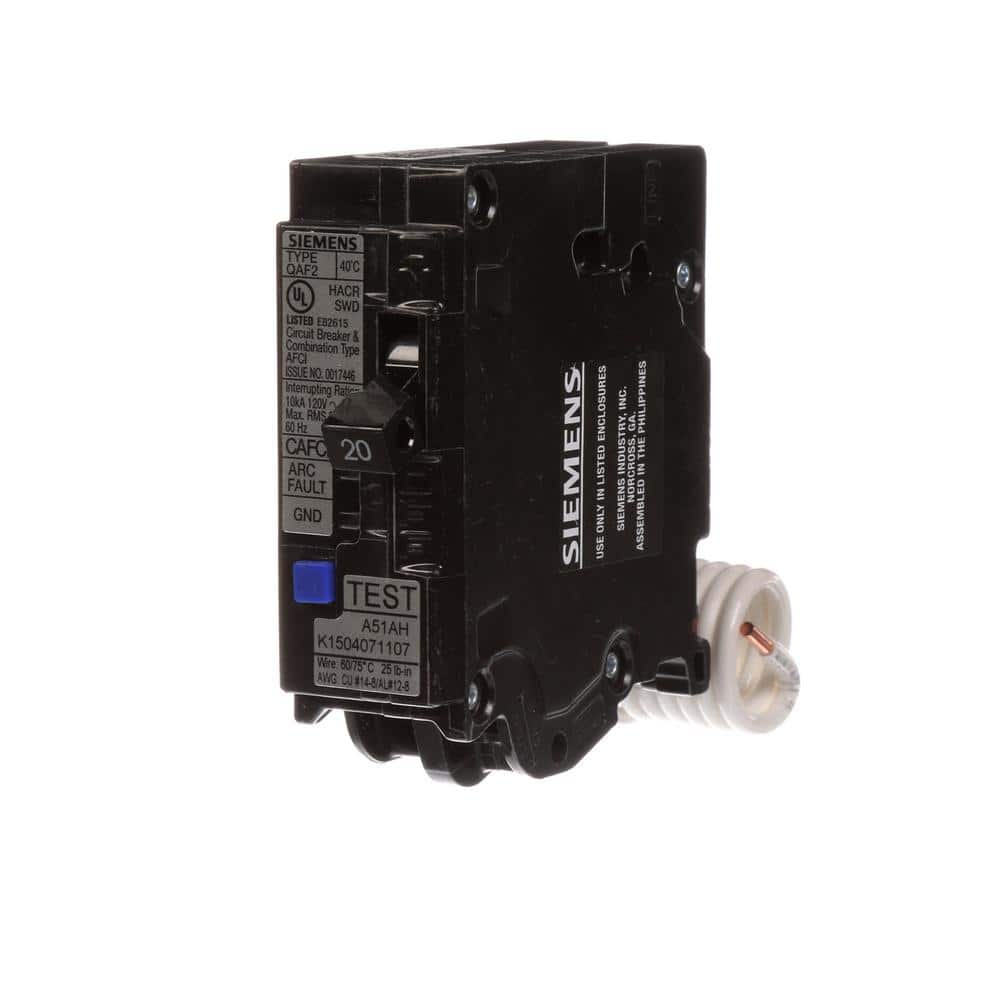

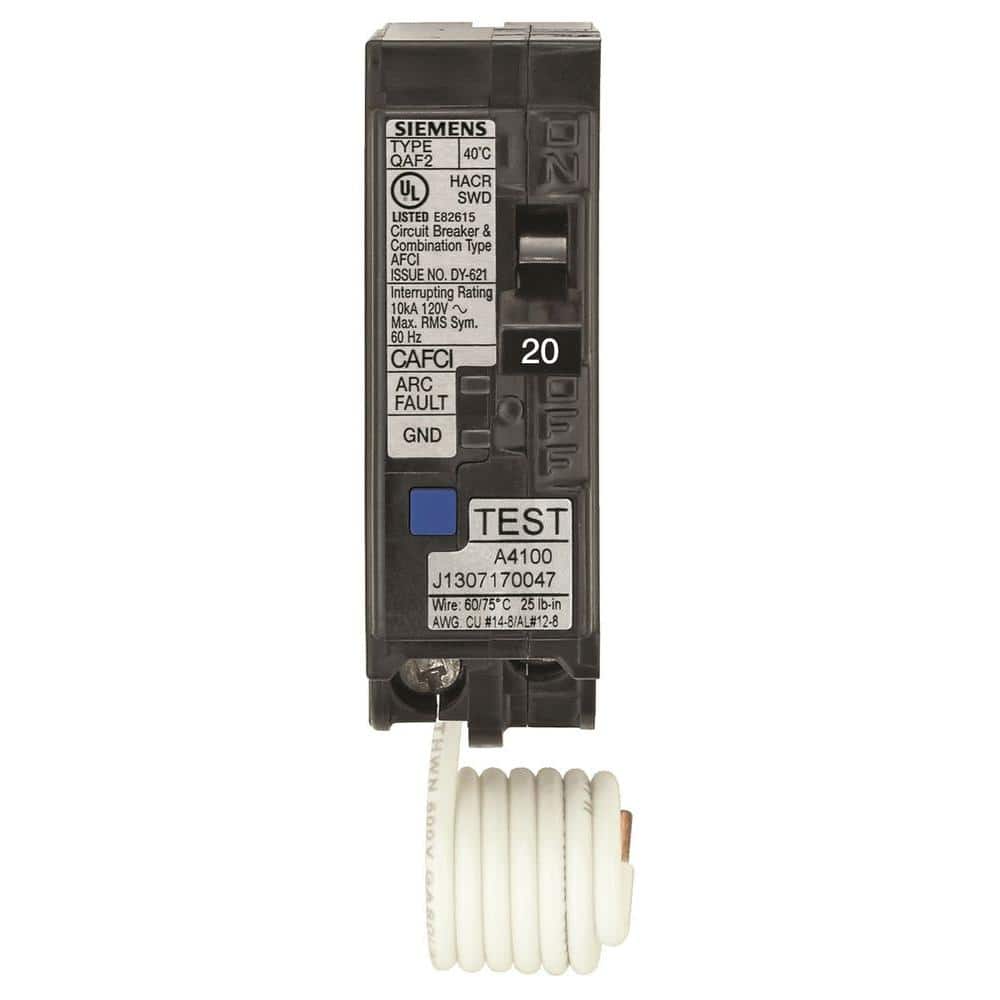

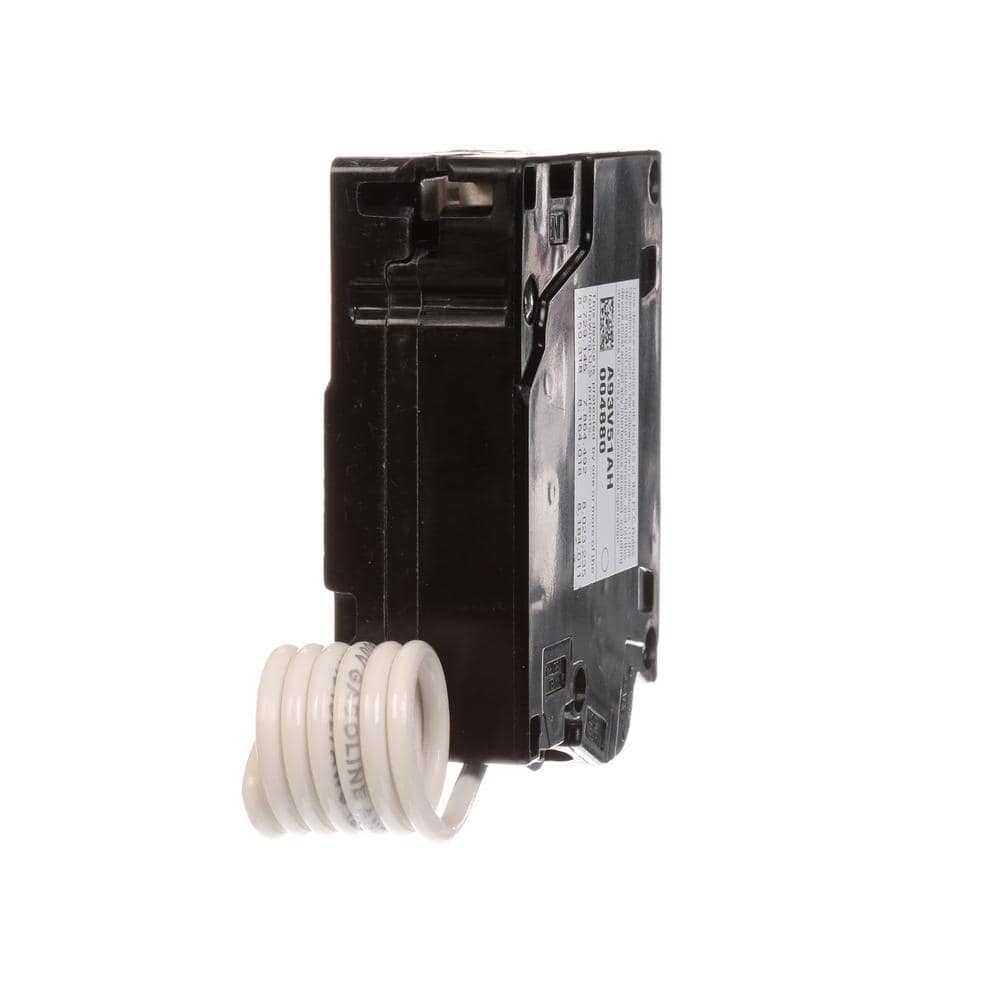

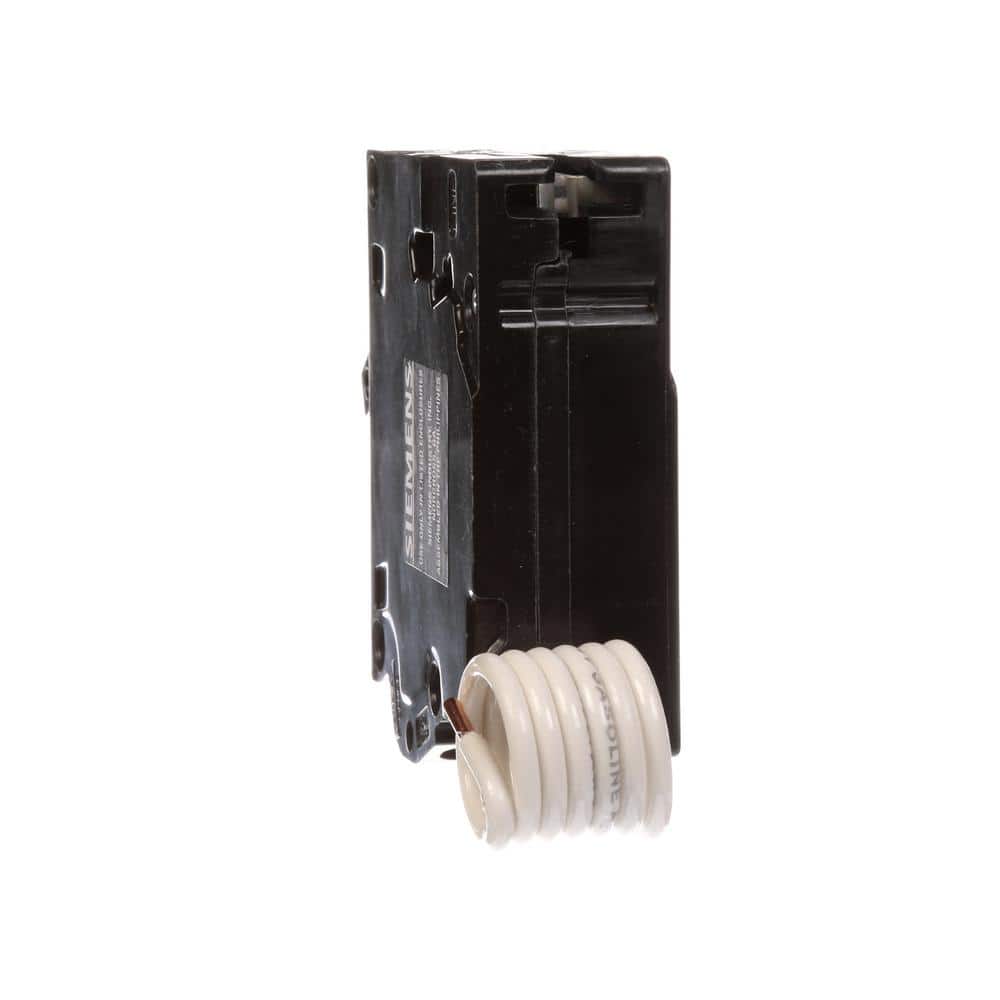

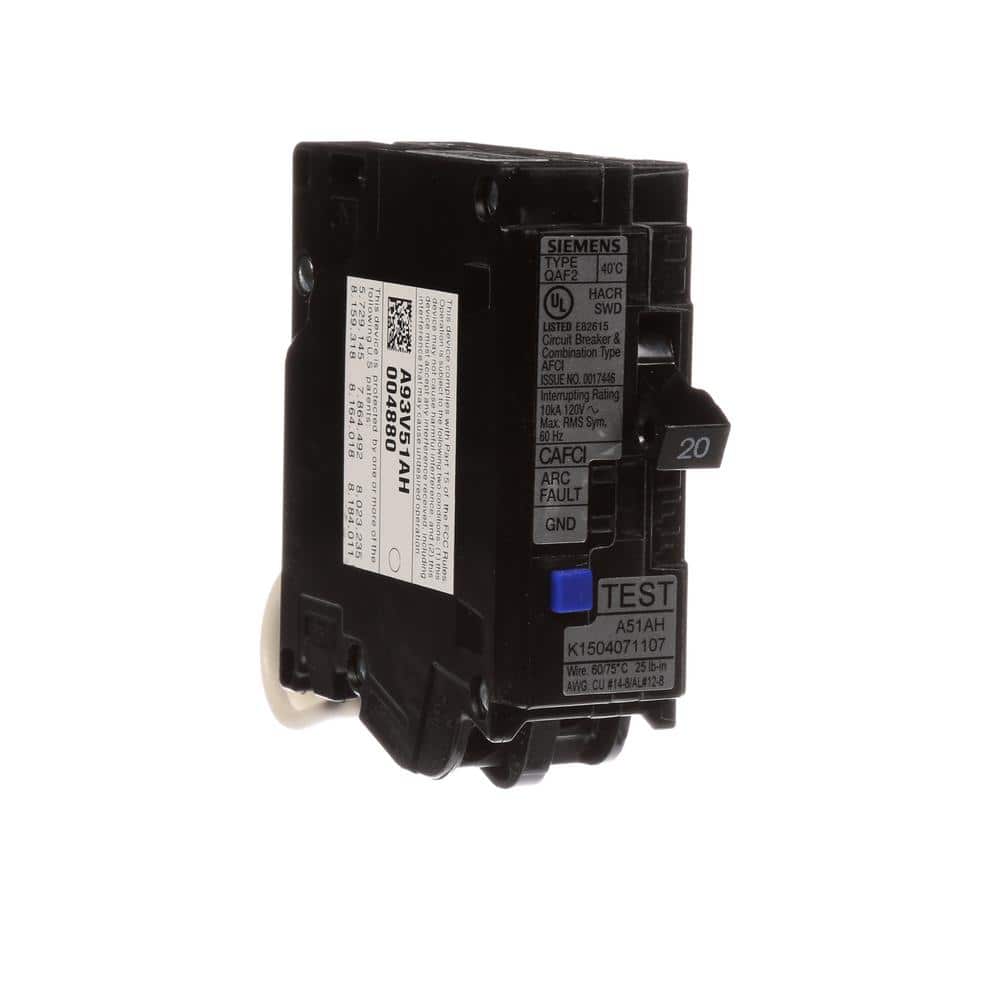

Siemens 20 Amp 1 in. Single-Pole Combination AFCI Circuit Breaker US2:QA120AFCP
This Siemens 20-Amp 1 in. Single-Pole Combination AFCI Circuit Breaker trips to the center position and features LED trip indicators. This combination breaker is intended for use as a circuit breaker and AFCI device. This breaker is UL listed.
Highlights
- Plug-in or bolt-on branch circuit breakers for Siemens single phase load centers or panel boards
- LED trip indicator provides easy identification
- Available with interrupting rating of 10kA, 22kA, or 65kA
- 1/4 in. more wiring bend space than previous design
- Both lugs at the same angle for easier wiring
- #14 – #8 AWG copper, #12 – #8 AWG aluminum wire range
- 25 lb./in. torque rating
- UL listed
- California residents
Specifications
Dimensions
| Product Depth (in.) | 1.5 in | Product Height (in.) | 6.5 in |
|---|---|---|---|
| Product Width (in.) | 6.75 in |
| AIC Rating | 10 | Breaker Type | Standard |
|---|---|---|---|
| Connection Type | Pigtail | Interruption Type | AFCI |
| Maximum Amperage (A) | 20 A | Mounting Type | Plug-On |
| Number of Poles | Single | Number of Spaces | 0 |
| Pack Size | 1 | Product Weight (lb.) | 0.5 lb |
| Voltage (V) | 120 V | Series Type | Not Specified |
| Trip Unit | Electronic |
| Brand | Siemens |
|---|
