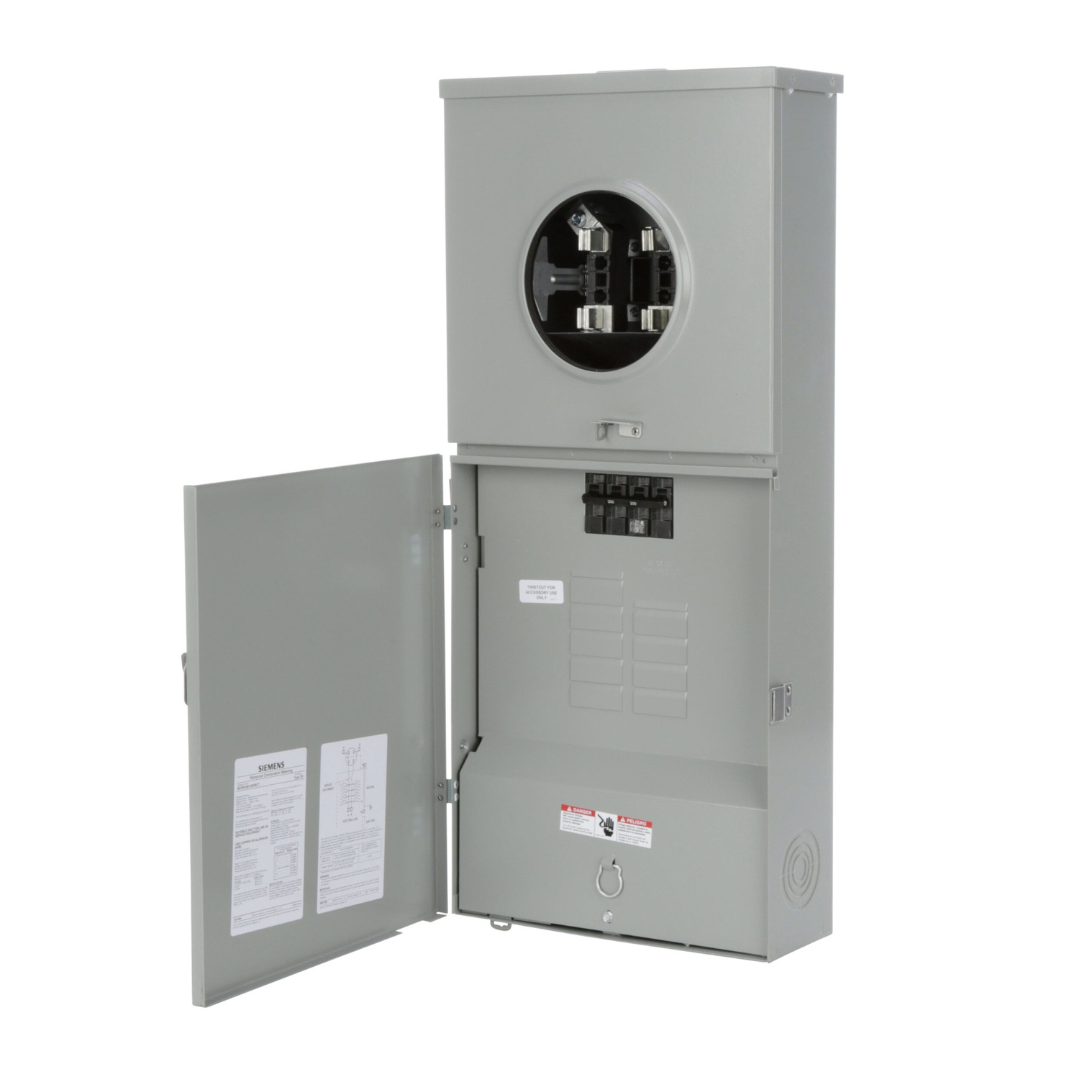

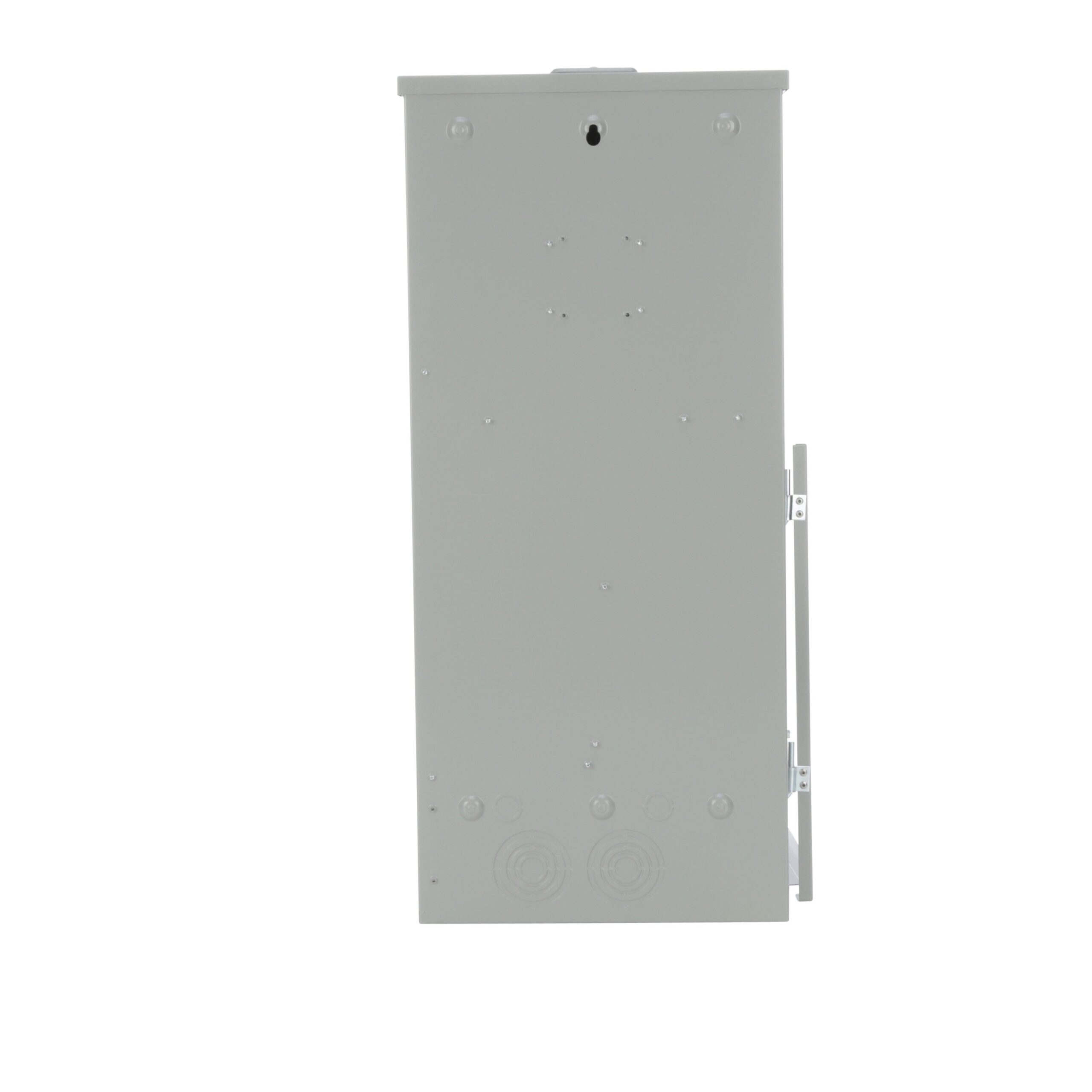

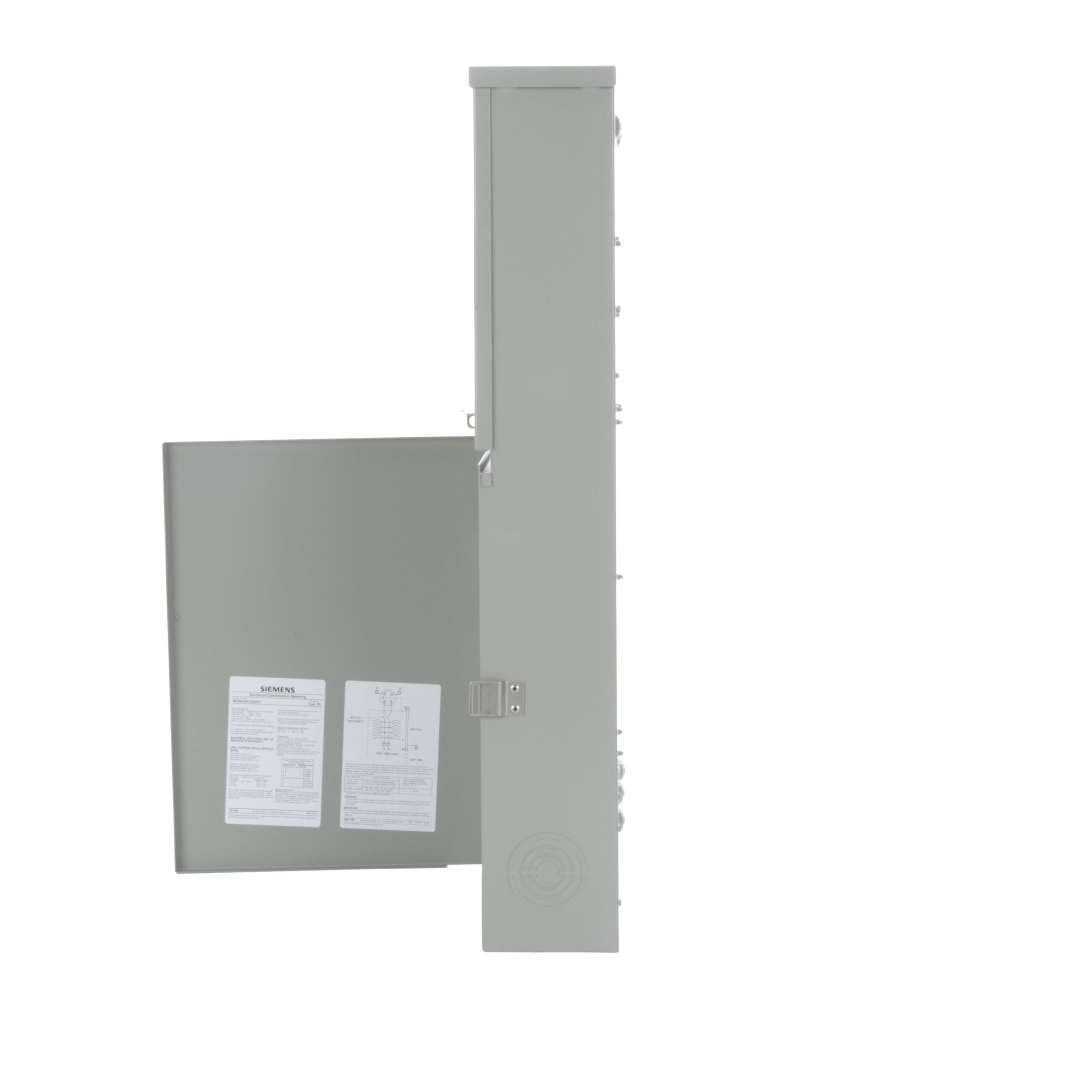

Siemens 200 -Amp 8 -Spaces 16 -Circuit Outdoor Main Breaker Meter Combo Load Center
This Siemens 200-Amp 8-Space 16-Circuit Outdoor Combination Meter Socket Load Center is a redesigned replacement of earlier model MC0816B1200RCT. Included is a MEG APPROVED label for participating utilities (Duke Energy, Florida Power & Light, Gulf Energy, TECO, OG&E). Compatibility with the electric service provider (utility) should be checked prior to ordering.
- Over-Under construction; Surface Mount; Feed Thru Lugs included
- For Overhead or Underground Service applications
- Check with local utility to confirm meter socket approval prior to ordering
- RX-type Hub Opening on Top End Wall with Cover Plate Installed (hubs sold separately)
- HC-type Hub Opening on Bottom End Wall (hubs sold separately)
- Ringless Type Meter Cover; No Bypass
- 120/240V, 1-Phase, 3-Wire, 4-Jaw
- UL Listed; 22,000 AIC rated
- Outdoor steel enclosure (NEMA Type 3R)
Specifications
| General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Grey | Orientation | Over/Under |
| Type | Main breaker meter combo | Number of Spaces | 8 |
| Use Location | Outdoor | Phase Type | Single phase (120/240) |
| Mounting Type | Surface | Buss Bar Construction | Aluminum |
| Usage | Service entrance | Circuits | 16 |
| Paintable | Yes |
| Dimensions | |||
|---|---|---|---|
| Depth (Inches) | 5.11 | Width (Inches) | 14.93 |
| Height (Inches) | 29.06 | Amperage | 200 |
| Features | |||
|---|---|---|---|
| Cover Included | Yes | Plug-On Neutral | No |
| Feed-Through Lugs | Yes | Value Pack | No |
| Ground Bar Installed | No |
| Compatibility | |||
|---|---|---|---|
| Brand/Model Compatibility | Siemens |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | Safety Listing | UL safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 39121100 |
| Brand | Siemens |
|---|
