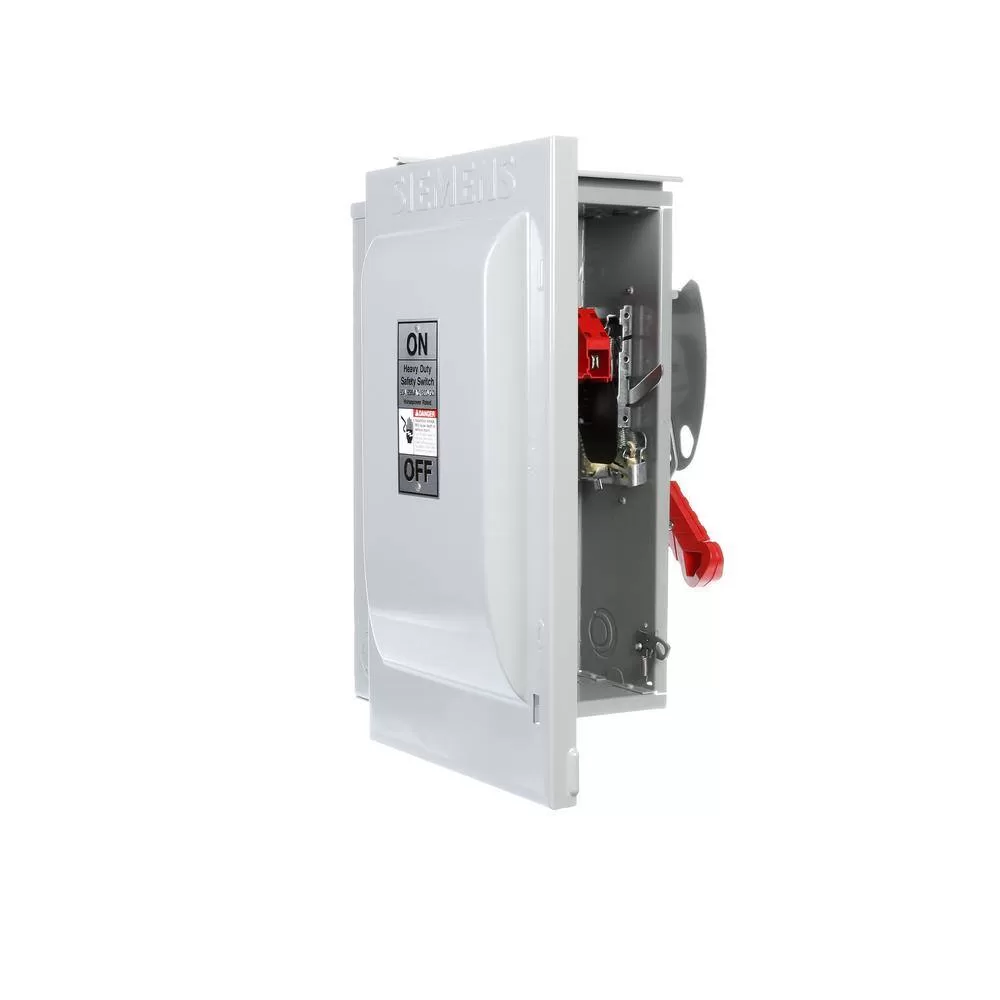

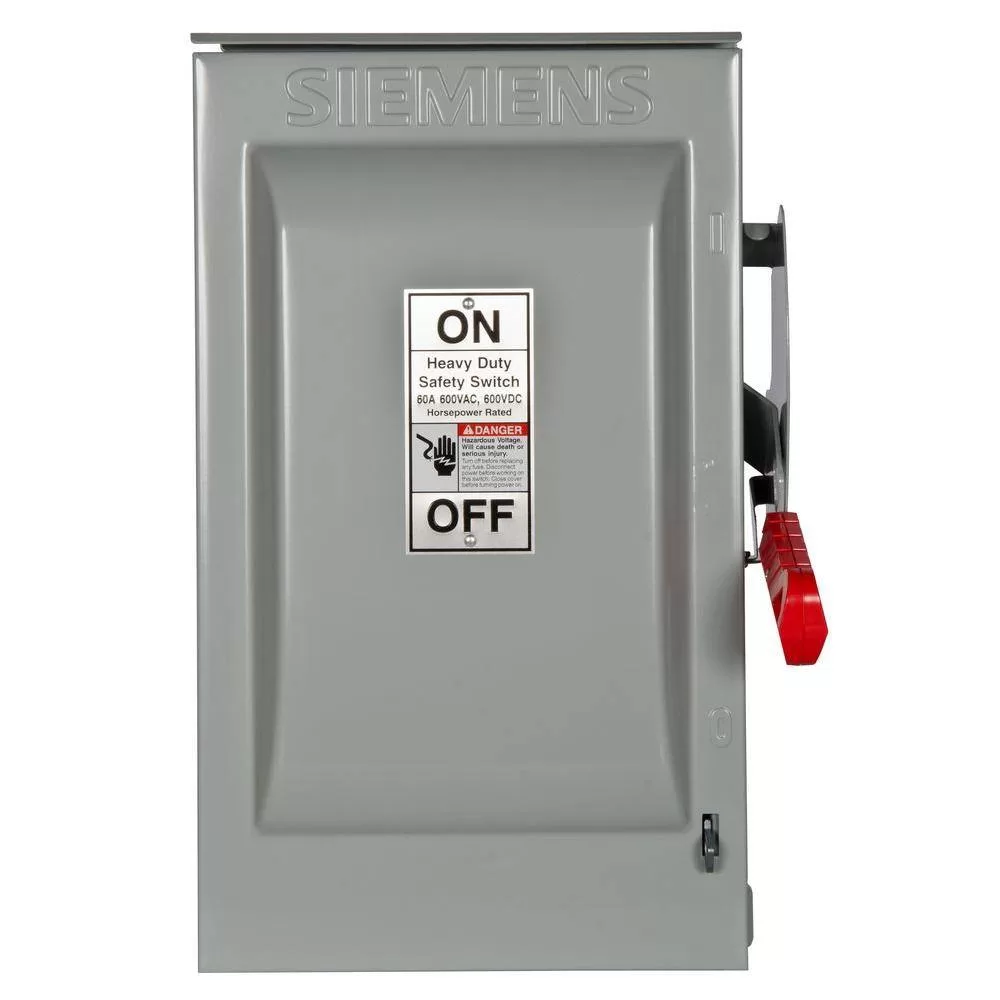

Siemens HNF362R Heavy Duty 60 Amp 600-Volt 3-Pole Outdoor Non-Fusible Safety Switch

Siemens HNF362R Heavy Duty 60 Amp 600-Volt 3-Pole Outdoor Non-Fusible Safety Switch

Heavy Duty Safety Switches are available in 30-1200A ratings and in Type 1, 3R, 12, and 4X enclosures. Both fusible and non-fusible versions are offered. They can be used on circuits that are rated through 200K when protected by or used with Class R or J fuses. They feature quick make and break operation and visible blade construction.

• 60-Amp, 3-pole, 3-wire, 600-Volt non-fusible safety switch
• NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation or internal icing
• Quick-make, quick-break operating mechanism that ensures positive operation

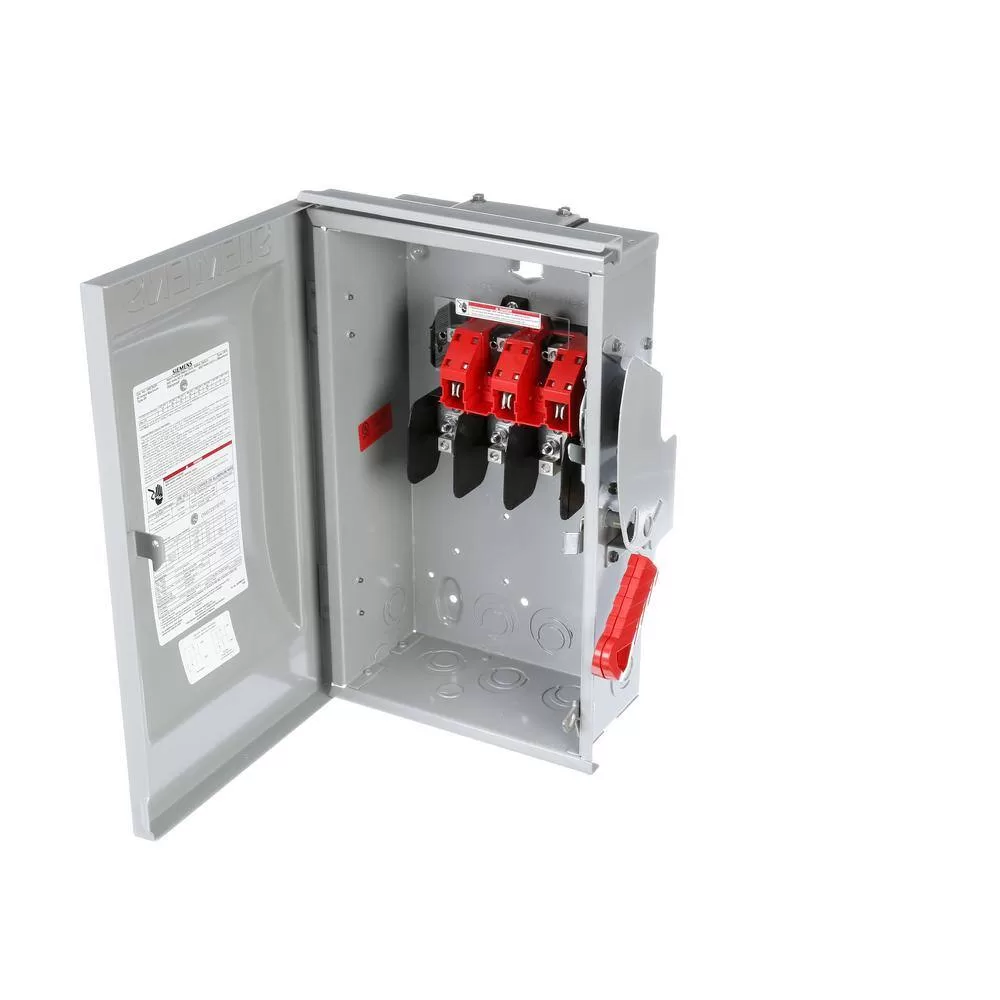

• Visible blade, double-break switching action
• Arc chutes dissipate heat and prolong switch life

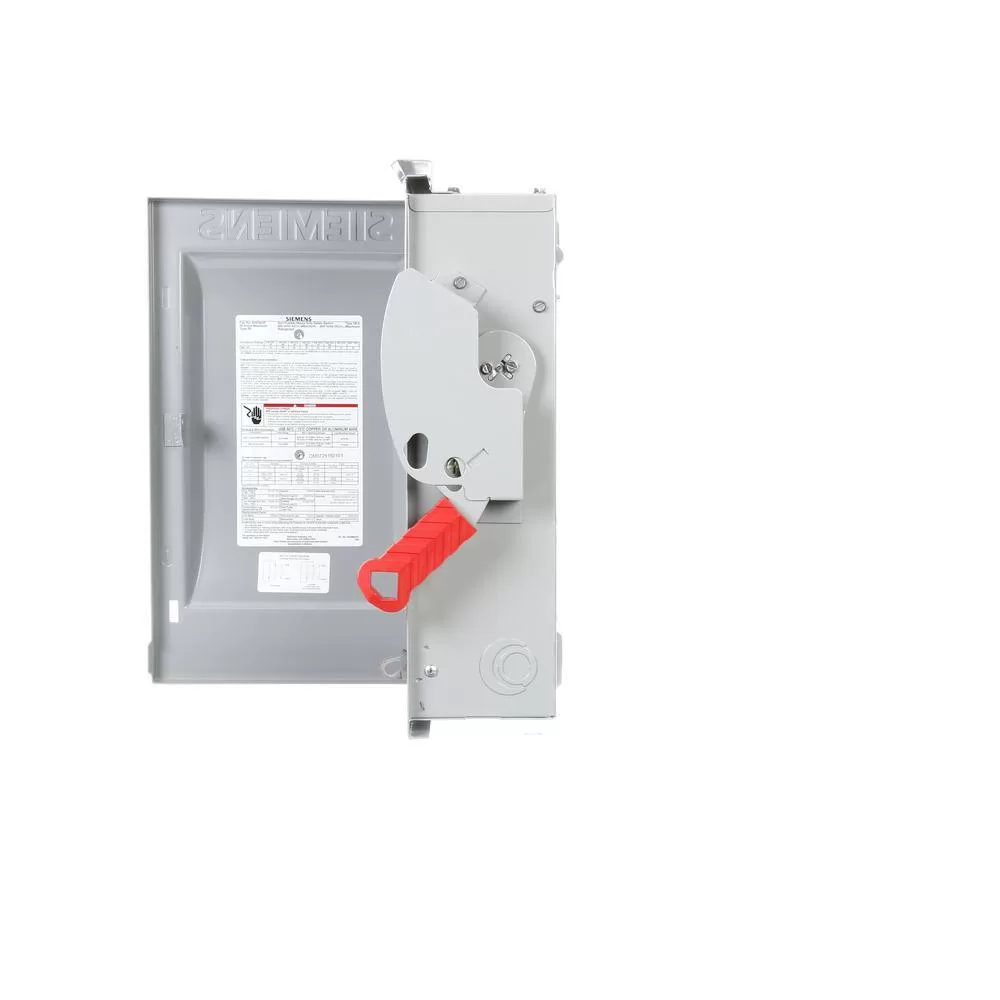

• Highly visible red handle grip is designed for hook stick operation
• Defeatable dual cover interlock
• Center punch provided for field drilling to allow ON padlocking
• Generous top, bottom and side gutters that meet or exceed NEC wire-bending space requirements
• Tangential knockouts for easy conduit lineup

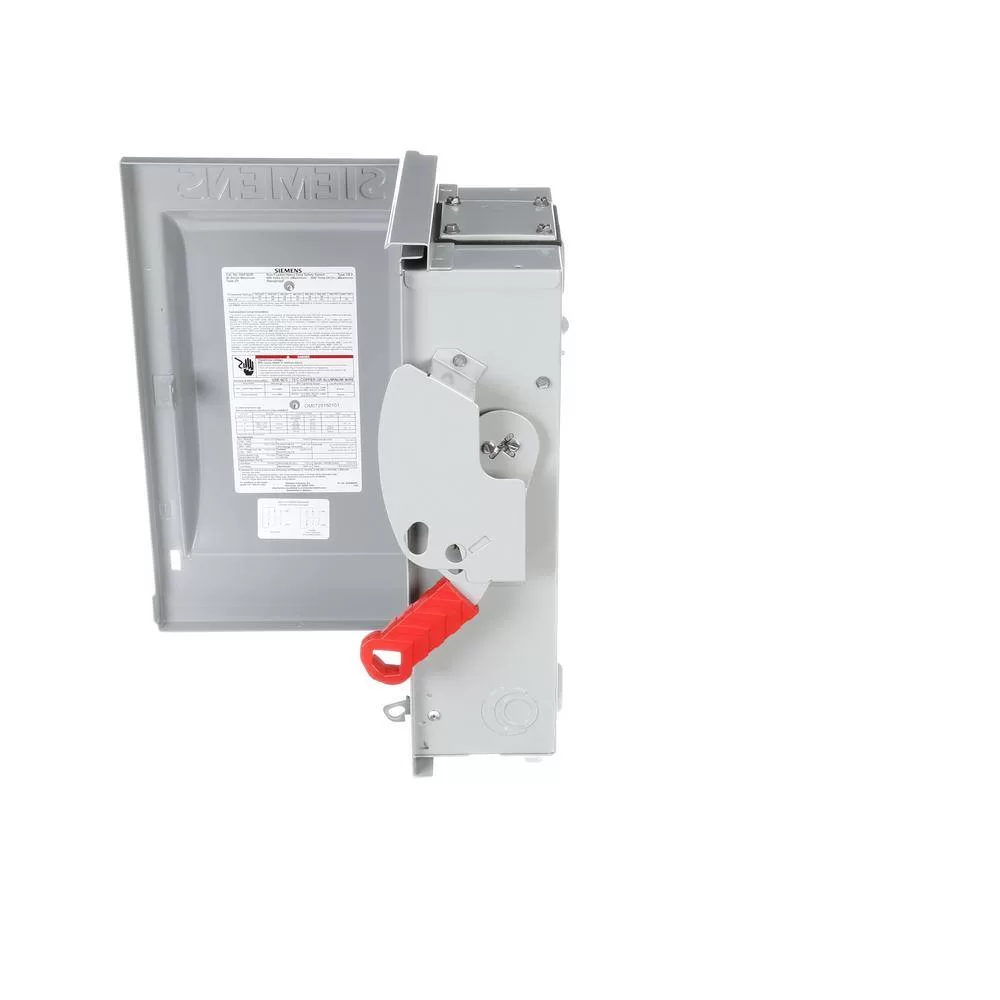

• Side-hinged door that opens past 180° for easier wiring
• Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer’s hands
• Spring reinforced fuse clips that assure reliable contact for cool operation
• Door latch securely holds door closed and allows cover padlocking
• Front removable mechanical lugs that are suitable for CU/Al 60° or 75° C conductors
• Lugs are field convertible to copper body and to a wide variety of compression connectors
• Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
• Drawn cover for increased rigidity and resistance to abuse
