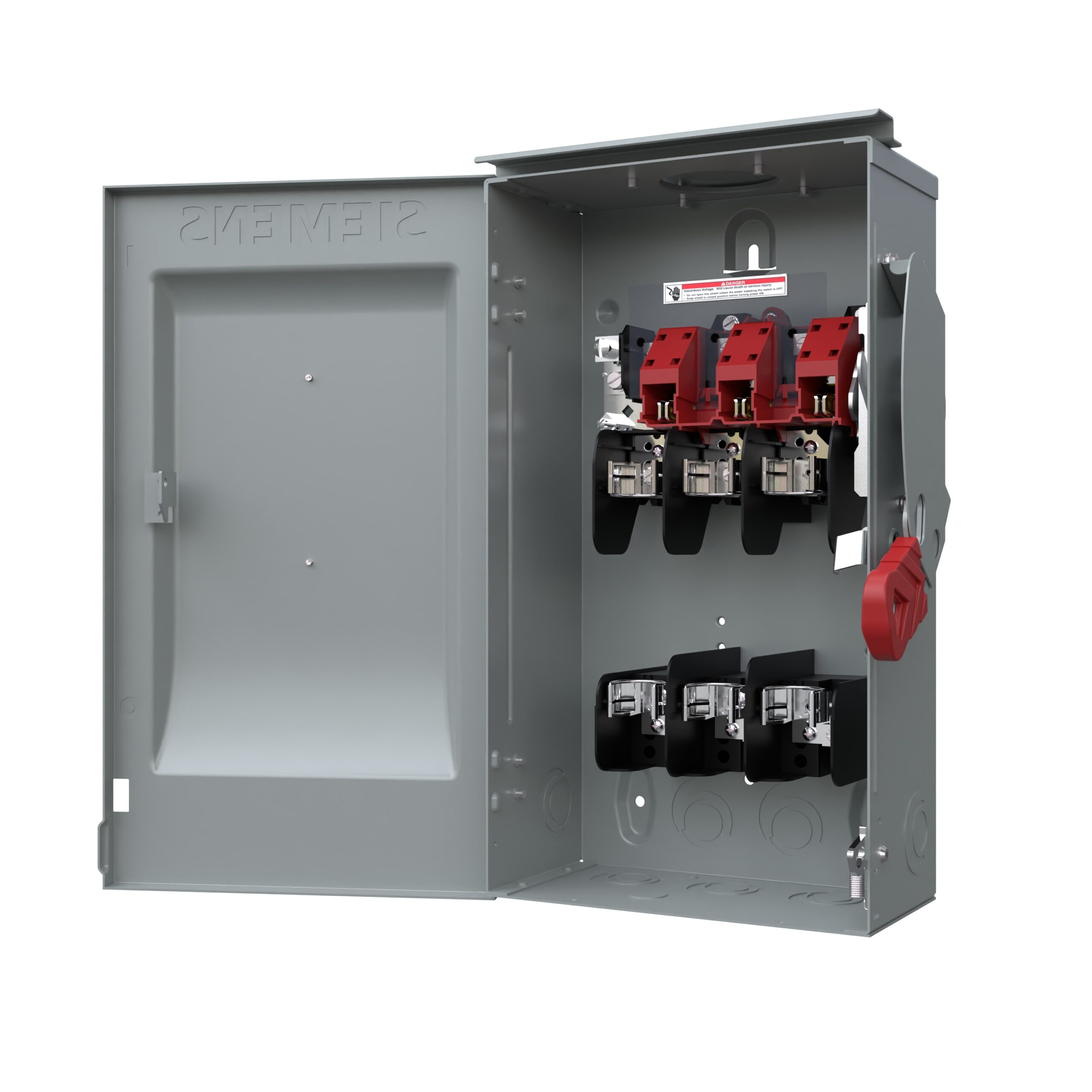

Siemens Type VBII 60 Amp Single phase (120V/240V) Fusible Outdoor Heavy-duty Safety Switch Disconnect
Heavy Duty Safety Switches are available in 30-1200A ratings and in Type 1, 3R, 12, and 4X enclosures. Both fusible and non-fusible versions are offered. They can be used on circuits that are rated through 200K when protected by or used with Class R or J fuses. They feature quick make and break operation and visible blade construction.
- Oversized lugs for enhanced wire range and convenient termination
- Features a visible blade and double break switching action
- Ideal for use with supply circuits rated 240-volt AC or less
- 60-Amp, 3-Pole, 3-Wire, 600-Volt fusible safety switch
- Quick-make, quick-break operating mechanism that ensures positive operation
- Generous wiring gutters that meet or exceed NEC wire-bending space requirements

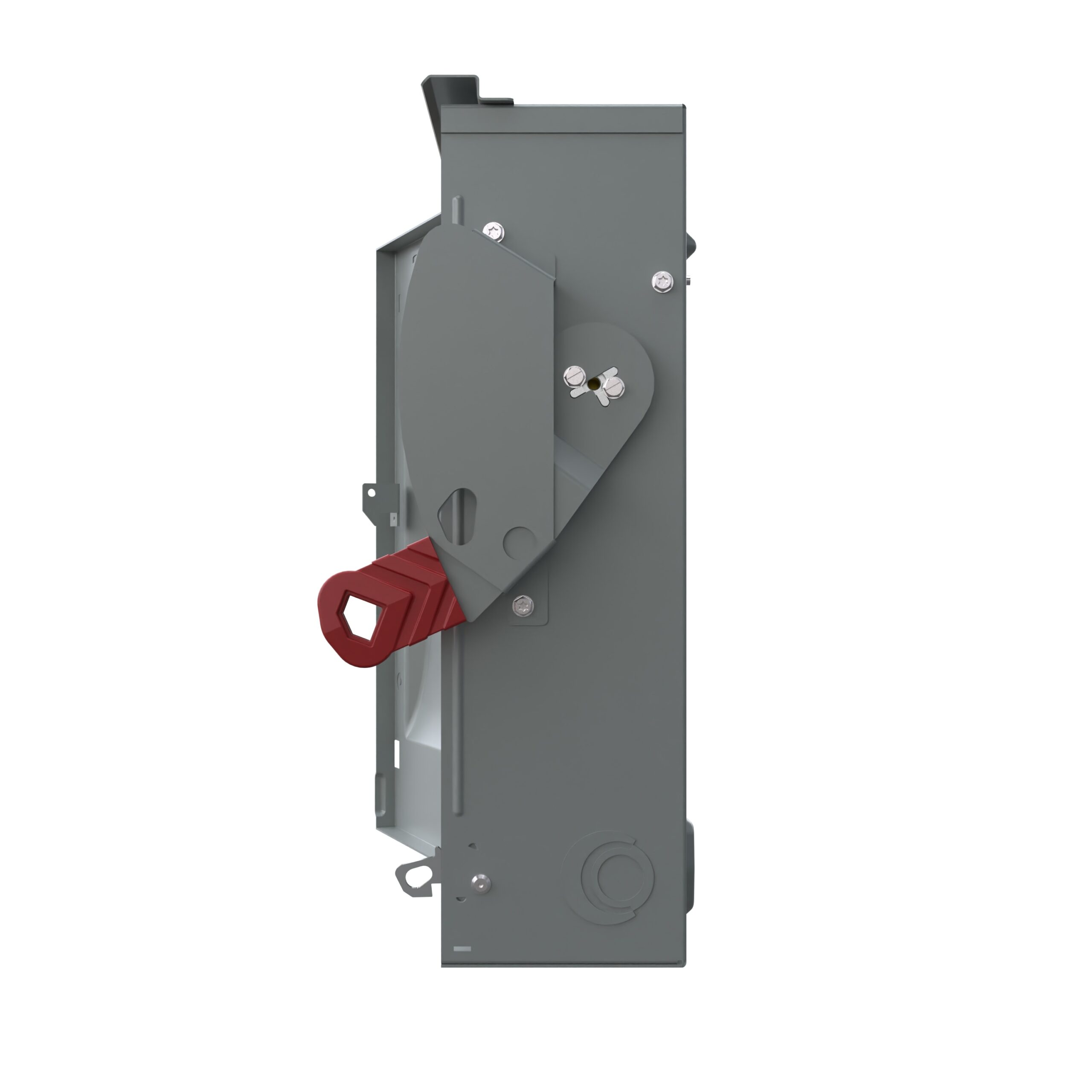

- Highly visible red handle grip, designed for hook stick operation
- Padlocking provisions to lock cover closed or to lock handle positon
- UL Listed, NEMA Type 3R Outdoor Enclosure
Specifications
| General | |||
|---|---|---|---|
| Color/Finish Family | Gray | Usage | Universal |
| Series Name | Type VBII | Phase Type | Single phase (120V/240V) |
| Type | Safety switch | Number of Poles | 3 |
| Use Location | Outdoor | Fusible or Non-Fusible | Fusible |
| Application | Heavy-duty | Casing Material | Metallic |
| Compatibility | |||
|---|---|---|---|
| Brand/Model Compatibility | Universal |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | Safety Listing | UL safety listing |
| Dimensions | |||
|---|---|---|---|
| Amperage | 60 |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 39121500 |
| Brand | Siemens |
|---|
