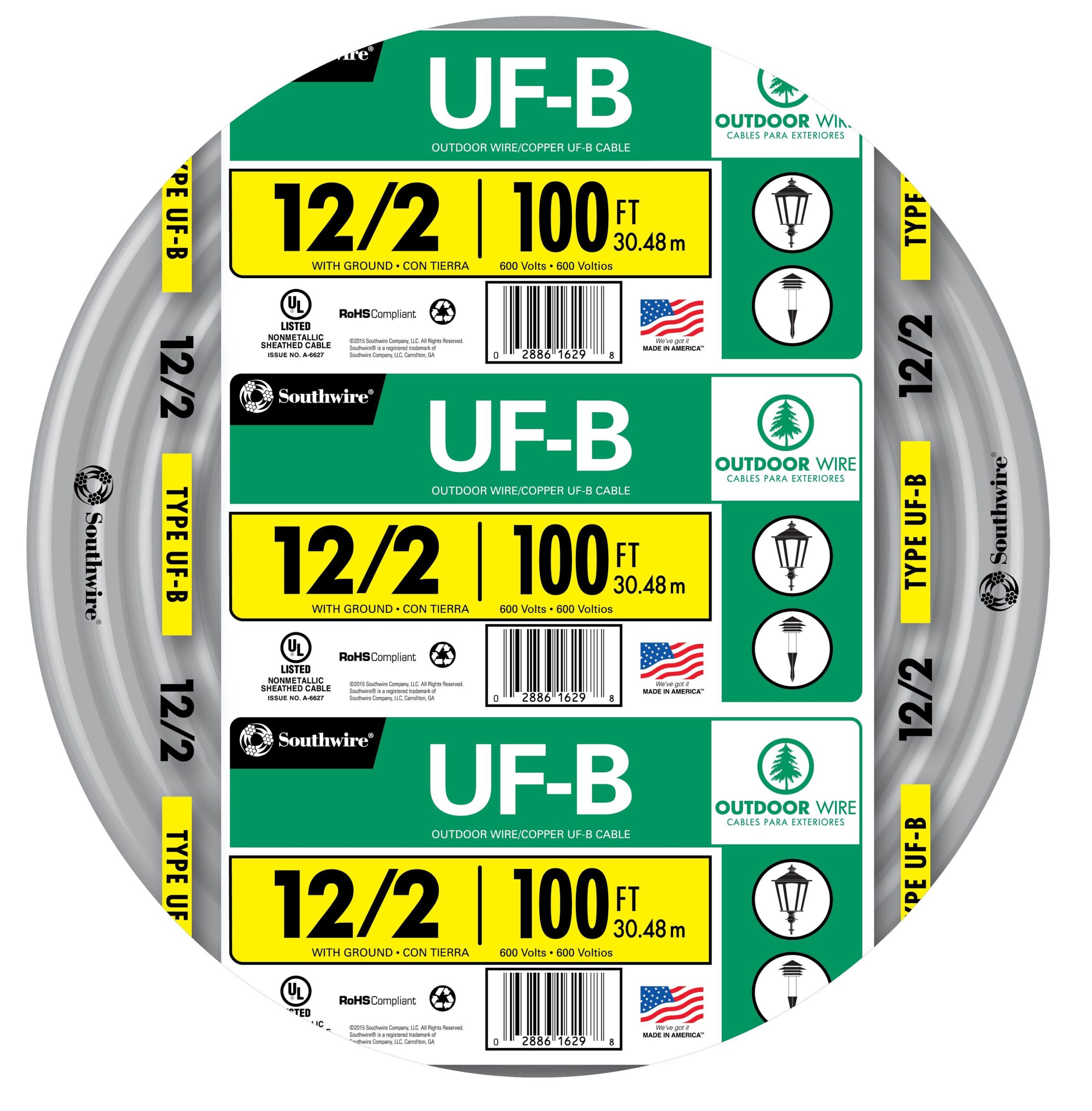

Southwire 100-ft 12 / 2 UF-B Wire W/G ( By-the-roll )
Southwire’s copper UF-B cable is used in applications that include outside lamp posts, pumps and other loads. It can also be used for outbuildings such as garages and barns. UF-B feeds from a distribution point in an existing building. UF-B has a heat capacity of 90°C and is rated at 600-Volt. UL Listed.
- Conductors are made of annealed (soft) copper
- PVC insulation and a nylon, color coded jacket
- Used outdoors for direct burial
- Used indoors for wet or corrosive locations
- Jacketed with sunlight, moisture and fungus resistant gray PVC
Specifications
| General | |||
|---|---|---|---|
| Sub-Brand | N/A | Stranded or Solid | Solid |
| Use Location | Indoor/Outdoor | Wire Gauge | 12 |
| Voltage Rating | 600 | Direct Burial | Yes |
| Wire Cut Type | By-the-roll | Ground Wire | Yes |
| Number of Conductors | 2 |
| Dimensions | |||
|---|---|---|---|
| Cable Length (Feet) | 100 | Weight (lbs.) | 9.5134 |
| Features | |||
|---|---|---|---|
| Commercial/Residential | Commercial/Residential | Moisture Resistant | Yes |
| Fire Resistant | No | Shielded | No |
| Maximum Amperage | 20 | UV Resistant | Yes |
| Compatibility | |||
|---|---|---|---|
| Conduit Compatible | No |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | RoHs Compliant | Yes |
| Safety Listing | UL safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 60104900 |
| Brand | Southwire |
|---|
