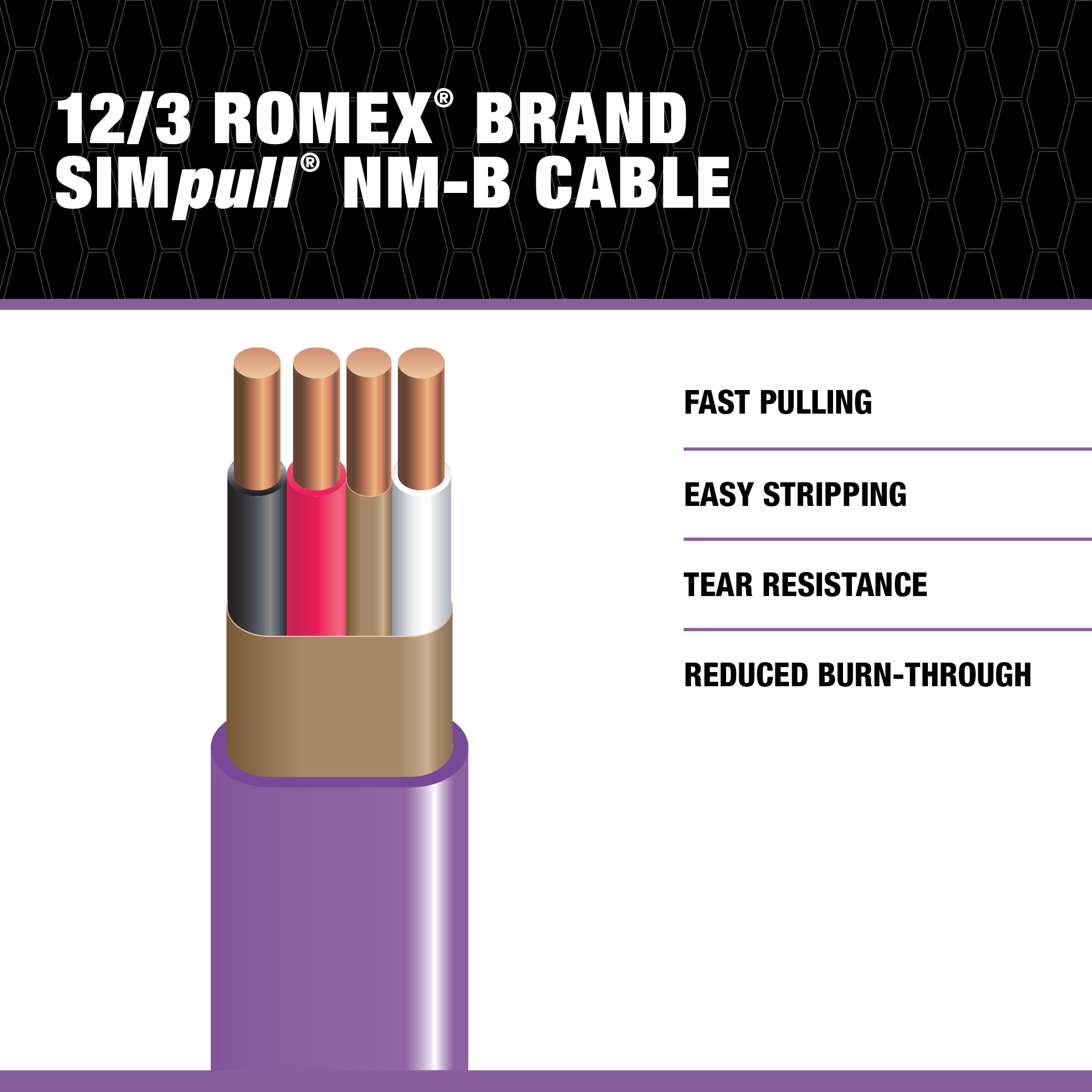

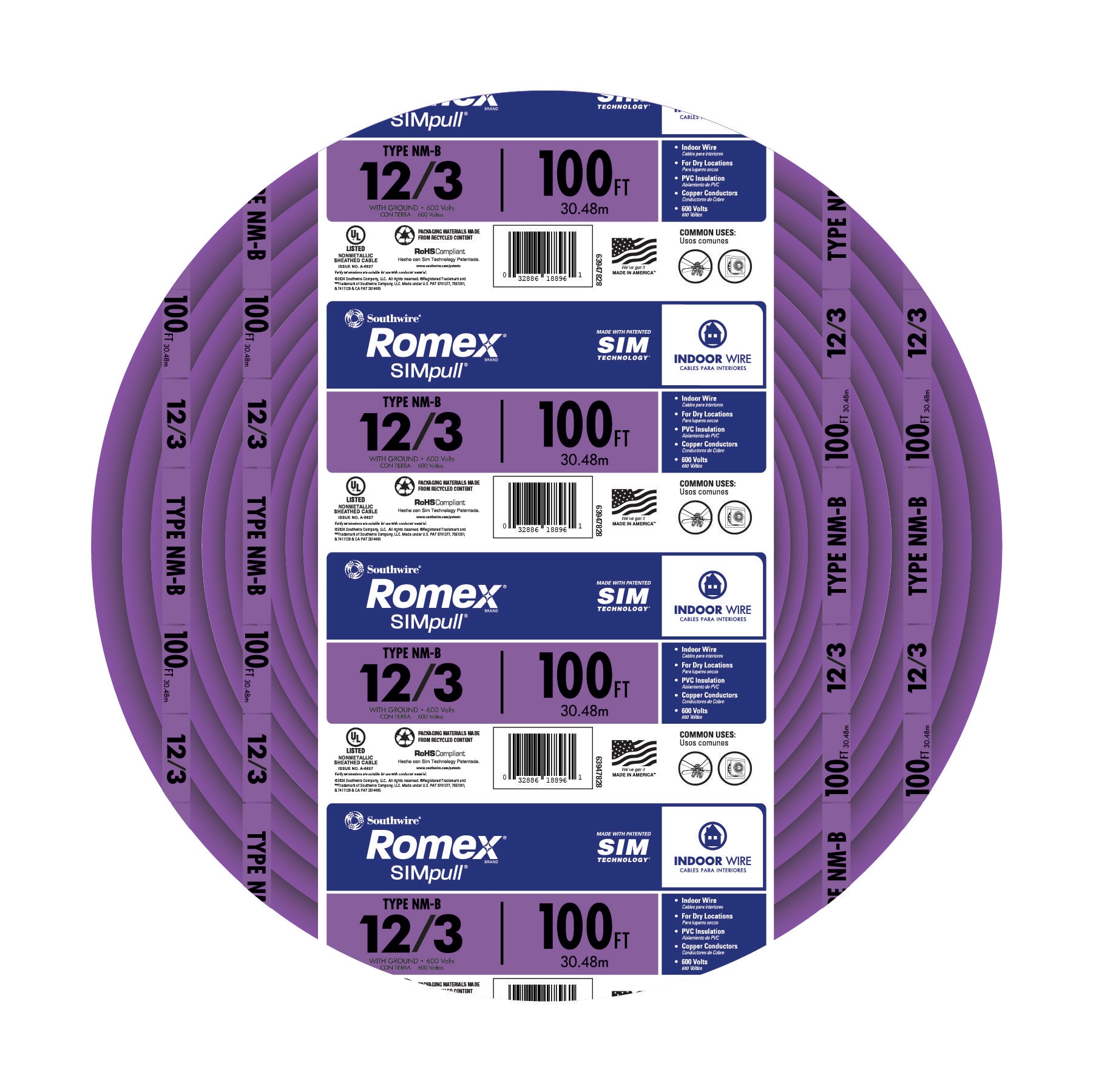

Southwire 100-ft 12 / 3 / Romex SIMpull Solid Indoor CU NM-B W/G Individual pack ( By-the-roll )
Discover the versatility and reliability of the Southwire 100-ft 12/3 Romex SIMpull Solid Indoor Copper NM-B Cable. Ideal for both exposed and concealed work in dry locations, this cable ensures safe electrical wiring with a temperature limit of 90°C. Designed specifically for residential wiring, it serves as branch circuits for outlets, switches, and other loads.
Highlights
- Suitable for both exposed and concealed work in dry settings
- Primarily used in residential wiring as branch circuits
- Can be run in air voids of masonry block or tile walls where walls are dry
- Rated for 600 volts with annealed (soft) copper conductors
- SIMpull® design allows for easier installation
- UL listed for safety and reliability
Specifications
| General | |
|---|---|
| Series Name | Romex SIMpull |
| Dimensions | |
|---|---|
| Cable Length (Feet) | 100 |
| Features | |||
|---|---|---|---|
| Commercial/Residential | Commercial/Residential | Package Quantity | 1 |
| Direct Burial | No | Package Type | Individual pack |
| Fire Resistant | No | RoHs Compliant | Yes |
| Ground Wire | Yes | Shielded | No |
| Jacket Material | Polyvinyl chloride | Stranded or Solid | Solid |
| Wire Gauge | 12 | Use Location | Indoor |
| Maximum Amperage | 20 | UV Resistant | No |
| Moisture Resistant | Yes | Voltage Rating | 600 |
| Number of Conductors | 3 | Wire Cut Type | By-the-roll |
| Number of Pairs | 0 | ||
| Compatibility | |
|---|---|
| Conduit Compatible | No |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | Safety Listing | UL safety listing | |
| Warranty | |
|---|---|
| Warranty | 1-year limited |
| Miscellaneous | |
|---|---|
| UNSPSC | 26121500 |
| Brand | Southwire |
|---|
