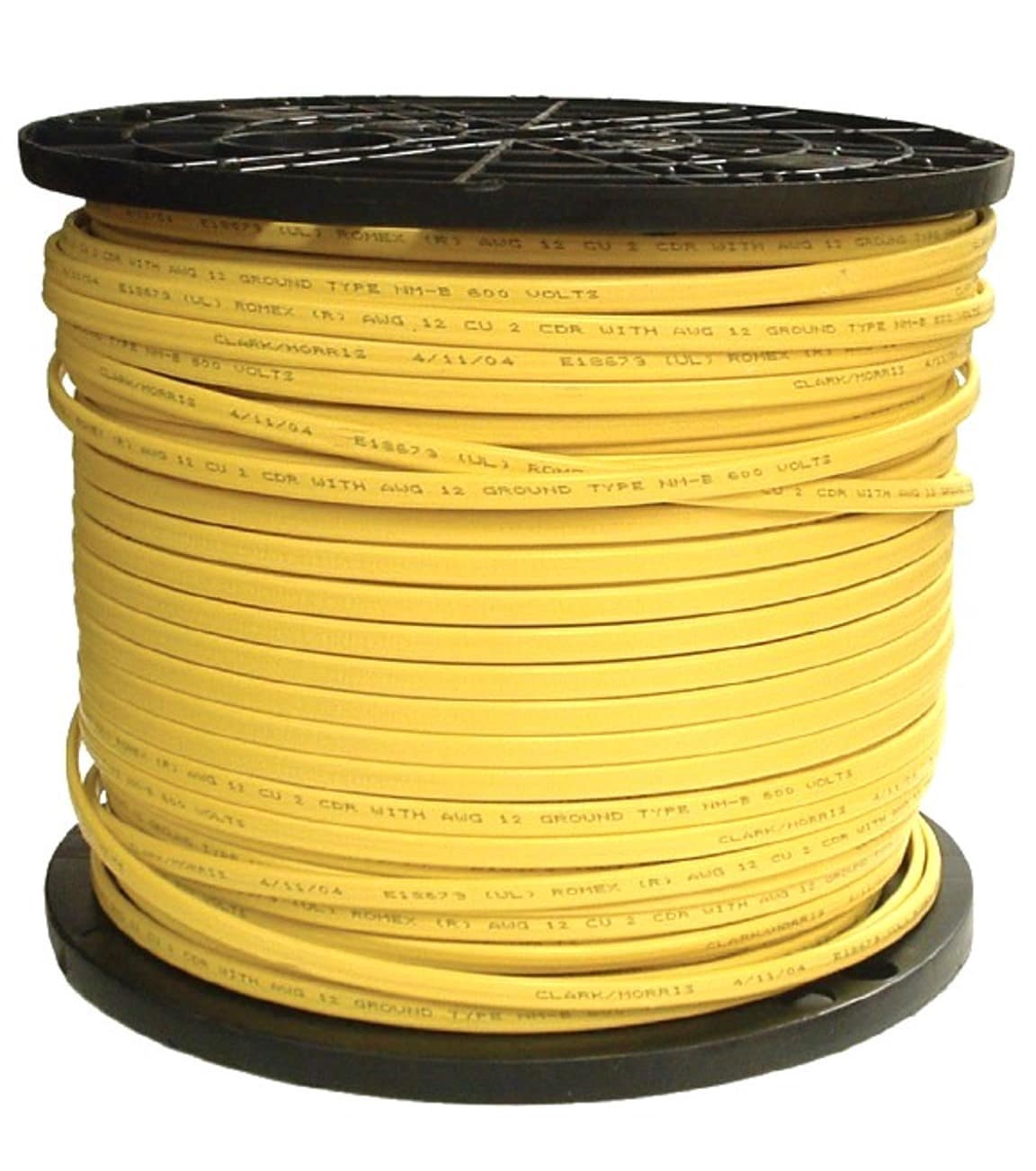

Southwire 1000-Feet 12 / 2 / Romex SIMpull Solid Indoor CU NM-B W/G Individual pack ( By-the-roll )
Original price was: $499.00.$434.13Current price is: $434.13.
- Jacket Color: Yellow – Enhance your wiring needs with a touch of color.
- Series Name: Romex SIMpull – Trusted for efficiency and ease of installation.
- Cable Length (Feet): 1000 – Generous length for extensive projects.
Out of stock
Southwire 1000-Feet 12 / 2 / Romex SIMpull Solid Indoor CU NM-B W/G Individual pack ( By-the-roll )
Discover the versatility of Southwire’s Romex® SIMpull® type NM-B cable, ideal for both exposed and concealed applications in dry environments. Rated for use at temperatures up to 90°C, this cable is perfect for residential wiring, serving as branch circuits for outlets, switches, and other electrical loads.
Key Features
- Optimal for dry location wiring with a temperature rating not exceeding 90°C.
- Primarily used for residential branch circuits, providing power to outlets and switches.

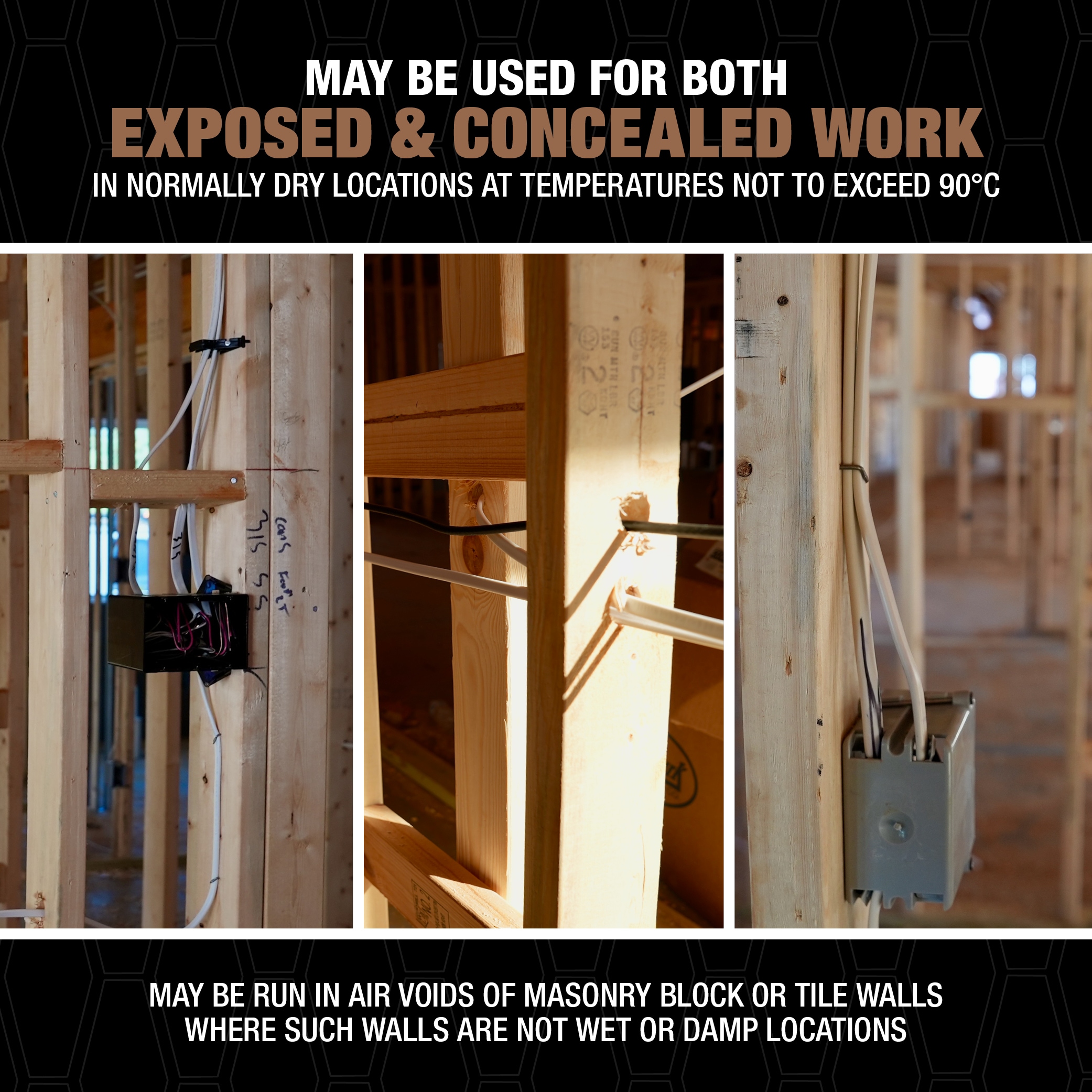

- Can be installed in air voids of masonry block or tile walls, provided these are not wet or damp locations.
- Voltage rating of 600 volts, ensuring reliable power transmission.
- Crafted with annealed (soft) copper conductors for improved conductivity.
- Features Southwire’s SIMpull® technology for easier installation and pulling.
Specifications
| General | |||
|---|---|---|---|
| Jacket Color | Yellow | Sub-Brand | N/A |
| Series Name | Romex SIMpull | ||
| Dimensions | |||
|---|---|---|---|
| Cable Length (Feet) | 1000 | ||
| Features | |||
|---|---|---|---|
| Commercial/Residential | Commercial/Residential | Number of Strands (Wire 2) | 0 |
| Direct Burial | No | Package Quantity | 1 |
| Fire Resistant | No | Package Type | Individual pack |
| Ground Wire | Yes | RoHs Compliant | Yes |
| Jacket Material | Polyvinyl chloride | Shielded | No |
| Wire Gauge | 12 | Stranded or Solid | Solid |
| Maximum Amperage | 20 | Use Location | Indoor |
| Moisture Resistant | Yes | UV Resistant | No |
| Number of Conductors | 2 | Voltage Rating | 600 |
| Number of Conductors (Wire 2) | 0 | Wire Cut Type | By-the-roll |
| Number of Pairs | 0 | ||
| Compatibility | |||
|---|---|---|---|
| Conduit Compatible | No | ||
| Brand | Southwire |
|---|
