Southwire 12/2 x 50 ft. Solid CU MC (Metal Clad) Armorlite Cable 68580052

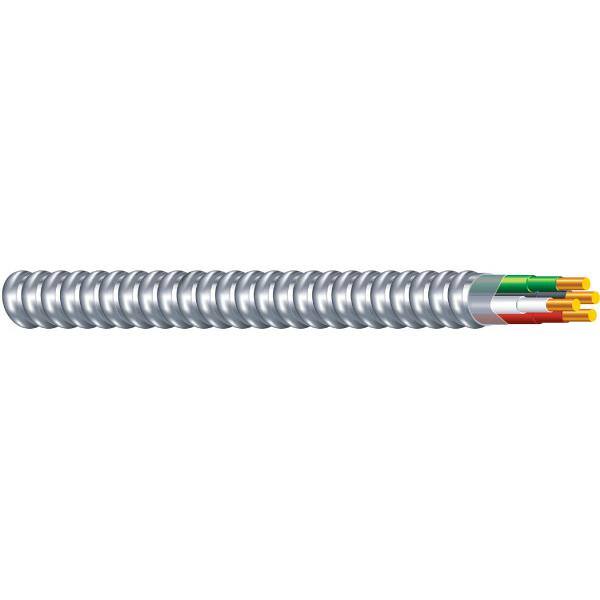

Southwire Armorlite Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90°C dry available in sizes 14 AWG through 2 AWG, and a green insulated grounding conductor. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly.
Highlights
- Brand received (Cerrowire or Southwire) varies by zip code
- Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings
- Power, lighting, control, and signal circuits
- Fished or embedded in plaster
- Concealed or exposed installations
- Environmental air-handling spaces per NEC 300.22 (C)
- Places of Assembly per NEC 518.4 and theaters per NEC 520
- Installation in cable tray and approved raceways
- Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) and 645.5(D)(2)
- Aluminum interlocking armor is applied over the assembly
- 1-UL listed
- Note: product may vary by store
Dimensions
| Total Wire Length (ft.) | 50 ft |
|---|
Details
| Armor Material | Aluminum | Commercial/Residential | Commercial, Residential |
|---|---|---|---|
| Conductor Material | Copper | Features | No Features |
| Gauge | 12 | Grounded | Grounded |
| Indoor/Outdoor | Indoor, Outdoor | Max Amps | 20 |
| Number of Conductors | 2 | Wire Cut Type | Pre-Cut Length |
| Stranded or Solid | Solid | Voltage (v) | 600v |
| Wet Location Use | Dry |
Warranty / Certifications
| Certifications and Listings | UL Listed | Manufacturer Warranty | N/A |
|---|
| Brand | Southwire |
|---|
