Southwire 125-Feet 6 / 3 / Romex SIMpull Stranded Indoor CU NM-B W/G Individual pack ( By-the-roll )

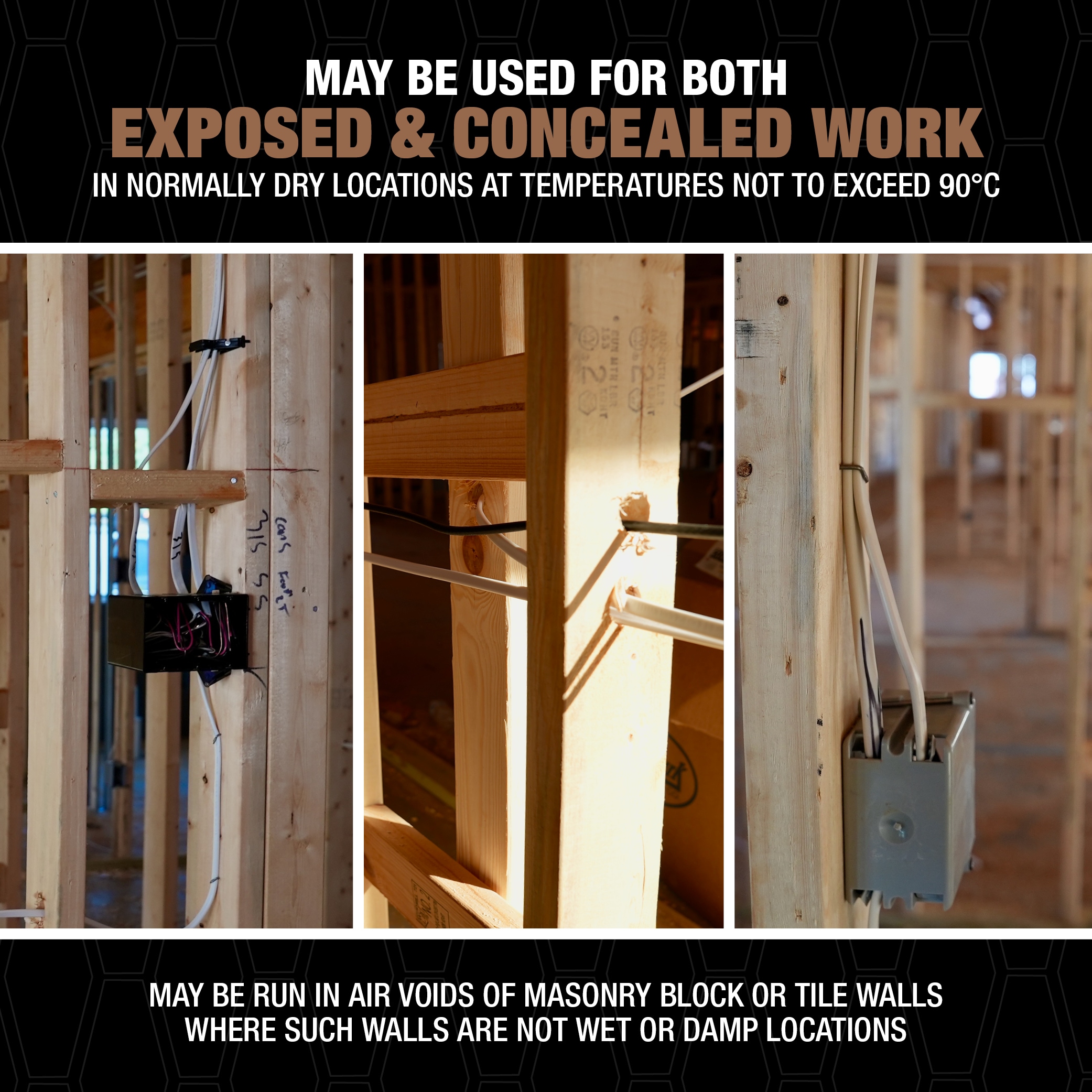

Discover the efficiency of Southwire’s Romex® SIMpull® NM-B cable, designed for both exposed and concealed wiring in dry locations. With a maximum temperature rating of 90°C, this cable ensures reliable performance.
- SIMpull Technology: Coated with a patented SIMpull Cable Jacket for effortless pulling, stripping, and installation.
- Versatile Application: Ideal for residential building wiring, serving as a branch circuit for switches and outlets.
- Installation: Suitable for above-ground use in dry areas only.
- Voltage Rating: 600 volts for assured safety.
- Flexible Use: Can be installed in air voids of masonry block or tile walls, provided these locations are dry.
- American Made: Proudly manufactured in the USA.
Specifications
| General | |||
|---|---|---|---|
| Jacket Color | Black | Series Name | Romex SIMpull |
| Dimensions | |||
| Cable Length (Feet) | 125 | ||
| Features | |||
| Commercial/Residential | Commercial/Residential | Package Quantity | 1 |
| Direct Burial | No | Package Type | Individual pack |
| Fire Resistant | No | RoHs Compliant | Yes |
| Ground Wire | Yes | Shielded | No |
| Jacket Material | Polyvinyl chloride | Stranded or Solid | Stranded |
| Wire Gauge | 6 | Use Location | Indoor |
| Maximum Amperage | 55 | UV Resistant | No |
| Moisture Resistant | Yes | Voltage Rating | 600 |
| Number of Conductors | 3 | Wire Cut Type | By-the-roll |
| Brand | Southwire |
|---|
