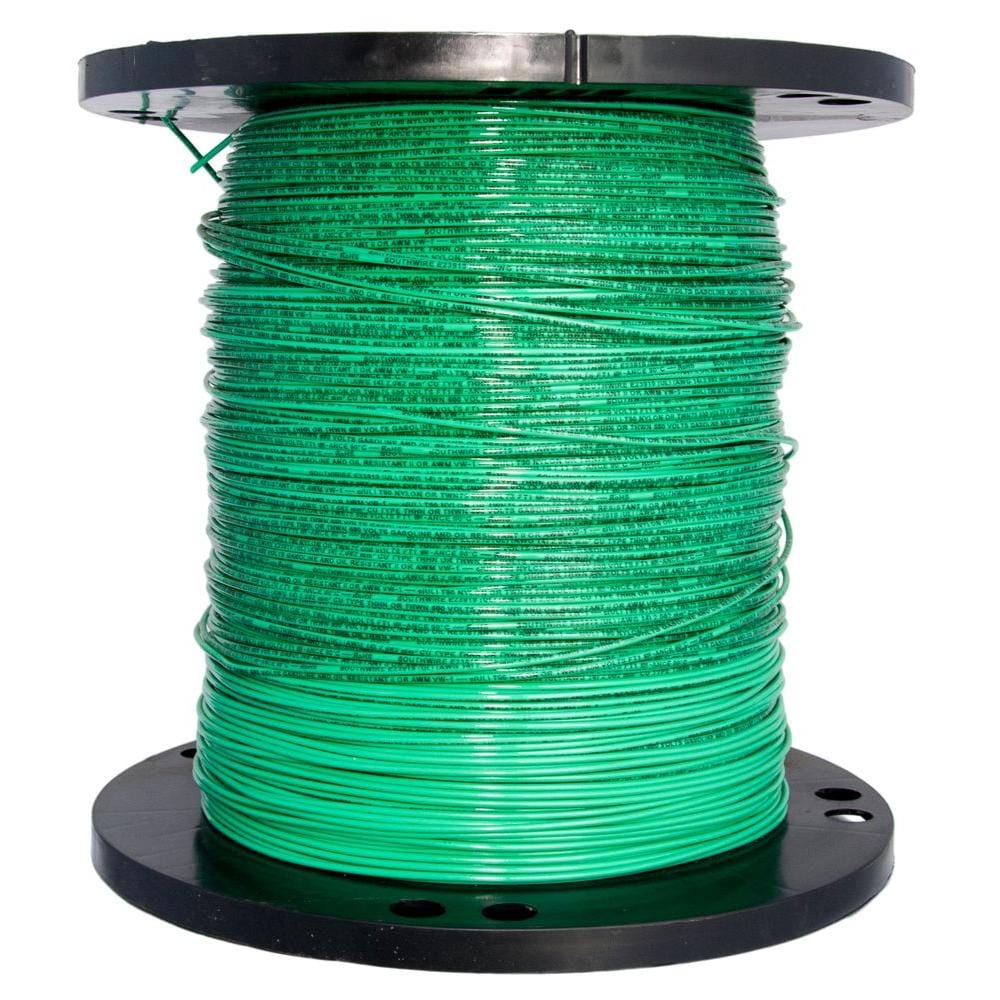

Southwire 2500-ft 12 -AWG Green Stranded Copper THHN wire ( By-the-roll )
Southwire’s THHN conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications.
Highlights
- Branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings
- Conductor is suitable for use in dry locations at temperatures not to exceed 90°C
- Copper conductors are annealed (soft) copper, compressed strand, insulated with a tough heat and moisture resistant polyvinyl chloride (PVC)
- Voltage for all applications is 600 volts
- Jacket is abrasion, heat, moisture, gasoline and oil resistant
- UL Listed and CSA certified
Specifications
| General | |||
|---|---|---|---|
| Jacket Color | Green | Jacket Material | PVC (polyvinyl chloride), |
| Sub-Brand | N/A | Wire Type | Stranded |
| Type | THHN wire | Wire Gauge | 12 |
| Insulation Material | PVC (polyvinyl chloride) | Conductor Material | Copper |
| Voltage Rating | 600 | Direct Burial | No |
| Wire Cut Type | By-the-roll | Number of Strands | 19 |
| Dimensions | |||
|---|---|---|---|
| Cable Length (Feet) | 2500 |
| Features | |||
|---|---|---|---|
| Commercial/Residential | Commercial/Residential | Moisture Resistant | Yes |
| Fire Resistant | No | Shielded | No |
| Maximum Amperage | 20 | UV Resistant | No |
| Compatibility | |||
|---|---|---|---|
| Conduit Compatible | Yes |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | RoHs Compliant | Yes |
| Safety Listing | UL safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 60104900 |
| Brand | Southwire |
|---|
