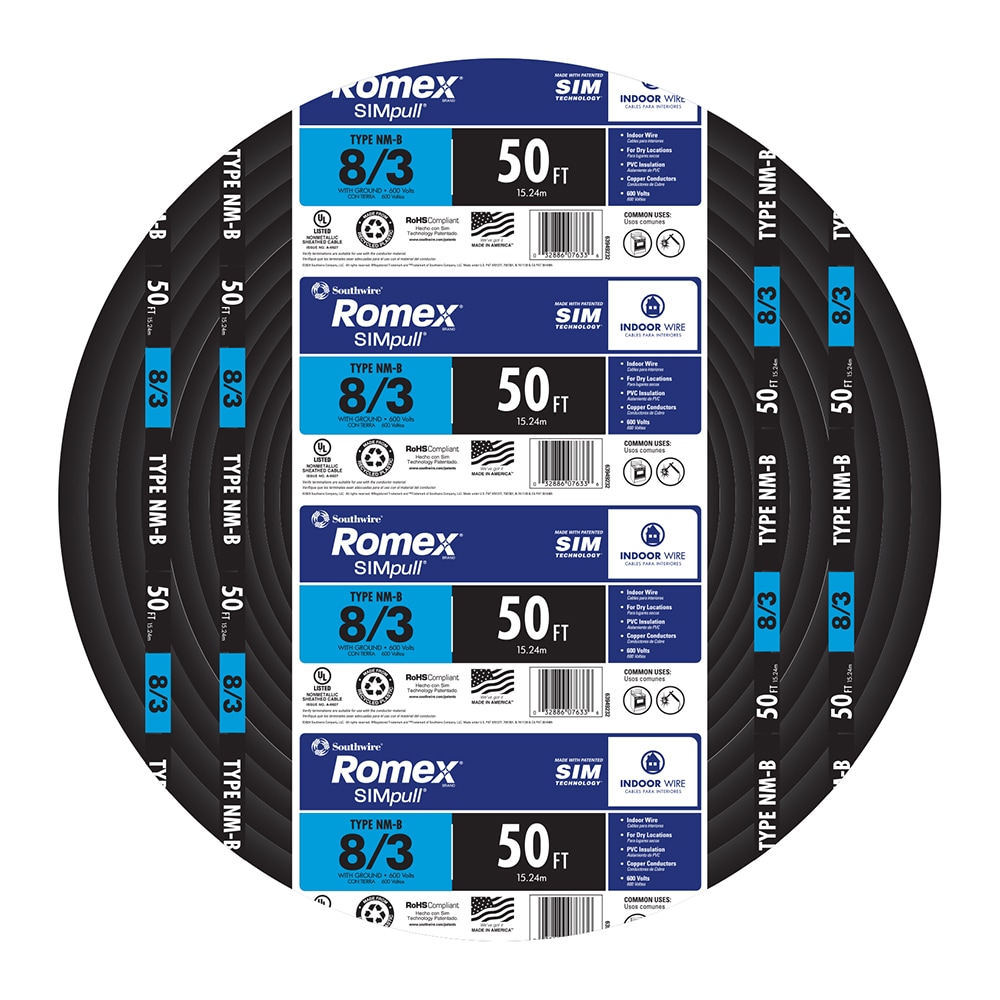

Southwire 50-Feet 8/3 Romex SIMpull Stranded Indoor CU NM-B W/G Individual Pack (By-the-roll)
Experience superior performance with Southwire’s Romex SIMpull type NM-B cable, ideal for both exposed and concealed applications in dry environments.
Highlights

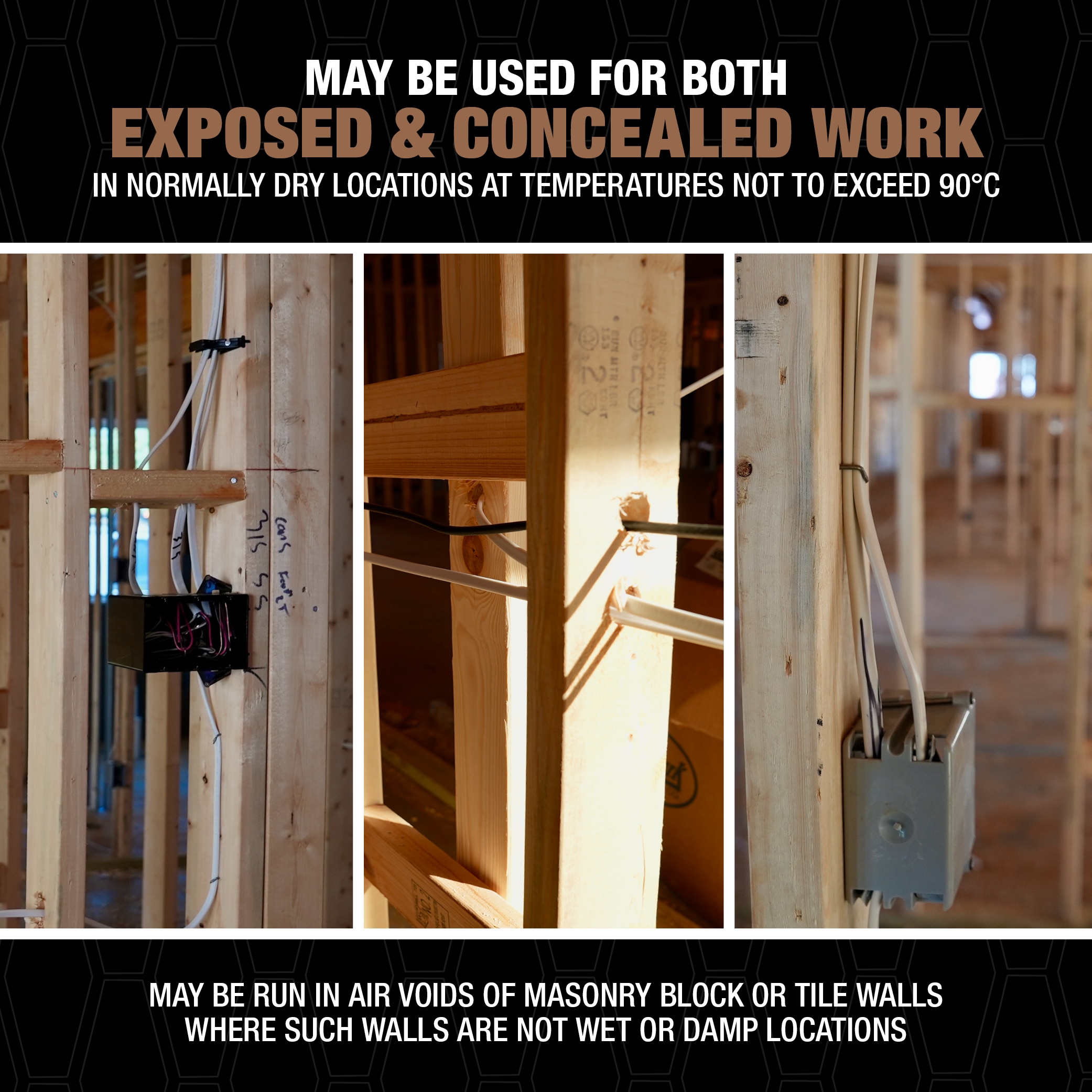

- Suitable for both exposed and concealed installations in dry locations at temperatures up to 90°C.
- Primarily used in residential wiring for branch circuits including outlets, switches, and other loads.
- Can be run in air voids of masonry block or tile walls, provided these walls are not wet or damp.
- Voltage rating of 600 volts ensures reliable performance.
- Constructed with annealed (soft) copper conductors for optimal conductivity.
- Engineered with SIMpull technology for effortless pulling and installation.
- UL listed certification guarantees safety and compliance.
Specifications
| General | |
|---|---|
| Jacket Color | Black |
| Sub-Brand | N/A |
| Series Name | Romex SIMpull |
| Dimensions | |
|---|---|
| Cable Length (Feet) | 50 |
| Features | |
|---|---|
| Commercial/Residential | Commercial/Residential |
| Package Quantity | 1 |
| Direct Burial | No |
| Package Type | Individual pack |
| Fire Resistant | No |
| RoHs Compliant | Yes |
| Ground Wire | Yes |
| Shielded | No |
| Jacket Material | Polyvinyl chloride |
| Stranded or Solid | Stranded |
| Use Location | Indoor |
| Maximum Amperage | 40 |
| UV Resistant | No |
| Moisture Resistant | Yes |
| Voltage Rating | 600 |
| Number of Conductors | 3 |
| Wire Cut Type | By-the-roll |
| Wire Gauge | 8 |
| Compatibility | |
|---|---|
| Conduit Compatible | No |
| Certifications | |
|---|---|
| CA Residents: Prop 65 Warning(s) | No |
| Safety Listing | UL safety listing |
| Miscellaneous | |
|---|---|
| UNSPSC | 26121500 |
| Brand | Southwire |
|---|
Be the first to review “Southwire 50-Feet 8 / 3 / Romex SIMpull Stranded Indoor CU NM-B W/G Individual pack ( By-the-roll )”
