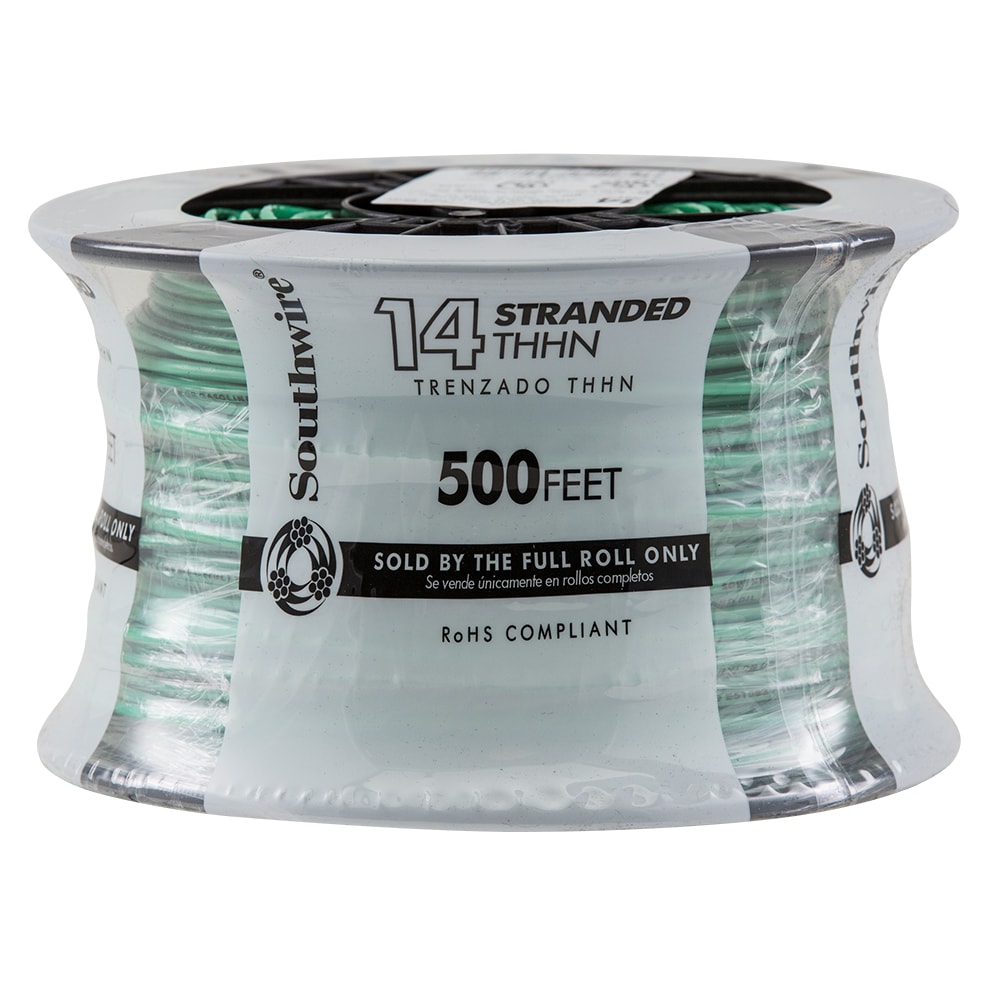

Southwire 500-ft 14 -AWG Green Stranded Copper THHN wire ( By-the-roll )

Southwire 500-ft 14 -AWG Green Stranded Copper THHN wire ( By-the-roll )

Original price was: $100.00.Current price is: $88.00.

Wire Type: Stranded
Wire Gauge: 14
Direct Burial: No
Number of Strands: 19
Cable Length (Feet): 500

Free shipping on $25+ orders
Estimated Delivery: 5-10 days
Pickup not available

SKU: 22959158 Categories: Home Improvement, Electrical

Southwire 500-ft 14 -AWG Green Stranded Copper THHN wire ( By-the-roll )

Southwire’s THHN and THWN is a multi-purpose building wire used in conduit and cable trays for service, feeders and branch circuits in commercial and industrial applications. It is also used as a conductor in NM-B, UF-B, SER, SEU and MC. Southwire’s THHN is rated for 600-Volt and has a heat capacity of up to 90°C.

Southwire’s THHN conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications
Conductor is suitable for use in dry locations at temperatures not to exceed 90°C
Copper conductors are annealed (soft) copper, compressed strand, insulated with a tough heat and moisture resistant polyvinyl chloride (PVC)

Specifications

General
Jacket Color	Green	Stranded or Solid	Stranded
Sub-Brand	N/A	Wire Type	Stranded
Type	THHN wire	Wire Gauge	14
Insulation Material	PVC (polyvinyl chloride)	Conductor Material	Copper
Voltage Rating	600	Direct Burial	No
Wire Cut Type	By-the-roll	Number of Strands	19
Jacket Material	PVC (polyvinyl chloride)

Dimensions
Cable Length (Feet)	500

Features
Commercial/Residential	Commercial/Residential	UV Resistant	Yes
Fire Resistant	No	Weatherproof	Yes
Maximum Amperage	15	Heat Resistant	Yes
Moisture Resistant	Yes	Waterproof	Yes
Shielded	No	Flame Retardant	Yes
