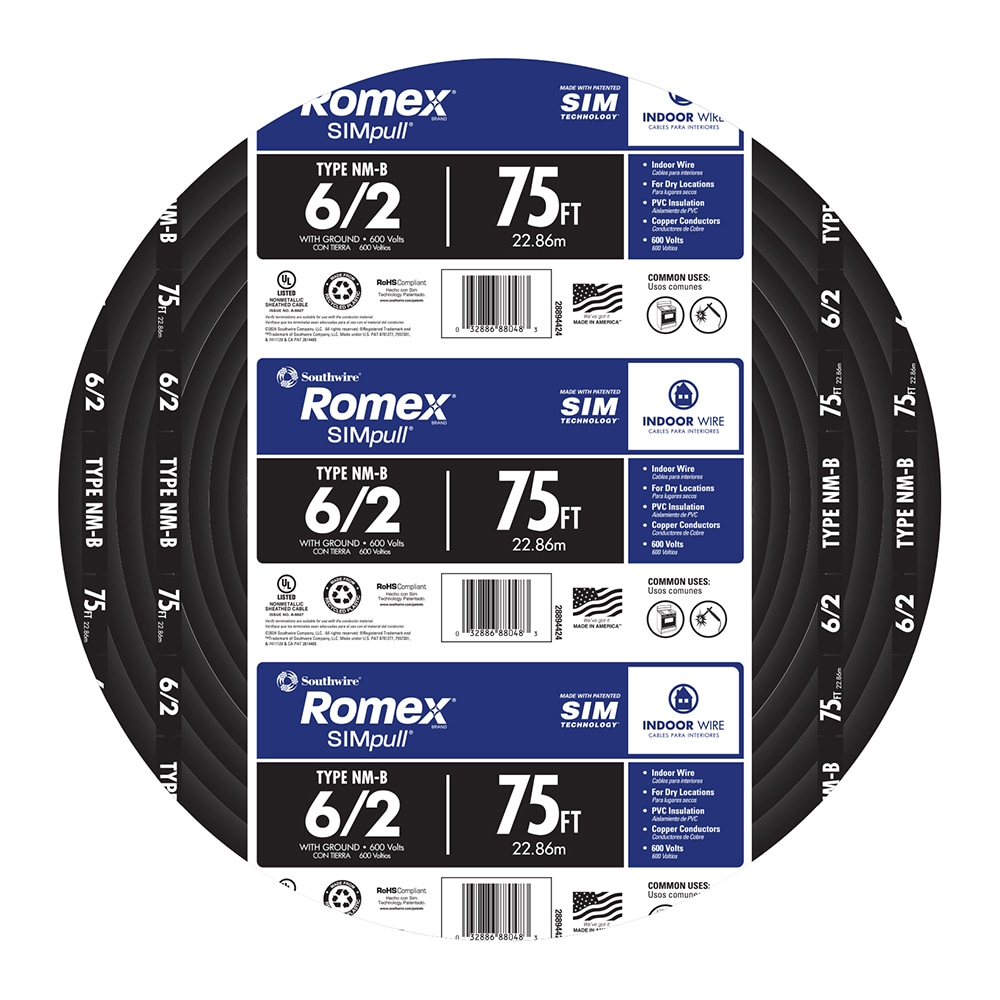

Southwire 75-ft 6 / 2 / Romex SIMpull Stranded Indoor CU NM-B W/G Individual pack ( By-the-roll )
Original price was: $240.57.$209.30Current price is: $209.30.
- Jacket Color: Black
- Series Name: SIMpull
- Sub-Brand: Romex
- Package Quantity: 1
- Package Type: Individual pack
- Use Location: Indoor
- Voltage Rating: 600
- Wire Cut Type: By-the-roll
- Jacket Material: Polyvinyl chloride
Southwire 75-ft 6 / 2 / Romex SIMpull Stranded Indoor CU NM-B W/G Individual pack ( By-the-roll )
Southwire’s SIMpull designed for easier pulling, resulting in easier installation.
Highlights
- Southwire’s Romex SIMpull type NM-B may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C

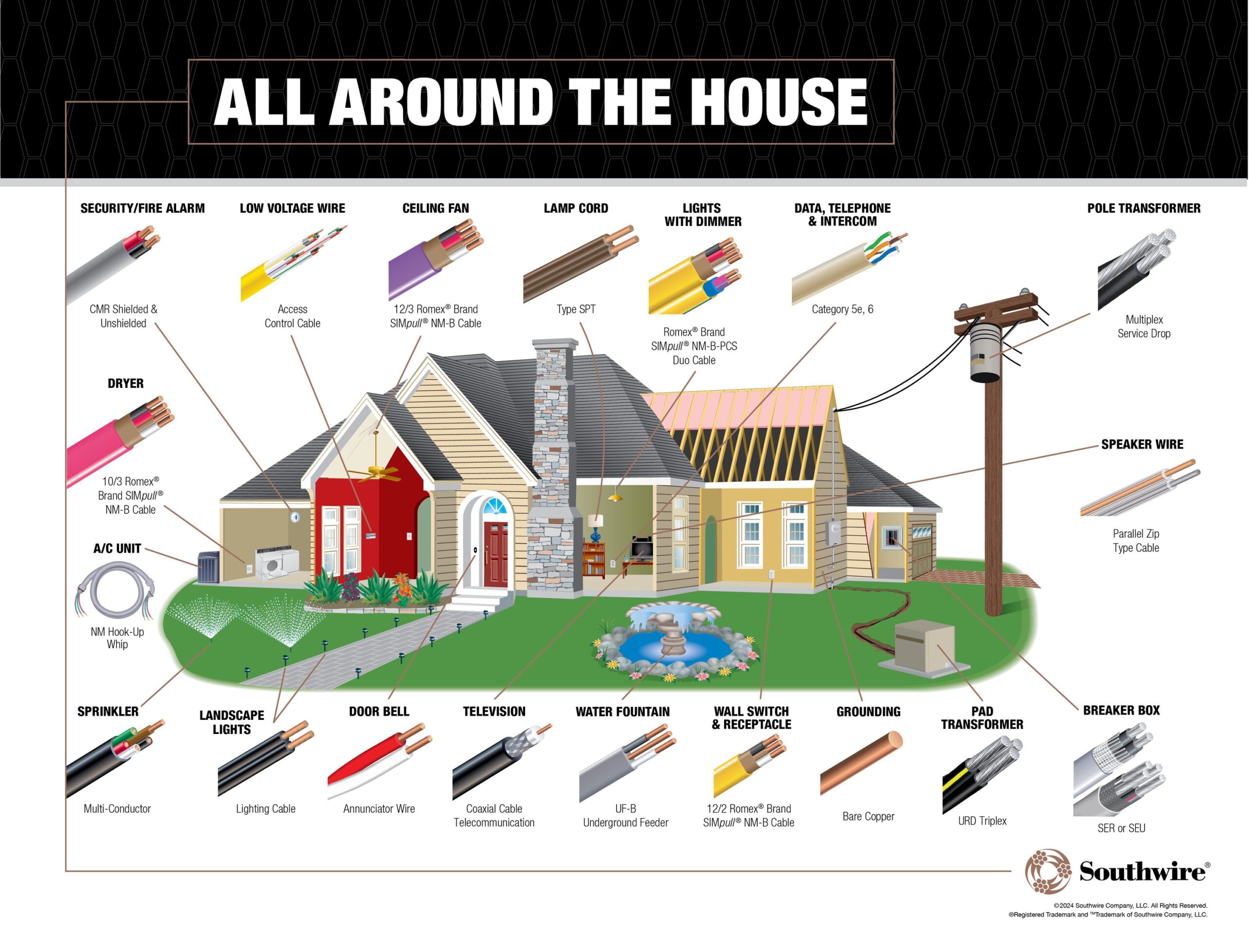

- Primarily used in residential wiring as branch circuits for outlets, switches, and other loads
- May be run in air voids of masonry block or tile walls where such walls are not wet or damp locations
- Voltage rating for NM-B cable is 600 volts
- Copper conductors are annealed (soft) copper
- UL Listed
Specifications
| General | |||
|---|---|---|---|
| Jacket Color | Black | Wire Cut Type | By-the-roll |
| Series Name | SIMpull | Jacket Material | Polyvinyl chloride |
| Sub-Brand | Romex | Number of Conductors | 2 |
| Package Quantity | 1 | Stranded or Solid | Stranded |
| Package Type | Individual pack | Wire Gauge | 6 |
| Use Location | Indoor | Direct Burial | No |
| Number of Pairs | 0 | Ground Wire | Yes |
| Voltage Rating | 600 | Number of Conductors (Wire 2) | 0 |
| Dimensions | |||
|---|---|---|---|
| Cable Length (Feet) | 75 |
| Features | |||
|---|---|---|---|
| Commercial/Residential | Commercial/Residential | Moisture Resistant | Yes |
| Fire Resistant | No | Shielded | No |
| Maximum Amperage | 55 | UV Resistant | No |
| Compatibility | |||
|---|---|---|---|
| Conduit Compatible | No |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | RoHs Compliant | Yes |
| Safety Listing | UL safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 26121500 |
| Brand | Southwire |
|---|
