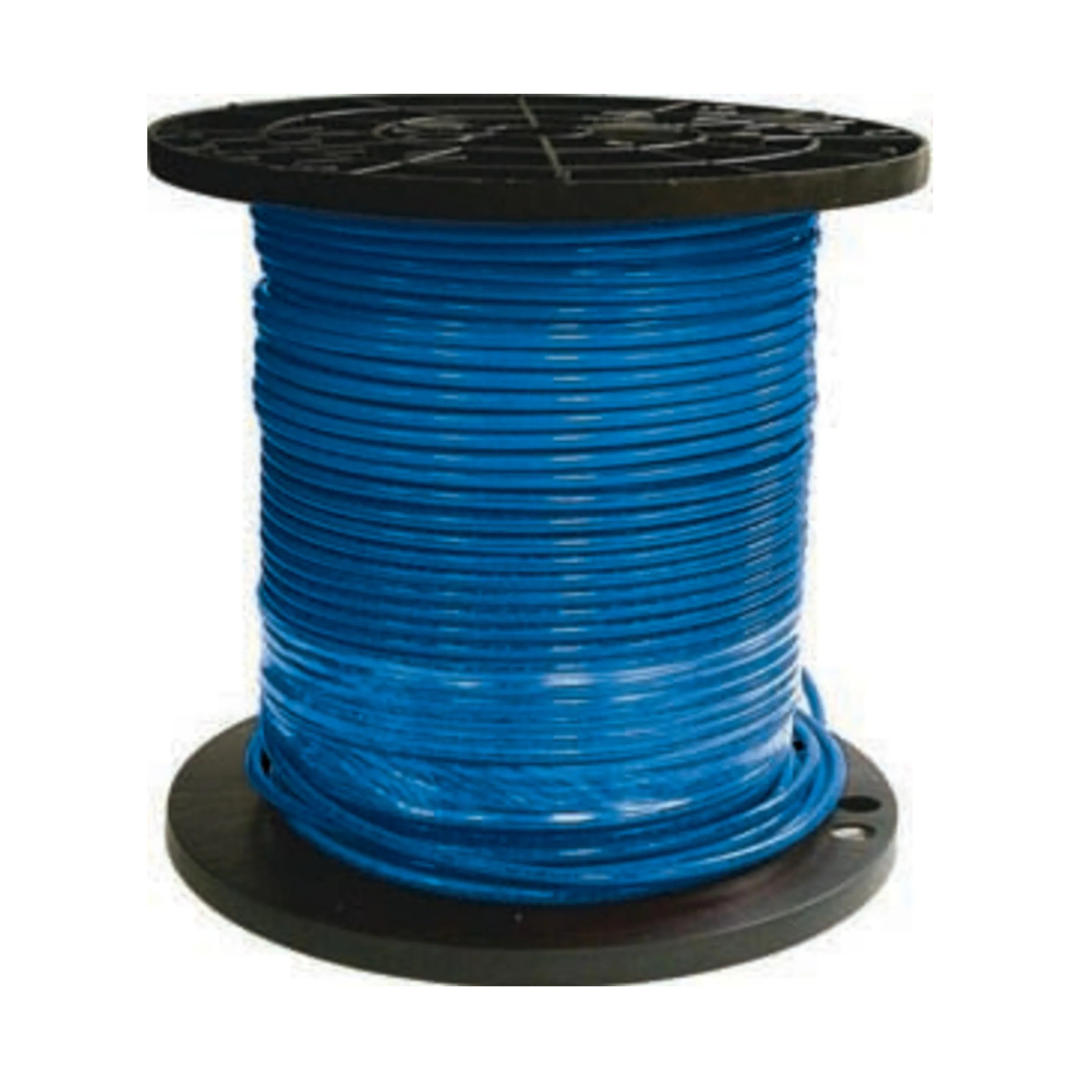

Southwire SIMpull 500-Feet 6 -AWG Blue Stranded Copper THHN wire ( By-the-roll )
Southwire’s THHN conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications.
Highlights
- Branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings
- Conductor is suitable for use in dry locations at temperatures not to exceed 90°C
- Copper conductors are annealed (soft) copper, compressed strand, insulated with a tough heat and moisture resistant polyvinyl chloride (PVC)
- Voltage for all applications is 600 volts
- Jacket is abrasion, heat, moisture, gasoline and oil resistant
- UL Listed and CSA certified
Specifications
| General | |||
|---|---|---|---|
| Jacket Color | Blue | Sub-Brand | N/A |
| Series Name | SIMpull | Type | THHN wire |
| Dimensions | |||
|---|---|---|---|
| Cable Length (Feet) | 500 |
| Features | |||
|---|---|---|---|
| Commercial/Residential | Commercial/Residential | Number of Strands | 19 |
| Conductor Material | Copper | RoHs Compliant | Yes |
| Direct Burial | No | Shielded | No |
| Fire Resistant | No | UV Resistant | No |
| Insulation Material | PVC (polyvinyl chloride) | Voltage Rating | 600 |
| Jacket Material | PVC (polyvinyl chloride), | Wire Cut Type | By-the-roll |
| Maximum Amperage | 75 | Wire Gauge | 6 |
| Moisture Resistant | Yes | Wire Type | Stranded |
| Compatibility | |||
|---|---|---|---|
| Conduit Compatible | Yes |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | Safety Listing | UL safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 60104900 |
| Brand | Southwire |
|---|
