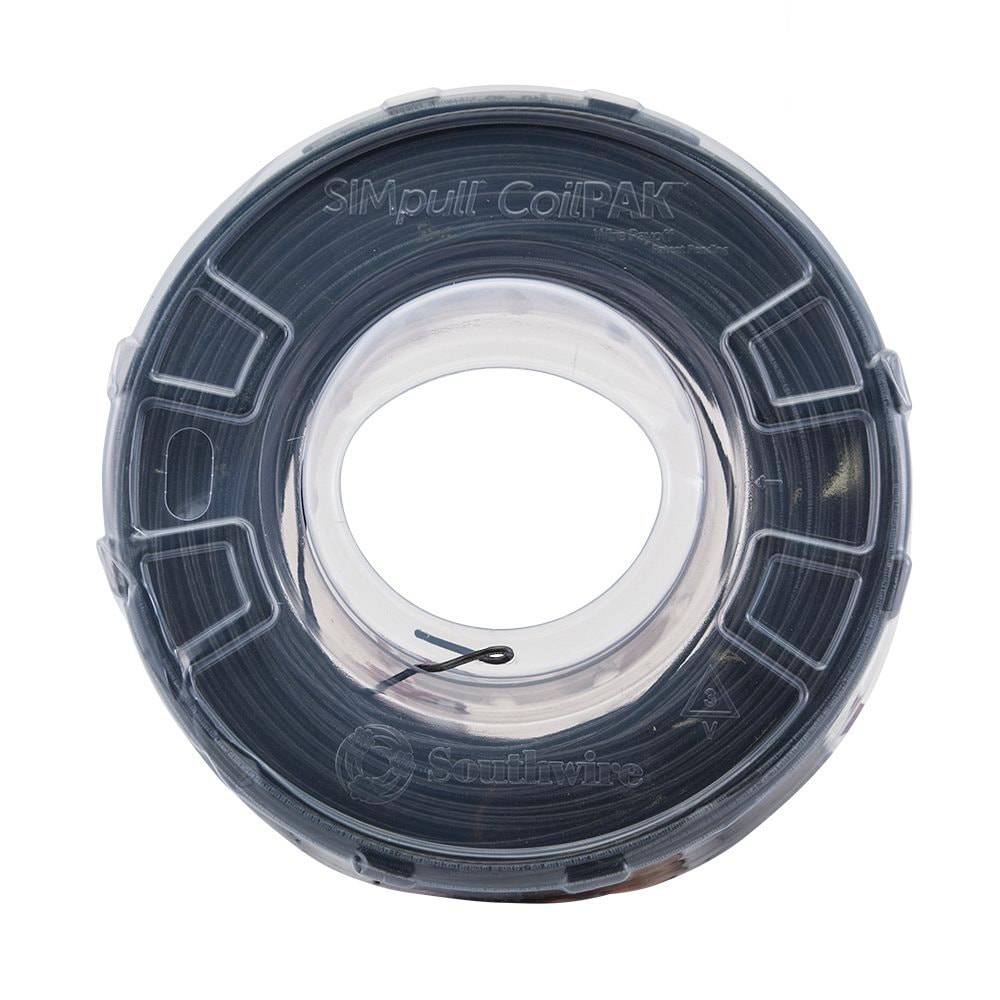

Southwire SIMpull CoilPAK 1000-ft 12 -AWG Black Stranded Copper THHN wire ( By-the-roll )
Southwire’s THHN and THWN is a multi-purpose building wire used in conduit and cable trays for service, feeders and branch circuits in commercial and industrial applications. It is also used as a conductor in NM-B, UF-B, SER, SEU and MC. Southwire’s THHN is rated for 600-Volt and has a heat capacity of up to 90°C.
- Southwire’s THHN conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications
- Conductor is suitable for use in dry locations at temperatures not to exceed 90°C
- Copper conductors are annealed (soft) copper, compressed strand, insulated with a tough heat and moisture resistant polyvinyl chloride (PVC)
Specifications
| General | |||
|---|---|---|---|
| Jacket Color | Black | Jacket Material | PVC (polyvinyl chloride), |
| Series Name | SIMpull CoilPAK | Wire Type | Stranded |
| Sub-Brand | N/A | Wire Gauge | 12 |
| Type | THHN wire | Conductor Material | Copper |
| Insulation Material | PVC (polyvinyl chloride) | Direct Burial | No |
| Voltage Rating | 600 | Number of Strands | 19 |
| Wire Cut Type | By-the-roll |
| Dimensions | |||
|---|---|---|---|
| Cable Length (Feet) | 1000 |
| Features | |||
|---|---|---|---|
| Commercial/Residential | Commercial/Residential | Moisture Resistant | Yes |
| Fire Resistant | No | Shielded | No |
| Maximum Amperage | 20 | UV Resistant | No |
| Compatibility | |||
|---|---|---|---|
| Conduit Compatible | Yes |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | RoHs Compliant | Yes |
| Safety Listing | UL safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 60104900 |
| Brand | Southwire |
|---|
