Square D Homeline 125 -Amp 12 -Spaces 24 -Circuit Outdoor Main breaker Plug-On Neutral Load Center (Value Pack)
Original price was: $134.00.$119.26Current price is: $119.26.
- Manufacturer Color/Finish: Gray
- Series Name: Homeline
- Type: Main breaker

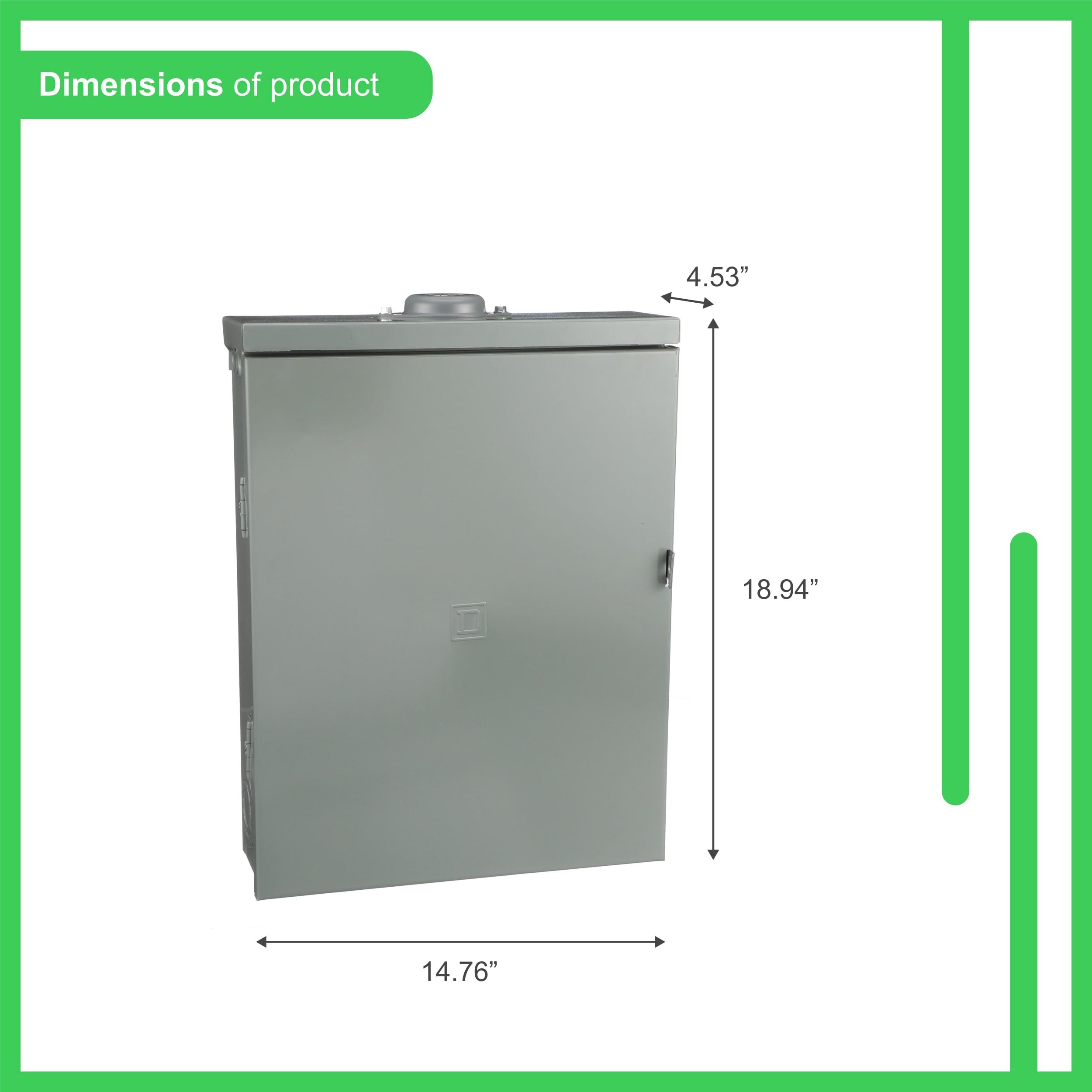

- Depth (Inches): 4.52
- Height (Inches): 18.92
- Width (Inches): 14.75
Square D Homeline 125 -Amp 12 -Spaces 24 -Circuit Outdoor Main breaker Plug-On Neutral Load Center (Value Pack)
The Square D Homeline Value Pack is a 125 Amp 12-Space 24-Circuit Outdoor Convertible Main Breaker Load Center with cover for Plug-on Neutral breakers includes a selection of breakers and is UL listed for residential and commercial power distribution. This load center includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a rainproof outdoor cover, built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
Highlights
- Less wiring, clean gutter, fast installation with Plug-On Neutral
- Compatible with any Square D Homeline circuit breaker
- Homeline breakers, outdoor cover, and aluminum bus bar included
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds

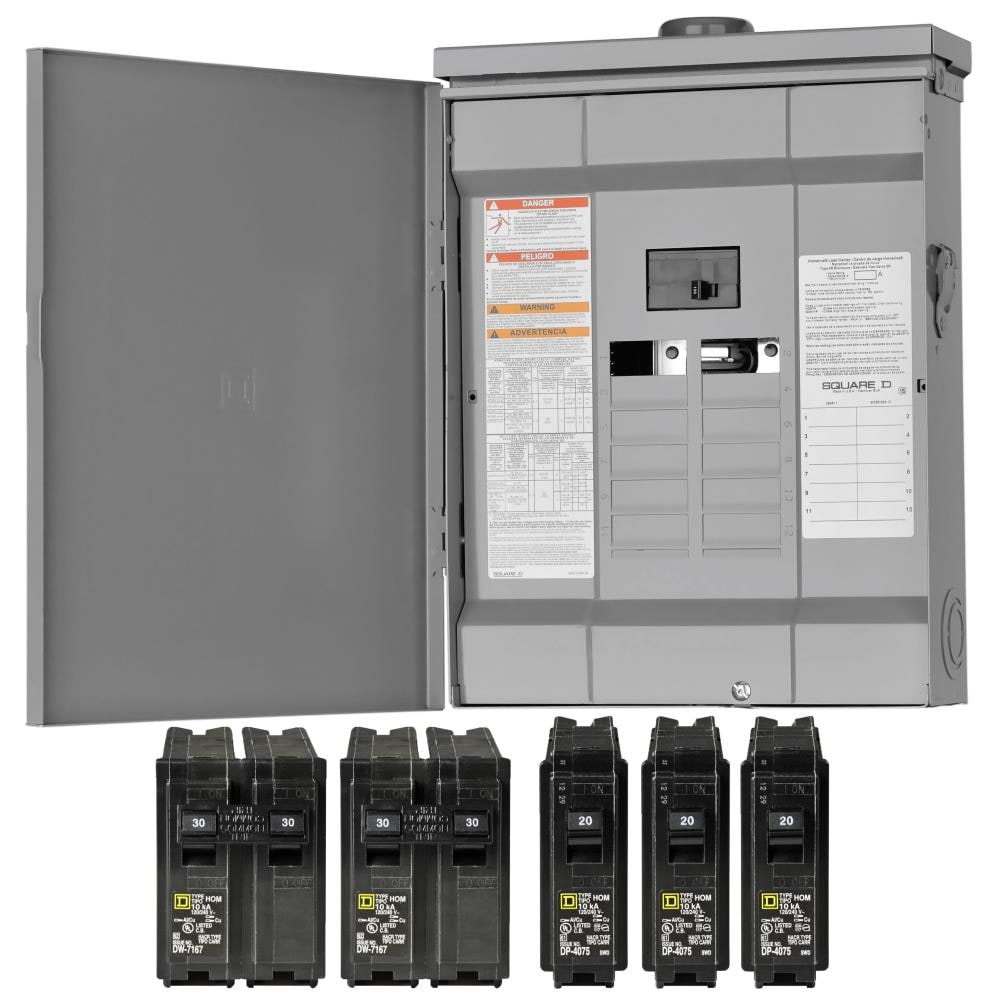

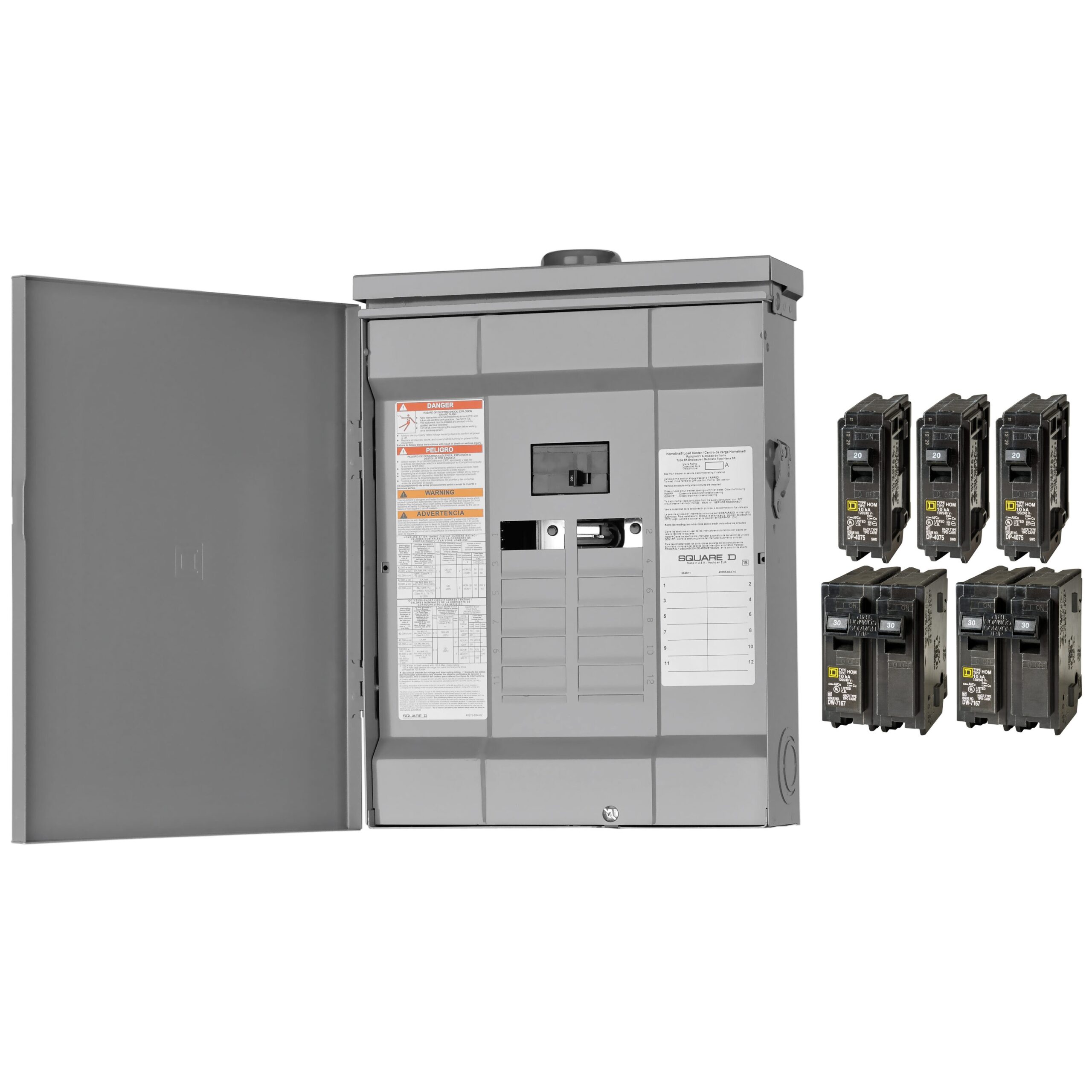

- Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a rainproof outdoor cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
Specifications
| General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Gray | Type | Main breaker |
| Series Name | Homeline |
| Dimensions | |||
|---|---|---|---|
| Depth (Inches) | 4.52 | Width (Inches) | 14.75 |
| Height (Inches) | 18.92 |
| Features | |||
|---|---|---|---|
| Amperage | 125 | Orientation | Over/Under |
| Buss Bar Construction | Aluminum | Paintable | No |
| Circuits | 24 | Phase Type | Single phase (120/240) |
| Cover Included | Yes | Plug-On Neutral | Yes |
| Feed-Through Lugs | No | Usage | Sub-panel |
| Ground Bar Installed | No | Use Location | Outdoor |
| Mounting Type | Surface | Value Pack | Yes |
| Number of Spaces | 12 | Value Pack Contents | Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a rainproof outdoor cover |
| Compatibility | |||
|---|---|---|---|
| Brand/Model Compatibility | Square D Homeline Brand Only |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | Safety Listing | UL safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 39121100 |
| Brand | Square D |
|---|
