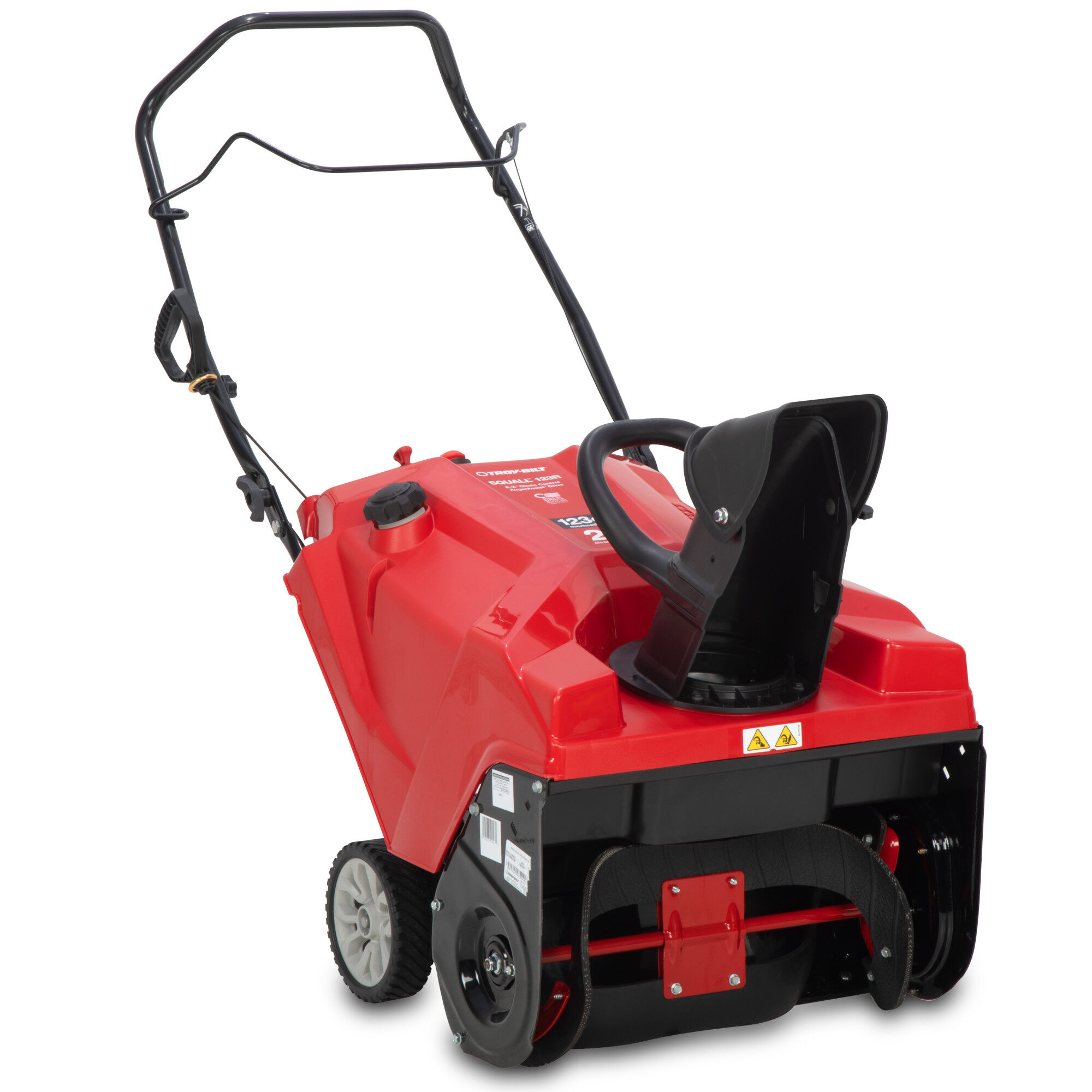

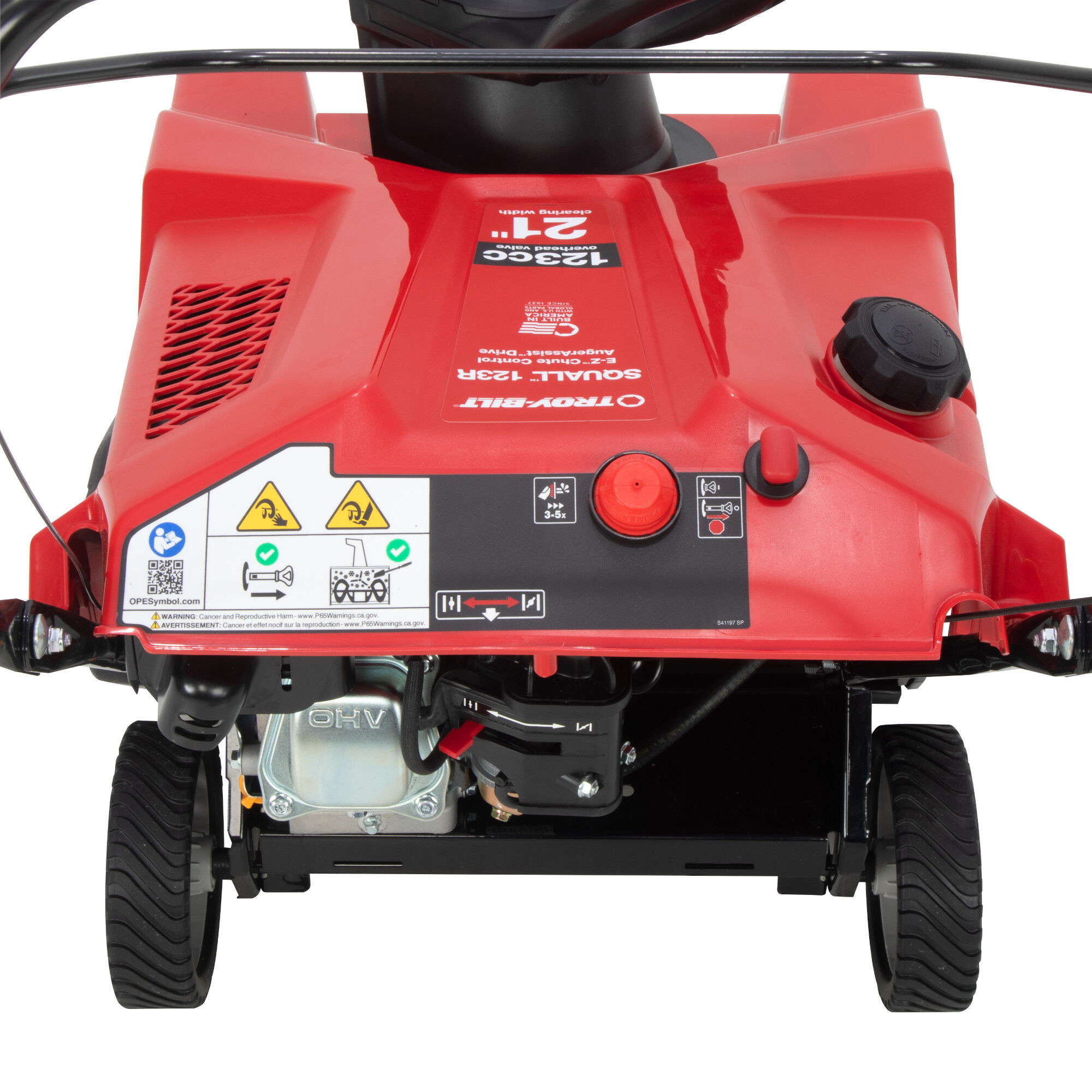

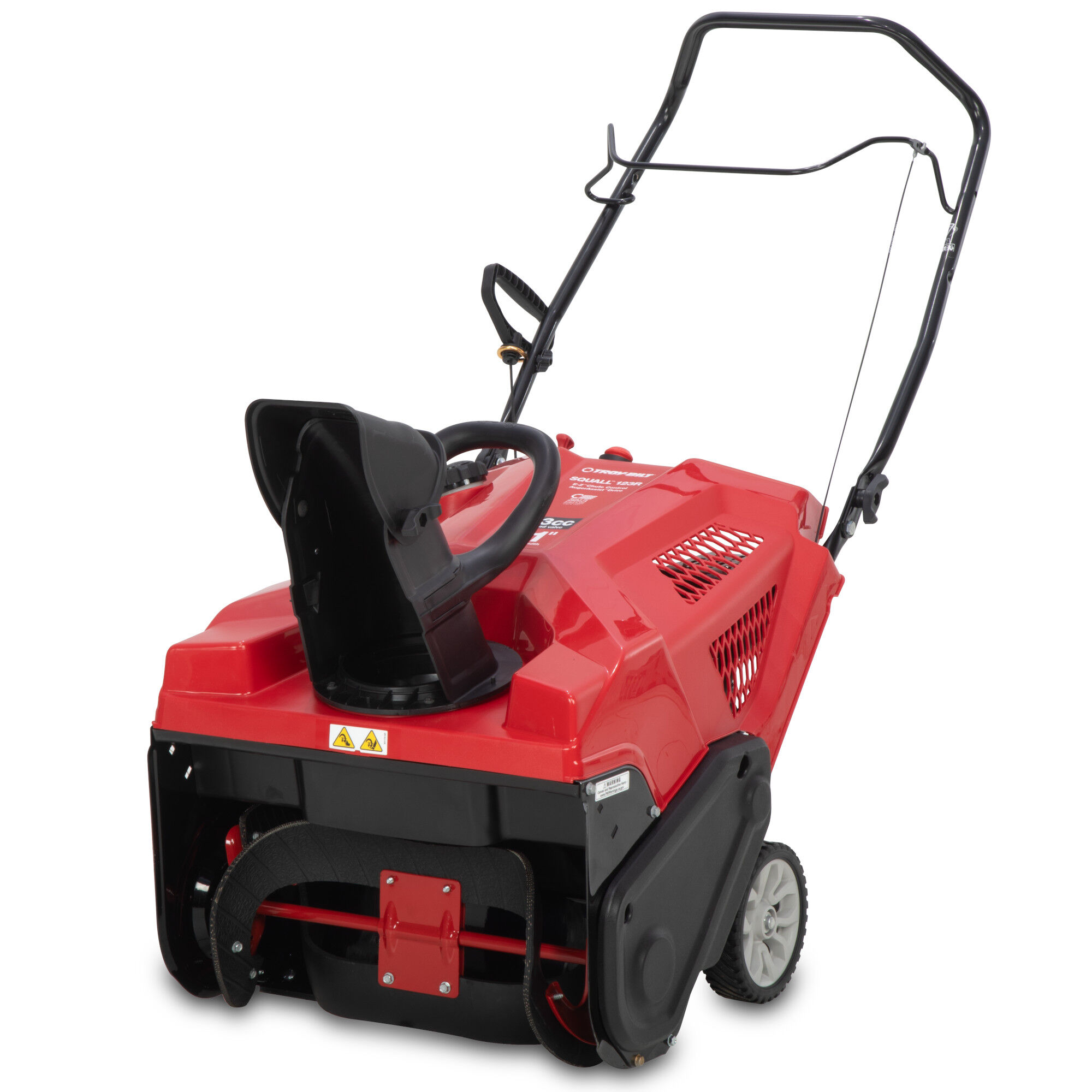

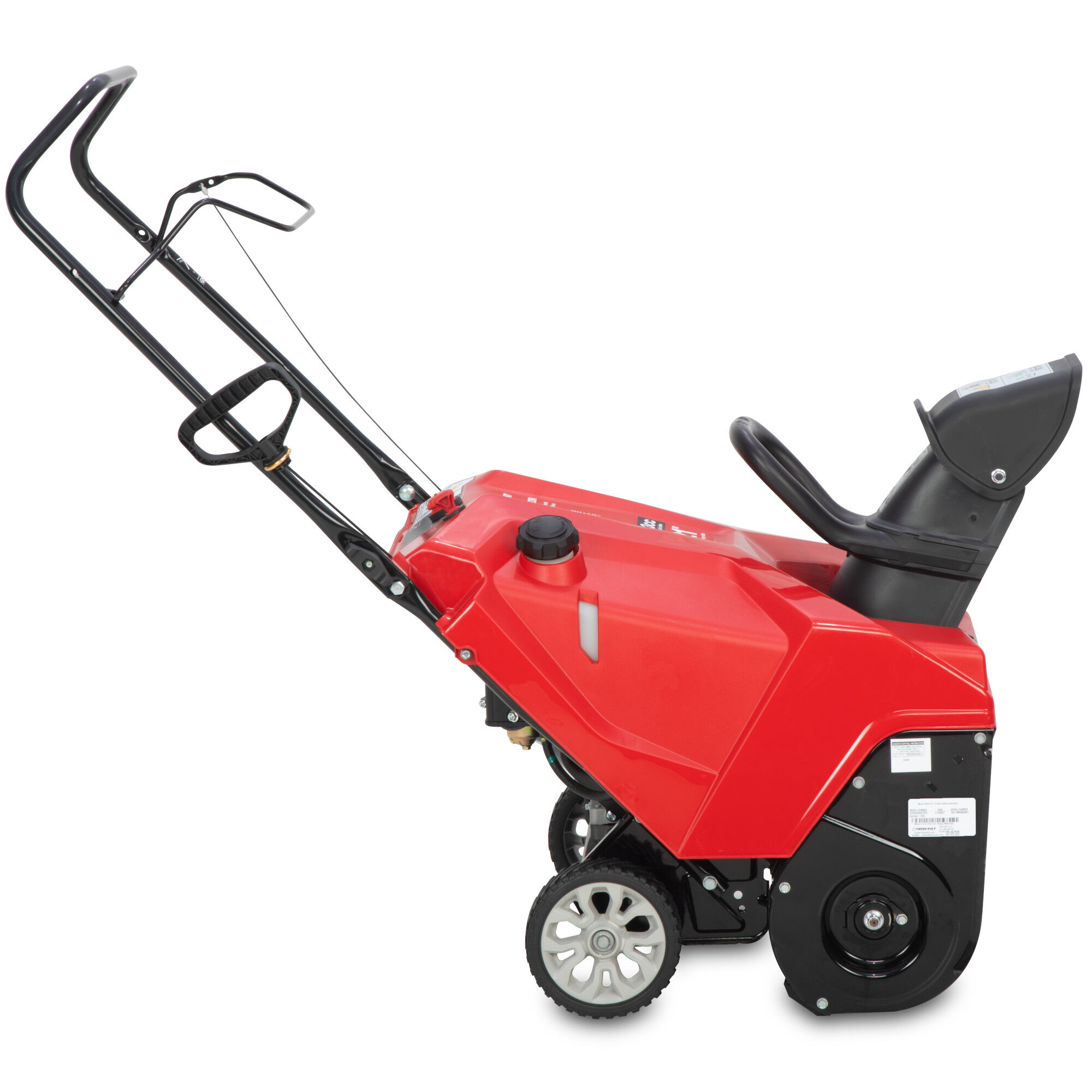

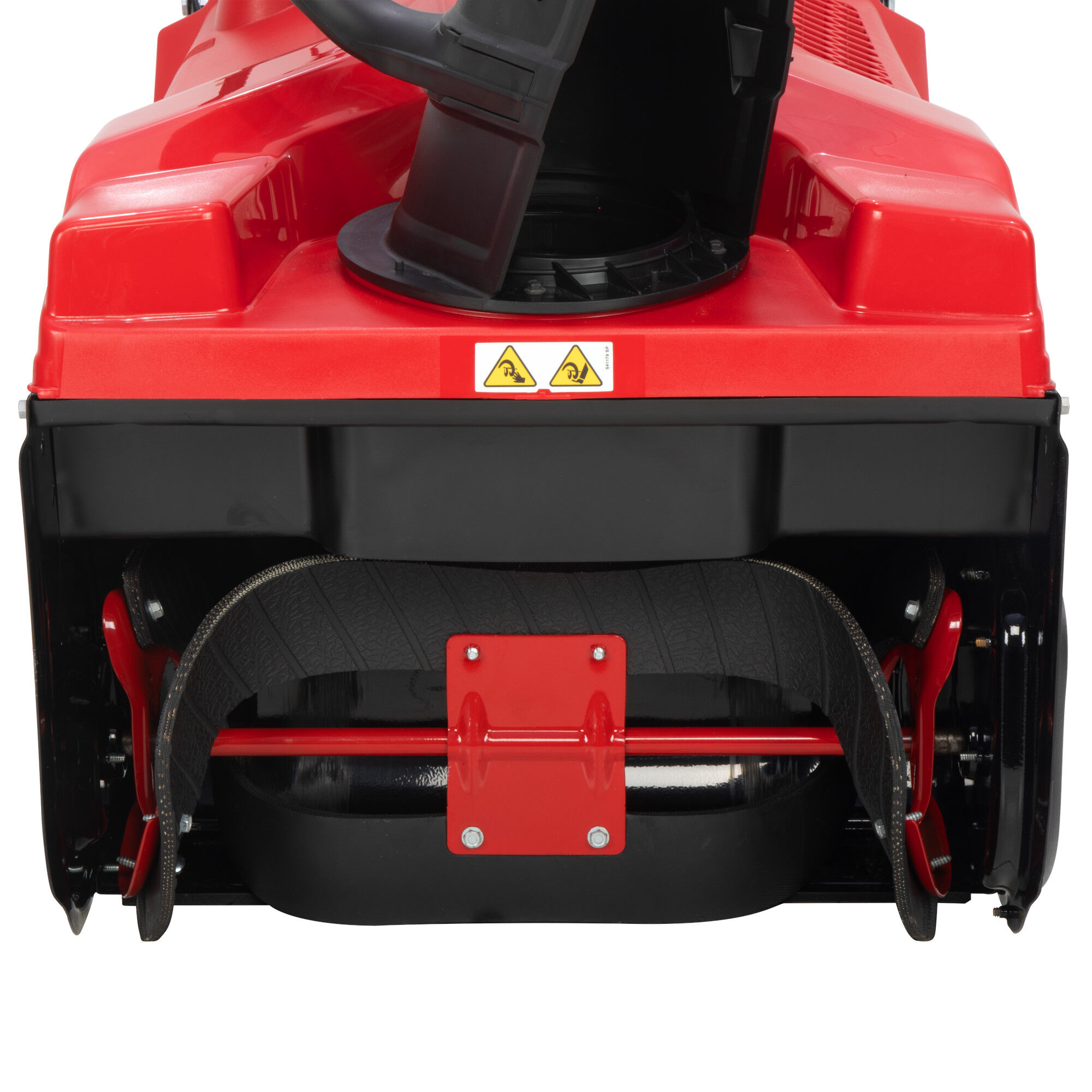

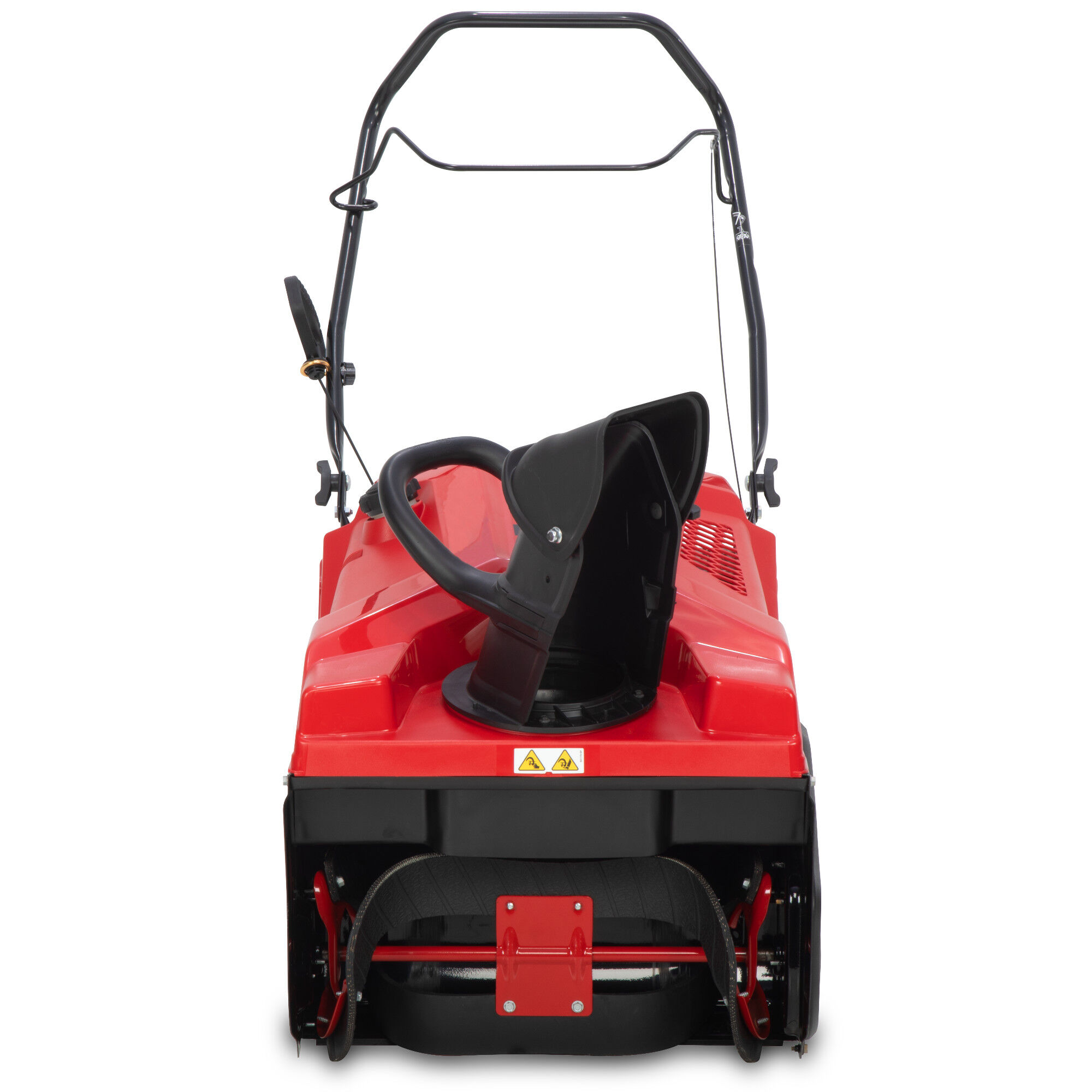

Troy-bilt Squall 123R Snow Blower – Single-Stage
Compact for easy storage and maneuverability, the Squall 123R will help you push winter aside and return to doing what you love most. Designed to handle up to 6 in. of snowfall, the Squall delivers reliable power with the 123cc 4-cycle Troy-Bilt engine, eliminating the need to mix oil and gas. Help reduce pushing effort with the AugerAssist™ drive system that grips the ground and enhances clearing efforts.
- 21 in. clearing width and 13 in. intake height are capable of removing up to 6″ of snow* and designed to throw up to 25′ of snow
- AugerAssist single-stage drive system is designed to grip the ground to help quickly clear and maneuver in snow-covered areas.
- A Troy-Bilt 123cc 4-cycle OHV pull-start engine eliminates the need to mix oil and gas
- Compact size and foldable handle for easy storage and transport

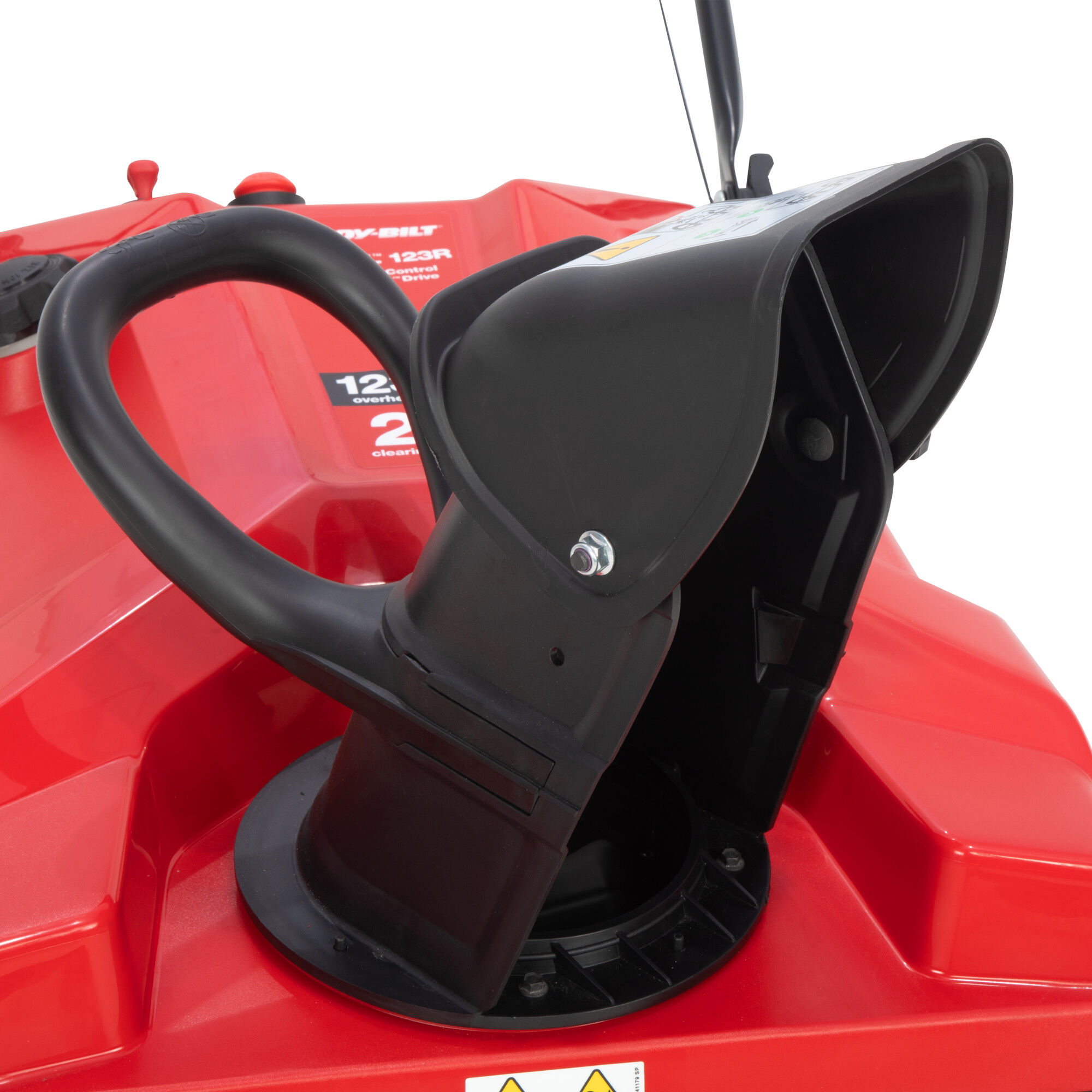

- Adjust the direction of snow discharge up to 190° with the E-Z Chute control
Specifications
| Engine | |
|---|---|
| Engine Brand: | Troy-Bilt® |
| Engine Model Number: | 161-JU |
| Engine Displacement: | 123cc |
| Fuel Tank Capacity: | 2 quarts US / 1.9 L |
| Engine Start: | Recoil |
| Drive System | |
| Drive Type: | Auger-Assist |
| Drive System: | Auger-Assist |
| Controls | |
| Handle: | Adjustable Gullwing |
| Chute Rotation Control: | E-Z Chute™ |
| Chute Pitch Control: | E-Z Chute™ |
| Chute Rotation: | 190° |
| Single-Hand Operation: | N/A |
| Steering Control: | N/A |
| Operator Control: | Standard |
| Power and Performance | |
| Clearing Width: | 21″ |
| Intake Height: | 13″ |
| Number of Stages: | One |
| Dimensions | |
| Auger Diameter: | 9″ |
| Impeller Diameter: | N/A |
| Accelerator Diameter: | N/A |
| Specifications | |
| Tire Size: | 7″ x 2″ |
| Tread: | S-Wave™ |
| Additional Specifications | |
| Headlight(s): | No |
| Shave Plate: | Polymer |
| Skid Shoes: | N/A |
| Drift Cutters: | No |
| Auger Material: | Reinforced Rubber |
| Chute Material: | High-Impact Polymer |
| Model Number: | 31P-2M5G723 |
