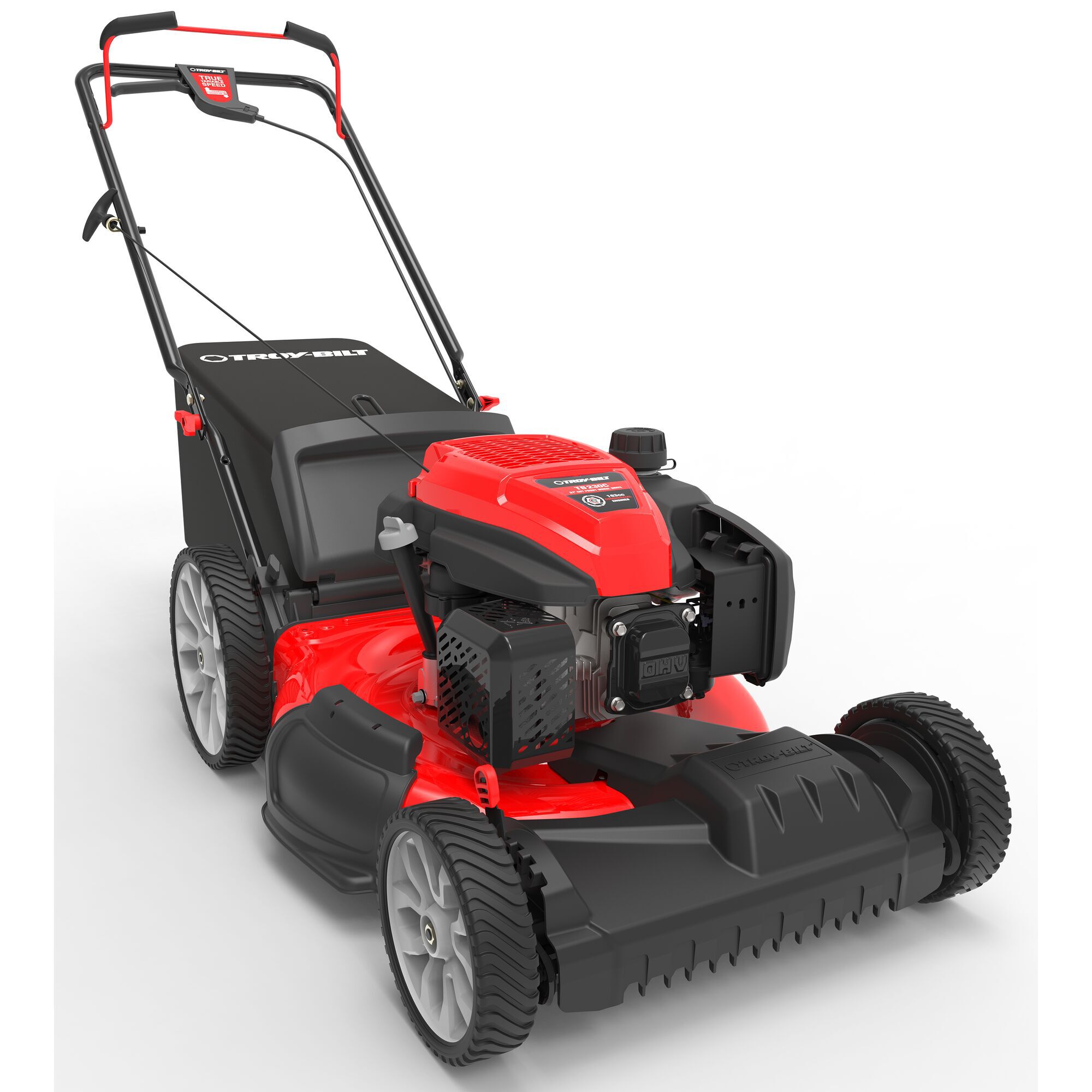

Troy-Bilt TB230C High-Wheel Self-Propelled Mower
Easy, one-step starting with a 163cc Troy-Bilt engine designed for simple, no prime, no choke starting on the Troy-Bilt TB230C mower. Variable speed, front-wheel drive is designed to adjust the mowing speed quickly with a handle-mounted lever. The 11″ rear wheels are designed for smooth mobility over hills and rough spots. A 3-in-1 deck design allows you the choice of using the rear bag, mulching mode, or side discharge options that are included.

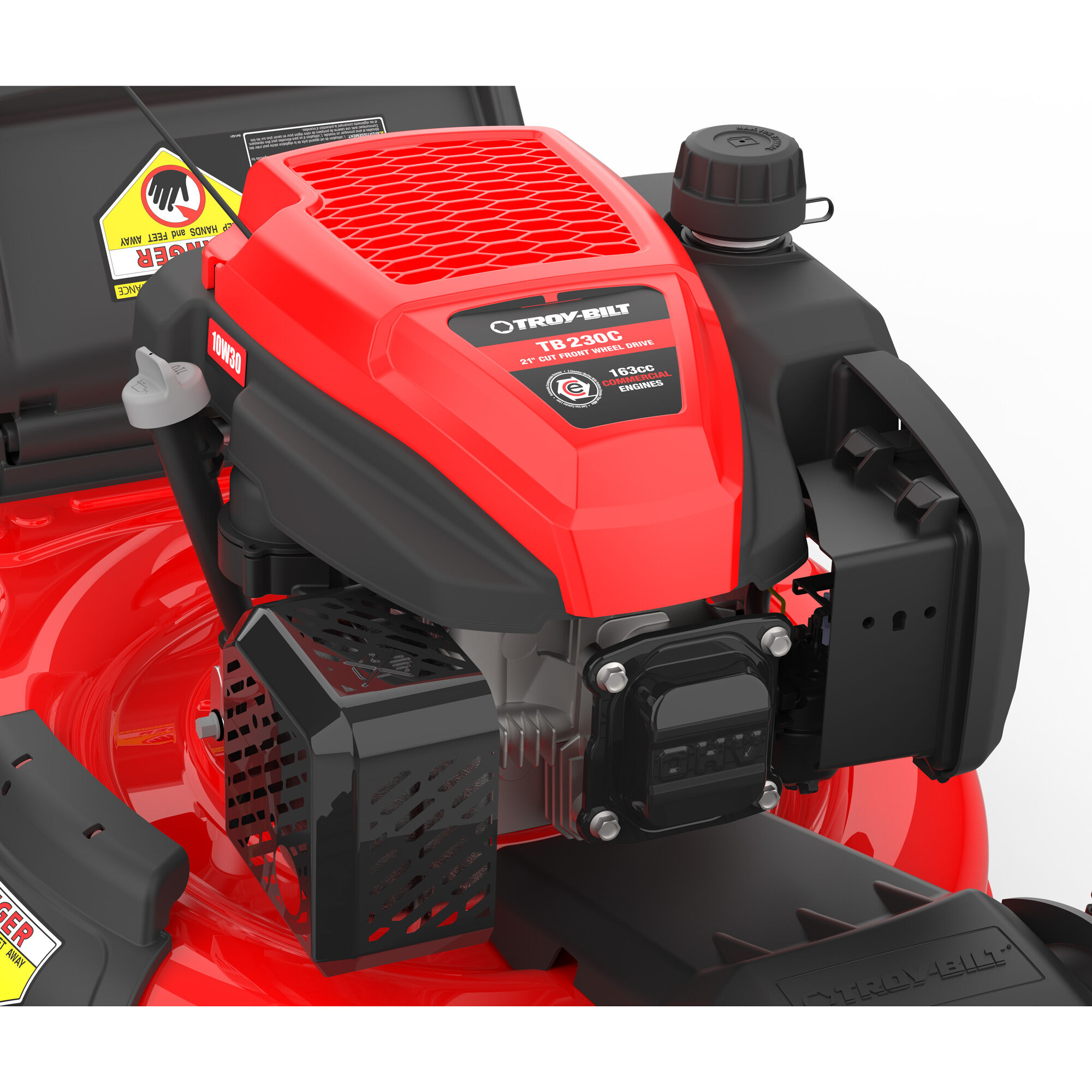

- 163cc Troy-Bilt Commercial engine is designed for simple no prime, no choke starting.
- Variable speed front wheel drive is designed to quickly adjust the speed of the mower and navigate around the yard

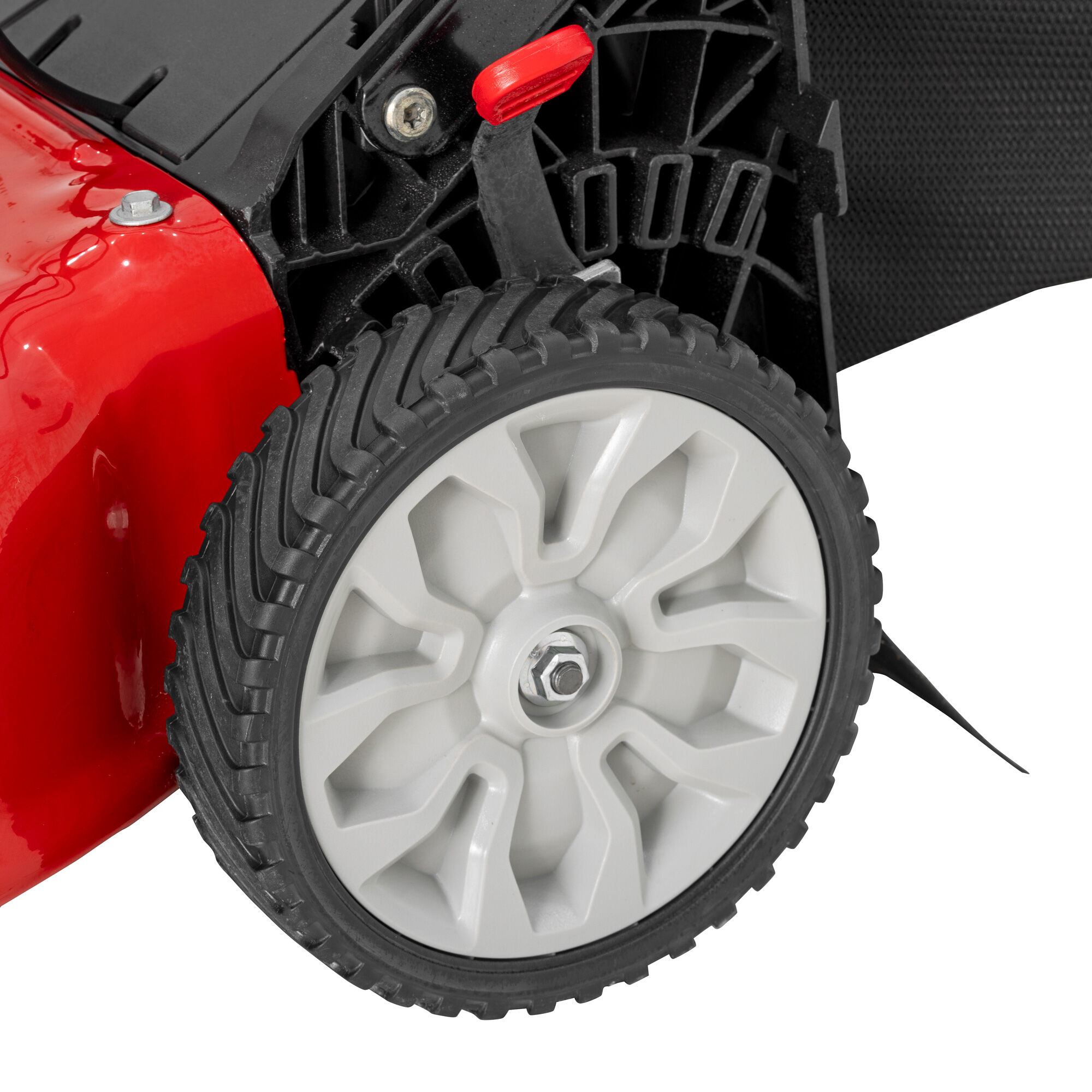

- 11″ high rear wheels are designed to provide traction and help make it easy to navigate uneven terrain.
- 1.9 bushel rear bag collects grass clippings for easy clean up or composting
Specifications
| Engine | |
|---|---|
| Engine Brand: | Troy-Bilt |
| Engine Model Number: | 5C65M0 |
| Engine Displacement: | 163cc |
| Starter Type: | Recoil |
| Fuel Tank Capacity: | 1.3 L |
| Engine Oil Capacity: | 17 oz |
| Choke: | Autochoke |
| Drive System | |
| Drive System: | FWD |
| Cutting Deck | |
| Deck Cutting Width: | 21 in |
| Deck Wash: | No |
| Deck Material: | Steel |
| Cutting Height Range: | 1.25″ – 3.75″ |
| Deck Positions: | 6 |
| Deck Height Adjustment: | Dual-Lever |
| Cutting System: | Tri-Action |
| Mulch Plug: | Integrated |
| Discharge Location: | Side |
| Controls | |
| Handle: | Adjustable Loop |
| Drive Controls: | Single Lever |
| Wheels | |
| Tread Pattern: | S-Wave |
| Front Wheels: | 8 in |
| Rear Wheels: | 11 in |
| Bearing Type: | Poly Bushing |
| Additional Specifications | |
| Model Number: | 12AVB2C2066 |





















Reviews
There are no reviews yet.
