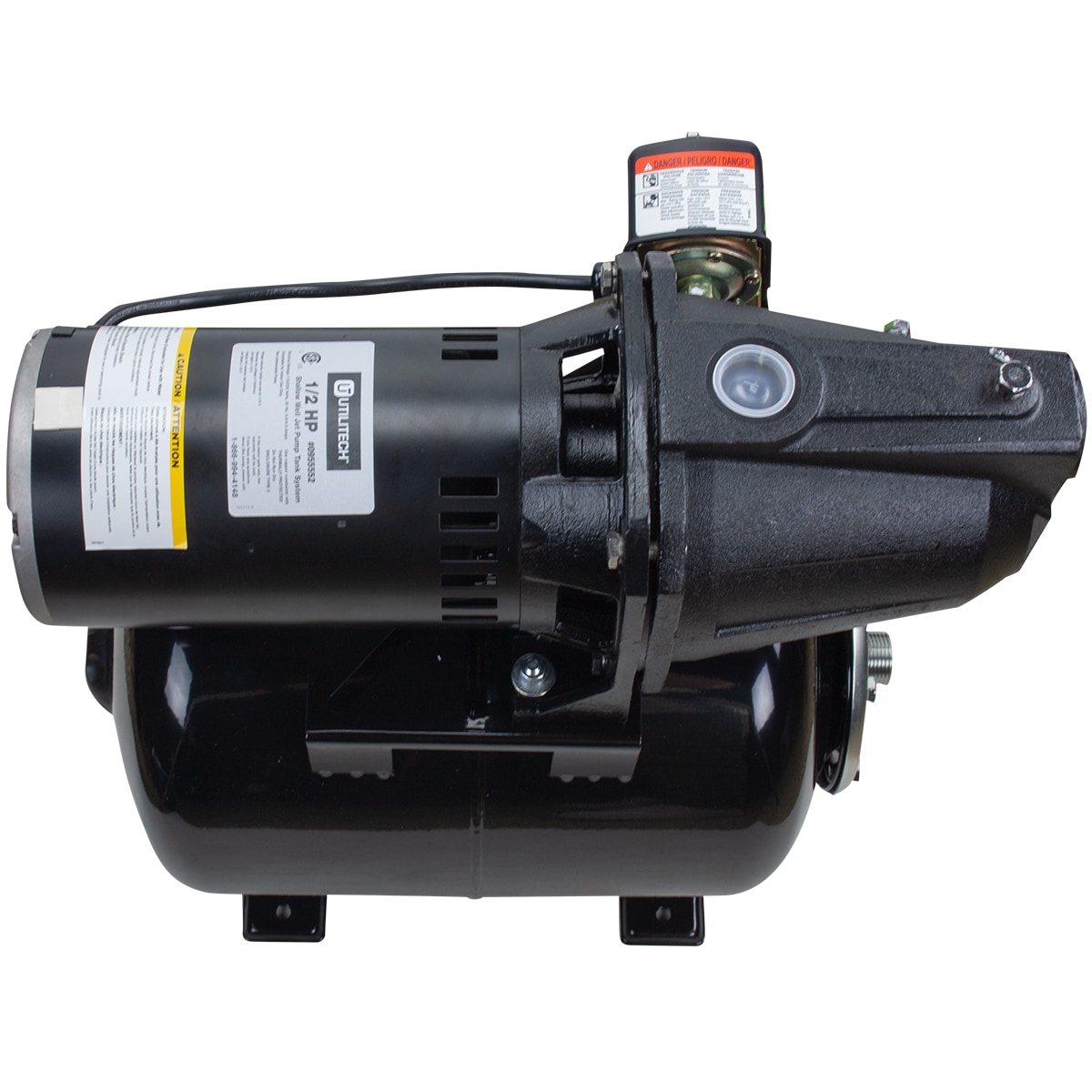

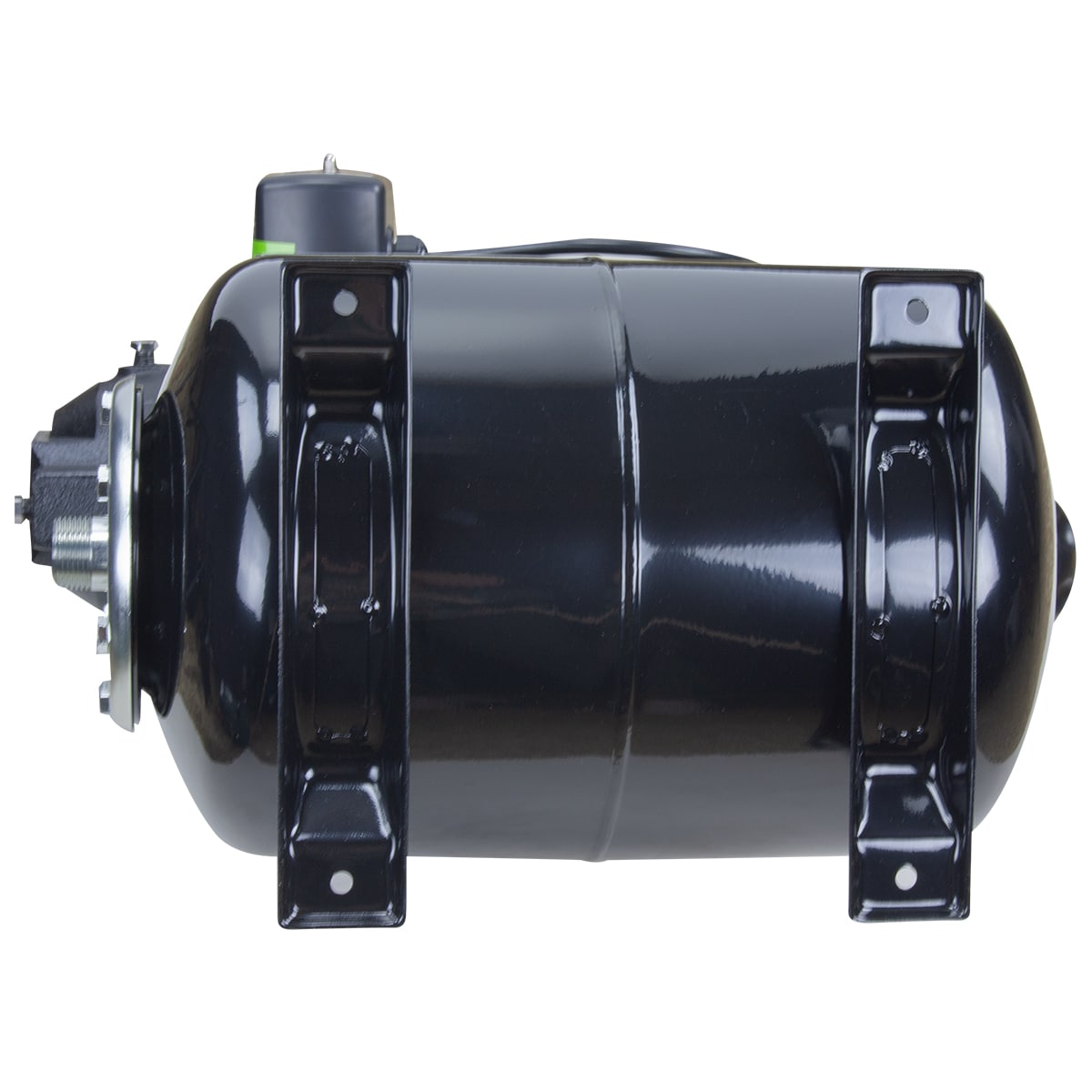

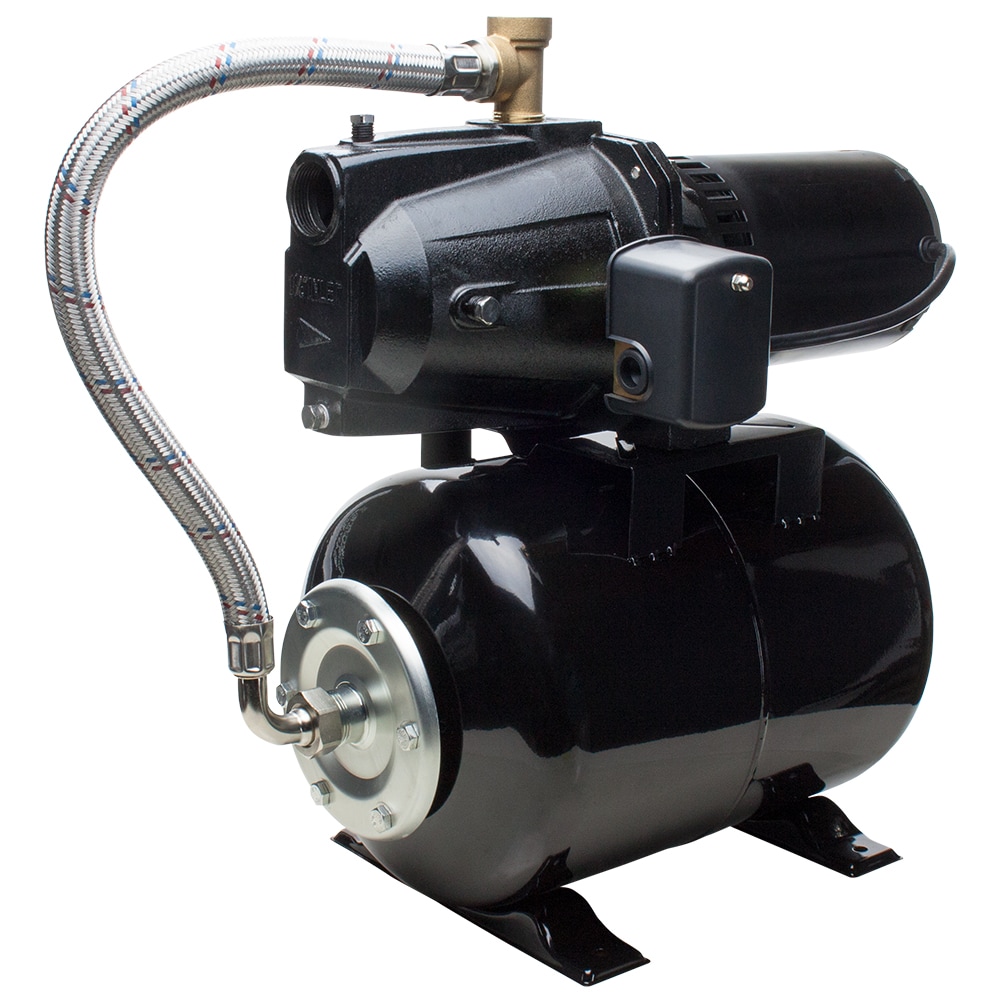

Utilitech 1/2-HP 115 and 230 -Volt 11-Gallon Cast iron Shallow well jet pump

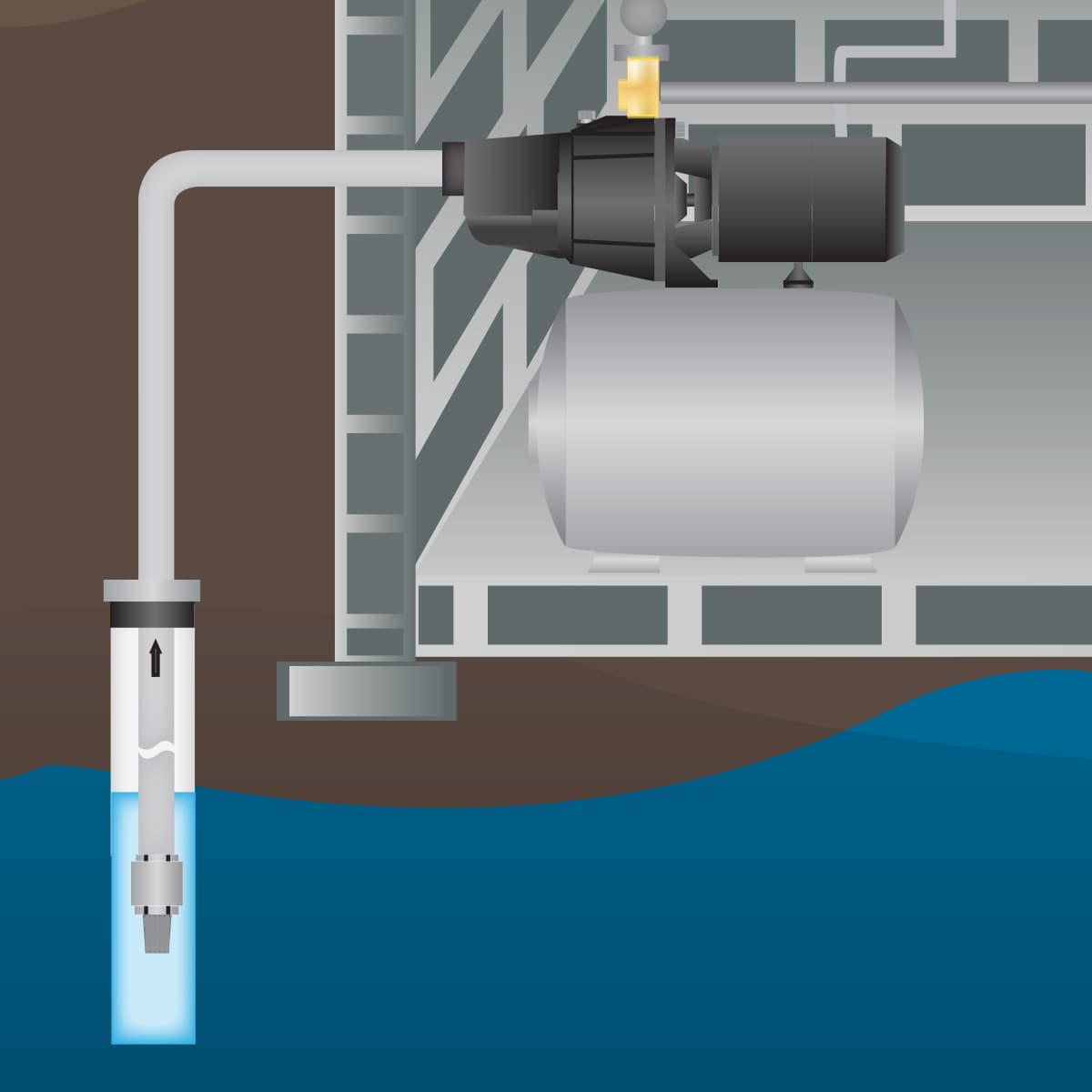

Draw water from your well, lake, or stream with this Utilitech all-in-one 0.5 HP shallow well jet pump tank system. This pump features a 20/40-PSI pressure switch and built-in 6 Gallon pressure tank for reliable water pressure. The 0.5 HP pump draws water from a single pipe well at depths up to 25 Ft. providing up to an 11 GPM flow rate. Its dual voltage Motor works on either 115 or 230 voltage for easy installation. The rugged, durable cast-iron pump provides you with long-term peace of mind. Instructions and a quick-start guide are included for your convenience to ensure easy installation and operation for this Utilitech all-in-one shallow well jet pump tank system.
Highlights
- The 0.5 HP pump draws water from a single pipe well at depths up to 25 Ft providing up to an 11 GPM flow rate
- The dual voltage Motor works on either 115 or 230 voltage and is factory wired for 115 voltage
- The rugged, durable, cast-iron pump provides you with long-term peace of mind
- 1 in NPT discharge, 1-1/4 in NPT suction connection
Specifications
| General | |||
|---|---|---|---|
| Sub Type | Shallow well jet pump | Application | Draw water from your well, lake, or stream |
| Type | Well pumps | Package Contents | Shallow well jet pump tank system – 1/2 HP cast iron |
| Power Source | Electric | Impeller Material | Thermoplastic |
| Material | Cast iron | Switch Type | Switchless |
| Package Quantity | 1 | Maximum PSI | 0 |
| Dimensions | |||
|---|---|---|---|
| Cord Length (Feet) | 0 | Outlet Diameter | 1-in |
| Inlet Diameter | 1-in | Amperage | 0 |
| Features | |||
|---|---|---|---|
| Alarm Included | No | Pump Horsepower | 1/2-HP |
| Battery Backup | No | Submersible | No |
| Check Valve | No | Vertical Lift | 25-ft |
| Gallons per Minute (Gallons) | 11 | Volts | 115 and 230 |
| Inlet Connection | NPT | Water Flow (GPM) | 11 |
| Outlet Connection | NPT |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | Safety Listing | UL safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 40151500 |
| Brand | Utilitech |
|---|
