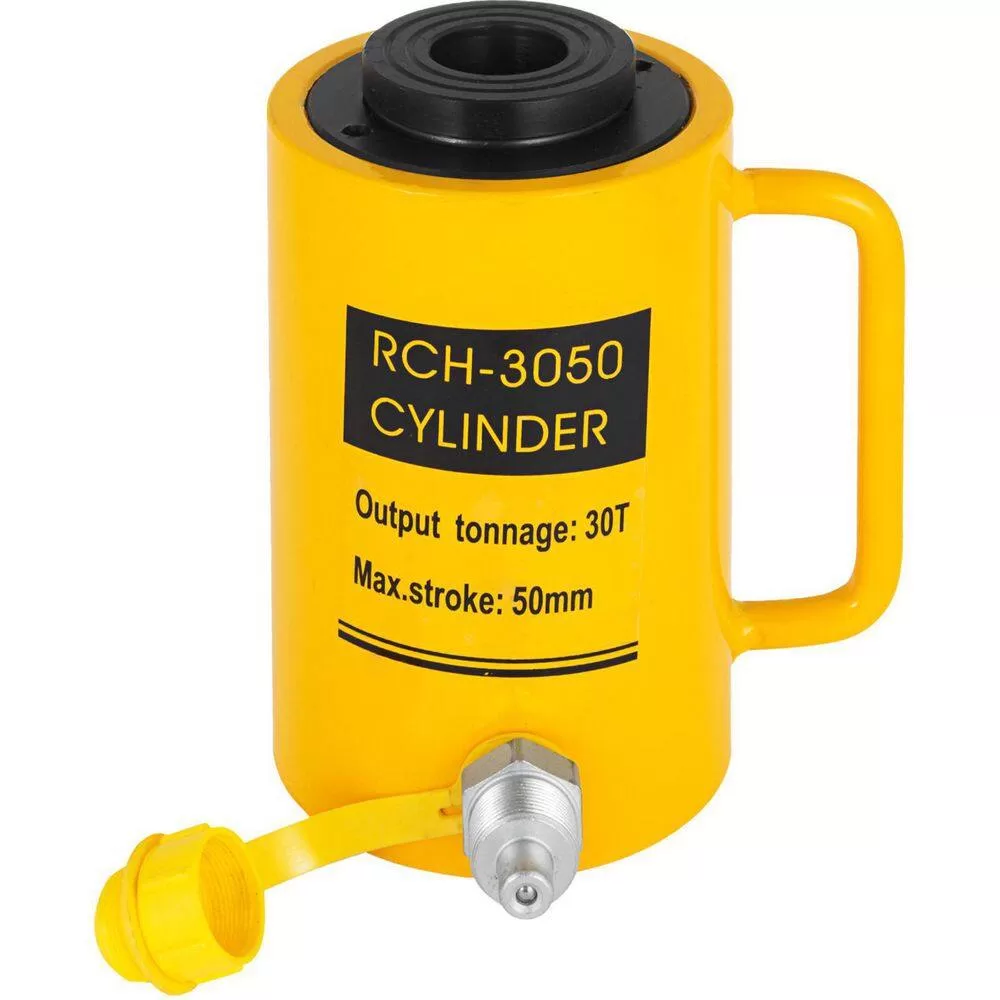

VEVOR 30-Ton Hydraulic Cylinder Jack Hollow Single Acting Hydraulic Ram Cylinder 50 mm Hydraulic Lifting Cylinders
We offer you a high-quality hydraulic cylinder jack. Made of solid metal construction, it is heavy-duty and durable. Maximum capacity up to 30-Ton/66000 lbs., stroke up to 50 mm/2 in. No stuck when lifting. Easy connecting head with dust cover, preventing the dust in. Portable handle on the body for easy moving and storage. A great helper for riggers, fabricators, welders, and automotive body and frame shops in electric power, chemical industry, steel, bridges, machinery, and other industries.

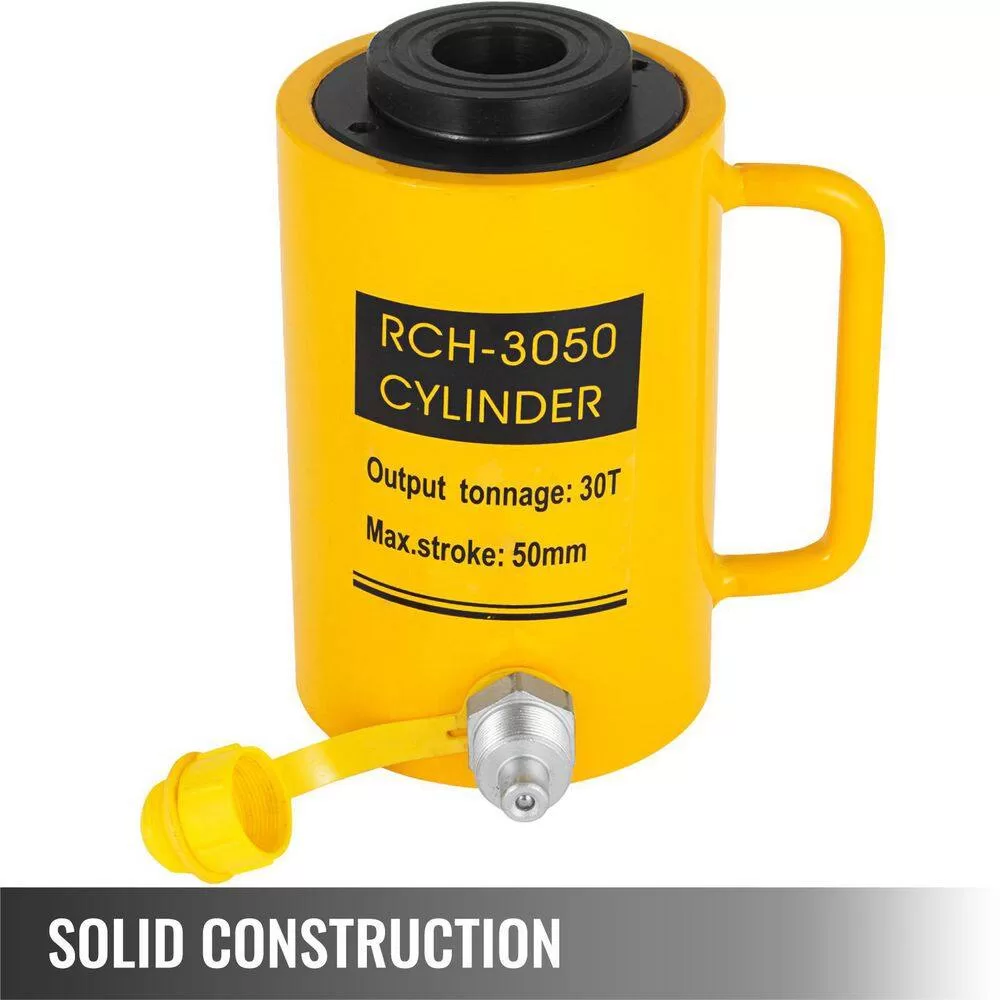

- Heavy-duty jack: made of heavy-duty metal construction, our hydraulic cylinder jack is durable and designed for long-lasting use, paint spraying at the surface, prevent scratching and corrosion

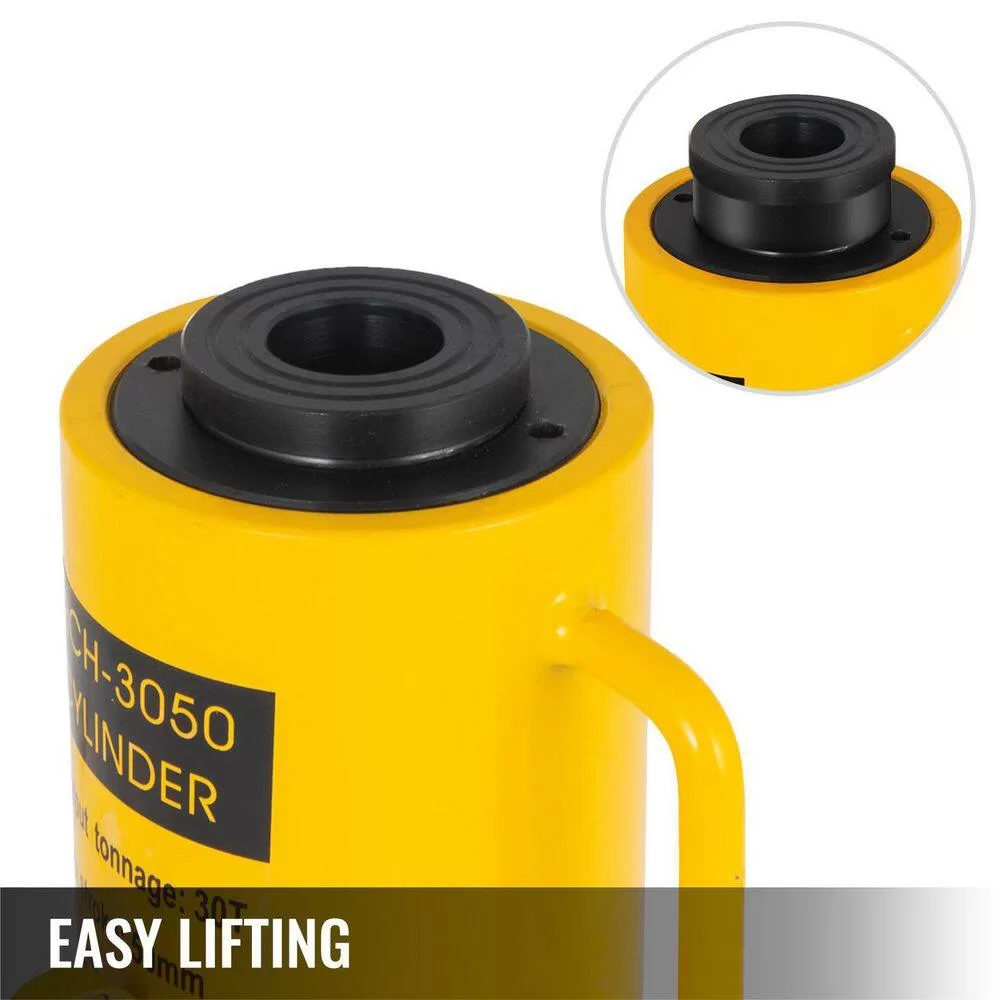

- Large lifting capacity: our ram hydraulic cylinder is designed to provide reliable support during operation, no stuck when lifting, large 30-Ton/66000 lbs. tonnage, enough stroke (50 mm/2 in.)

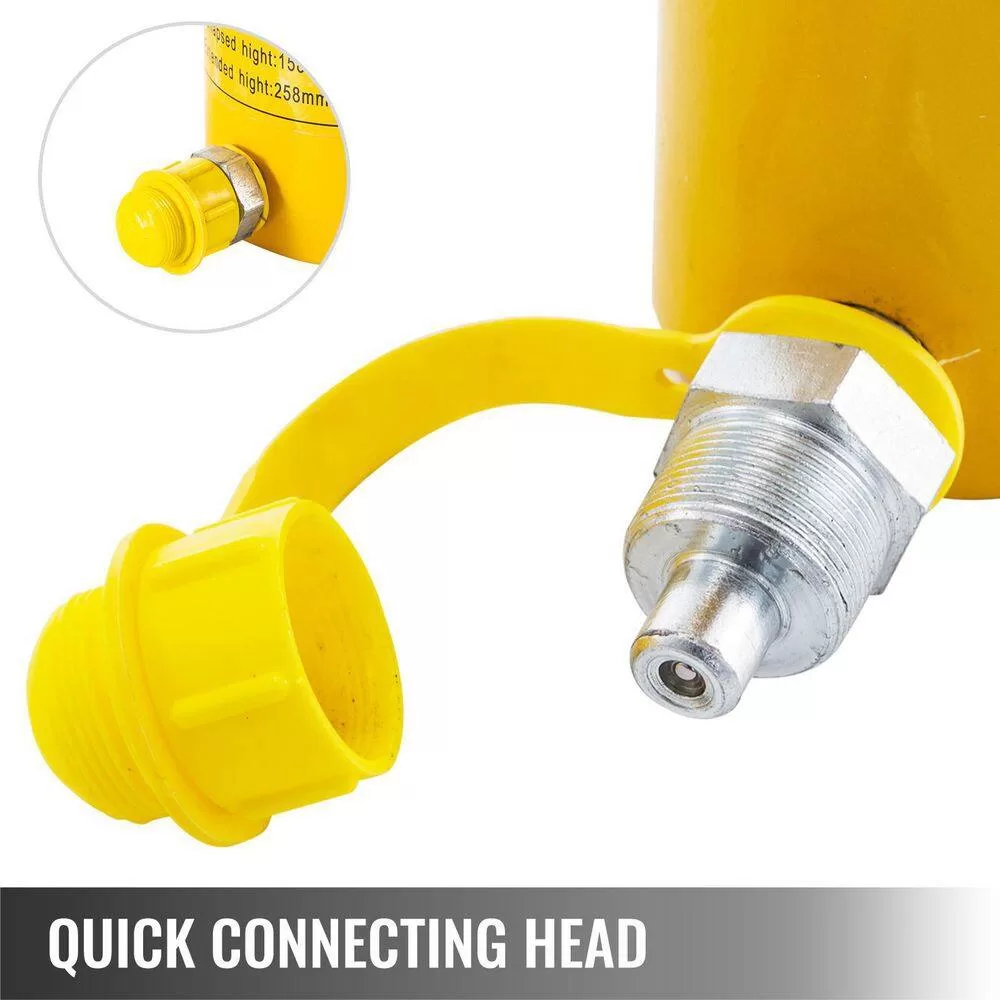

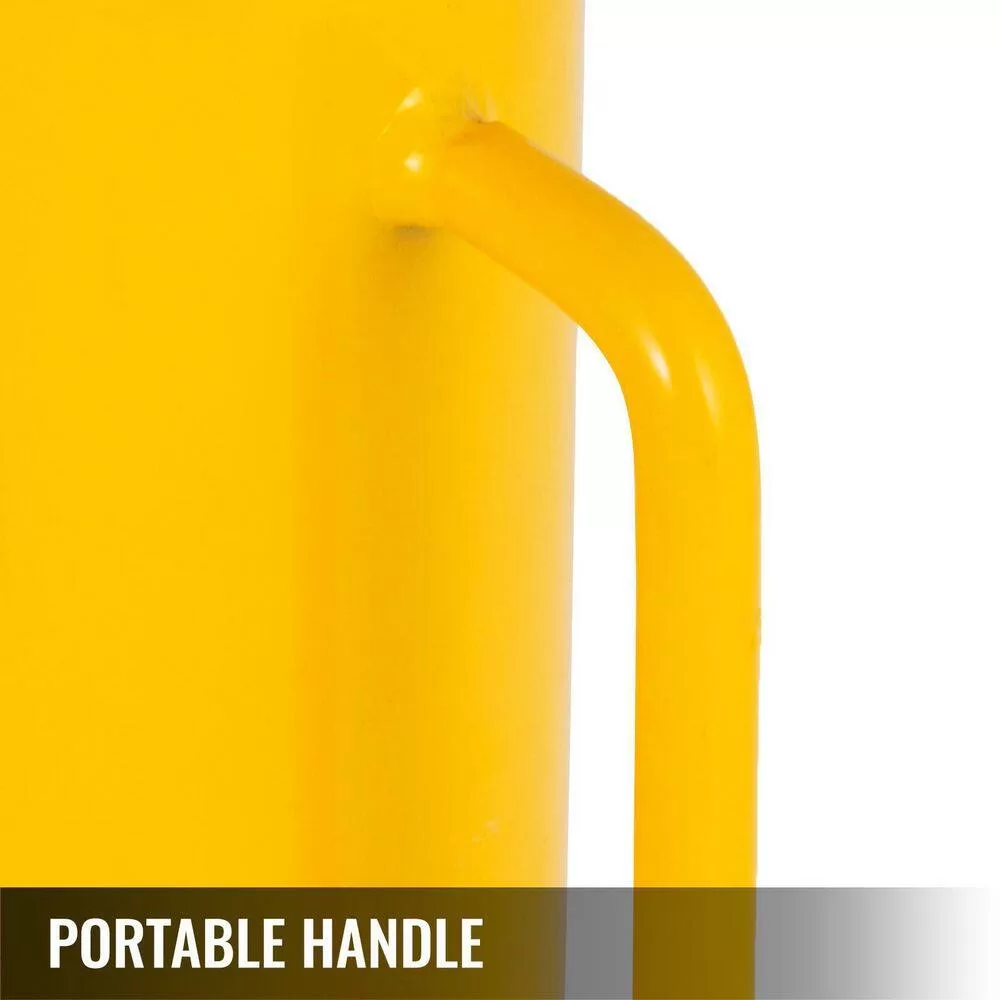

- Convenient use: quick connecting head with dust cover, preventing the jack’s inside from dust, features firm connection with no leakage, a portable handle increases flexibility and convenience

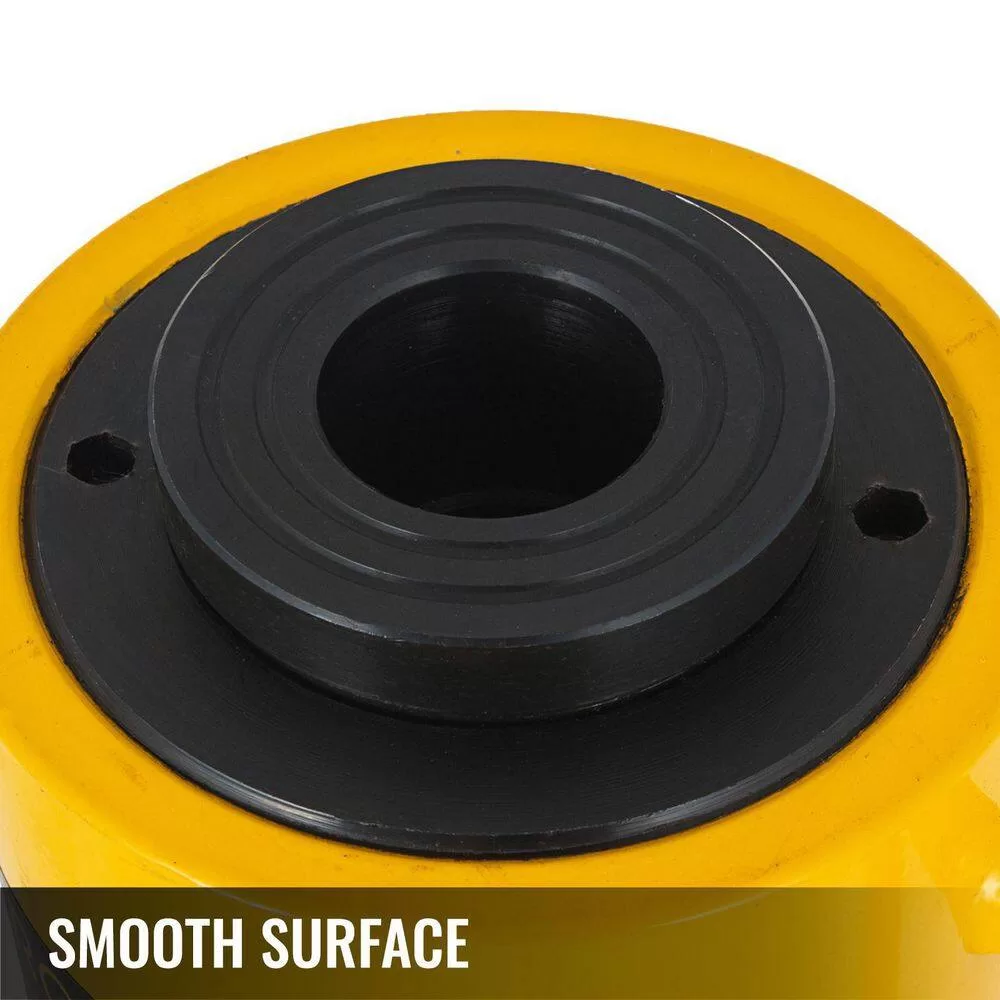

- Smooth surface: the hydraulic ram cylinder features a smooth surface with circle texture, provide reliable support during working
- Wide usage: this hollow jack has the advantages of small size, suitable for narrow space position, a great helper for riggers, fabricators, welders, and automotive body and frame shops in electric power, chemical industry, steel, bridges, machinery, and other industries
- Capacity: 30 T/66000 lbs.
- Ram stroke: 50 mm/2 in.
- Total height: 170 plus 12 mm/6.7 in. plus 0.5 in.
- Outside diameter: 113 mm/4.3 in.
- Inner diameter: 66 mm/2.6 in.
- Diameter of main shaft: 66 mm/2.6 in.
- Item weight: 10.8 kg/23.8 lbs.
- Package content: 1 x 30-Ton 50 mm hollow hydraulic cylinder jack

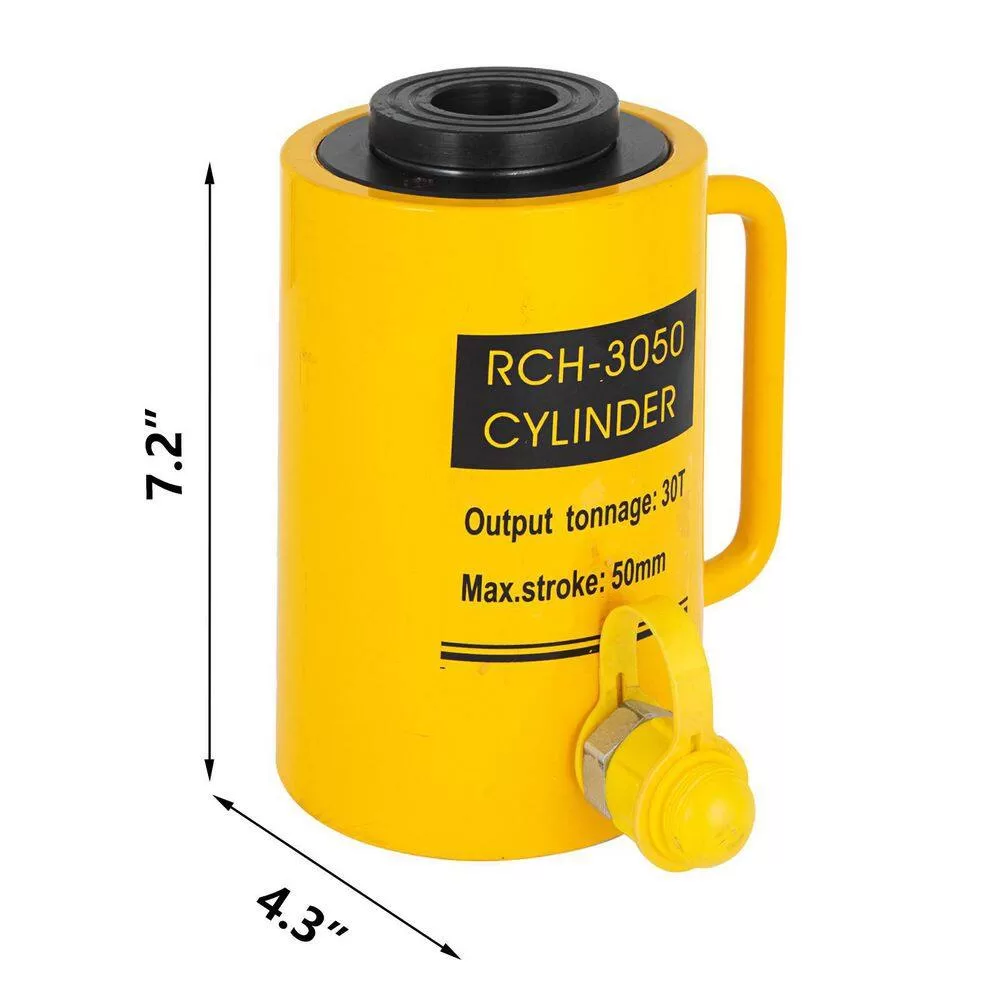

Dimensions
| Base Length (in.) | 4.3 | Base Width (in.) | 4.3 |
|---|---|---|---|
| Collapsed height (in.) | 7.2 | Handle Length (in.) | 6.7 in |
| Product Depth (in.) | 4.3 in | Product Height (in.) | 7.2 in |
| Product Width (in.) | 4.3 in |
Details
| Features | No Additional Features | General Part Type | Hydraulic Jack |
|---|---|---|---|
| Included | No Additional Items Included | Material | Metal |
| Maximum Lift Height (in.) | 2 in | Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 0.5 | Product Weight (lb.) | 23.8 lb |
| Weight Capacity (lb.) | 66000 lb | Saddle Diameter (in.) | 2.6 |
| Brand | VEVOR |
|---|
