WEN 5-Amp Variable-Speed Bench Drill Press

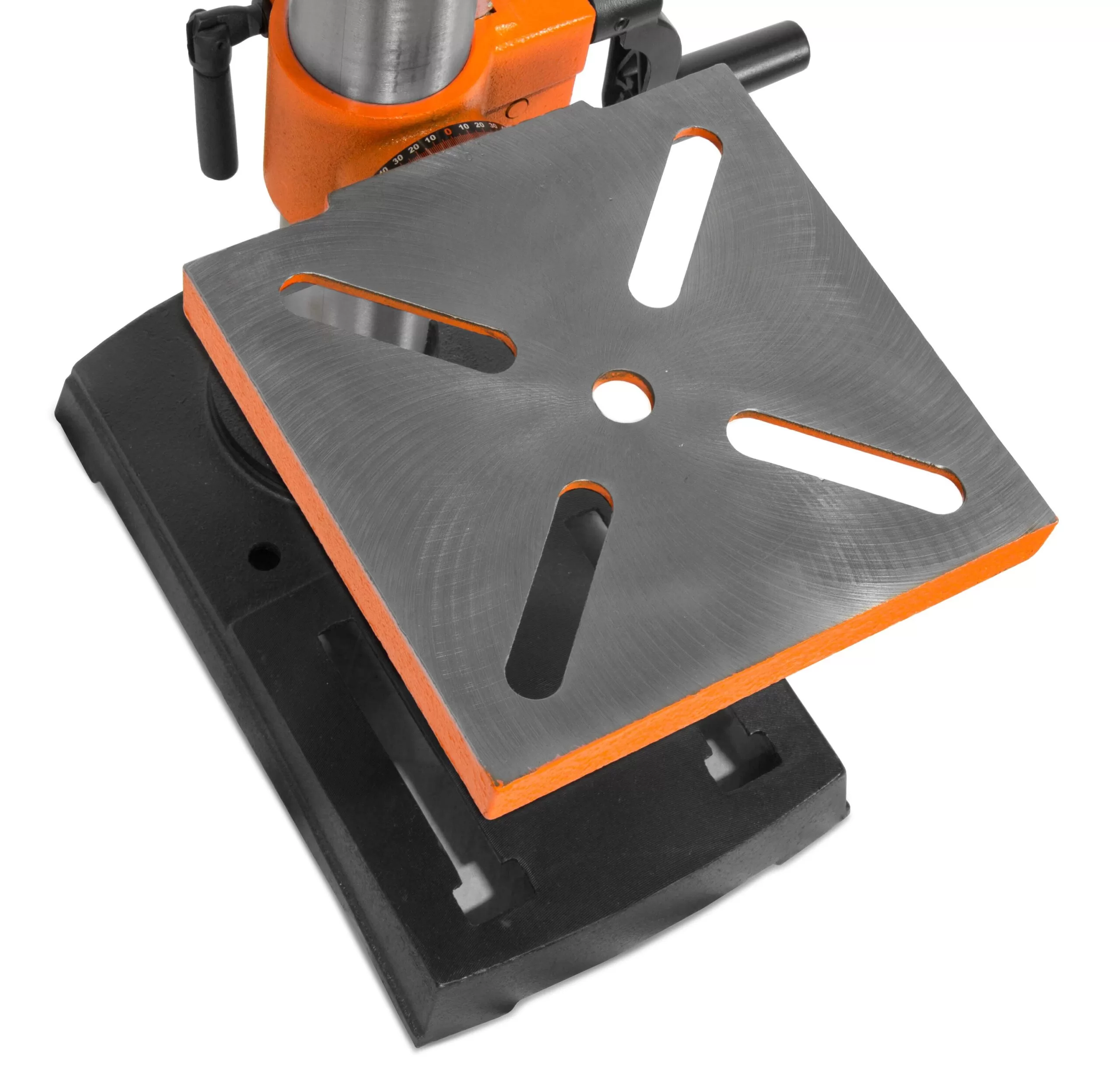

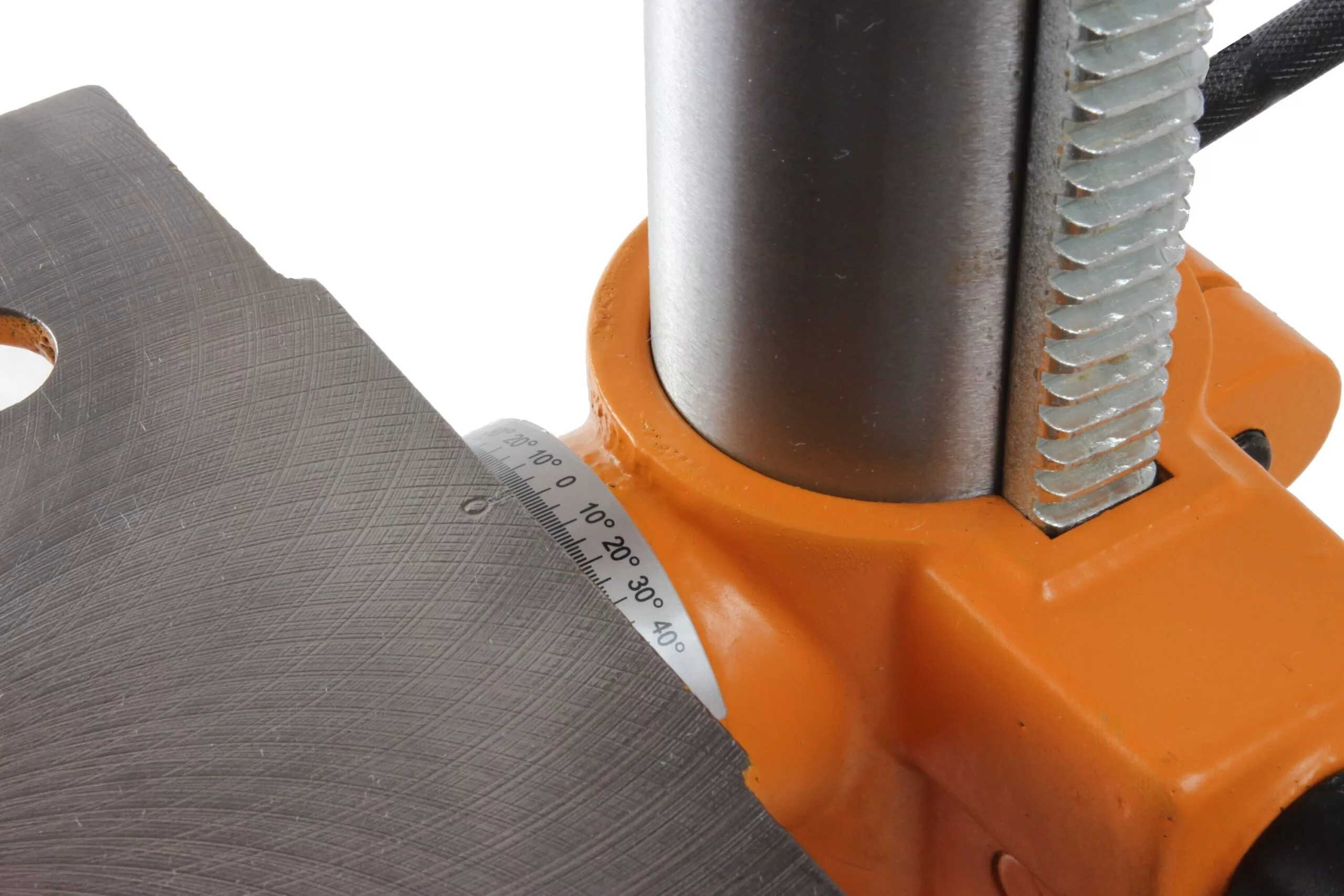

Remember when power tools were actually powerful. The WEN 10-Inch Variable Speed Drill Press powers through metal, wood, plastic and more, with the ability to drill up to a 1/2-inch hole through heavy-duty, 1-inch-thick cast iron. The mechanical variable speed allows you to dial in the exact RPM (from 530 to 3100) for your project with the simple turn of a lever while the digital LED readout displays the current speed. The powerful induction motor features ball bearings for an extended life and balanced performance. The 1/2-inch chuck with JT33 spindle taper gives you versatility with a variety of bits, with on-board chuck key storage for easy organization. The 8 by 7.5-inch cast-iron worktable bevels 45 degrees left and right for those tricky operations. The X-pattern laser shows your drill’s center points, saving on guesswork and sparing expensive materials. The 8 by 12.5-inch cast iron base features predrilled holes for easy mounting to the benchtop or work surface of your choice. And because it’s a WEN product, your drill press comes backed by a two-year warranty, a friendly customer support line, and a stocked inventory of replacement parts. Remember when you could drill with laser precision. Remember WEN.
- Features a 5 Amp induction motor, a 10 inch swing and a 2 inch spindle travel

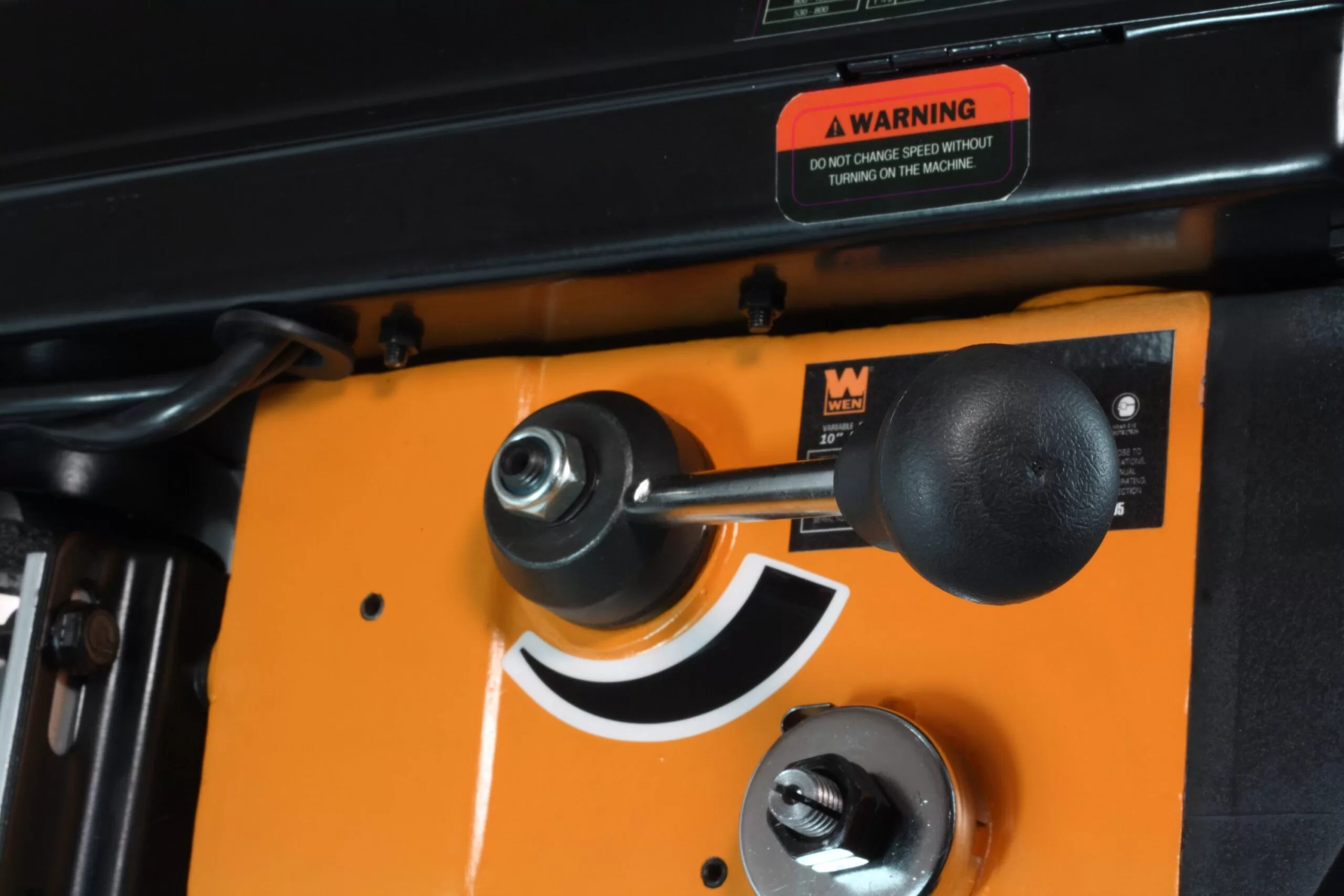

- Adjust the mechanical variable speed anywhere from 530 to 3100 RPM

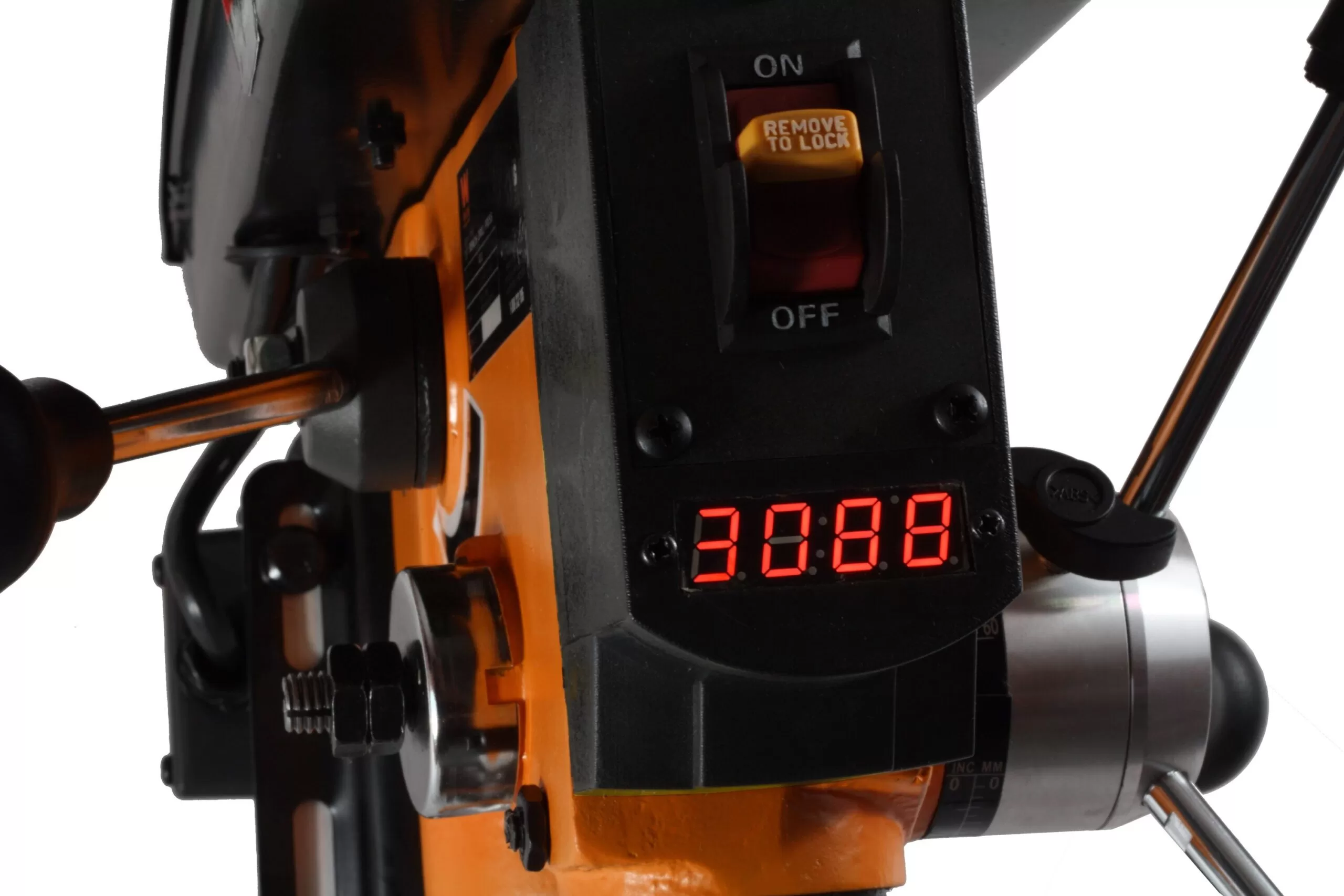

- Digital speed readout displays current RPM of the machine for maximum precision
- Includes a laser, adjustable depth stop, beveling 8 inch x 7.5 inch work table, 1/2 inch capacity keyed chuck, a chuck key with onboard storage and a 2-year warranty
- Measures in at 13 by 19 by 34 inches in size with a weight of 57 pounds
Specifications
| Features | |
|---|---|
| Amps | 5 |
| Built-In Light | No |
| Chuck Type | Keyed |
| Drill Press Type | Bench drill press |
| Horsepower | 0.8 |
| Laser Guide | Yes |
| Maximum Speed (RPM) | 3100 |
| Minimum Speed (RPM) | 530 |
| Pivoting Head | No |
| Quick Release Belt Tension | Yes |
| Spindle Speed Settings | Variable |
| Spindle Travel (Inches) | 2 |
| Table Material | Cast iron |
| Table Tilt Range | 90 degrees left to right |
| Tilting and Swiveling Table | Yes |
| Voltage | 120 |
| General | |
|---|---|
| Series Name | N/A |
| Dimensions | |
|---|---|
| Chuck Capacity | 1/2-in |
| Overall Height (Inches) | 33.86 |
| Spindle Taper Size | JT33 |
| Table Length (Inches) | 8 |
| Table Width (Inches) | 7.5 |
| Warranty | |
|---|---|
| Warranty | 2-year limited |
| Certifications | |
|---|---|
| CA Residents: Prop 65 Warning(s) | |
| Safety Listing | Not safety listed |
| Miscellaneous | |
|---|---|
| UNSPSC | 27112700 |
