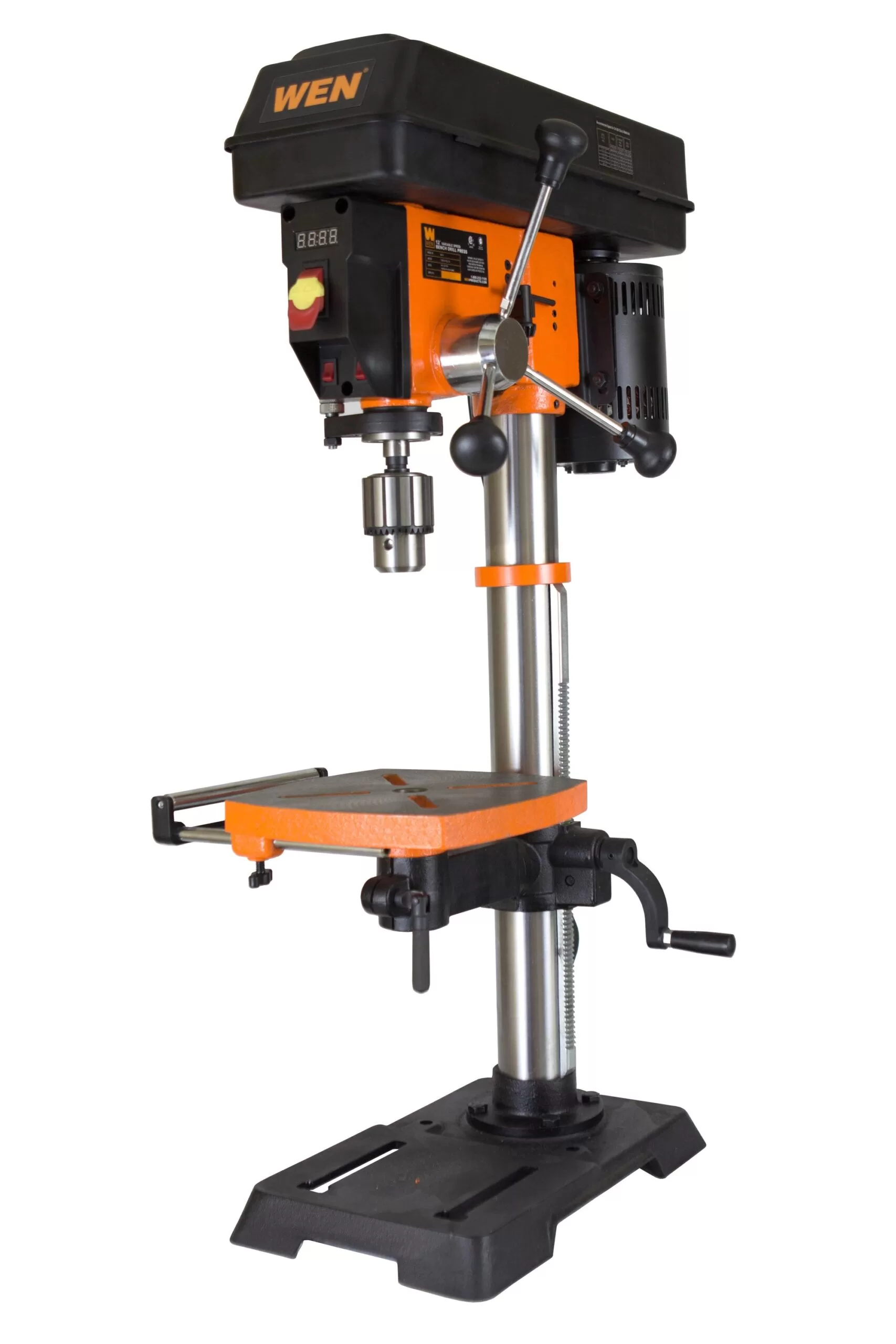

WEN 5-Amp Variable-Speed Bench Drill Press
Remember when power tools were actually powerful. The WEN 12 in. Variable Speed Drill Press powers through metal, wood, plastic and more, with the ability to drill up to a 5/8 in. hole through heavy-duty, 1 in. T cast iron. The mechanical variable speed allows you to target in the exact RPM (from 580 to 3200) for your project with the simple turn of a lever while the digital LED readout displays the current speed. The powerful induction motor features ball bearings for an extended life and balanced performance. The 5/8 in. chuck with MT2 spindle taper gives you versatility with a variety of bits, with on-board chuck key storage for easy organization. The 9-1/2 in. x 9-1/2 in. cast-iron worktable bevels 45° left and right for those tricky operations. The X-pattern laser shows your drill’s center points, saving on guesswork and sparing expensive materials. The 10 in. x 16 in. cast iron base features predrilled holes for easy mounting to the benchtop or work surface of your choice while the onboard light keeps your workpieces illuminated for maximum accuracy. And because it’s a WEN product, your drill press comes backed by a 2-year warranty, a friendly customer support line, and a stocked inventory of replacement parts. Remember when you could drill with laser precision. Remember WEN.
- Features a 5 Amp induction motor, a 12 in. swing and a 3-1/8 in. spindle travel
- Adjust the mechanical variable speed anywhere from 580 to 3200 RPM

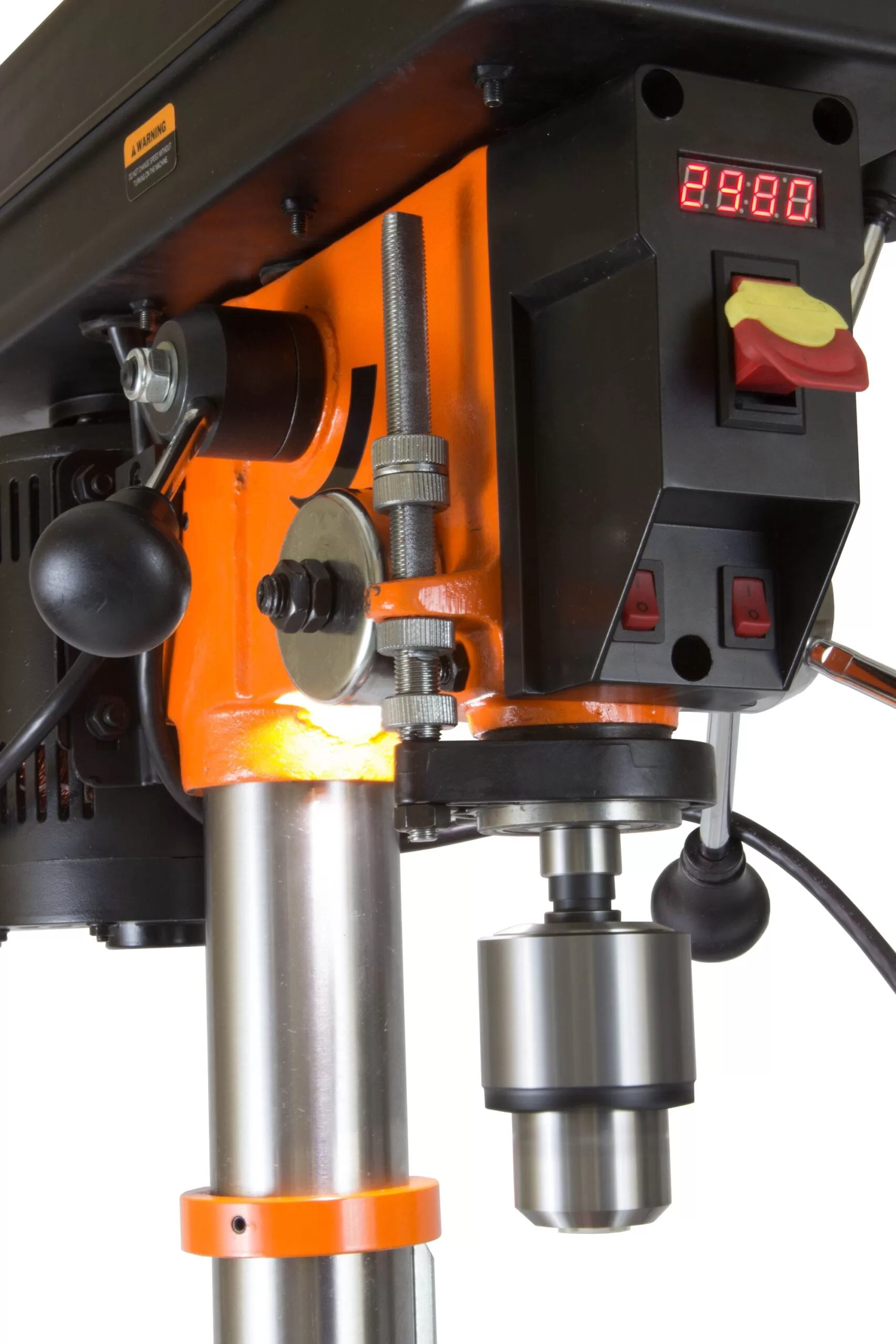

- Digital speed readout displays current RPM of the machine for maximum precision

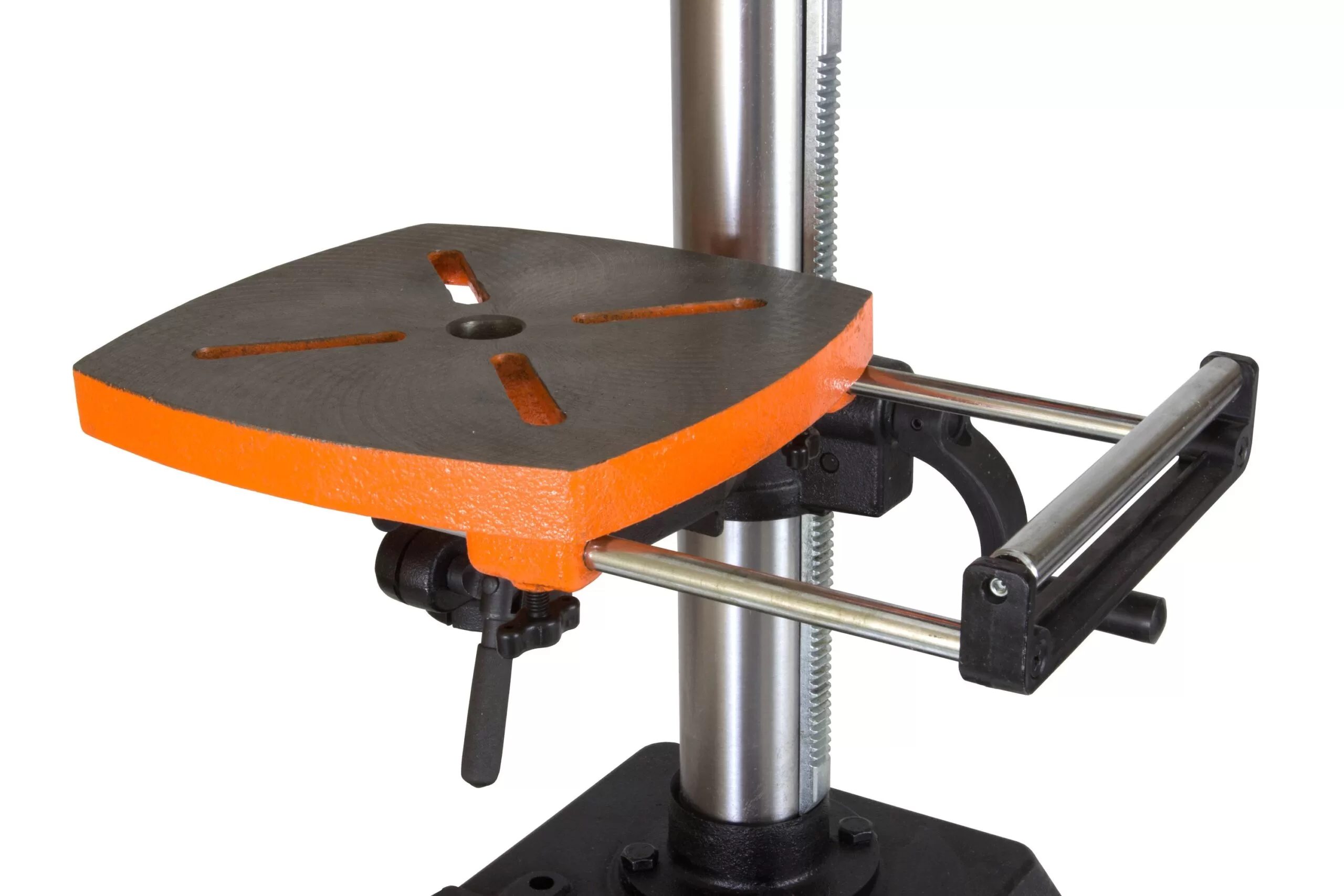

- Includes a laser, overhead light, adjustable depth stop, table roller extension, beveling 9-1/2 in. x 9-1/2 in. work table, 5/8 in. capacity keyed chuck, a chuck key with onboard storage and a 2-year warranty
- Measures in at 16.8 by 13.5 by 36.6 inches in size with a weight of 85 pounds
Specifications
Features | |
---|---|
Amps | 5 |
Built-In Light | Yes |
Chuck Type | Keyed |
Drill Press Type | Bench drill press |
Horsepower | 0.8 |
Laser Guide | Yes |
Maximum Speed (RPM) | 3200 |
Minimum Speed (RPM) | 580 |
Pivoting Head | No |
Quick Release Belt Tension | Yes |
Spindle Speed Settings | Variable |
Spindle Travel (Inches) | 3.13 |
Table Material | Cast iron |
Table Tilt Range | 90 degrees left to right |
Tilting and Swiveling Table | Yes |
Voltage | 120 |
General | |
---|---|
Series Name | N/A |
Dimensions | |
---|---|
Chuck Capacity | 5/8-in |
Overall Height (Inches) | 37 |
Spindle Taper Size | MT2 |
Table Length (Inches) | 9.5 |
Table Width (Inches) | 9.5 |
Warranty | |
---|---|
Warranty | 2-year limited |
Certifications | |
---|---|
CA Residents: Prop 65 Warning(s) | |
Safety Listing | Not safety listed |
Miscellaneous | |
---|---|
UNSPSC | 27112700 |
