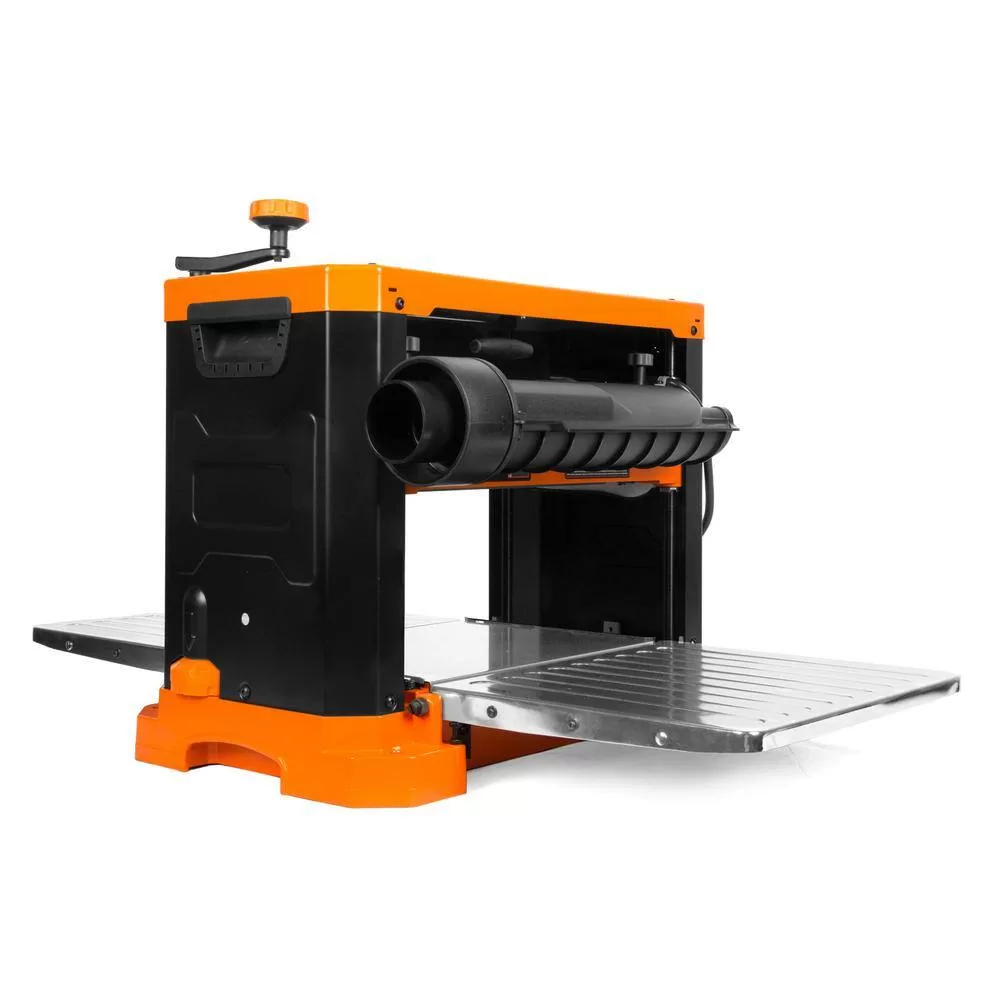

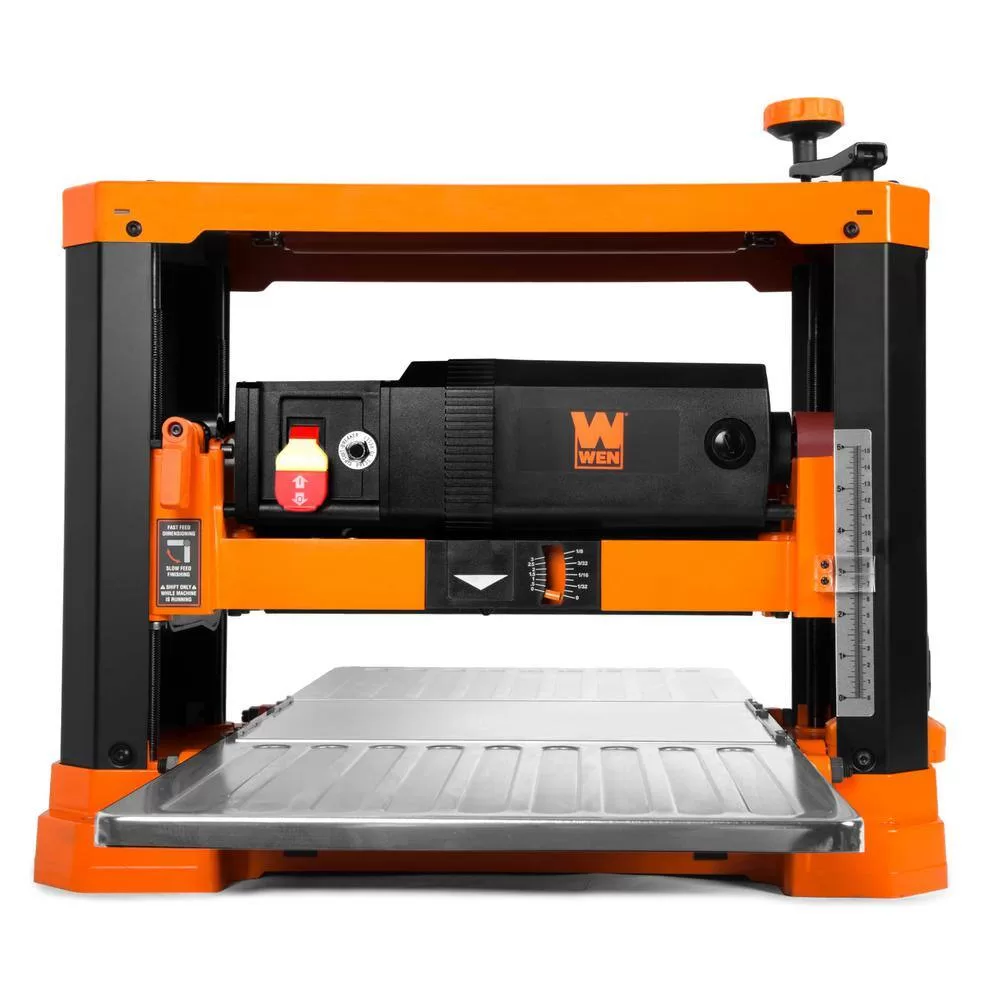

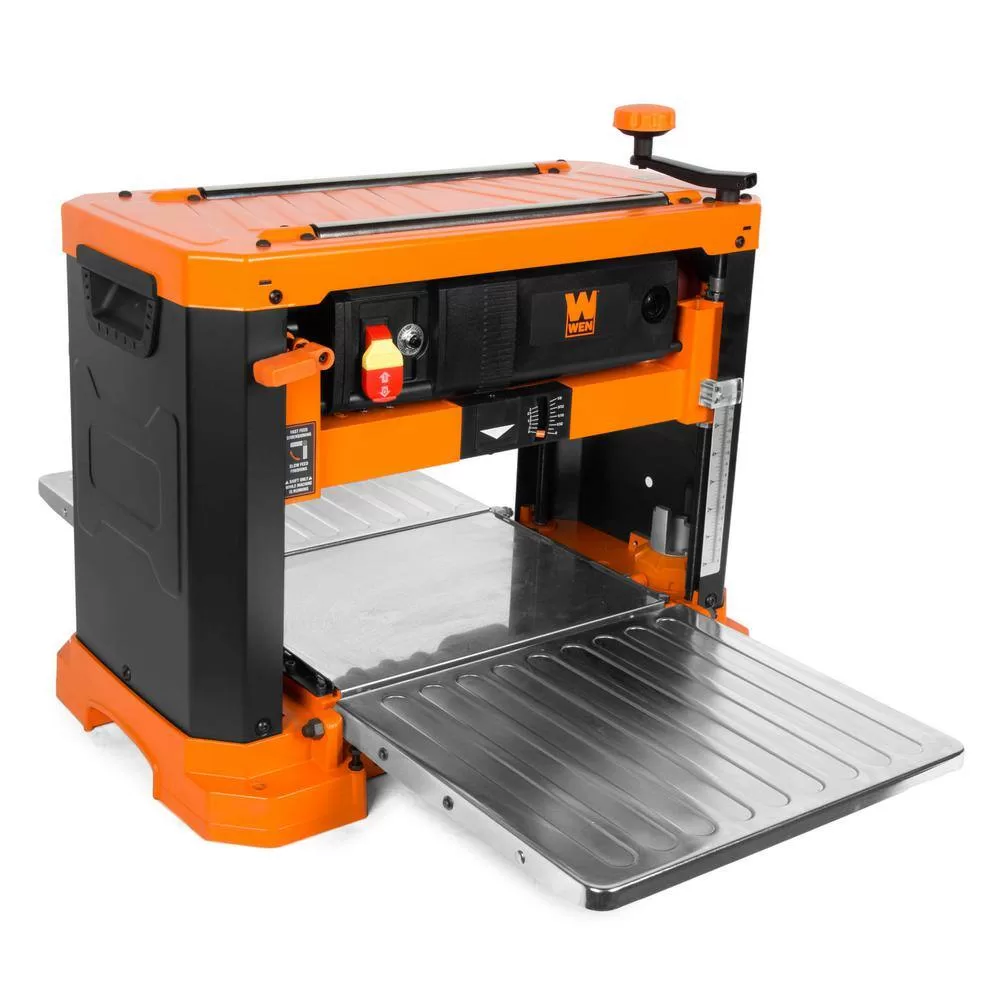

WEN PL1337 Thickness Planer, Two Speed, 13-Inch Spiral Blade, Benchtop

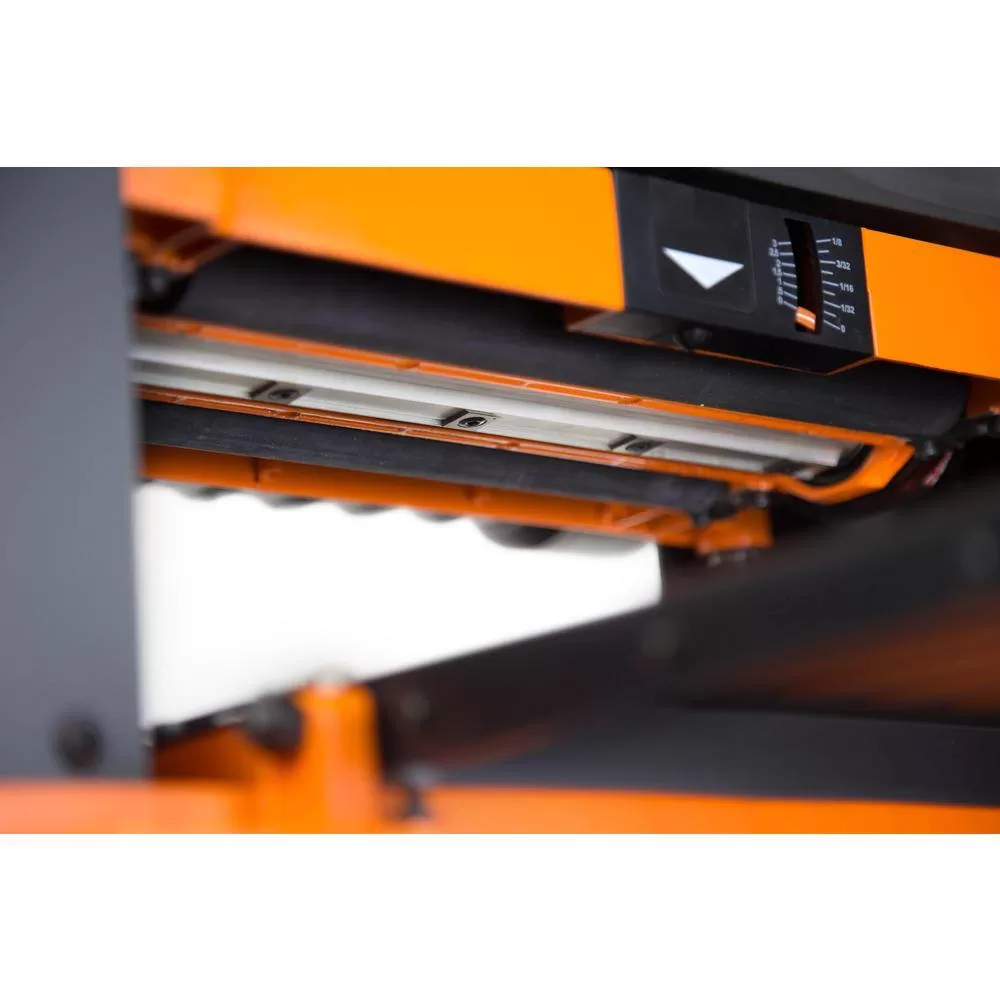

Our spiral cutterhead utilizes 26 staggered HSS blades to provide a perfect finish to hard and soft woods alike. The powerful 15-amp motor rotates the cutterhead at up to 10,000 RPM. Two-speed operation gives maximum control; choose the 26-feet-per-minute feed rate for quick dimensioning and 833 cuts per inch, or switch to the slower 16-feet-per-minute 1354 CPI option for perfect finishes every time. Plane boards up to 13 inches wide and 6 inches thick with ease. The onboard planing gauge helps inform users about the amount of material being removed during each pass. Combine that with the heavy-duty base for a sturdy planer that does not walk or wobble during operation. The handy depth adjustment knob makes it easy to take off anywhere from 0 to 1/8 of an inch per pass. The adjustable dust port removes chips and sawdust from the workpiece and blasts them out of the way. The onboard depth stop allows users to achieve an exact workpiece thickness with maximum precision. This package also includes height-adjustable infeed and outfeed tables to limit snipe while providing extra support to your workpiece during planing. Easily mount the planer to a work surface or stand (such as the WEN MSA658T Planer Stand) using the predrilled base holes. Compatible with the WEN BP510H Replacement Spiral Blades. And because it’s a WEN product, this planer comes backed by a nationwide network of skilled service technicians, a helpful customer support line and a two-year warranty.

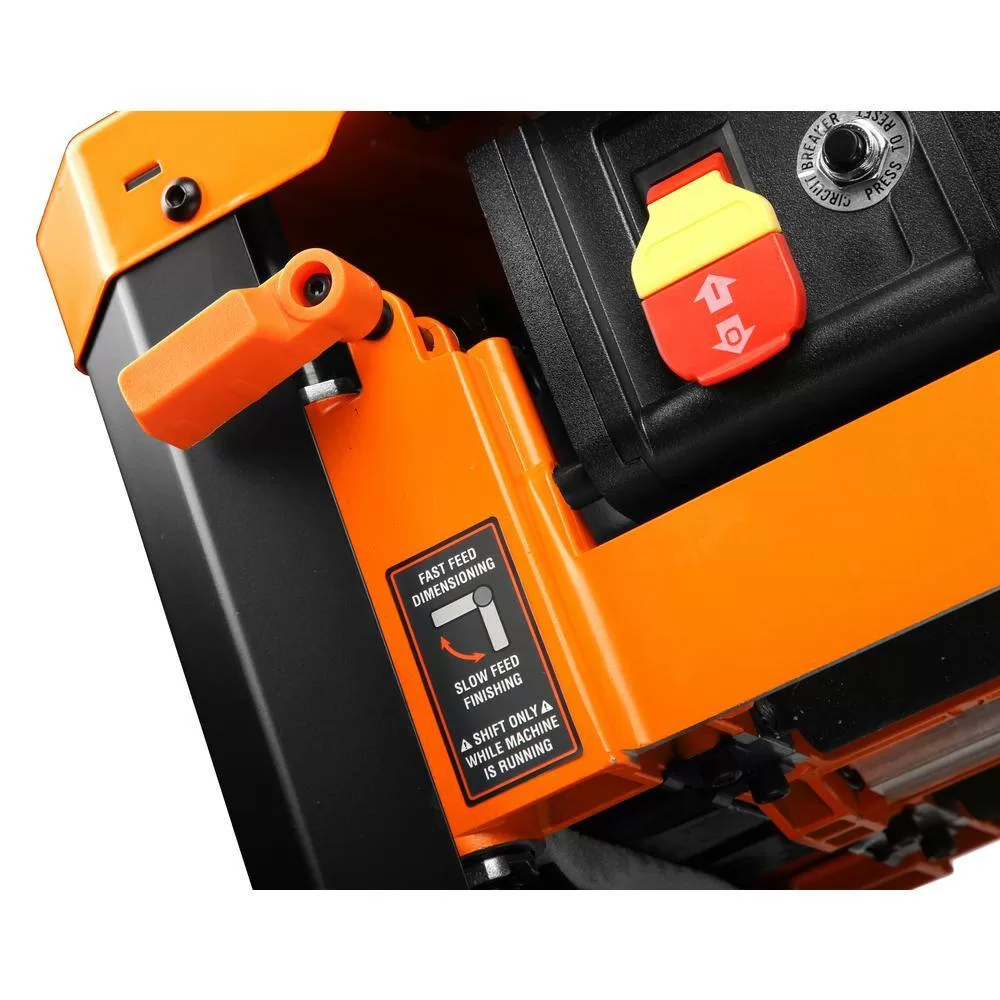

- Two-speed operation provides a 26 FPM feed rate for quick dimensioning and a 16 FPM feed rate for perfect finishes
- Spiral cutterhead utilizes 26 staggered and rotatable HSS blades for a clean, smooth finish
- Plane boards up to 6 inches thick and 13 inches wide
- 15-amp motor generates 10,000 cutterhead rotations per minute and up to 1354 cuts per inch
- Includes a depth stop, an onboard material removal gauge, a combination 2-1/2-inch and 4-inch dust port, onboard wrench storage, workpiece return rollers, and a two-year warranty
- California residentssee Prop 65 WARNINGS
Dimensions
Maximum cut depth (in.) | 0.0625 | Product Depth (in.) | 21.46 in |
---|---|---|---|
Product Height (in.) | 16.93 in | Product Width (in.) | 34.25 in |
Details
Amperage (A) | 15 A | Bench & Stationary Tool Type | Planer |
---|---|---|---|
Color Family | Black | Color/Finish | Black |
Condition | New | Cordless/Corded | Corded |
Cutterhead Type | Spiral | Included | No Additional Items Included |
Maximum Board Thickness (in.) | 6 in | Maximum Board Width (In.) | 12 in |
Maximum Speed (RPM) | 10000 RPM | Minimum cut depth (in.) | 0.125 |
Number of Cutting Blades | 26 | Portability | Bench |
Power Tool Features | No Additional Features | Product Weight (lb.) | 68.78 lb |
Voltage (V) | 120V | Tools Product Type | Power Tool |
Warranty / Certifications
Certifications and Listings | CSA Certified | Manufacturer Warranty | 2-year limited |
---|
