WEN Variable Speed Wood Lathe

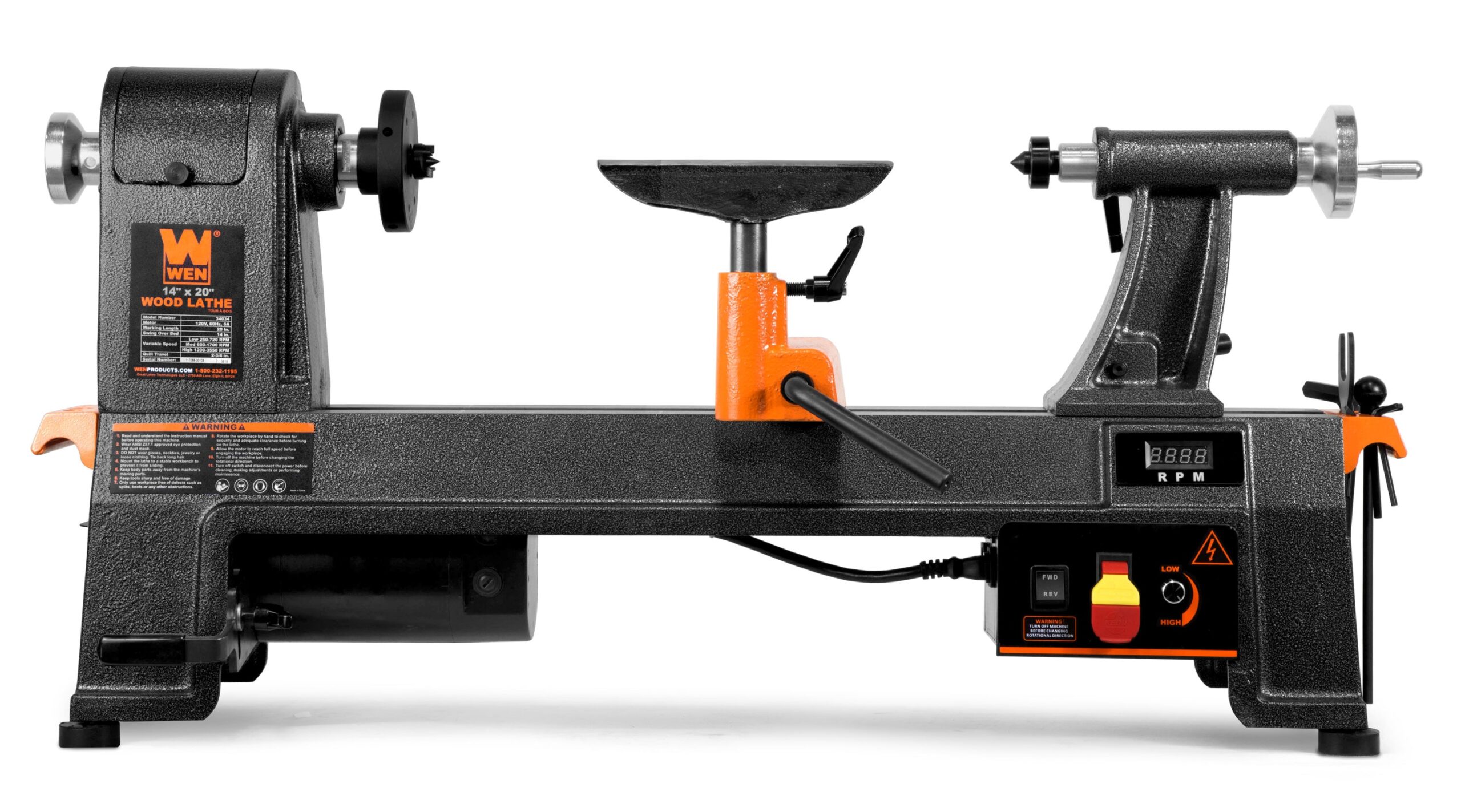

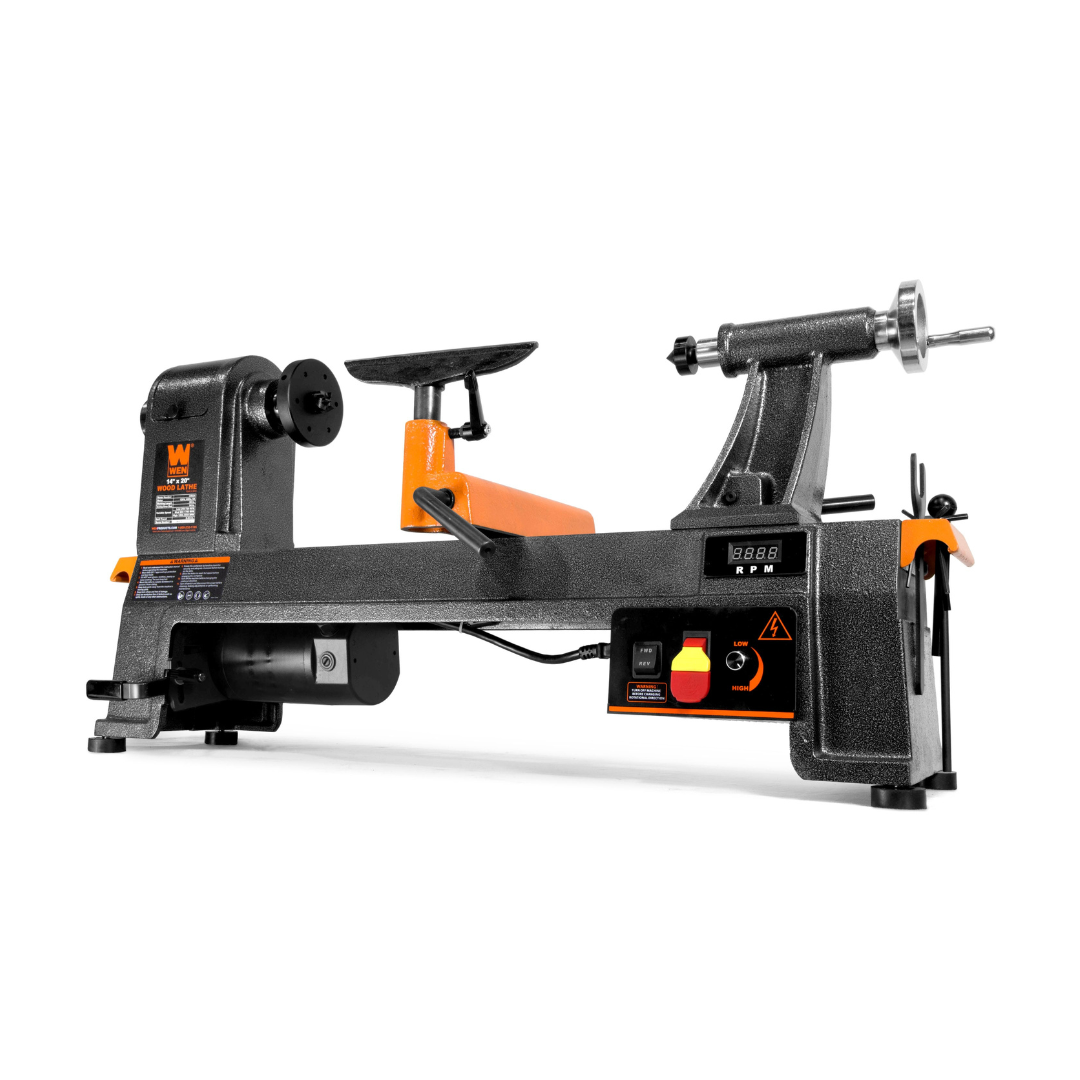

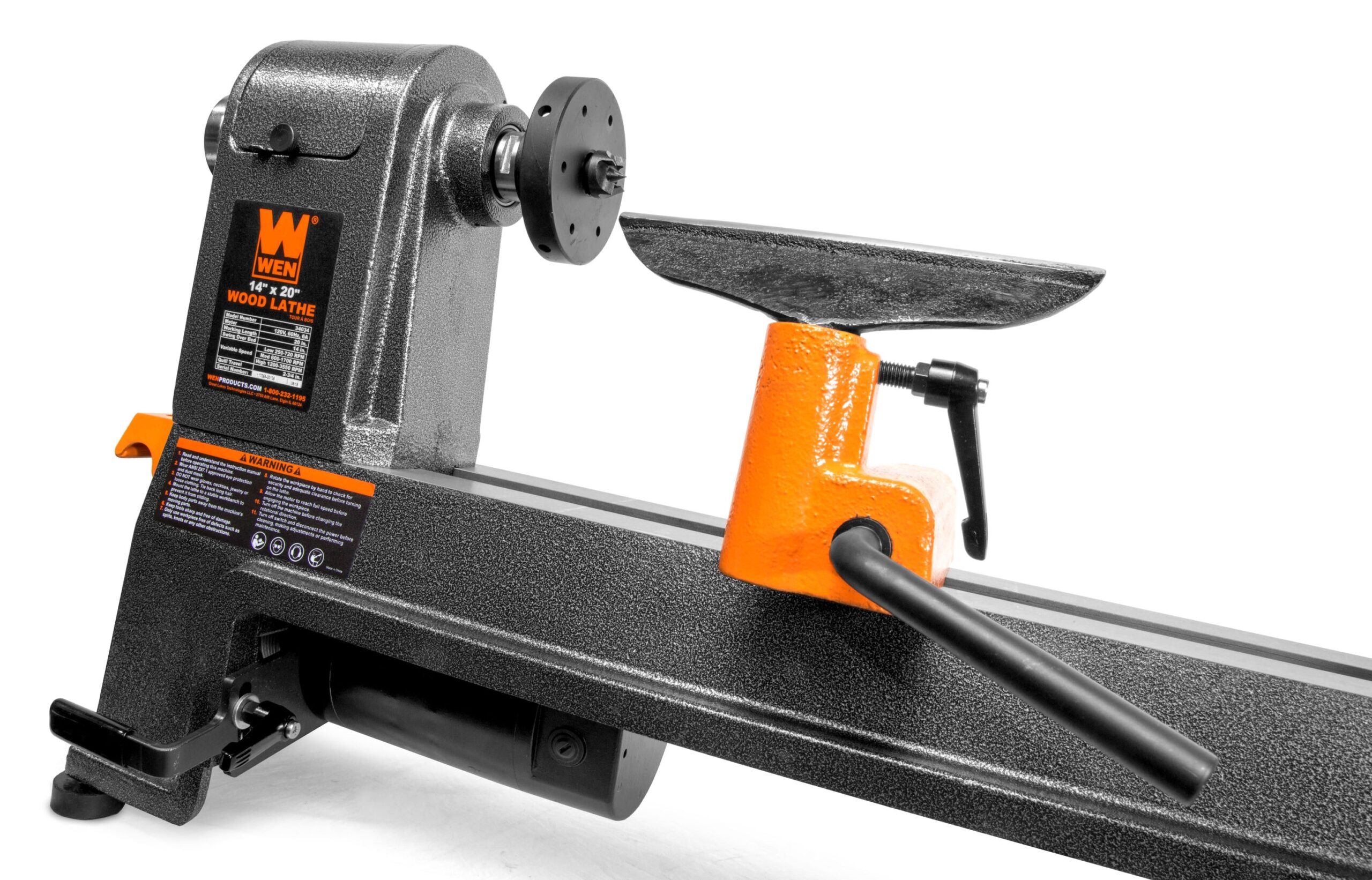

Remember when you could turn your own table legs. Fill your house with as many table legs as you can with the WEN 14 in. x 20 in. Variable Speed Wood Lathe. Adjust the variable speed anywhere from 250 to 3550 rotations per minute. The 6 Amp motor provides maximum power while the sturdy 120 plus pound build prevents walking and wobbling during operation. This beast of a lathe features MT2 spindle and tailstock tapers to tightly hold your workpieces, along with an 8 in. tool rest for chisel and tool support during operation. The easy-to-use lever clamping system makes adjustments to both the tool rest and the tailstock simple and precise. The WEN Wood Lathe also includes a spur center, live center, a flat wrench, a knockout rod, 4 hex wrenches (3 mm, 4 mm, 5 mm and 12 mm), an onboard accessory holder and a 4 in. faceplate for turning bowls, cups and other workpieces.
Highlights
- Attack workpieces up to 20 inches long and 14 inches wide
- Adjust the variable speed anywhere from 250 to 3550 rotations per minute
- Includes 4 inch faceplate for turning bowls, cups and other workpieces
- MT2 tailstock and headstock tapers, along with 1 inch- 8 spindle thread, allow for compatibility with a wide variety of lathe accessories
- Features a 6A motor, MT2 spur center, MT2 live center, 8-inch tool rest, and an onboard accessory holder
Specifications
| General | |||
|---|---|---|---|
| Color/Finish Family | Black | Switch Type | Lockout Safety Switch |
| Table Material | Cast Iron | Measure Type | Standard |
| Dimensions | |||
|---|---|---|---|
| Height (Inches) | 20 | Width (Inches) | 14 |
| Length (Inches) | 20 | Amperage (Amps) | 6 |
| Weight (lbs.) | 125.7 |
| Features | |||
|---|---|---|---|
| Dust Collection | No | Stand Included | No |
| High Spindle Speed (RPM) | 3550 | Variable Speed | Yes |
| Low Spindle Speed (RPM) | 250 | Voltage (Volts) | 120 |
| Micro Adjust Rip Fence | No |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 23242300 |
