Broan Evolve 0.6-Sone 150-CFM White Bathroom Fan (ENERGY STAR Certified)
The EVOLVE Premium exhaust fan by Broan-NuTone is revolutionizing bathroom ventilation. This selectable CFM premium series features motor technology making it the only exhaust fan on the market that can offer airflow performance, no matter how complicated the ductwork, reducing call-backs. The premium series saves the installer time with the easy, slide-and-lock installation, reducing installation time by more than 30%. The premium series provides best-in-class features and code compliance without the complex assortment thanks to the universal housing with modularity. This series will be the only modular solution in the market that allows the use of multiple modules within a single fan housing providing the option to add humidity and/or motion sensing. Selectable CFM available in 110-130-150 along with modularity allows for install of the perfect ventilation solution with reduced inventory.
- Selectable CFM with speeds of 110-130-150, maintains CFM through 0.4″ static pressure.

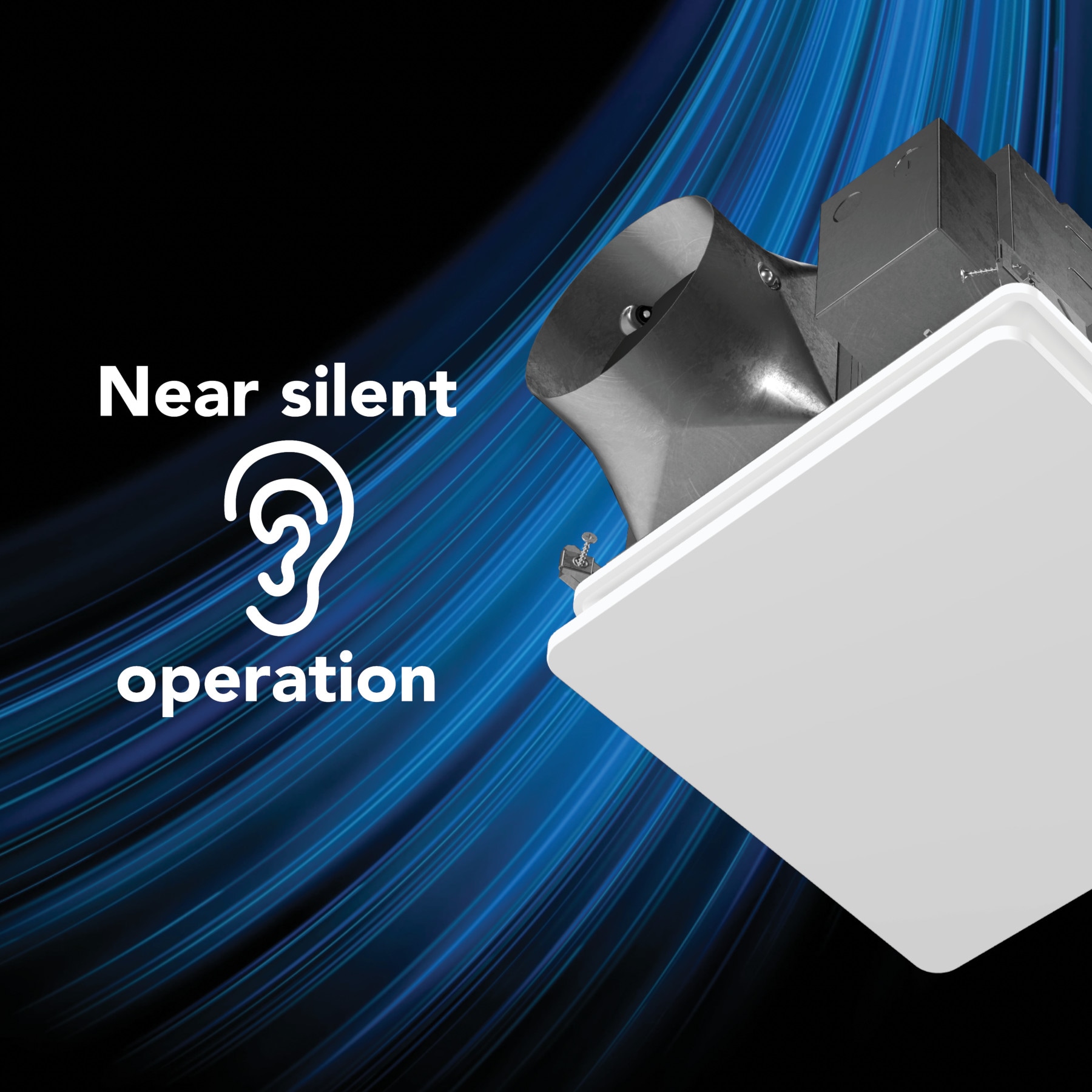

- Near Silent Operation, 0.6 Sones
- Save Up to 30% on Installation Time: Easy snap-in housing to hanger bar and slide-and-lock blower attachment.

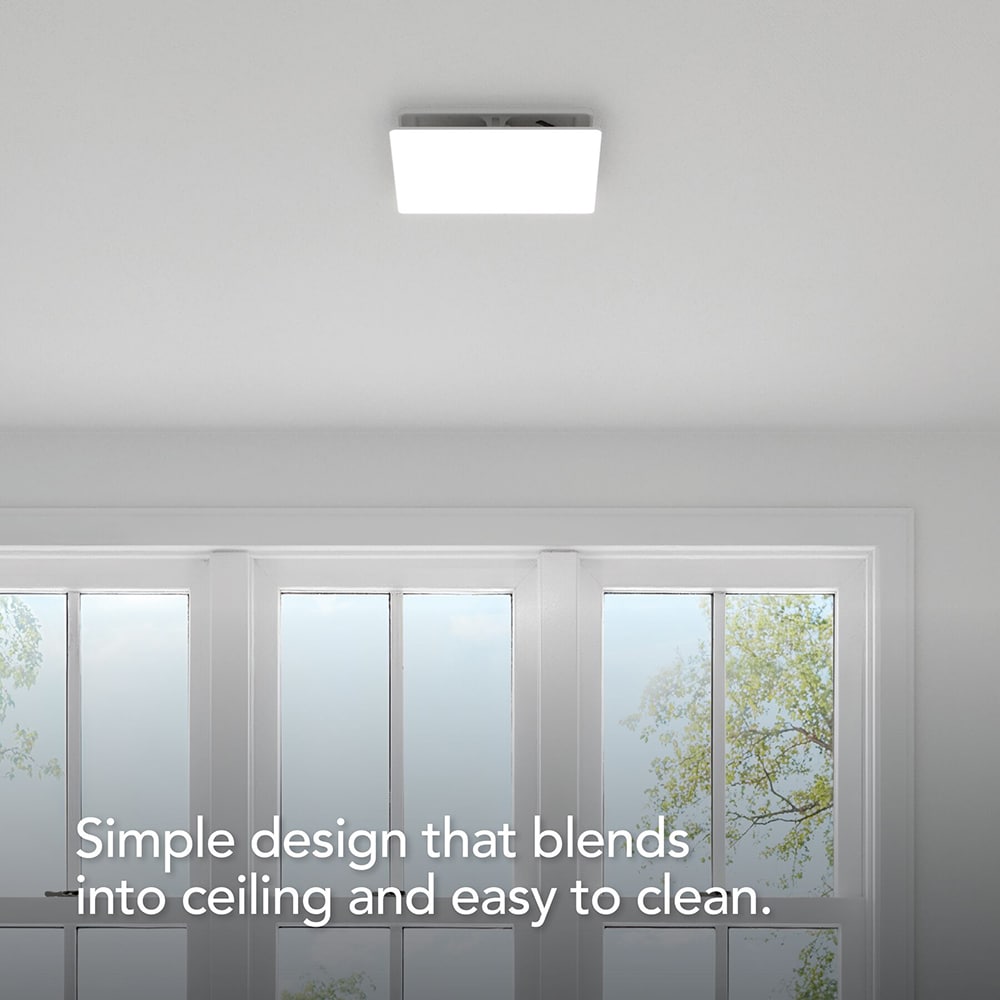

- Seamless Design: Blends into the ceiling with CleanCover grille and floating mounted positioning.
- Slide-Clip Grille/Cover: Fast grille attachment for easy maintenance without the hassle of springs.
- Code Compliance: Continuous run capability preferred for meeting ENERGY STAR, ASHRAE 62.2 and LEED whole home ventilation requirements.

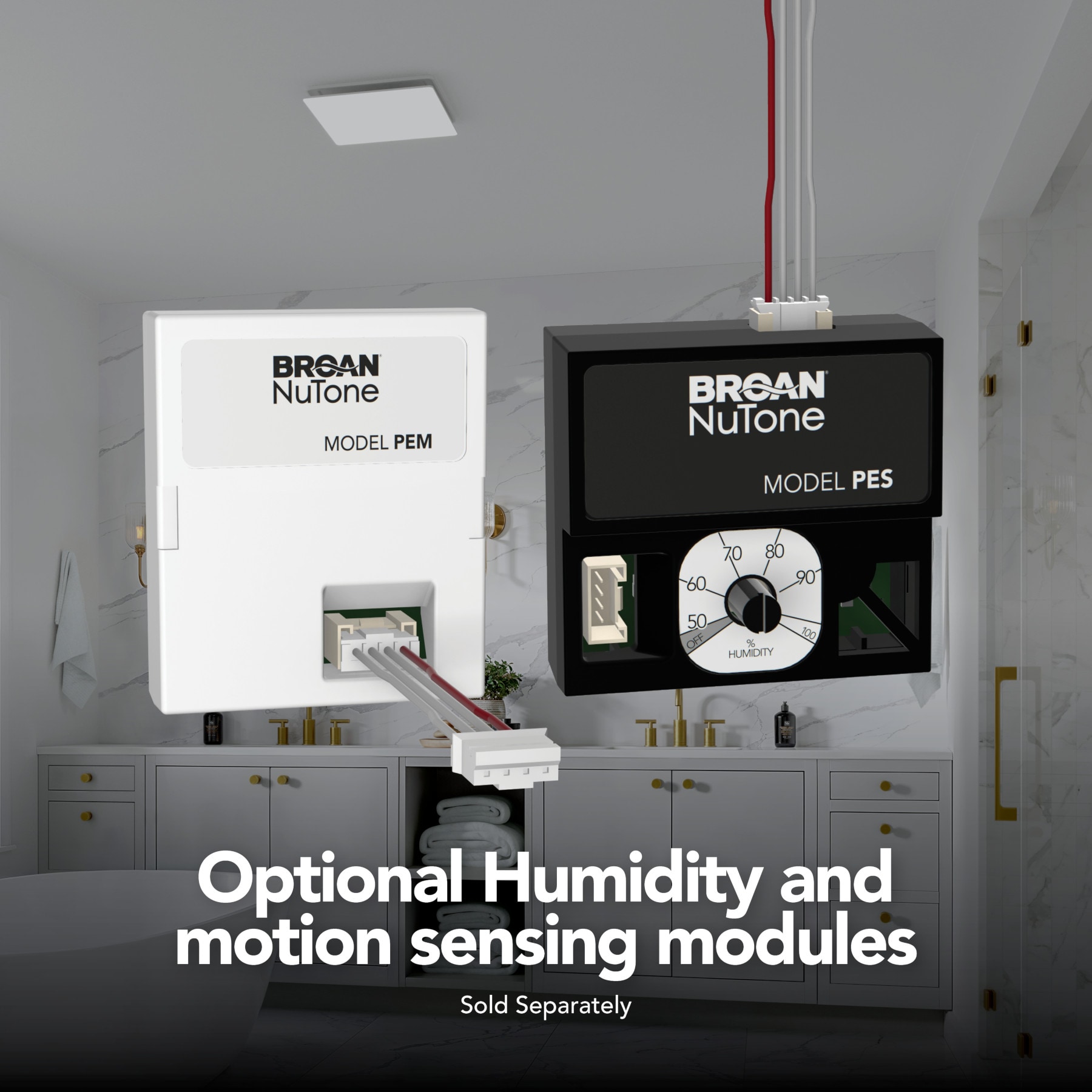

- Modularity: modular solution in the market that allows the use of multiple modules within a single fan housing providing the option to add humidity and/or motion sensing.
- Mounting Frame allows for positioning housing anywhere on center joists
Specifications
| General | |||
|---|---|---|---|
| Collection Name | Evolve | Grille Shape | Rectangular |
| Color Temperature (Kelvins) | 0 | Attic Access Needed | Yes |
| Fixture Color Family | White | Air Movement (CFM) | 150 |
| Manufacturer Color/Finish | White | Mount Location | Ceiling |
| Type | Bathroom fan | Sound Level Rating (Sones) | 0.6 |
| Decorative | No |
| Dimensions | |||
|---|---|---|---|
| Ceiling Cutout Length (Inches) | 8 | Fan Box Width (Inches) | 14.3 |
| Ceiling Cutout Width (Inches) | 2 | Grille Length (Inches) | 13.125 |

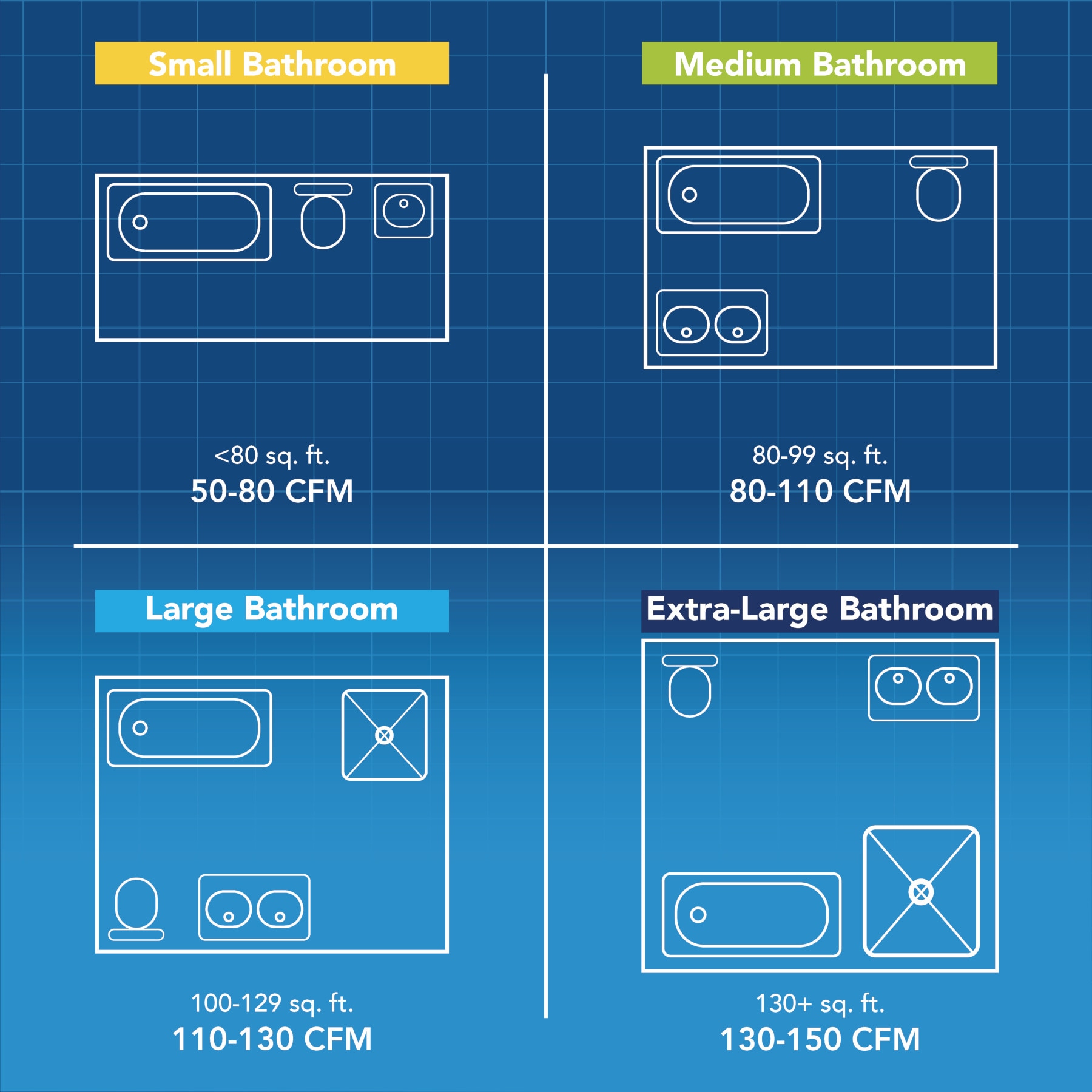

| Duct Size | 6-in | Recommended Room Size (Sq. Feet) | 140 |
| Fan Box Height (Inches) | 12.1 | Suggested Room Size | 100-149 sq ft |
| Fan Box Length (Inches) | 19.4 | Width of Grille (Inches) | 14 |
| Features | |||
|---|---|---|---|
| Automatic Shut-Off | No | ||
| Bulb(s) Included | No | Motion Sensor | No |
| Duct-Free | No | Night Light | No |
| Fan Sound Level (Sones) | Quiet (under 1.5 sones) | Night Light Maximum Bulb Wattage | 0 |
| Fan Speeds | 3 | No Cut Installation | No |
| Hub Required | No | Number of Lights | 0 |
| Humidity Sensor | No | Room Light Maximum Bulb Wattage | 0 |
| Integrated Heater | No | Roomside Installation | No |
| Light Options | None | Speaker Included | No |
| Lighted | No | Voice Controlled | No |
| Compatibility | |||
|---|---|---|---|
| App Compatibility | No | Works with Amazon Alexa | No |
| Bluetooth Compatibility | No | Works with Android | No |
| Bluetooth Enabled | No | Works with Apple HomeKit | No |
| Smart Compatible | No | Works with iOS | No |
| Smartphone Enabled | No | Works with SmartThings | No |
| Wi-Fi Compatibility | No | Works with the Google Assistant | No |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | Safety Listing | UL safety listing |
| ENERGY STAR Certified | Yes | Title 24 Compliant | No |
| HVI Certified | Yes | Energy Star Certification ID | 4191421 |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 40101600 |
| Brand | Broan |
|---|
