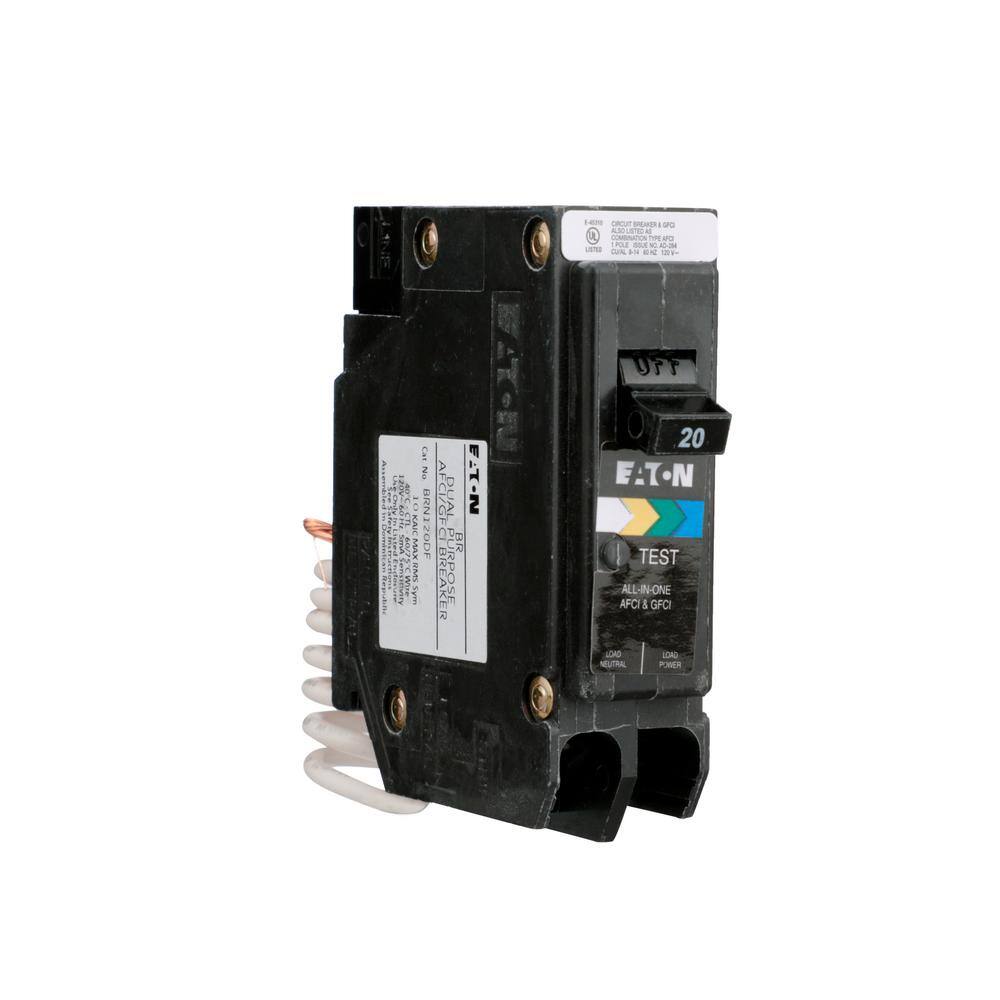

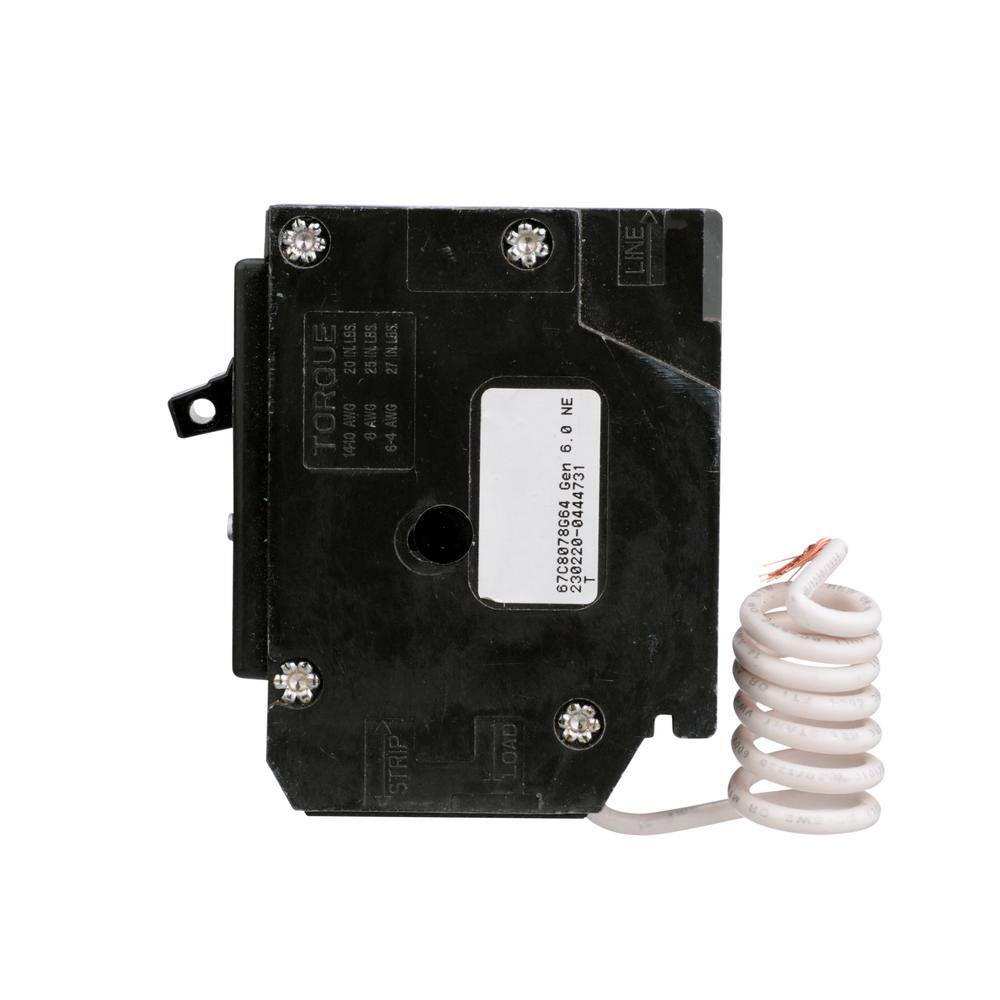

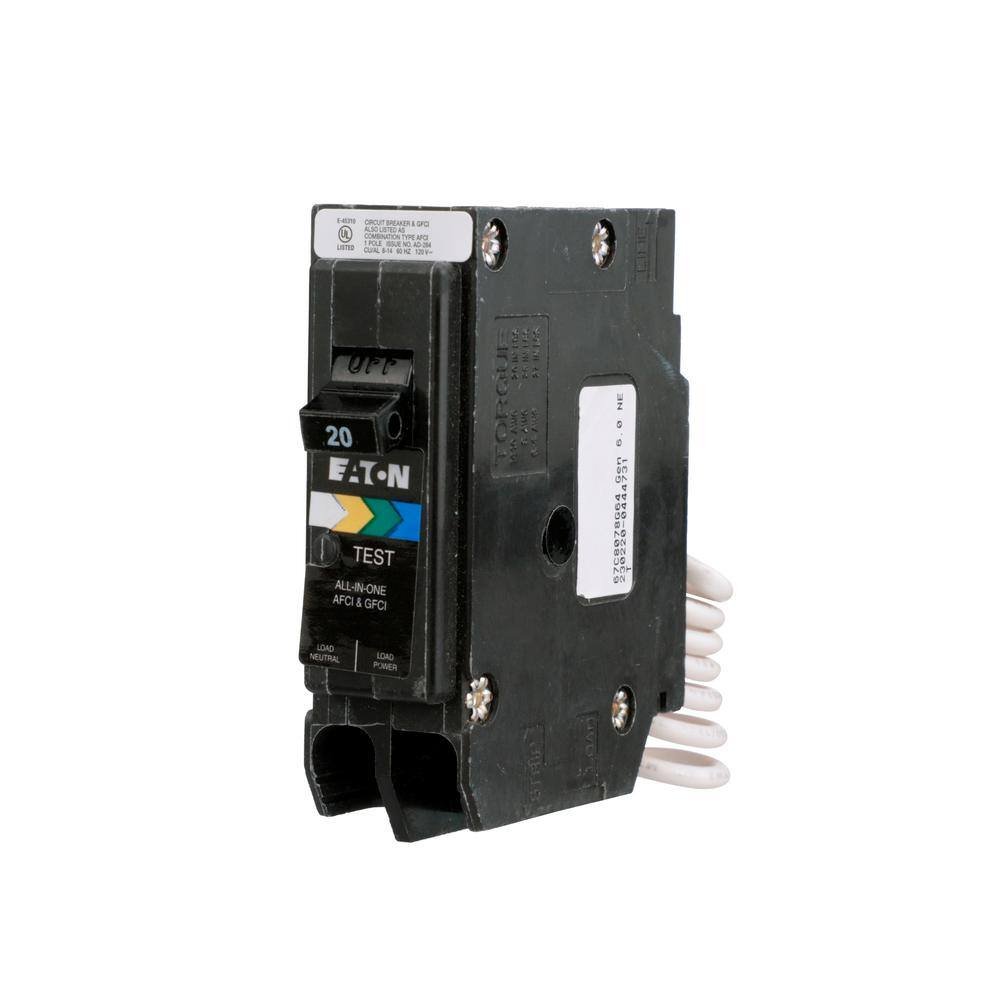

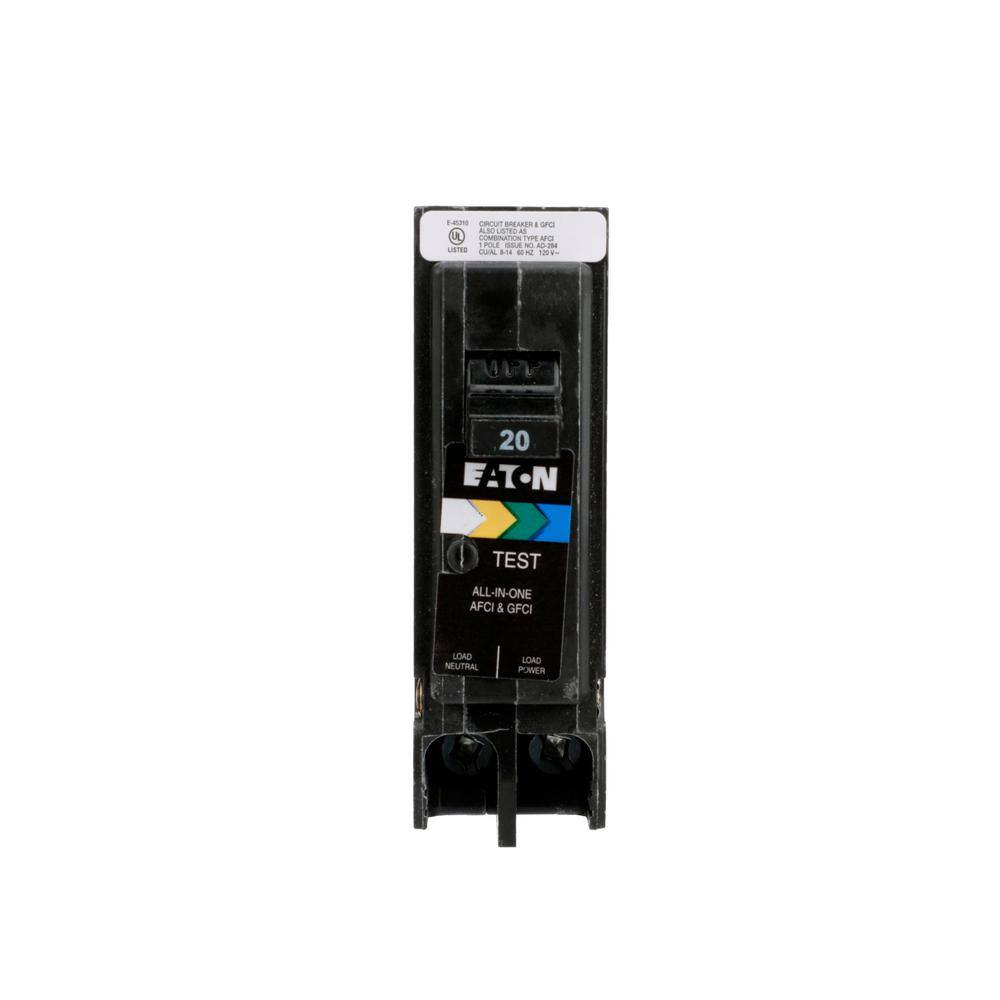

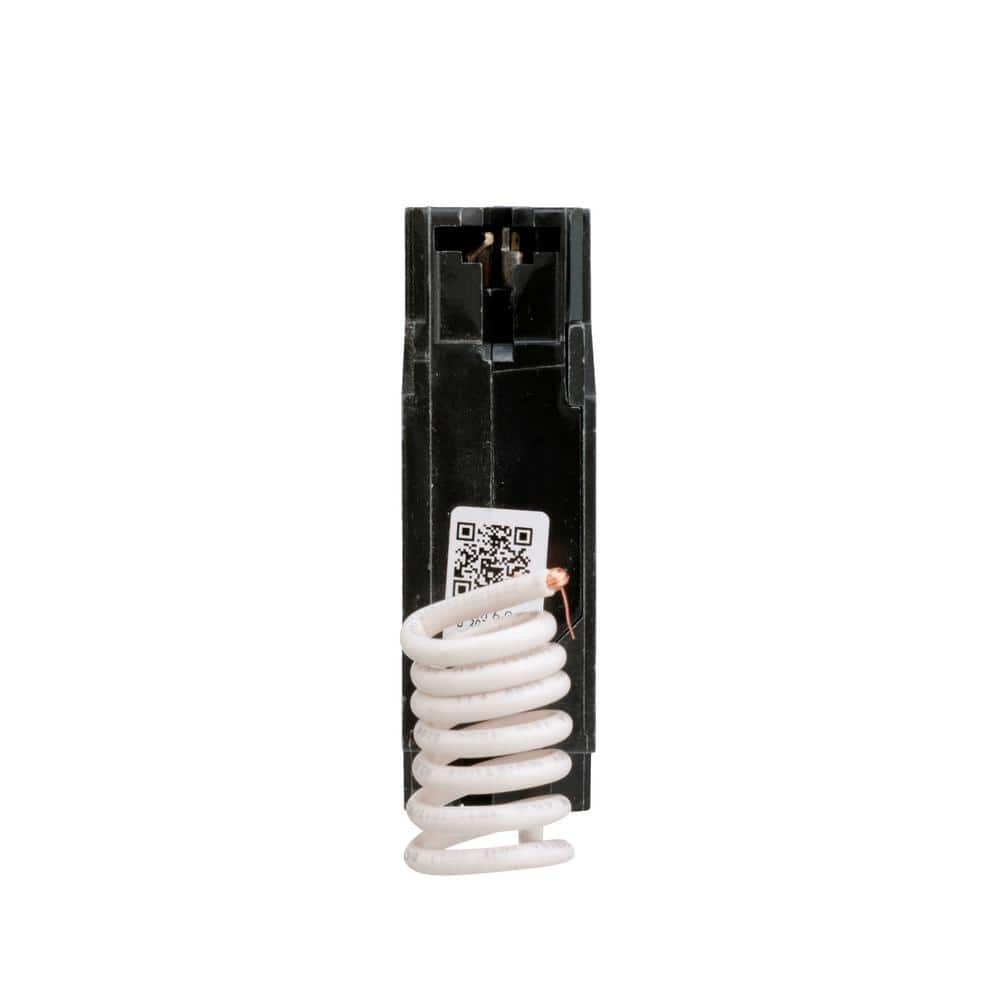

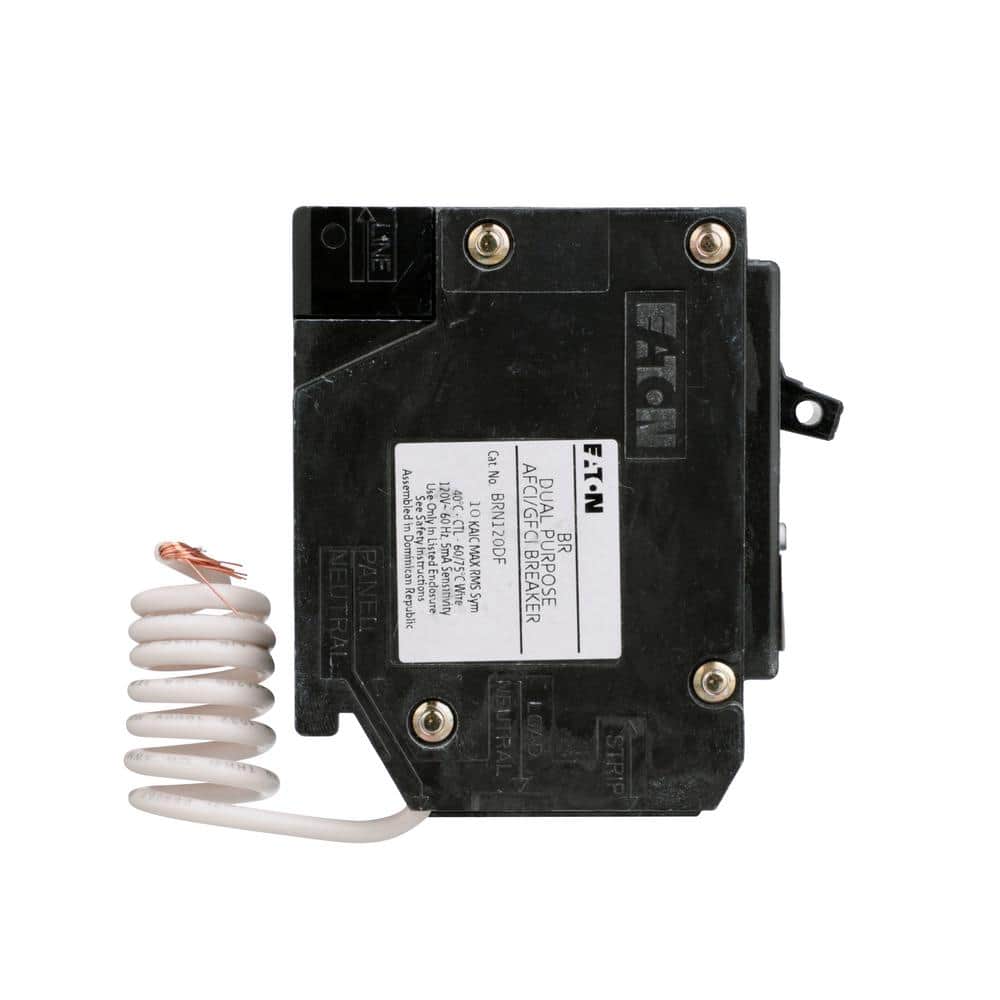

Eaton BR 20 Amp All in One AF/GF Breaker BRN120A1CS

Eaton BR 20 Amp All in One AF/GF Breaker BRN120A1CS

Eaton’s BR Circuit Breakers are used in indoor and outdoor BR load centers, spa panels, meter breakers and sub panels. Eaton’s dual purpose arc fault/ground fault (AFCI/GFCI) circuit interrupter offers both types of protection in one familiar package, provides quick installation, and a single location to easily access and identify tripped circuits. The short-body AF/GF breaker can replace or fulfill all AFCI, GFCI or AF/GF requirements in an Eaton panel.

Highlights

• 1-pole, 20-amp, 120-volt
• Standard pigtail
• Compatible for use in type BR load centers and meter breaker panels
• Provides 1-device for both arc fault (AFCI) and ground fault (GFCI) protection for the entire circuit, allowing for a single point of reset
• Offers complete protection from AFCI and GFCI for the entire circuit, including home-runs
• Enables a lower installed cost versus other code-approved alternatives by using only one device to achieve both AFCI and GFCI protection
• Integral LED indicates different trip causes including thermal overload indication, thus reducing troubleshooting time
• Short-body configuration maximizes gutter space providing ease of conductor installation
• Reduced clutter of pigtails provides a clean gutter space and professional appearance
• Added and improved diagnostic trip codes designed for complex occurrences and overloads provide you ease of troubleshooting during maintenance
• Easy to read trip codes through improved LEDs and a clear test button increases your troubleshooting efficiency
• Improved AFCI and GFCI algorithms significantly reduce nuisance tripping, resulting in less call backs

Specifications

Dimensions
