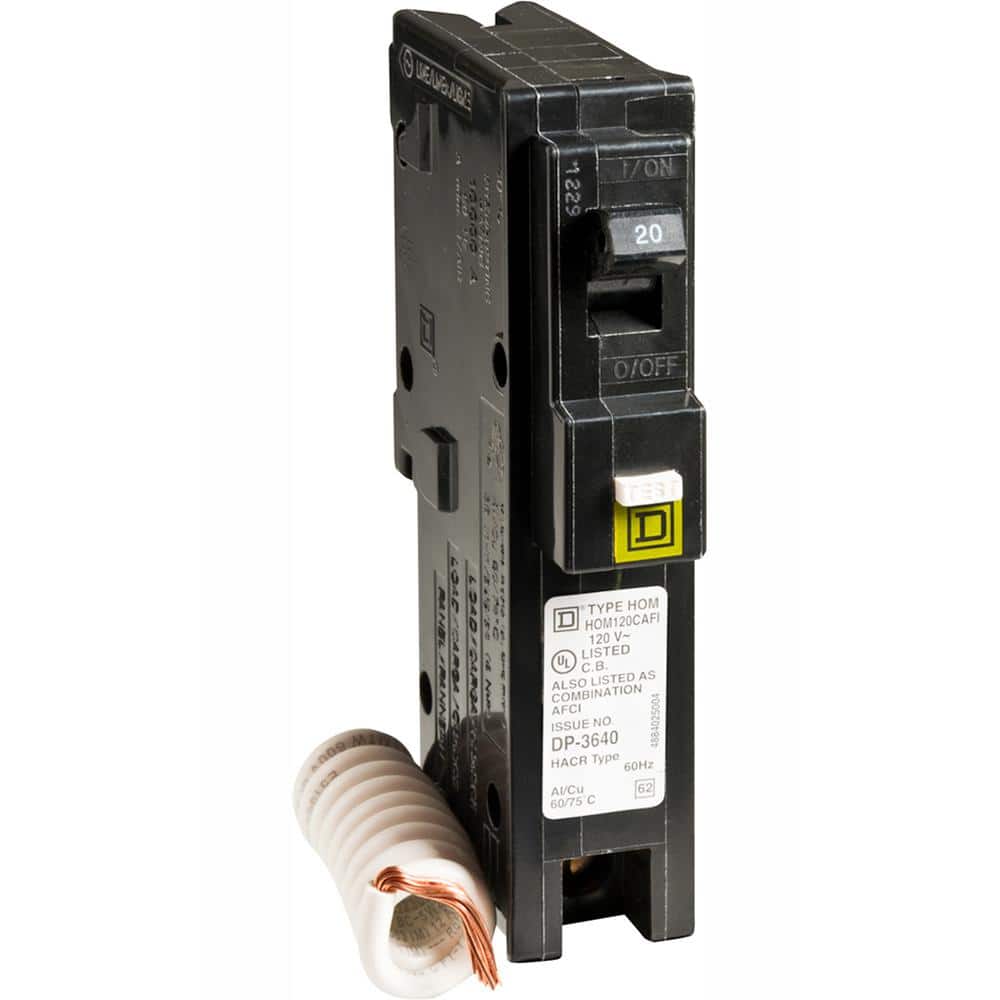

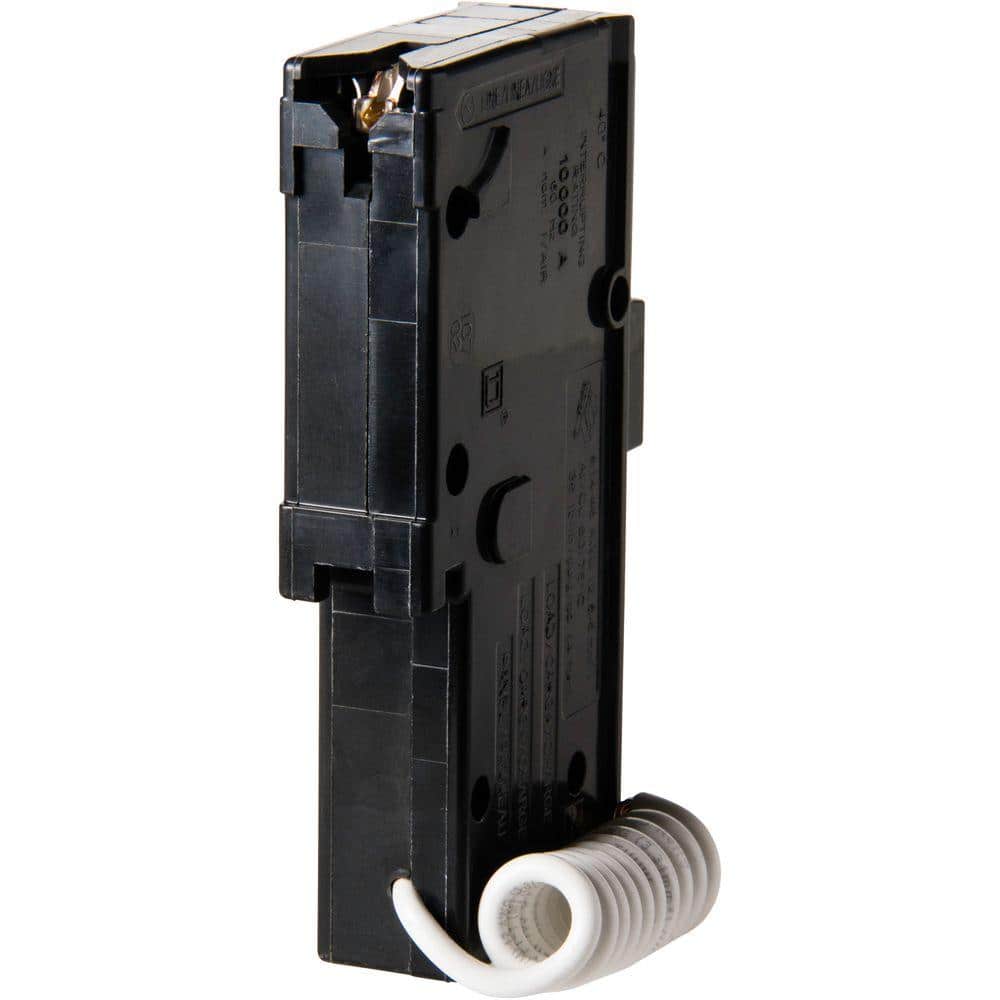

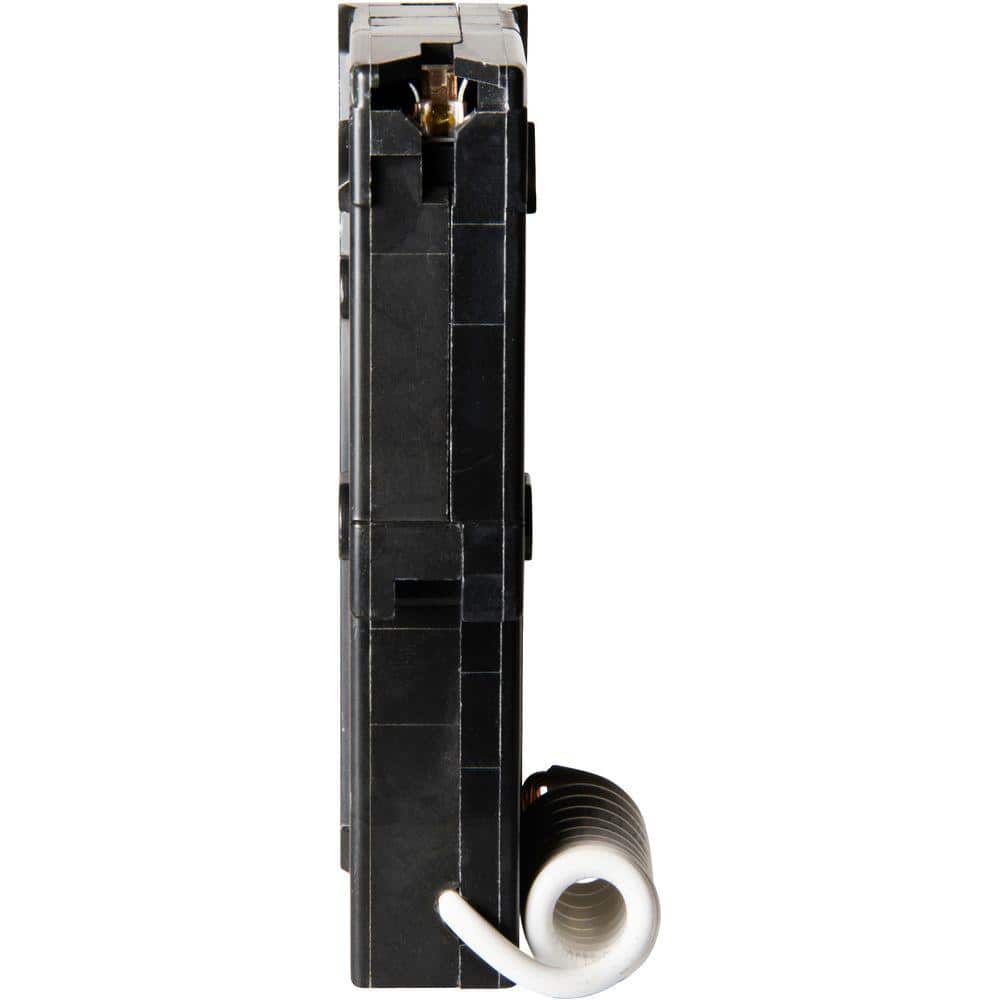

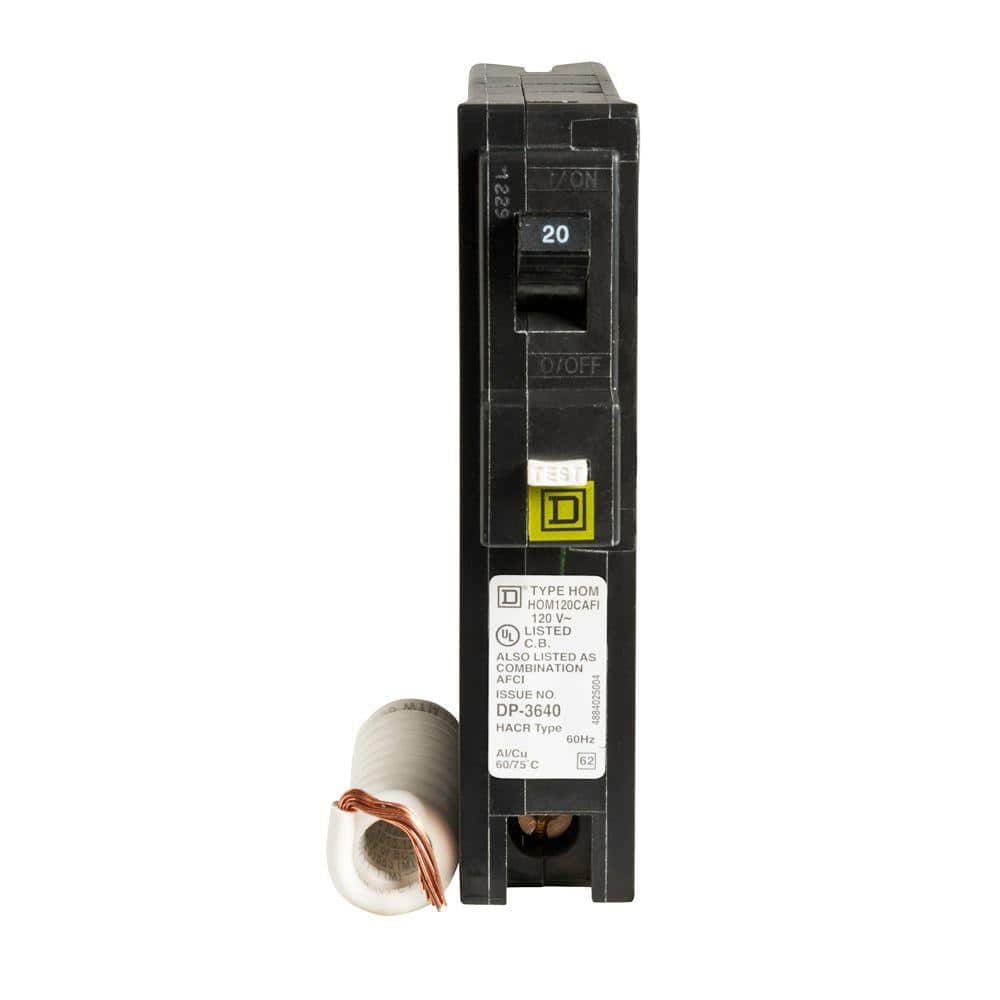

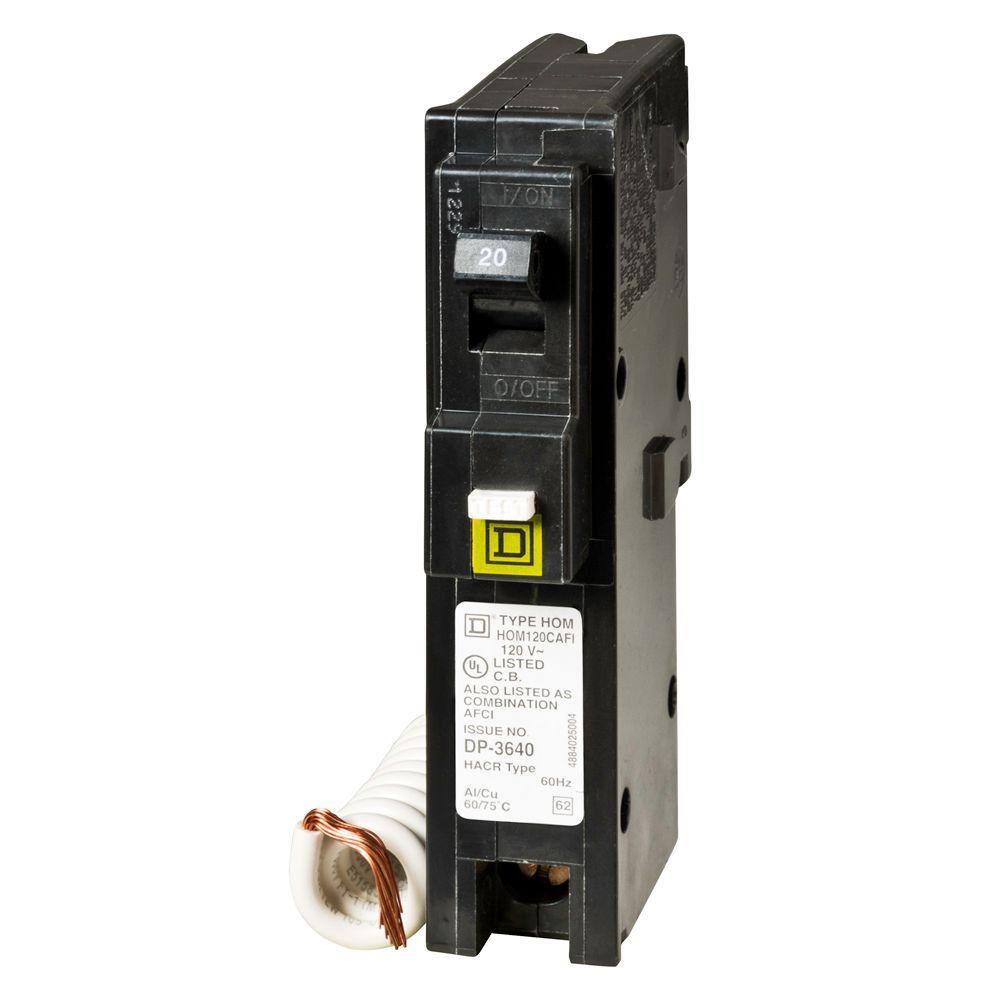

Square D Homeline 20 Amp Single-Pole Combination Arc Fault Circuit Breaker(HOM120CAFIC) HOM120CAFIC
The Square D by Schneider Electric Homeline 20 Amp One-Pole Combination Arc-Fault Circuit Interrupting (CAFCI) Circuit Breaker is for use to help protect your wires from arcing faults and is intended for overload and short-circuits protection of your electrical system. Now standard in all Square D brand CAFCI circuit breakers, Time-Saver Diagnostics provide advanced trip indication technology, helping identify the type of fault that has occurred faster. Time-Saver Diagnostics helps take away the guess work and provides diagnostic assistance by identifying the type of fault that last occurred. It saves money by reducing troubleshooting time, simple to use, accurate and reliable. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.
Highlights
- Square D Homeline 20 Amp single-pole combination AFCI circuit breaker
- Compatible with Square D Homeline breaker box and CSED devices
- This breaker needs 1 space in a breaker box for installation.
- 120/240-Volt AC
- 10,000 AIR
- UL listed
- Limited lifetime warranty
- California residents
Specifications

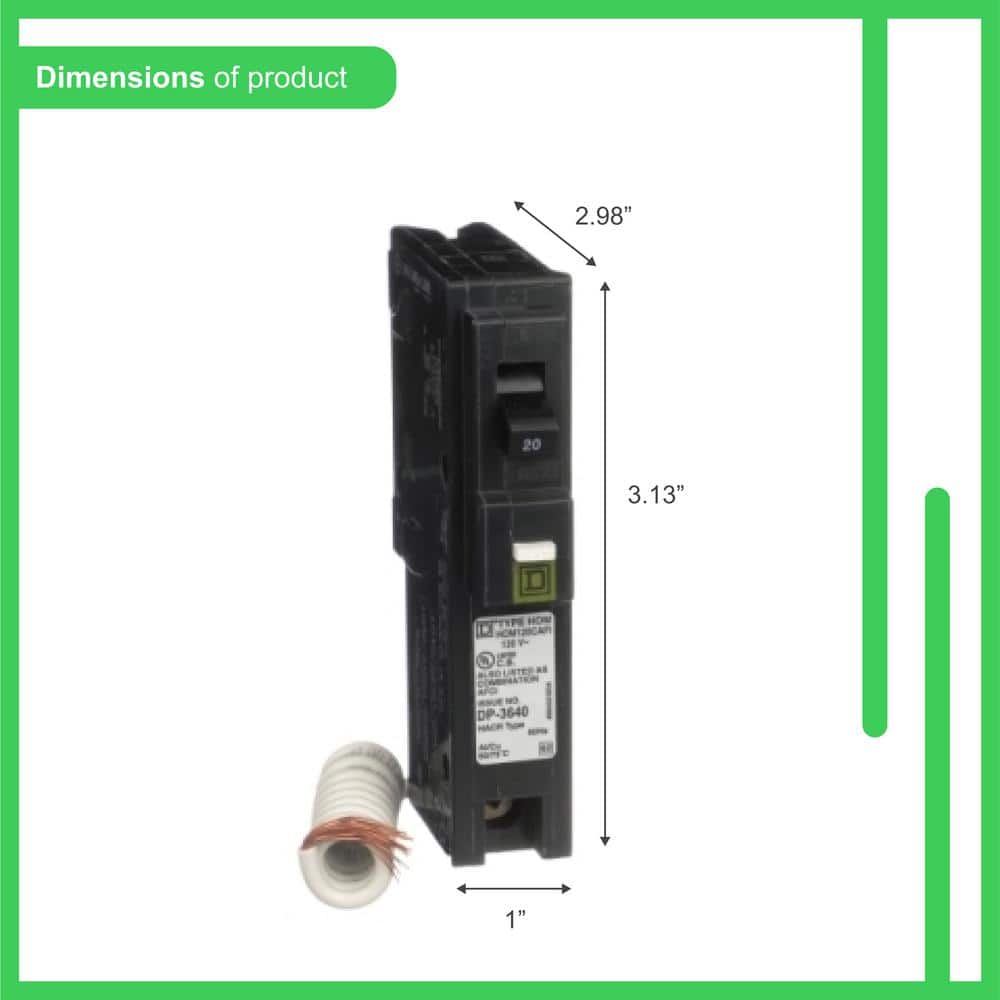

Dimensions
| Product Depth (in.) | 2.98 in | Product Height (in.) | 3.13 in |
|---|---|---|---|
| Product Width (in.) | 1 in |
| AIC Rating | 10000 | Breaker Type | Standard |
|---|---|---|---|
| Connection Type | Pigtail | Interruption Type | AFCI |
| Maximum Amperage (A) | 20 A | Mounting Type | Plug-On |
| Number of Poles | Single | Number of Spaces | 1 |
| Pack Size | 1 | Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 0.67 lb | Voltage (V) | 120/240 V |
| Series Type | Homeline | Trip Unit | Electronic |
| Brand | Square D |
|---|
