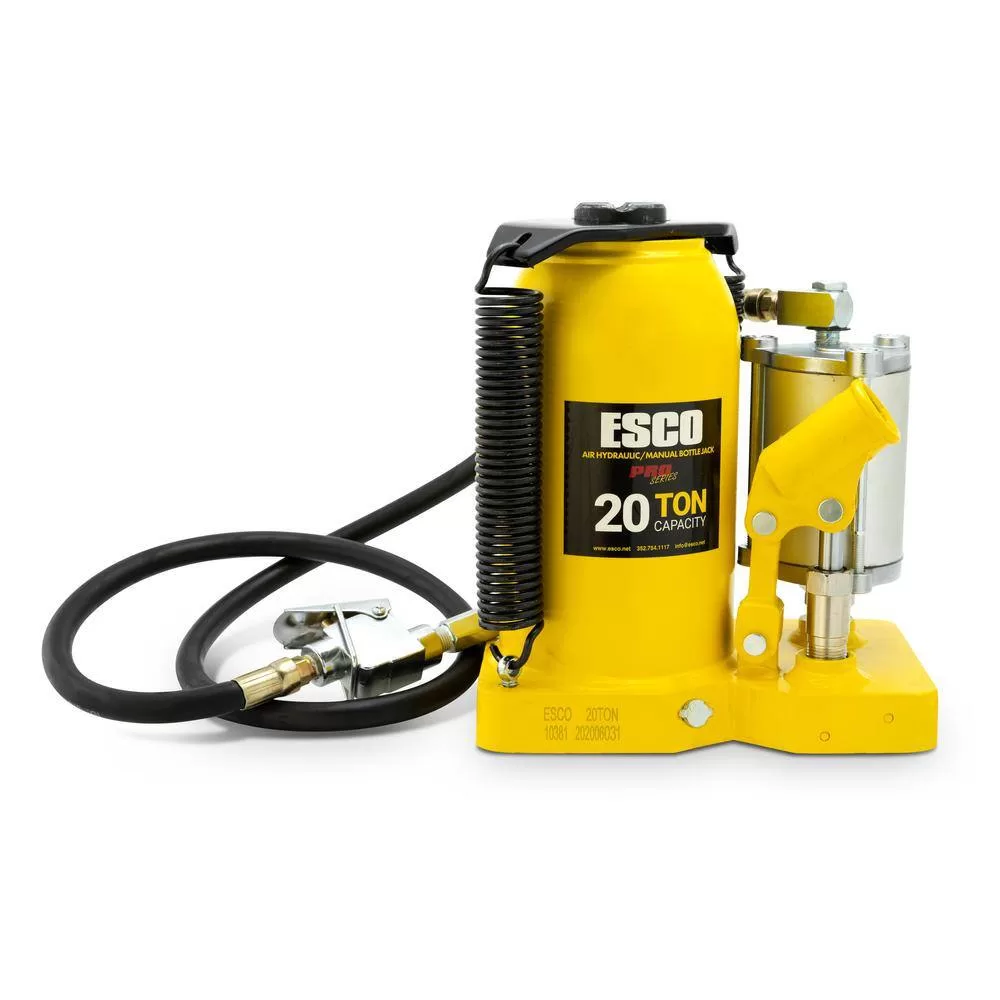

ESCO 10381 Pro Series 20 Ton Air Hydraulic Bottle Jack
The ESCO Pro Series 20 Ton Air Hydraulic Bottle Jack can lift any load up to 40,000 lbs. This professional grade jack can be operated by air or controlled manually, includes bar for manual pump lifting. Each jack features a fully welded cylinder and frame that provides superior strength and extended life. Units are made with a chrome-plated piston for rust resistance as well as a chrome air motor to ensure reliability for years of use. Includes a 4 ft. swivel end air hose with easy to use handheld push-button air trigger. Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch for easier constant airflow while raising of the jack to load.
- 20 ton capacity

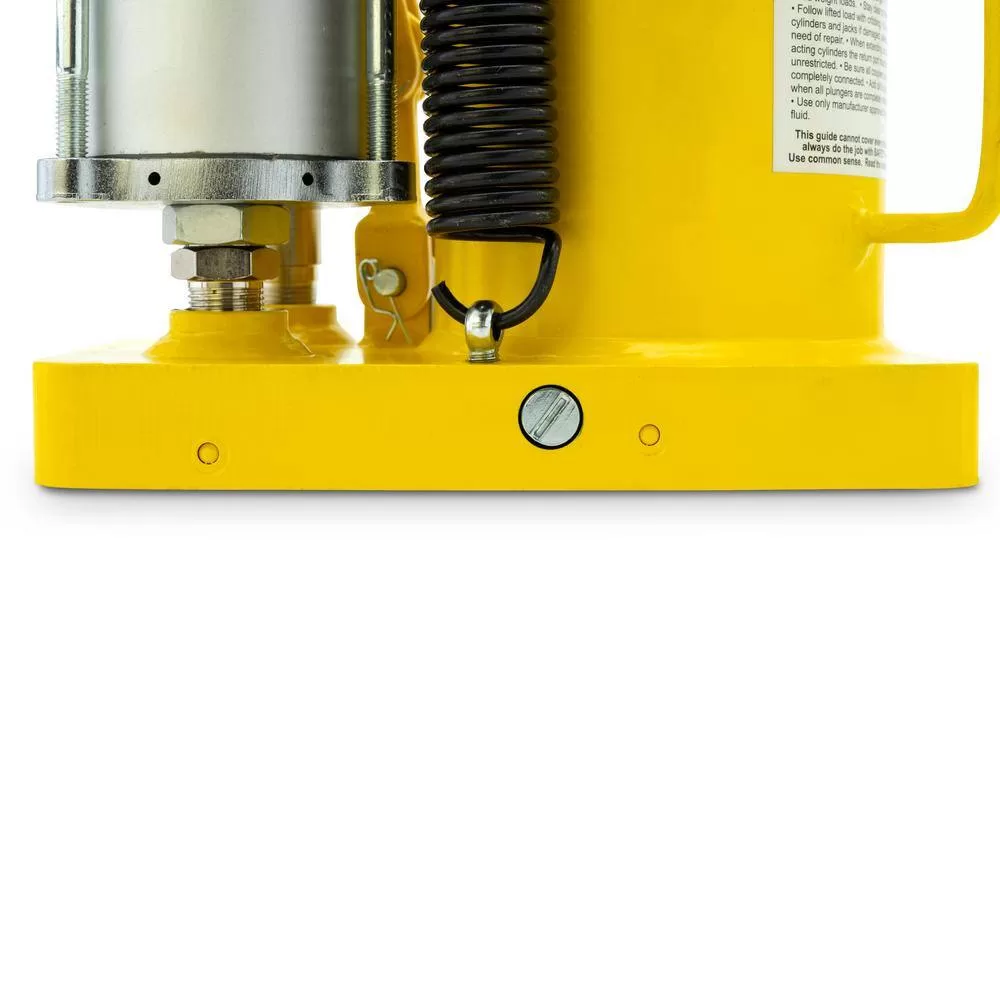

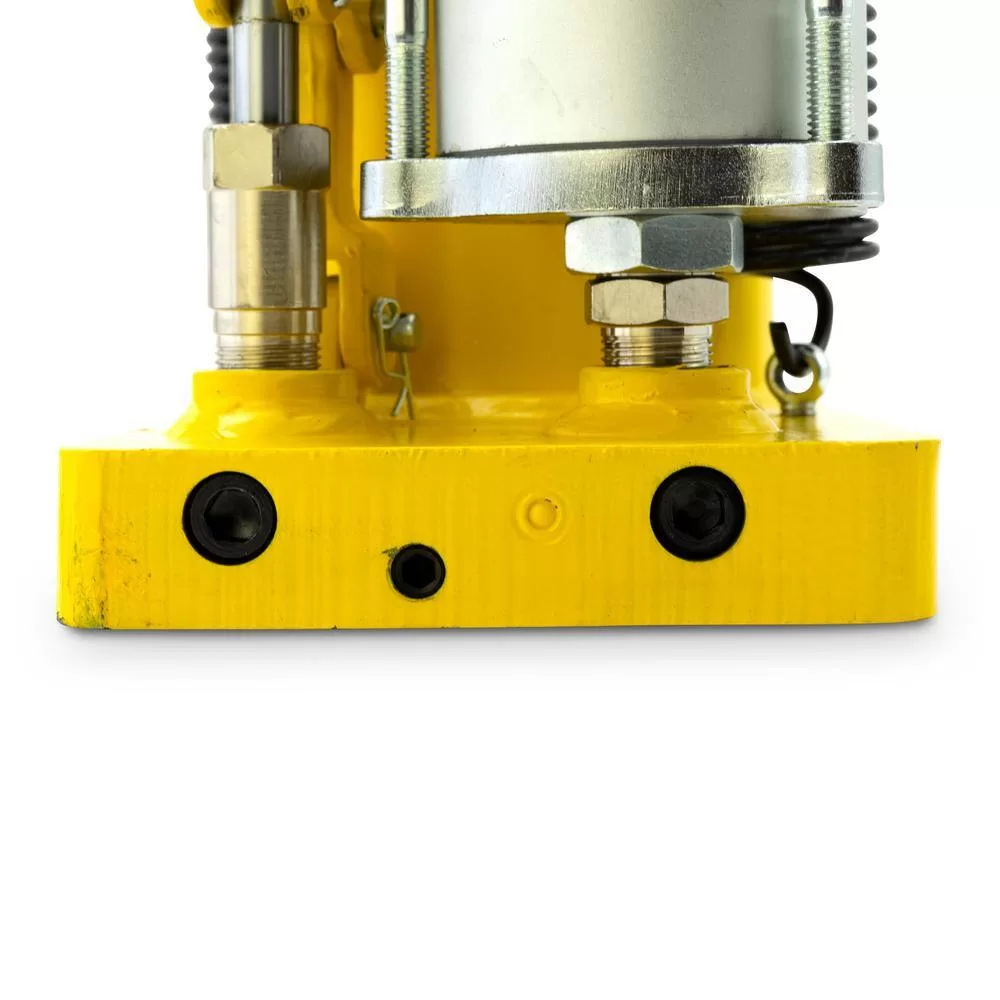

- 1.5 in. thick jack base provides exceptional support and stability in any lifting environment
- Air pressure 110-125 psi
- Saddle width 1.75 in.
- Minimum height 10 in.
- Maximum height 20 in.
- Fitted with a safety valve to prevent overloading
- Chrome-plated piston for extra rust and corrosion resistance

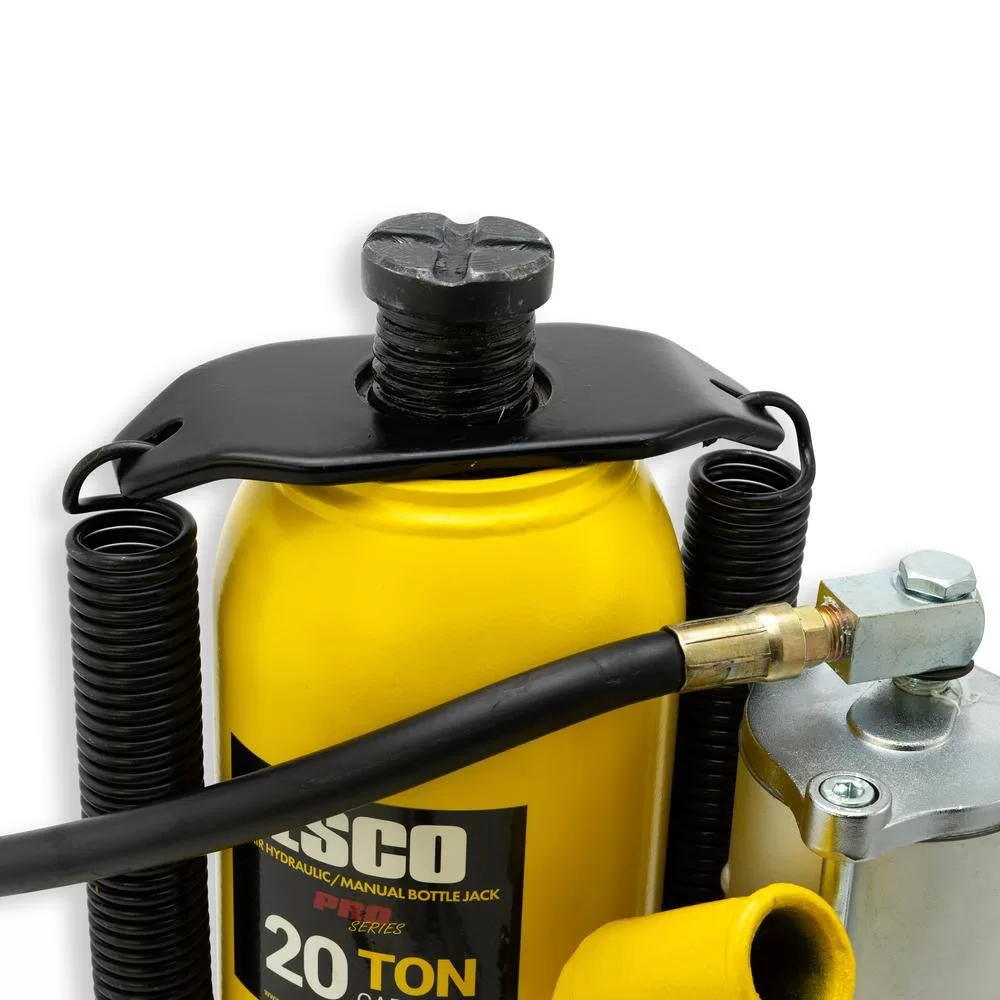

- Adjustable extension saddle
- Double spring design for controlled and safe descent while releasing pressure from the cylinder

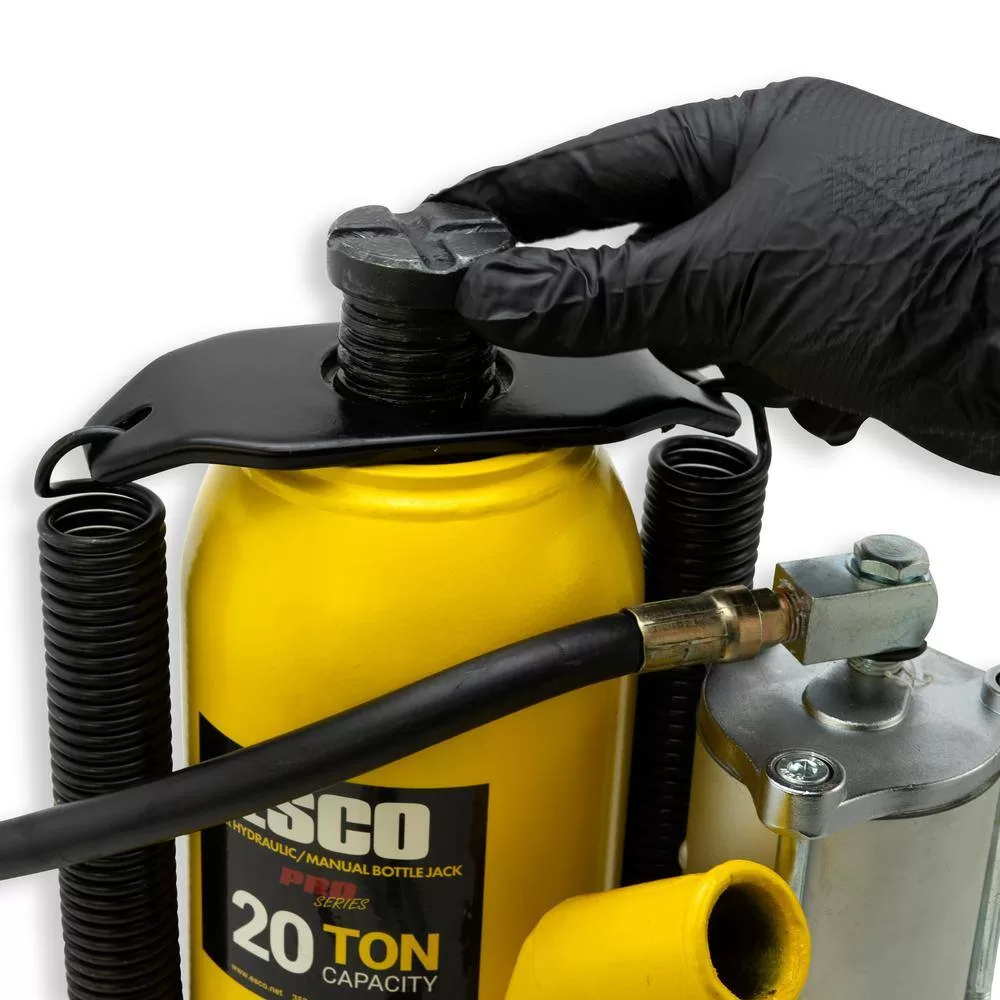

- Heat treated adjustable extension screw provides additional and precise height adjustments, assists in not overextending cylinder to reach designed heights
- Designed to be operated using air or manually with included two-piece lifting/lowering handle

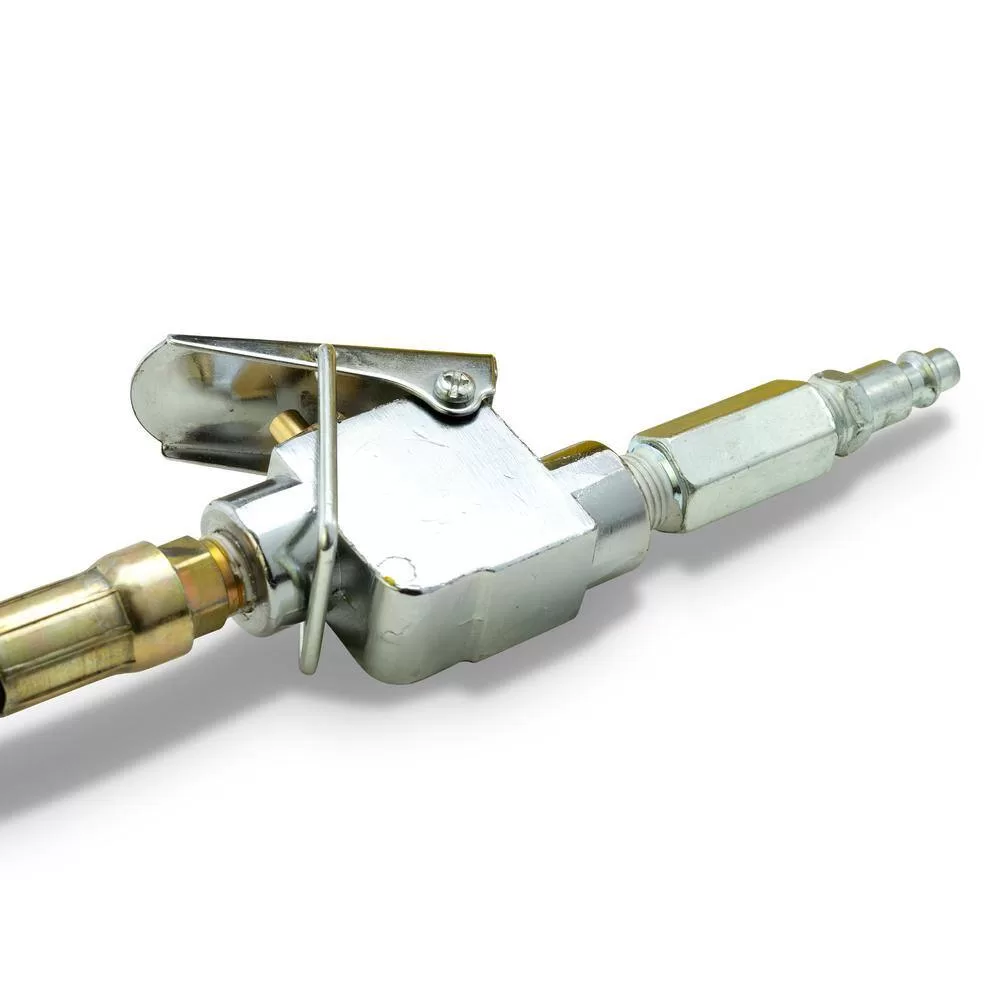

- Includes 4 ft. swivel end air hose with easy to use handheld push-button air trigger

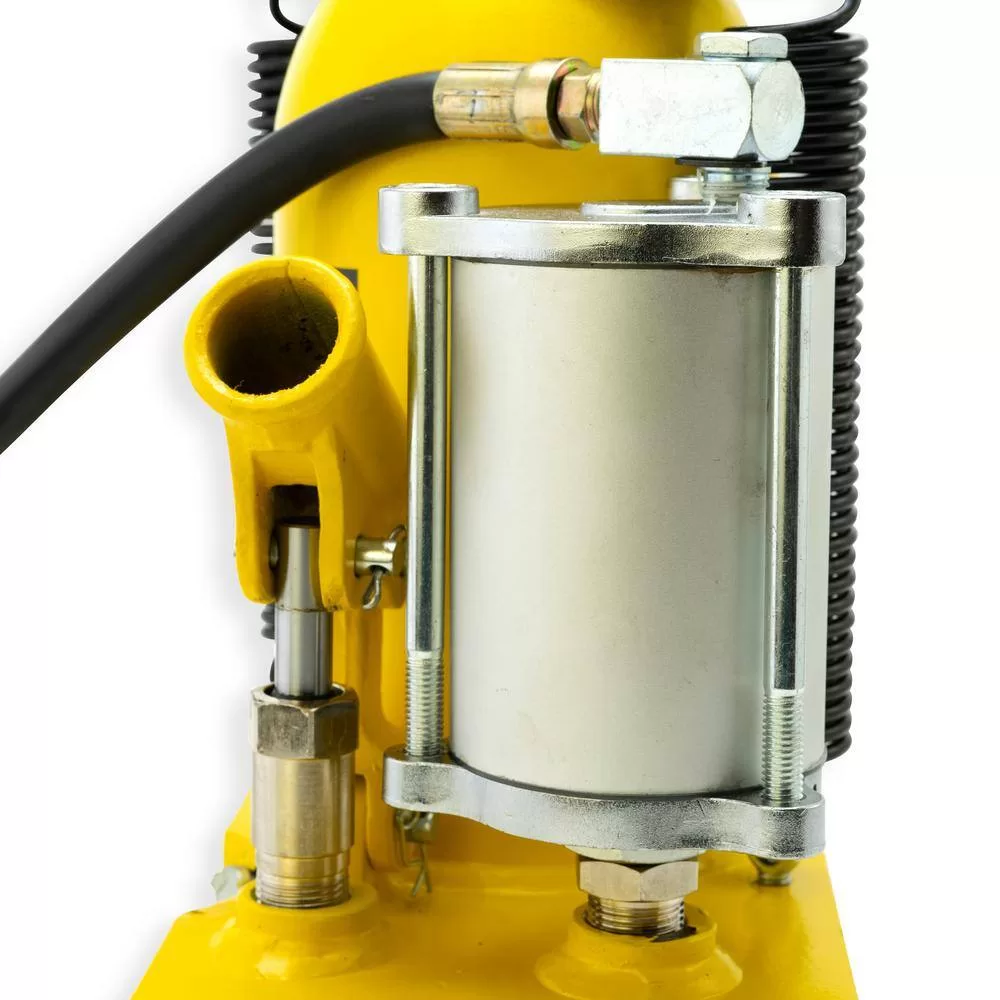

- Fitted with a heavy-duty constructed chrome-plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application
Dimensions
| Base Length (in.) | 9 | Base Width (in.) | 6 |
|---|---|---|---|
| Collapsed height (in.) | 10 | Handle Length (in.) | 16 |
| Product Depth (in.) | 9 in | Product Height (in.) | 10 in |
| Product Width (in.) | 6 in |
Details
| Features | Rust Resistant | General Part Type | Bottle Jack |
|---|---|---|---|
| Included | Adjustable Saddle, Handle, Hoses, Hydraulic Jacks, Jack and Jack Stands | Material | Steel |
| Maximum Lift Height (in.) | 20 in | Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 10 | Product Weight (lb.) | 42 lb |
| Weight Capacity (lb.) | 40000 lb | Saddle Diameter (in.) | 1.75 |
| Brand | ESCO |
|---|
