HIT Welding 806656 3,500-Watt/4,000-Watt Dual Fuel Recoil Start Portable Generator with Stick Welder (TIG), CO Detector and Auto-Shutoff

HIT Welding 806656 3,500-Watt/4,000-Watt Dual Fuel Recoil Start Portable Generator with Stick Welder (TIG), CO Detector and Auto-Shutoff

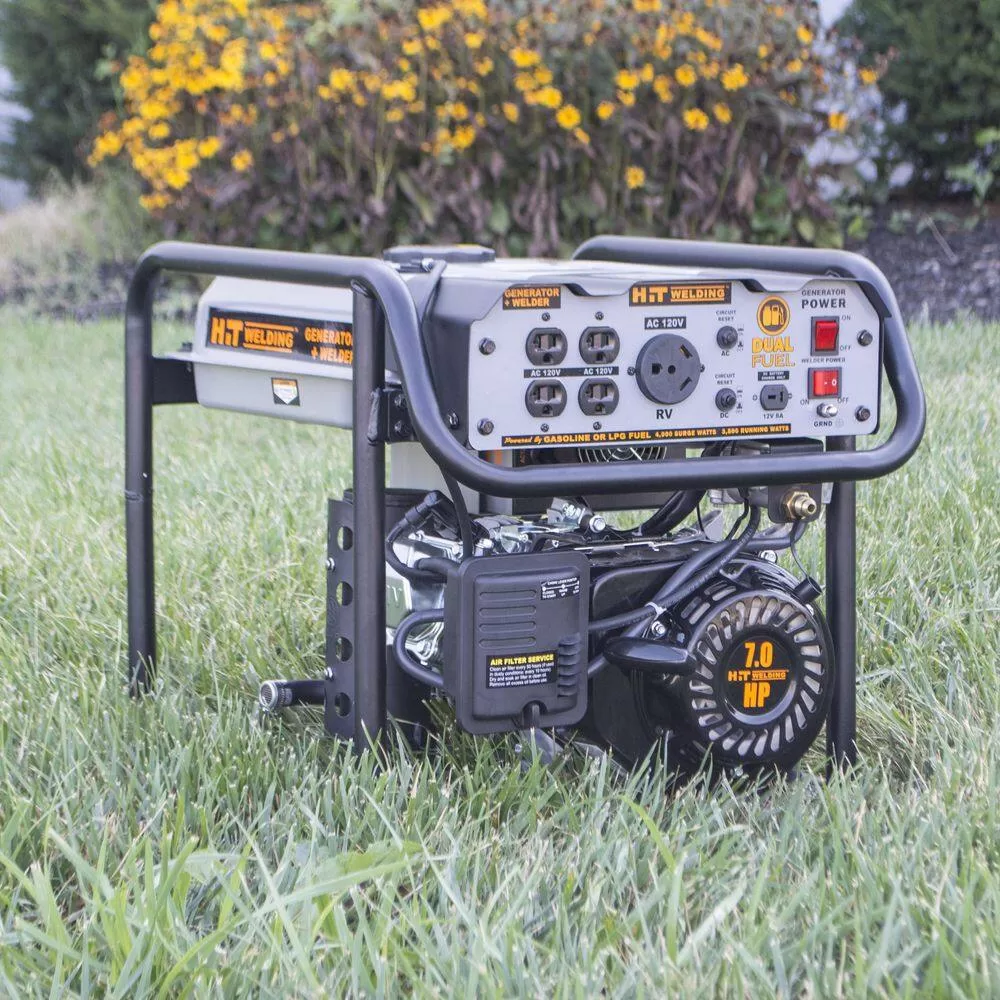

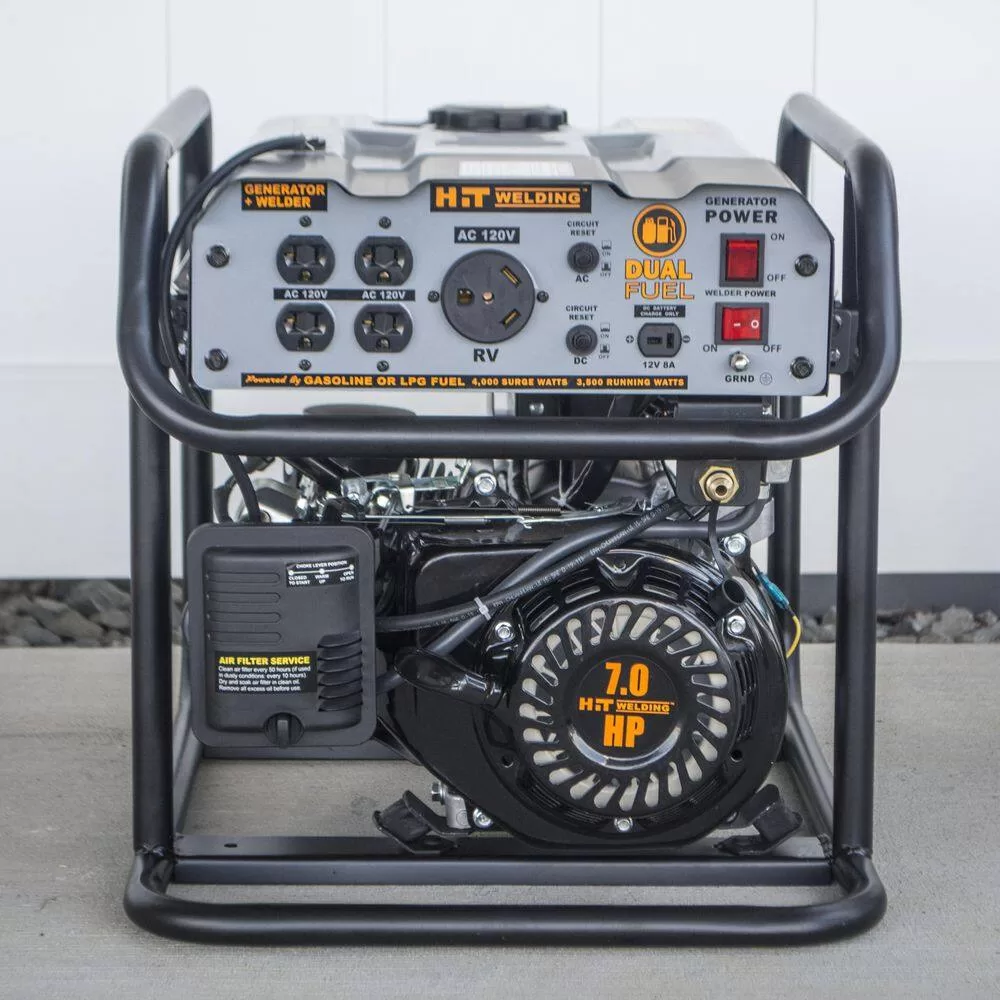

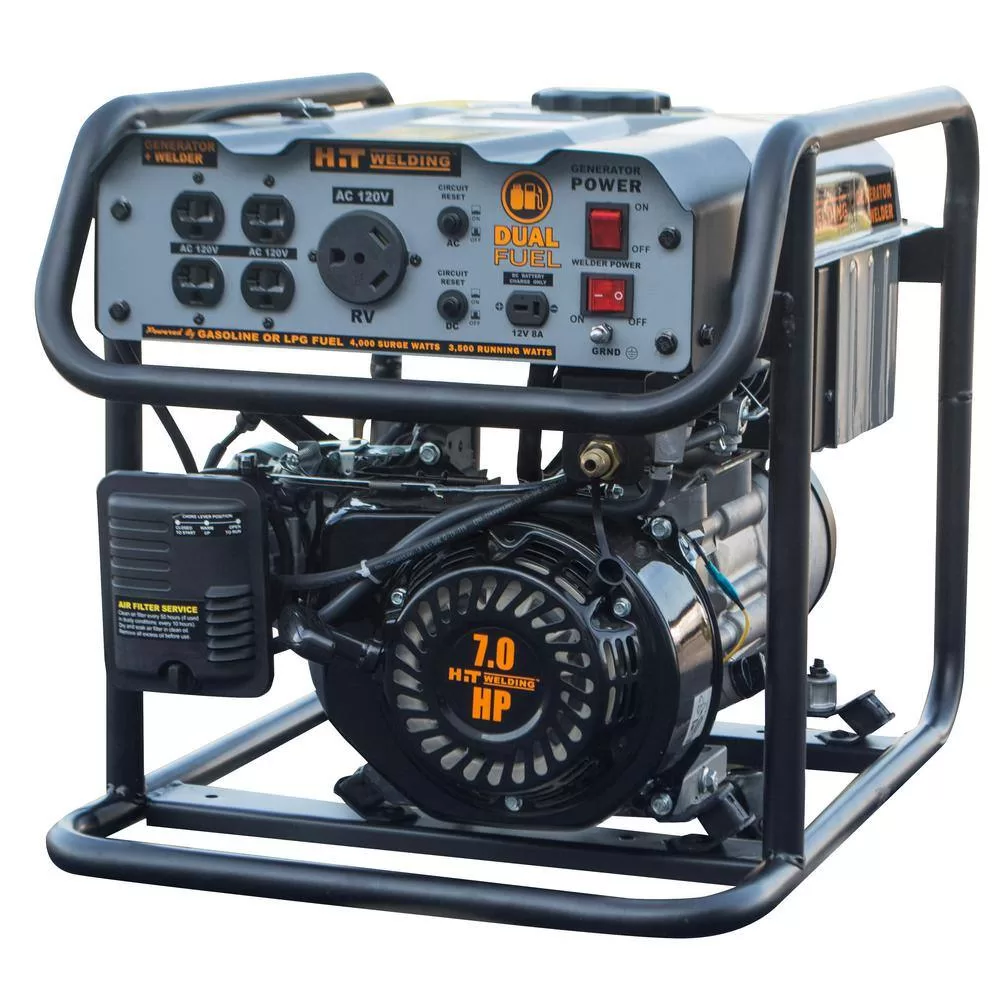

The HIT 4000 Surge-Watt Dual Fuel Generator with Stick Welder has everything you need for the job in 1 package. A 3500 Running Rated Watts generator is combined with a 85 Amp TIG/Stick welder to provide flexibility and convenience in a single unit. with 4,000 peak watts and 3,500 rated watts the Dual Fuel Generator is a powerful generator than can handle the needs of most contractors, homeowners and recreational activities. Equipped with four 120-Volt outlets, 1 120-Volt RV outlet and 1 12-Volt DC outlet for battery charging, this generator can handle almost everything you need at the job site. Utilizing either unleaded gasoline or propane gas, so you can use whichever fuel is more easily available or affordable at the moment, providing the long-lasting, clean burning advantage of propane gas, plus the familiar and easy to find benefits of unleaded gasoline. Easy to use, lightweight and portable, this Stick Welder (TIG Ready) is ideal for light duty automotive and industrial welding at home, on the farm or at the shop. for better welds and consistent output, the 85 Amp 120-Volt Stick Welder is inverter powered, to manage fluctuations in input power for better welding and dependability. The Welder utilizes a 120-Volt plug, so it can be used at any standard outlet, for convenience and versatility. Use 1/16 in., 5/64 in. or 3/32 in. electrodes to weld mild steel, stainless steel, cast iron and hard surfacing.

• 4,000 surge watts and 3,500 running watts can run the RV, household appliances and power tools

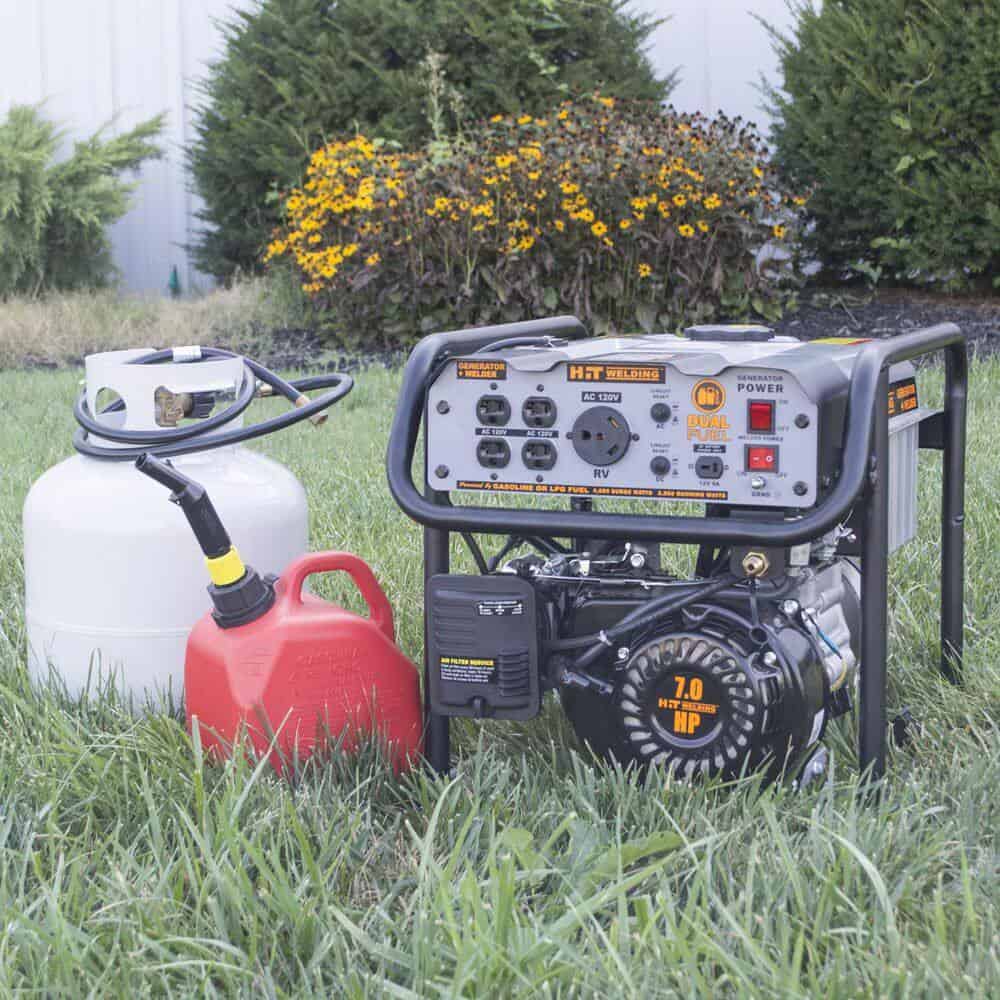

• Generator utilizes either unleaded gasoline or LPG propane gas as a fuel source (propane tank not included)
• 7.0 HP engine, 4 stroke, 212 cc, air cooled, recoil start, OHV 4 stroke engine with AVR, recoil start, single phase
• 9-hour run time with a 50% load on an full 3.2 Gal. gas tank or 12-hours with a full 20 lbs. propane tank

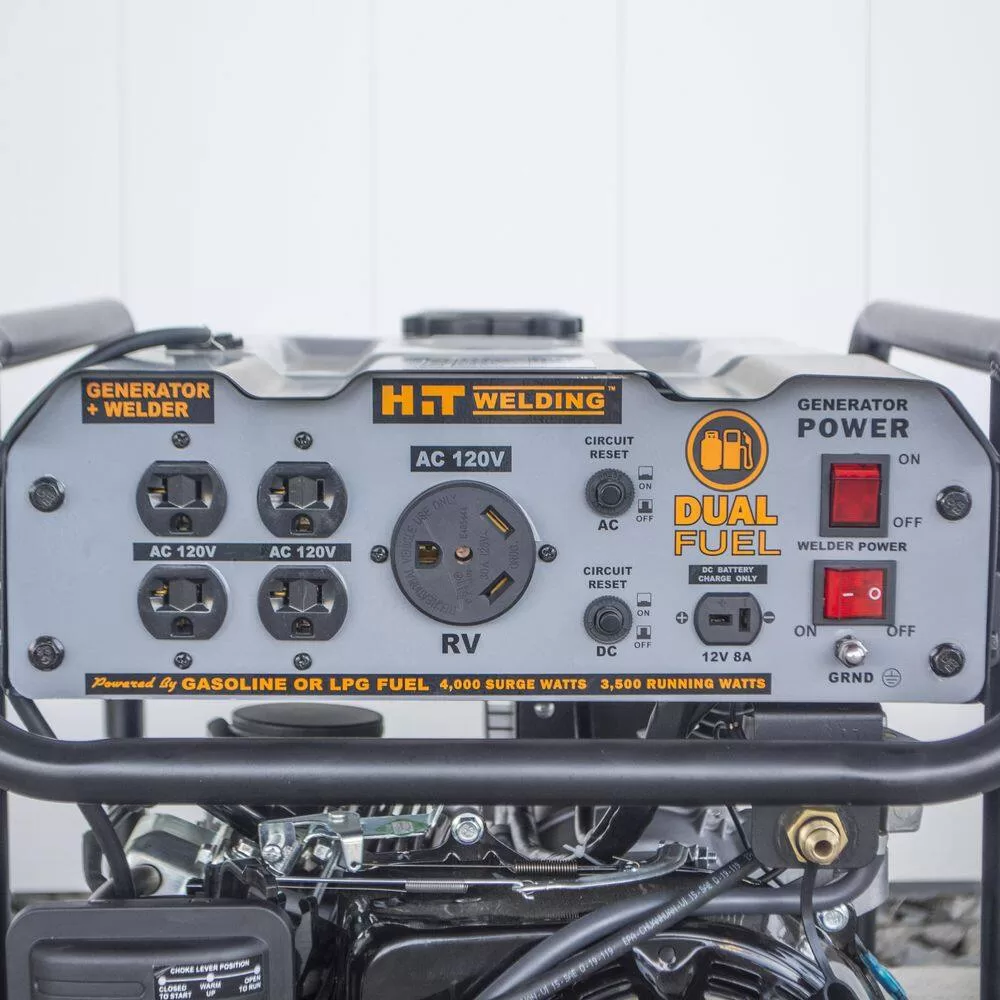

• Four 120-Volt AC outlets (each 20 Amp), one 120-Volt RV outlet (30 Amp), one 12-Volt DC outlet (8 Amp) for battery charging, circuit protection
• AC/DC circuit reset, engine shut off switch, welding power switch, low oil shutdown, oil capacity: 18.5 oz. SAE 10W30
• Less than 69 dB noise with no load at 23 ft.
• Comes with a DC connector wires for charging 12-Volt automotive-type batteries, a spark plug wrench and a 5 ft. regulator hose kit
• High altitude use: this generator is not recommended for high altitude use above 3,000 ft.
• EPA approved, non-carb compliant/not for sale in California
• Surge watts/running watts may be reduced by 10% when using propane fuel versus using gasoline

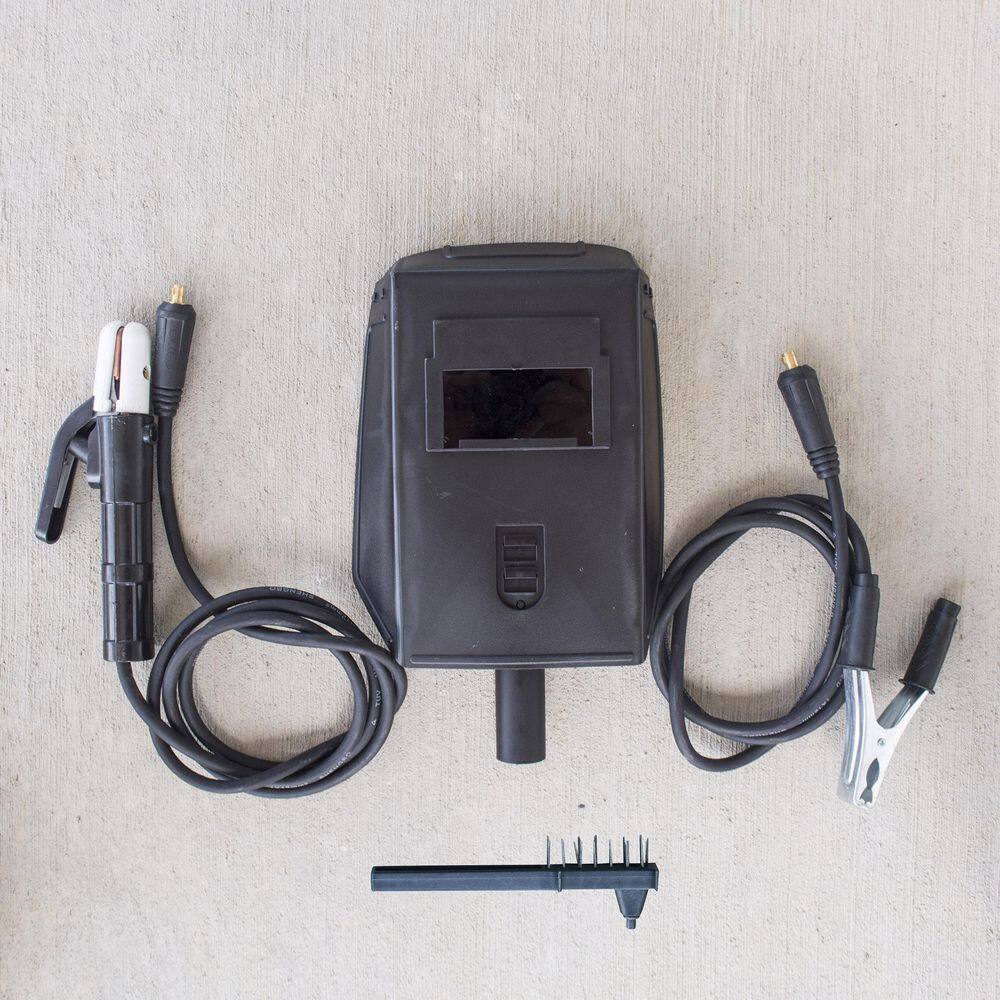

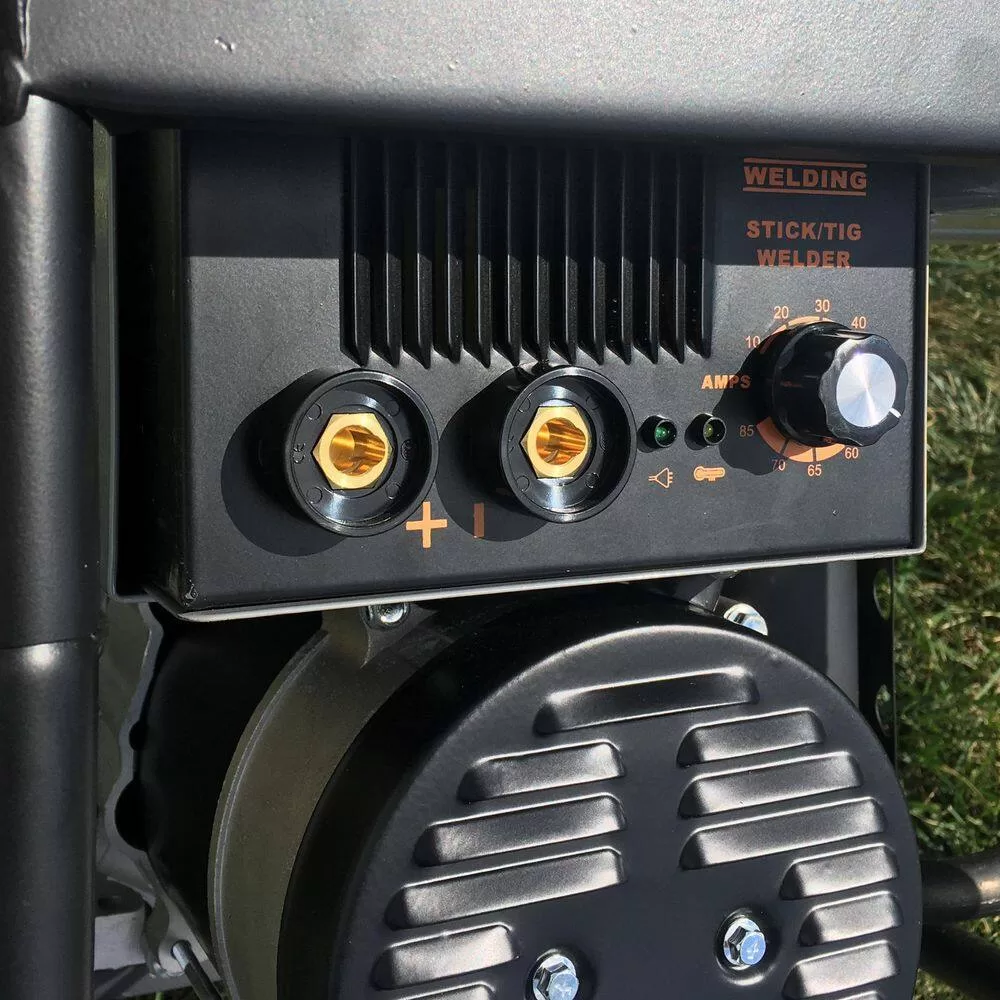

• Inverter power manages input fluctuations for better welds and more control
• Comes TIG ready for scratch start, over/low voltage protection, anti-sticking and hot start
• Thermal overload protection with indicator light for safety, arc force
• Welds mild steel, stainless steel, cast iron and hard surfacing
• Powered by the generator, 120-Volt input, 60 Hz, 25.75 Amp, single phase
• 76-Volt DC no load voltage, duty cycle 25% at 85 Amp, 10 Amp to 85 Amp DC output range
• Keep your family safe with the built in carbon monoxide detector and auto-shutoff feature
• California residentssee Prop 65 WARNINGS

Dimensions

Product Height (in.)	19.50 in	Product Length (in.)	25.00 in
Product Width (in.)	19.00 in

Details

Application	Emergency Use, Job Site	CA (CARB) Compliant	Not CARB Compliant
CO Shutoff Capable	Yes	Color Family	Yellow
Engine Displacement (cc)	212	Engine Make	OEM Branded Engine
Features	Automatic Voltage Regulation, Built-in Fuel Gauge, CO Shutoff, Dual Fuel, Low Oil Shutdown, On Indicator Light, Resettable Circuit Breaker	Fuel Tank Capacity (gallons)	3.2 gal
Fuel Technology	Dual Fuel	Full load fuel consumption (gallons/hour)	.36
Half-Load Run Time (Hours)	9	Horsepower (hp)	7.0 hp
Included	Spark Plug Wrench	Number of Outlets	6
Operational Volume (dB)	69	Outlet Type	120V, 12V DC
Power/Fuel Type	Gasoline, Propane	Product Weight (lb.)	112.00 lb
Voltage (v)	120v	Running Wattage	3500
Start Type	Recoil Start	Starting Wattage	4000
Suggested Uses	Large Appliances, Power Tools, Small Appliances

Warranty / Certifications

Certifications and Listings	EPA Approved	Manufacturer Warranty	1 Year Limited Warranty
