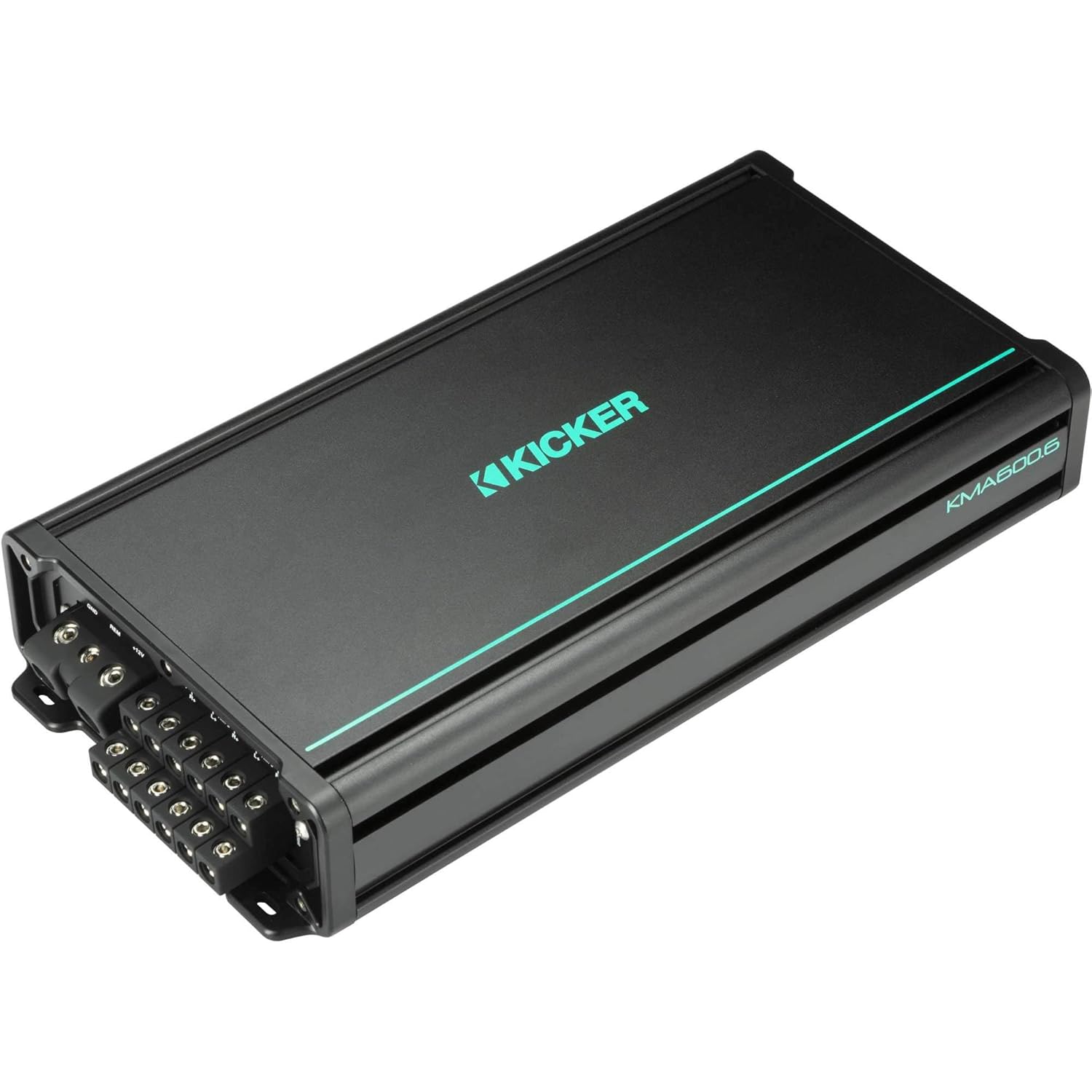

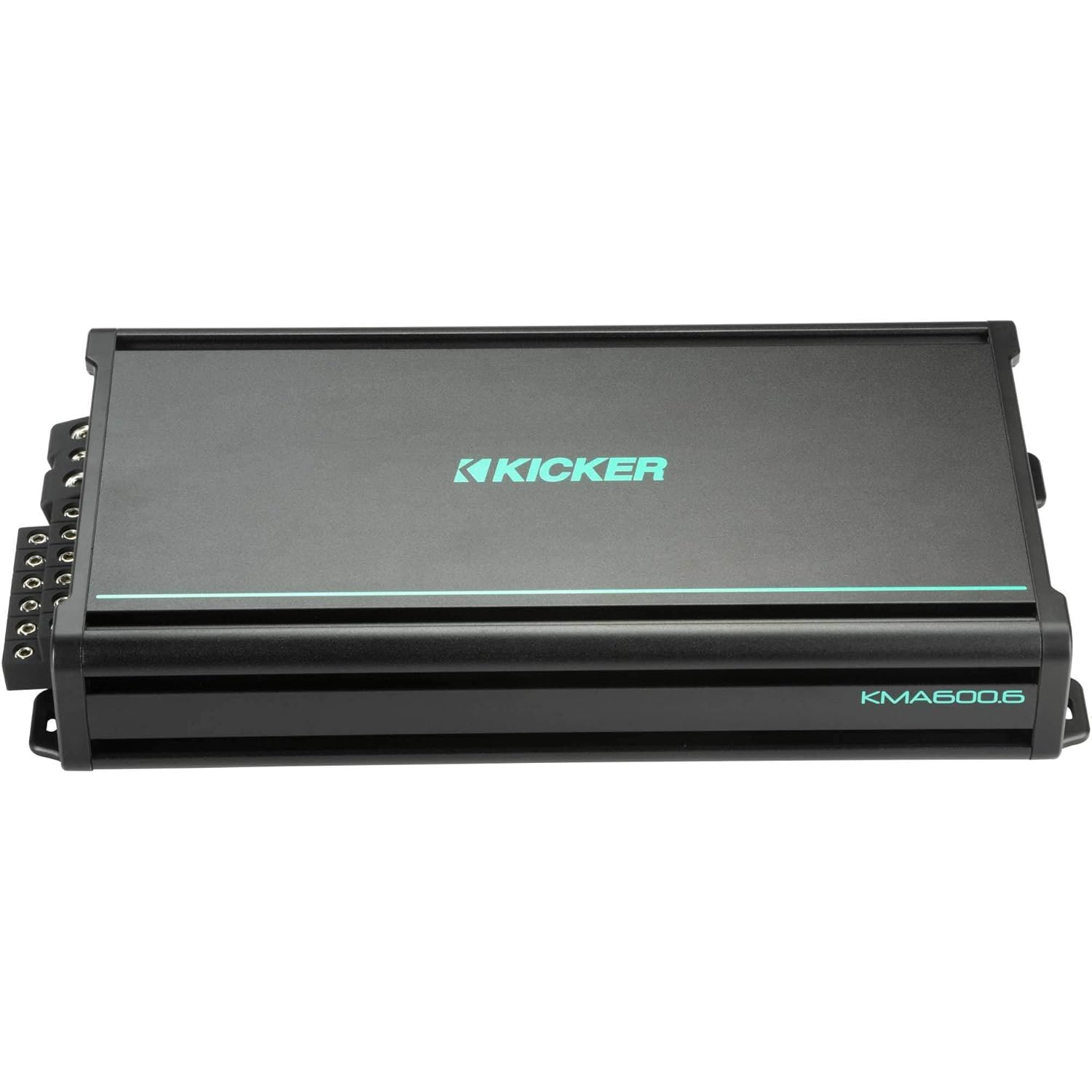

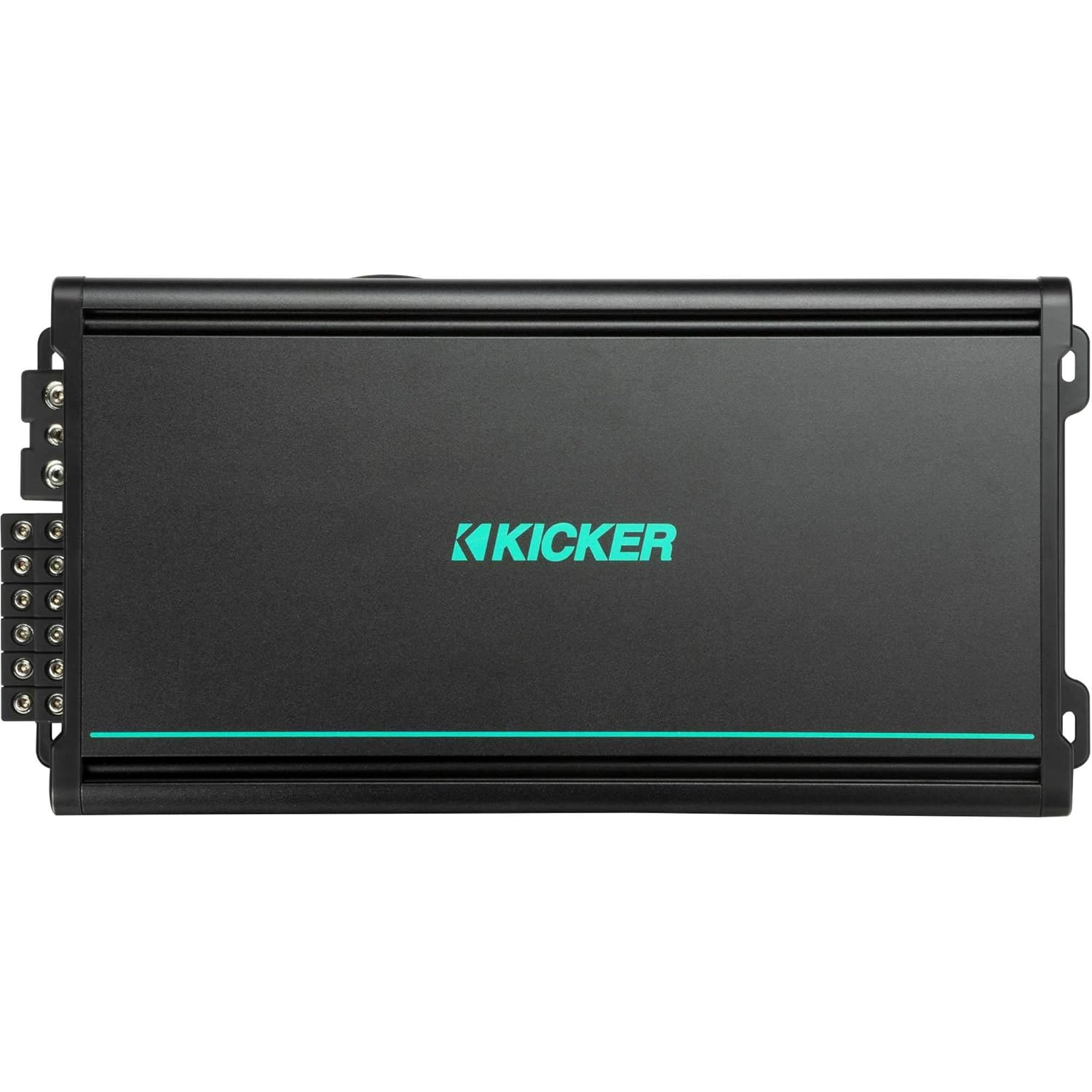

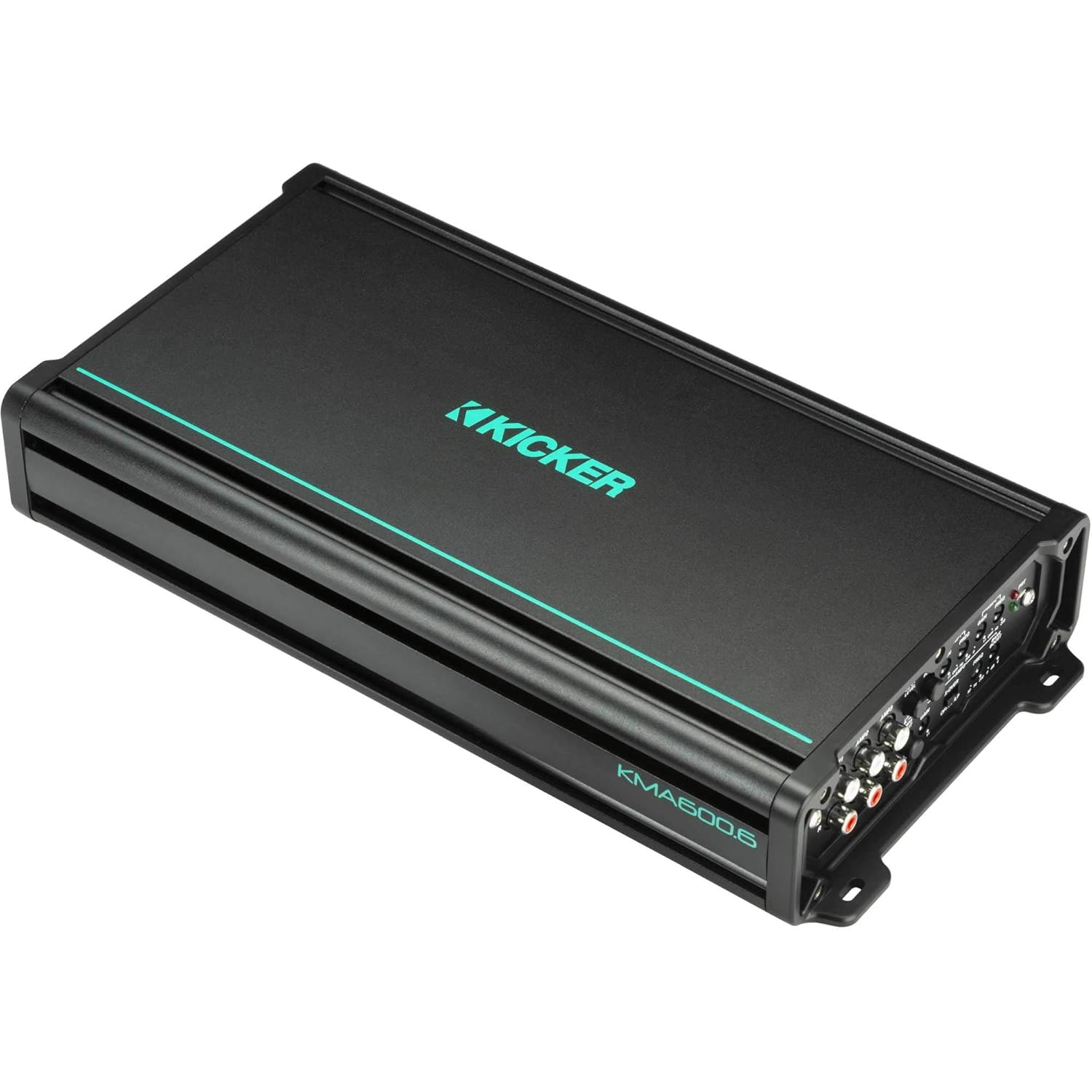

Kicker 48KMA6006 KMA600.6 6x100w 6-Ch Weather-Resistant Full-Range Amplifier

Kicker 48KMA6006 KMA600.6 6x100w 6-Ch Weather-Resistant Full-Range Amplifier

$562.49

Brand: Kicker
Dimensions L x W x H: 18.3 x 9 x 4.3 inches
Manufacturer: Kicker
Maximum Supply Voltage: 14.4 Volts
Mounting Type: Surface Mount

Free shipping on $25+ orders
Estimated Delivery: 5-10 days
Pickup not available

SKU: 48KMA6006 Categories: Electronics & Computers, Electronics

Kicker 48KMA6006 KMA600.6 6x100w 6-Ch Weather-Resistant Full-Range Amplifier

Conformal-Coated Circuit Boards to Repel Moisture
316L Stainless-Steel, No-Rust Hardware
Small Footprint to Tuck Out of the Way

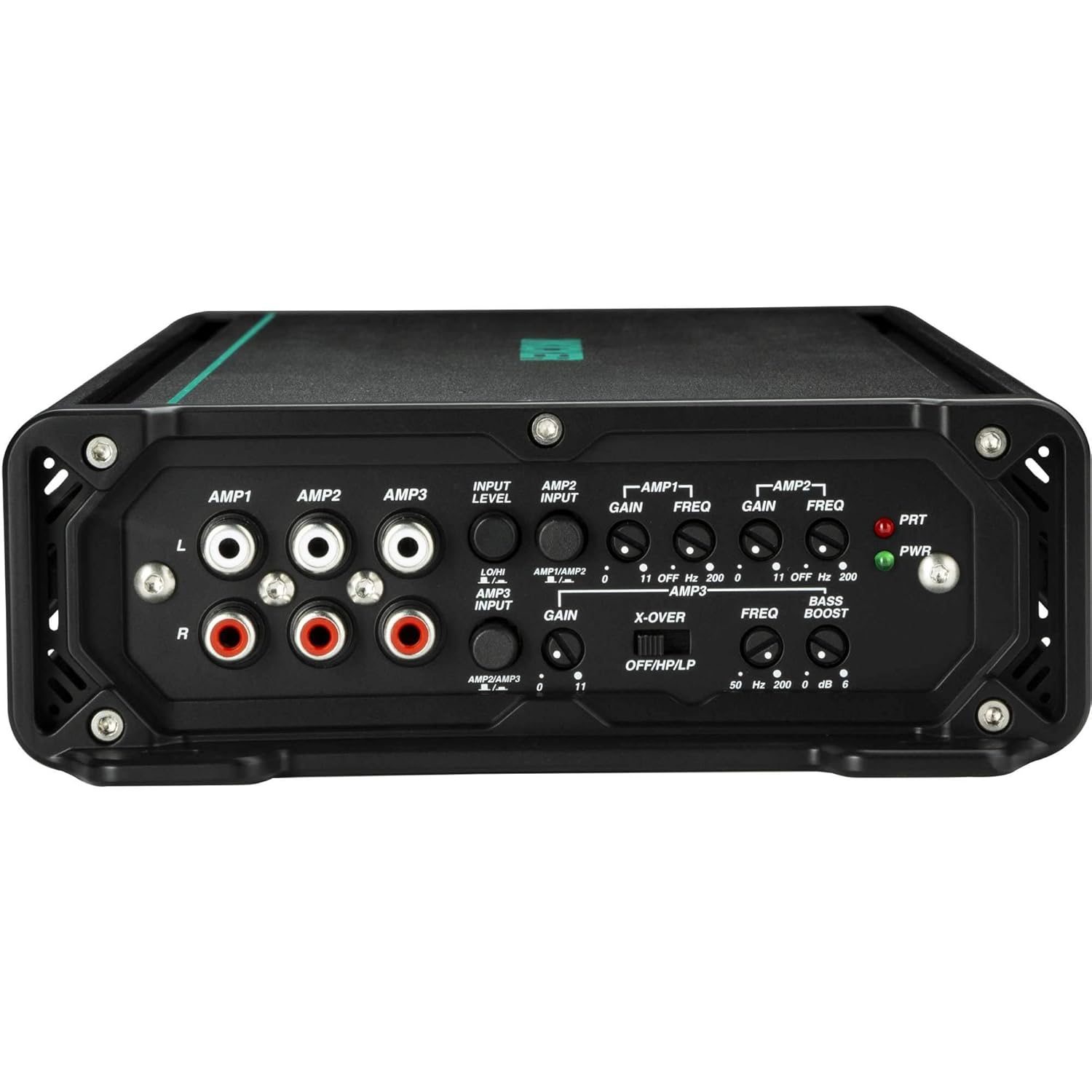

Built-In Variable Crossovers for Precise Speaker Performance Matching
Superior Sound Quality and Added Power

Specifications

6-channel marine amplifier
- 50 watts RMS x 6 at 4 ohms
- 100 watts RMS x 6 at 2 ohms
- 200 watts RMS x 3 bridged (4-ohm stable in bridged mode)
can be used to amplify 3 separate zones, or two zones and a sub
CEA-2006 compliant
Class D design
variable high-pass filter (0-200 Hz, 12 dB/octave), amps 1 and 2
variable low- and high-pass filter (50-200 Hz, 12 dB/octave), amp 3
variable bass boost (0-6 dB at 40 Hz), amp 3 only

Maximum Supply Voltage	14.4 Volts	Mounting Type	Surface Mount
Number of Channels	6	Output Power	600 Watts
Package Type Name	Box” or “Clamshell	Maximum Output Power	600 watts
Item Dimensions	18.3 x 9 x 4.3 inches	Material Type	Metal
Specification Met	rohs compliant	Unit Count	1.0 Count
Model	48KMA6006	Brand Name	KICKER

Performance

RMS Power Output (Watts x Channels)	50 x 6
Frequency Response at Rated RMS Power	10Hz-20k Hz
THD at Rated RMS Power	—
Signal to Noise Ratio	95 dB
Input Voltage	N/A
Peak Power Output (Watts x Channels)	N/A
Power at 2 Ohms (Watts x Channels)	100 x 6
Bridged Power (Watts x Channels)	200 x 3
Minimum Impedance Bridged	4
Minimum Impedance Unbridged	2

Features

Amplifier Class	D
Low-Pass Crossover Frequency	50Hz-200Hz
Low-Pass Slope (dB/octave)	12dB/octave
High-Pass Crossover Frequency	50Hz-200Hz
High-Pass Slope (dB/octave)	12dB/octave
Bass Boost	0-6 dB
Bass Boost Frequency	40 Hz
Fan Cooled	No
Fuse Rating	80
Speaker Level Inputs	Yes
Preamp Outputs	No
Height (inches)	2-1/4
Width (inches)	13-7/8
Depth (inches)	6-5/8
