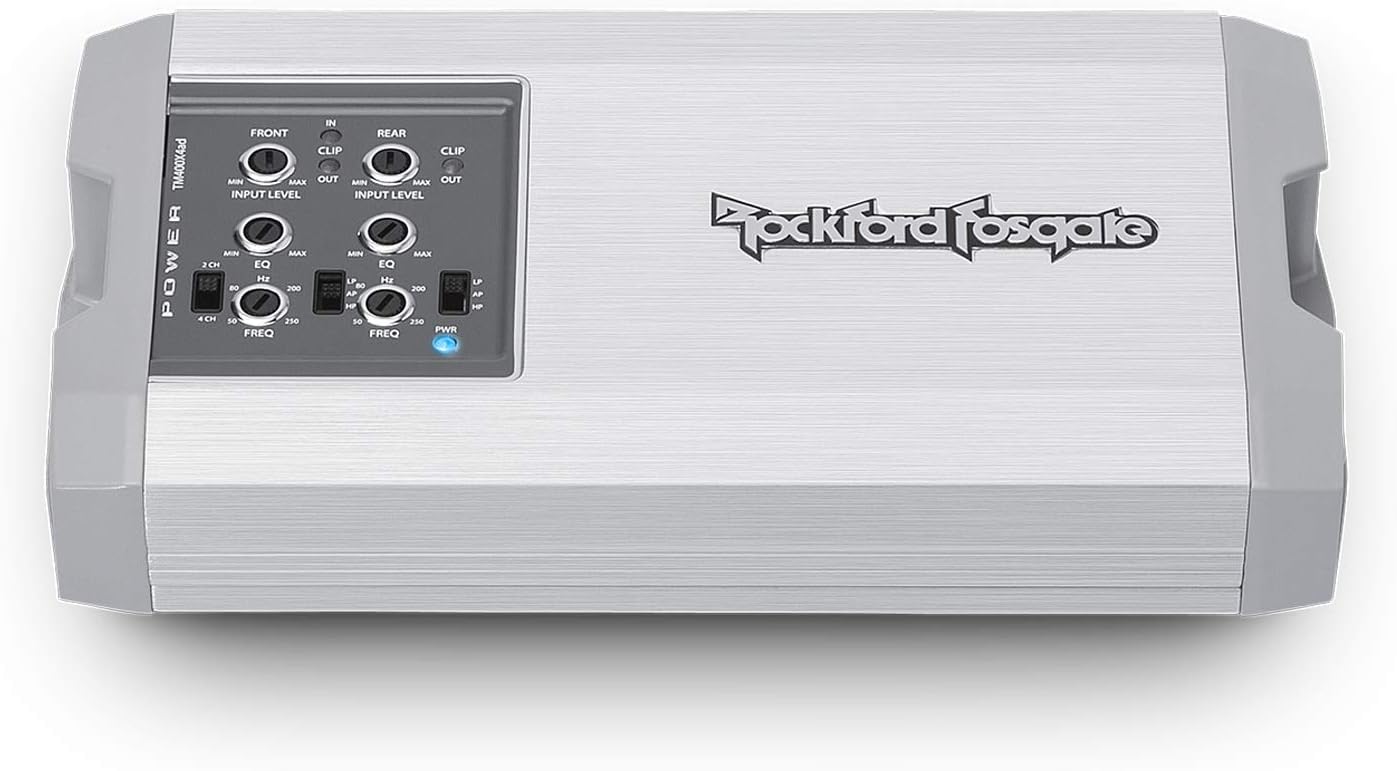

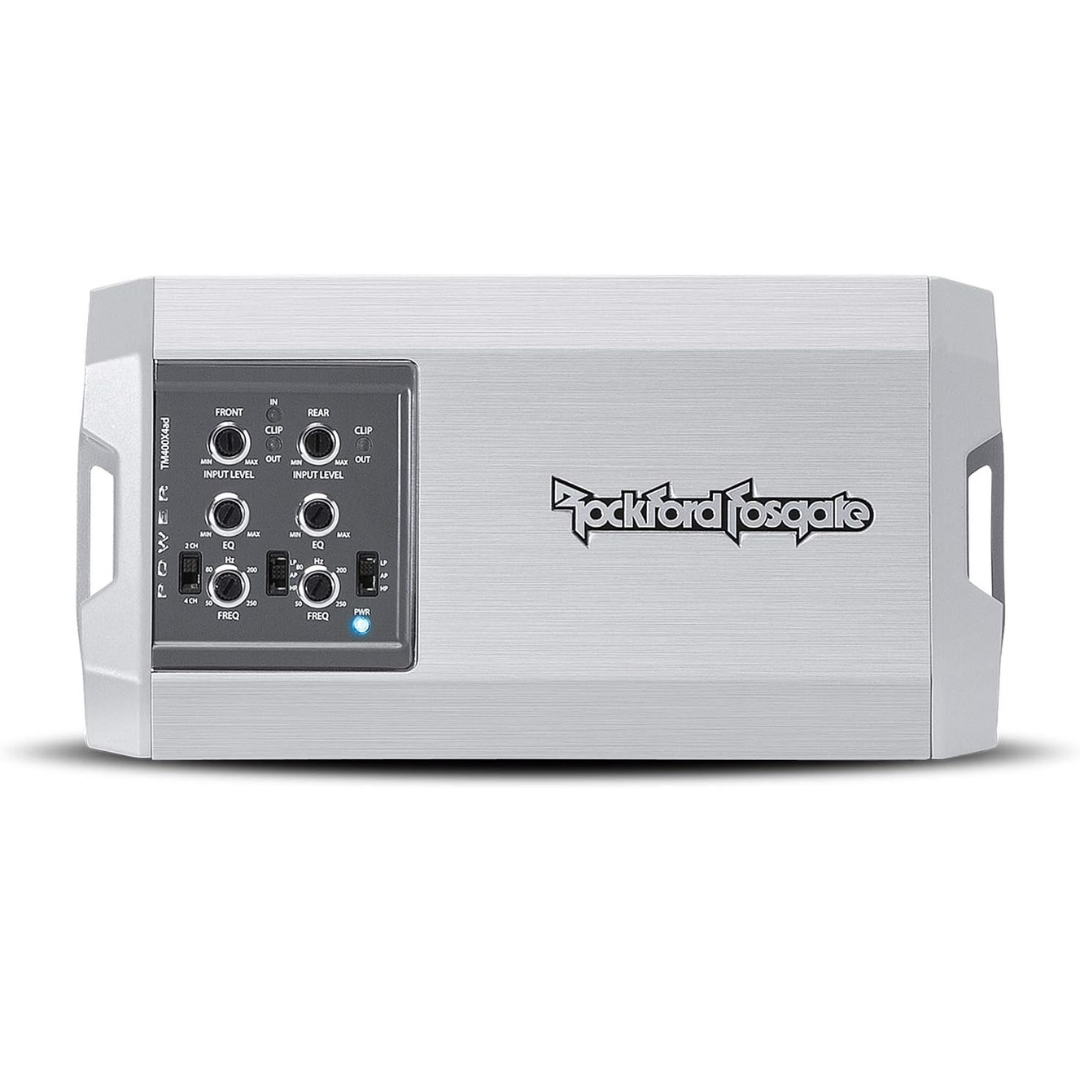

Rockford Fosgate TM400X4ad Power Marine 400 Watt Class-ad 4-Channel Amplifier

Rockford Fosgate TM400X4ad Power Marine 400 Watt Class-ad 4-Channel Amplifier

• Our compact (1.6” x 4.3” x 8.3”) Power Marine TM400X4ad 4-channel amplifier produces more power per square inch than any other model we make with 400 Watts of POWER
• Proprietary Constant Power amps are the most powerful on the market, delivering up to 25% more power across all impedance loads (100 Watts x 4 @ 4-Ohm or 100 Watts x 4 @ 2-Ohm or 200 Watts x 2 @ 4-Ohm Bridged)
• Built on Rockford Fosgate’s proprietary Class-AD technology and Element Ready protecting against dust, UV, and corrosion, making it perfect for motorsport and marine applications
• High-level auto turn-on, CLEAN circuit input/output clip detection, On-board Punch EQ with +18dB boost @ 45Hz and 12dB/octave Butterworth crossover make TM400X4ad an impressive POWER house
• Class AD amp technology
• 4-ohm/2-ohm multi-impedance constant power
• conformal-coated circuit board — suitable for power sports and marine applications
• marine-grade stainless steel hardware
• twin cooling fans and real-time thermal sensing
• hidden top-mount control panel
• CLEAN set-up technology with LED input/output indicators
• speaker-level inputs

Specifications

• variable low- and high-pass filters (50-250 Hz at 12 dB/octave)
• tone controls: 0-18 dB at 45 Hz; 0-14 dB at 12,000 Hz
• frequency response: 20-20,000 Hz
• fuse rating: 60A x 1 (fuse not included)
• dimensions: 8-5/8″D x 1-11/16″H x 4-5/16″W
• requires 8-gauge power and ground cable
