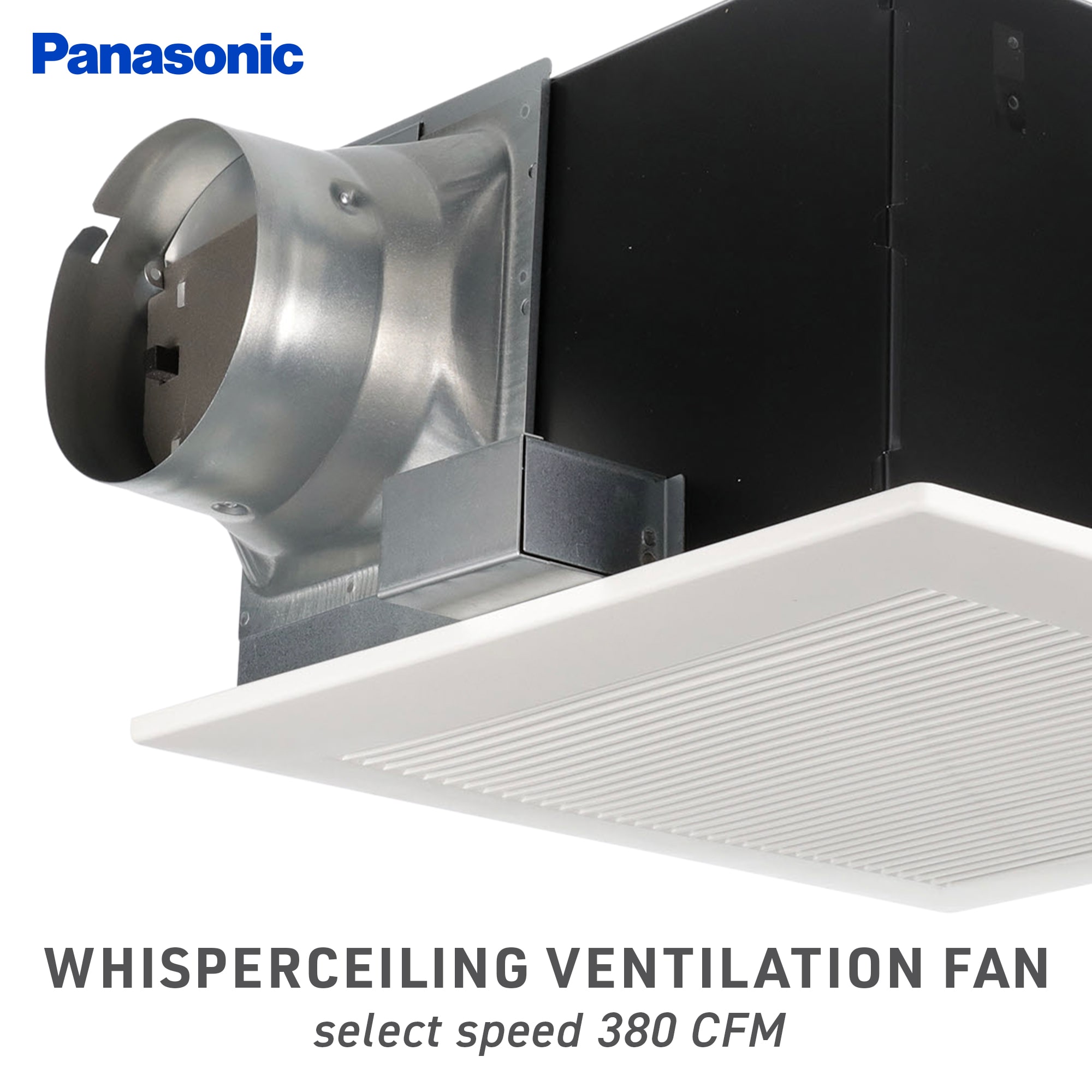

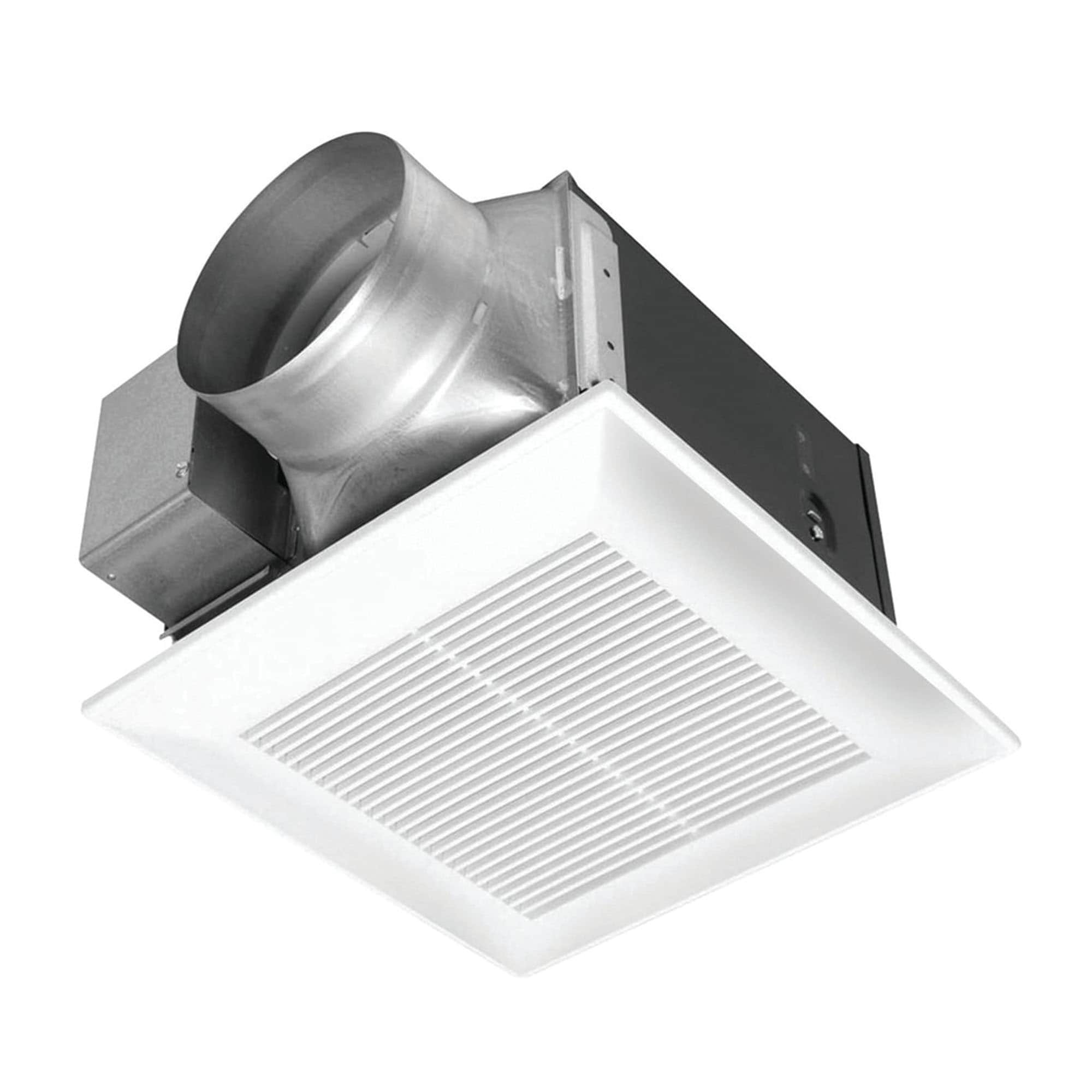

Panasonic WhisperCeiling 3-Sone 390-CFM White Bathroom Fan
The Panasonic FV-40VQ4 WhisperCeiling 380 CFM fan features a totally enclosed condenser motor and a double-tapered, dolphin shaped bladed blower wheel to quietly move a large amount of air at reduced RPMs, so it’s quiet enough that you might not even know it’s on. With a 3.0 sone level and rated 380 cubic feet per minute, this fan is designed to give you continuous, trouble-free operation for many years due to its high-quality components and permanently lubricated motors which wear at a slower pace. We designed the electrical configuration of this model’s condenser motor to allow it to operate at lower temperatures, increasing the life of the motor and bearings. The fan housing is made of heavy-gauge zinc galvanized steel and painted to protect it from rust. This Energy Star qualified fan has a built-in damper to prevent back draft, which helps to prevent outside air from coming through the fan.
- Ceiling Mount Bathroom Ventilation Fan: Designed to give you continuous, trouble-free operation for many years, this fan features a wide, double-tapered blower wheel that moves 380 CFM so quietly you might not even know it’s on
- Durable and Efficient: This Energy Star qualified fan features a permanently lubricated motor for extra longevity, rust-resistant painted fan housing made of heavy-gauge zinc galvanized steel, and a built-in damper to prevent back draft
- Easy Installation: Designed for user-friendly installation with detachable adaptors, firmly secured duct ends, an adjustable mounting bracket (up to 24”), simple wiring, and fan/motor units that detach easily from the housing
- Explore Our Selection: We offer a wide range of vent fans including fans with LED lights, timers, heaters, and condensation sensors for humidity control, plus installation kits, soffit vents, replacement motors and fan cover grilles
- Healthy Living Begins with Clean Indoor Air: Ensure a healthy home for your family with our high-performance Panasonic ventilation systems, air purification devices and HVAC solutions
Specifications
| General | |||
|---|---|---|---|
| Collection Name | WhisperCeiling | Grille Shape | Square |
| Color Temperature (Kelvins) | 0 | Attic Access Needed | No |
| Fixture Color Family | White | Air Movement (CFM) | 390 |
| Manufacturer Color/Finish | White | Mount Location | Ceiling |
| Type | Bathroom fan | Sound Level Rating (Sones) | 3 |
| Decorative | No |

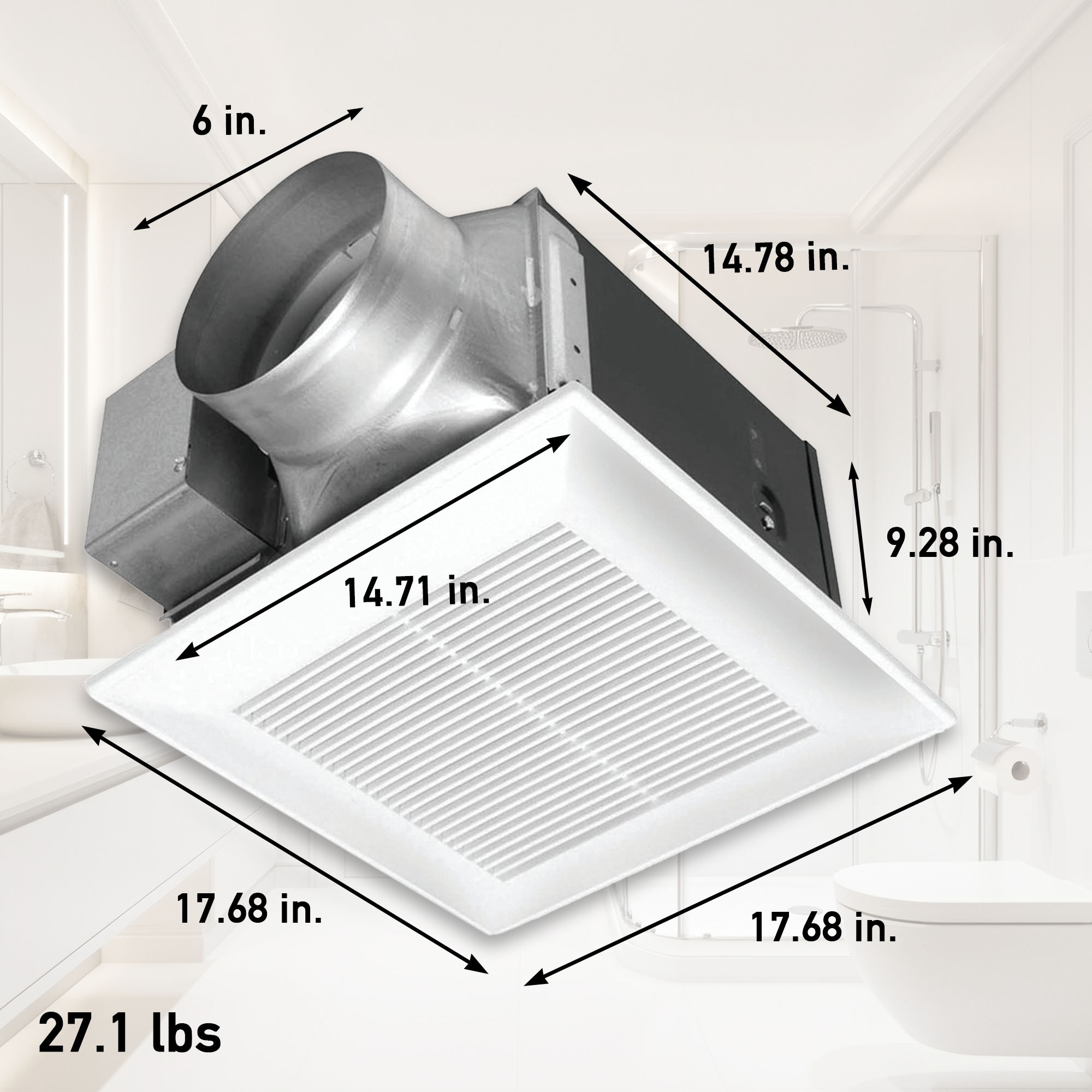

| Dimensions | |||
|---|---|---|---|
| Ceiling Cutout Length (Inches) | 14.78 | Fan Box Width (Inches) | 14.719 |
| Ceiling Cutout Width (Inches) | 14.72 | Grille Length (Inches) | 17.6875 |
| Duct Size | 6-in | Recommended Room Size (Sq. Feet) | 390 |
| Fan Box Height (Inches) | 9.281 | Suggested Room Size | Over 150 sq ft |
| Fan Box Length (Inches) | 14.781 | Width of Grille (Inches) | 17.6875 |
| Features | |||
|---|---|---|---|
| Automatic Shut-Off | No | Voice Controlled | No |
| Bulb(s) Included | No | Motion Sensor | No |
| Duct-Free | No | Night Light | No |

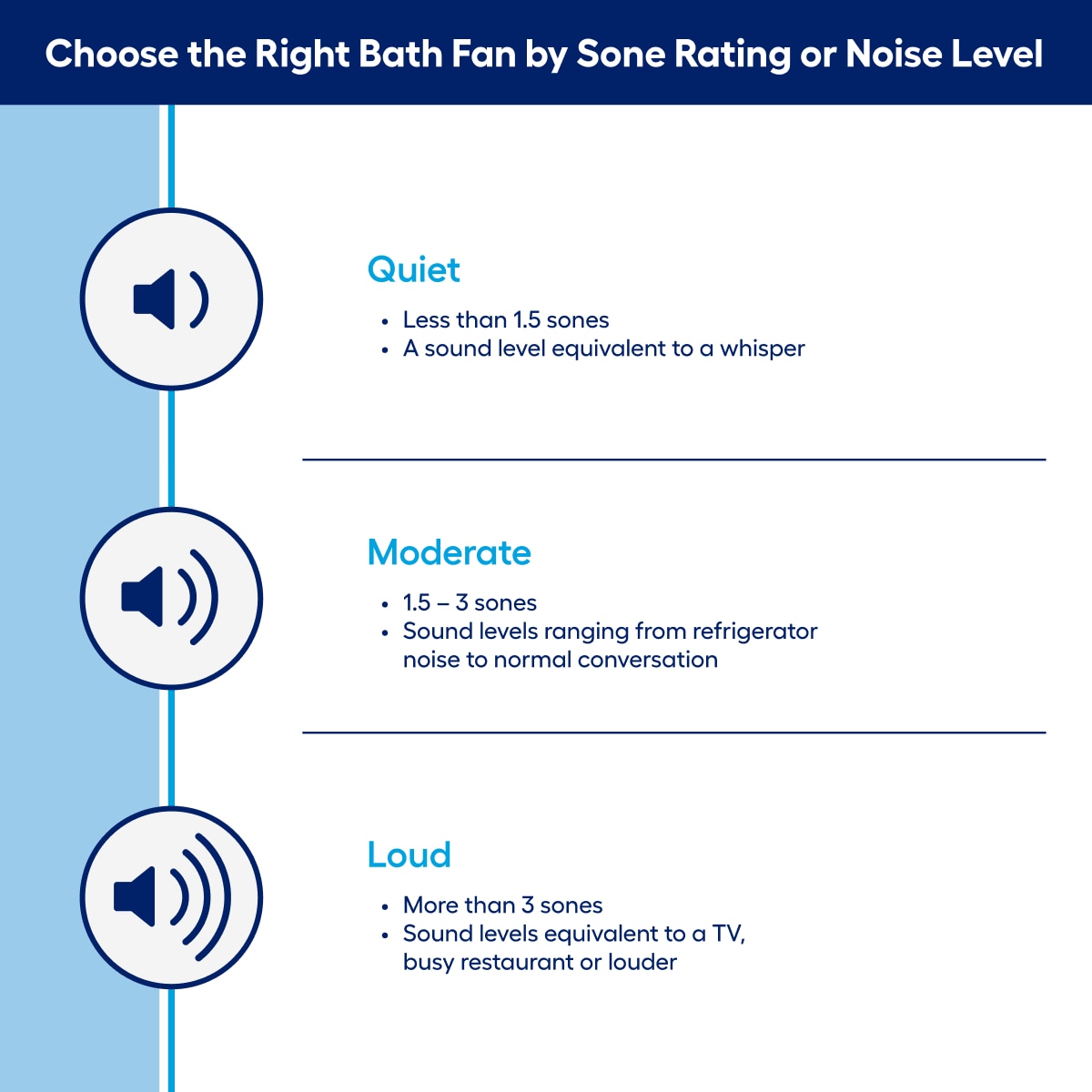

| Fan Sound Level (Sones) | Quiet (under 1.5 sones) | Night Light Maximum Bulb Wattage | 0 |
| Fan Speeds | 2 | No Cut Installation | No |
| Hub Required | No | Number of Lights | 0 |
| Humidity Sensor | No | Room Light Maximum Bulb Wattage | 0 |
| Integrated Heater | No | Roomside Installation | Yes |
| Light Options | None | Speaker Included | No |
| Lighted | No |
| Compatibility | |||
|---|---|---|---|
| App Compatibility | No | Works with Amazon Alexa | No |
| Bluetooth Compatibility | No | Works with Android | No |
| Bluetooth Enabled | No | Works with Apple HomeKit | No |
| Smart Compatible | No | Works with iOS | No |
| Smartphone Enabled | No | Works with SmartThings | No |
| Wi-Fi Compatibility | No | Works with the Google Assistant | No |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | Safety Listing | Not safety listed |
| ENERGY STAR Certified | No | Title 24 Compliant | Yes |
| HVI Certified | Yes |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 40101600 |
| Brand | Panasonic |
|---|
