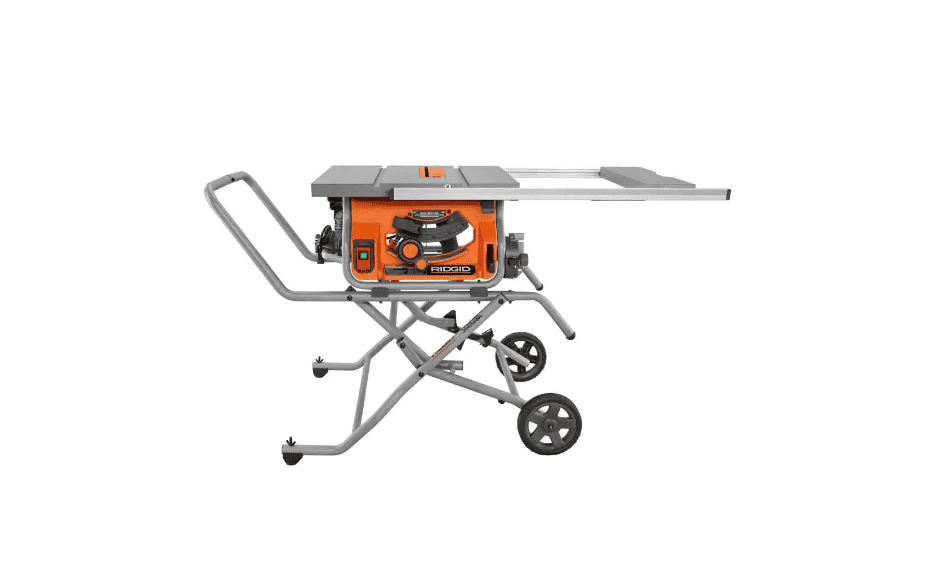

RIDGID 15 Amp 10 in. Portable Pro Jobsite Table Saw with Stand
RIDGID introduces the R4514 10 in. Portable Table Saw. Unlike other benchtop tools, the RIDGID 10 in. Portable Table Saw is eligible for the Industrys Best Lifetime Service Agreement. This table saw delivers a 30 in. rip capacity for ripping through large sheet goods like plywood and OSB. Equipped with a powerful 15 Amp motor, the RIDGID 10 in. Portable Table Saw has 5,000 RPM to tackle a variety of demanding applications. This RIDGID 10 in. Portable Table Saw features SOFTstart Technology which improves tool life by gradually ramping up the motor for a quiet and smooth startup. With the included single-step release mobile stand, users can easily transport and store this saw anywhere on the jobsite. The R4514 includes the Table Saw, Push Stick, Blade Guard Assembly, Table Saw Utility Vehicle, Assembly Hardware, Carbide Tipped Blade, Rip Fence, Miter Gauge, Blade Wrenches, Riving Knife, Anti-kickback Pawls, and Operators Manual.
- 30 in. rip capacity provides fast and accurate rips into larger materials
- Capable of ripping through a 4×4 in a single pass
- SOFTStart Technology motor gradually ramps up the blade speed for quiet and smooth startup
- Blade brake stops blade in seconds for quicker transitions between cuts

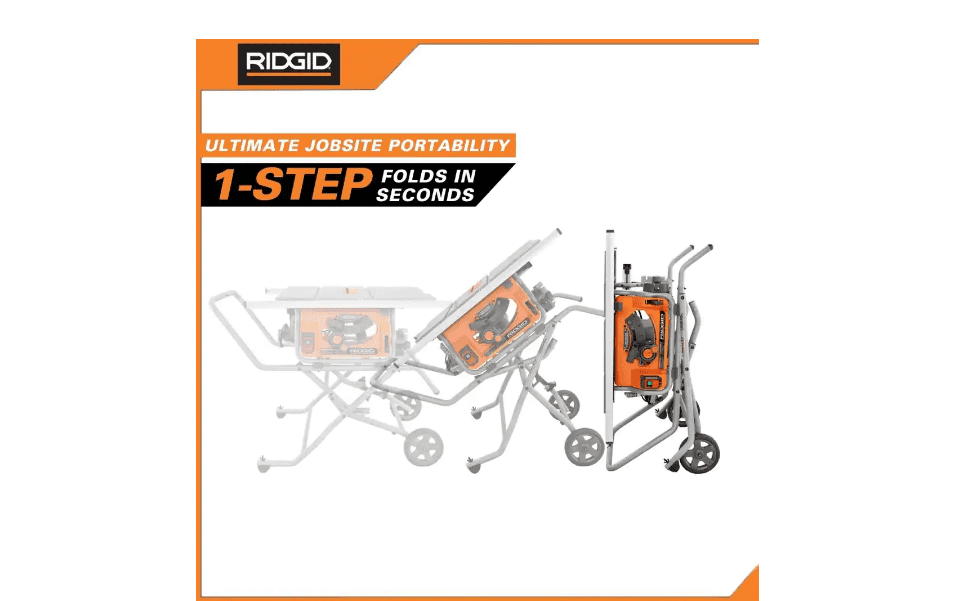

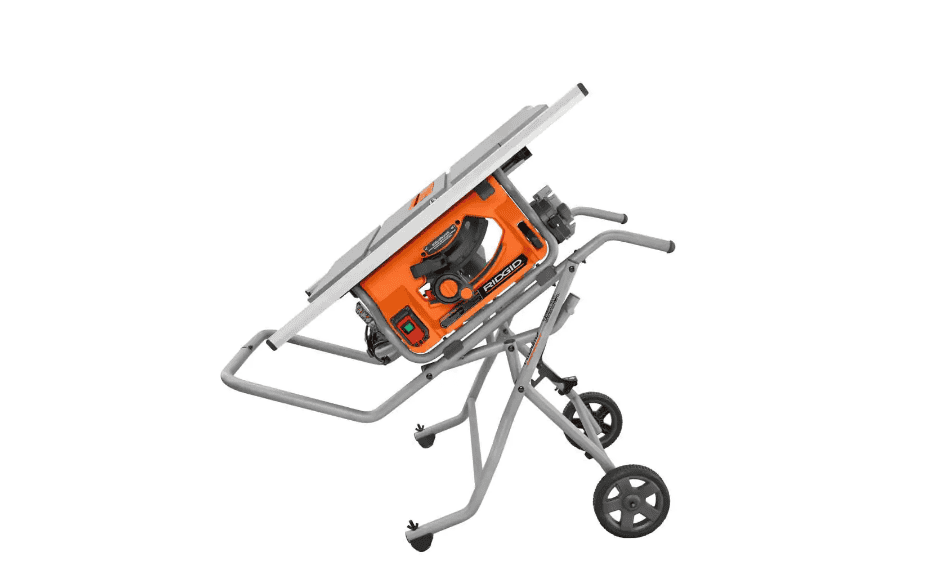

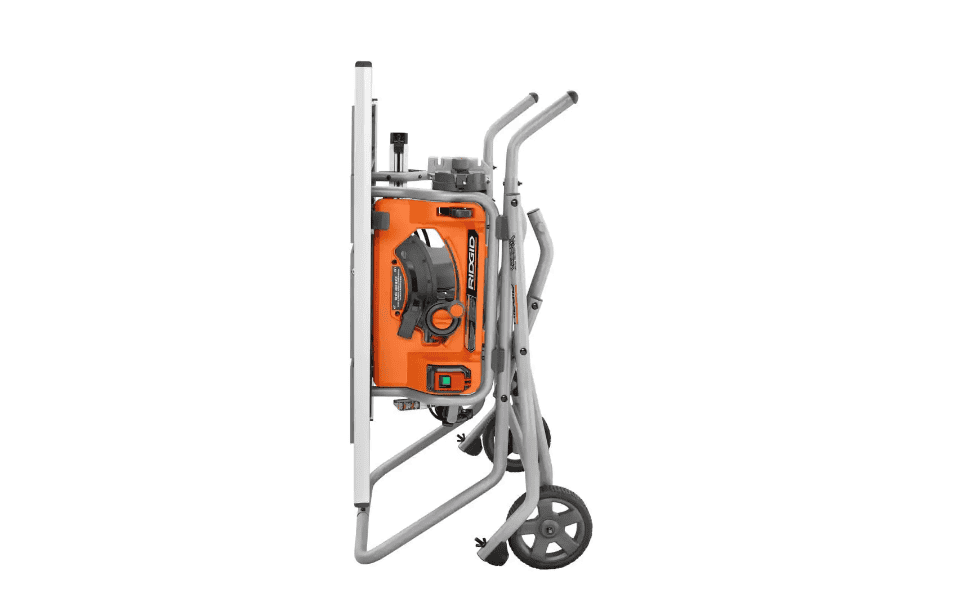

- Single-Step release mobile stand with large integrated wheels for easy transportation
- Built-In 2-1/2 in. dust port maintain optimal position for superior dust collection
- On-Board Tool and Accessory Storage conveniently and quickly stores accessories
- Includes: Table Saw, Push Stick, Blade Guard Assembly, Table Saw Utility Vehicle, Assembly Hardware, Carbide Tipped Blade, Rip Fence, Miter Gauge, Blade Wrenches, Riving Knife, Anti-kickback Pawls, and Operators Manual
- For more RIDGID benchtop tools eligible for the Lifetime Service Agreement, click on the image below
- California residentssee Prop 65 WARNINGS
Dimensions
Blade Diameter (in.) | 10 in | Product Depth (in.) | 24.5 in |
---|---|---|---|
Product Height (in.) | 13.75 in | Product Width (in.) | 39.25 in |
Work Table Surface (in.) | in x in |
Details
Amperage (amps) | 15 A | Bench & Stationary Tool Type | Table Saw |
---|---|---|---|
Blade Location | Centered | Color Family | Orange |
Condition | New | Construction Material | Plastic |
Cord Length (ft.) | 6 ft | Corded Tool Type | Table Saw |
Cordless/Corded | Corded | Cuts Through | Wood |
Depth Control | Adjustable | Horsepower (HP) | 3.1 hp |
Included Accessories | Stand | Maximum Cut Depth at 45 Degrees (in.) | 2.25 in |
Maximum Cut Depth at 90 Degrees (in.) | 3.5 in | Maximum Speed (RPM) | 5000 RPM |
Maximum Table Tilt – Left (degrees) | 45 ° | Maximum Table Tilt – Right (degrees) | 0 ° |
Power Tool Features | Blade Guard System, Lockout Power Switch | Product Weight (lb.) | 95.08 lb |
Tools Product Type | Power Tool | Rip Capacity – Left (in.) | 12 in |
Rip Capacity – Right (in.) | 30 in | Saw Type | Benchtop |
