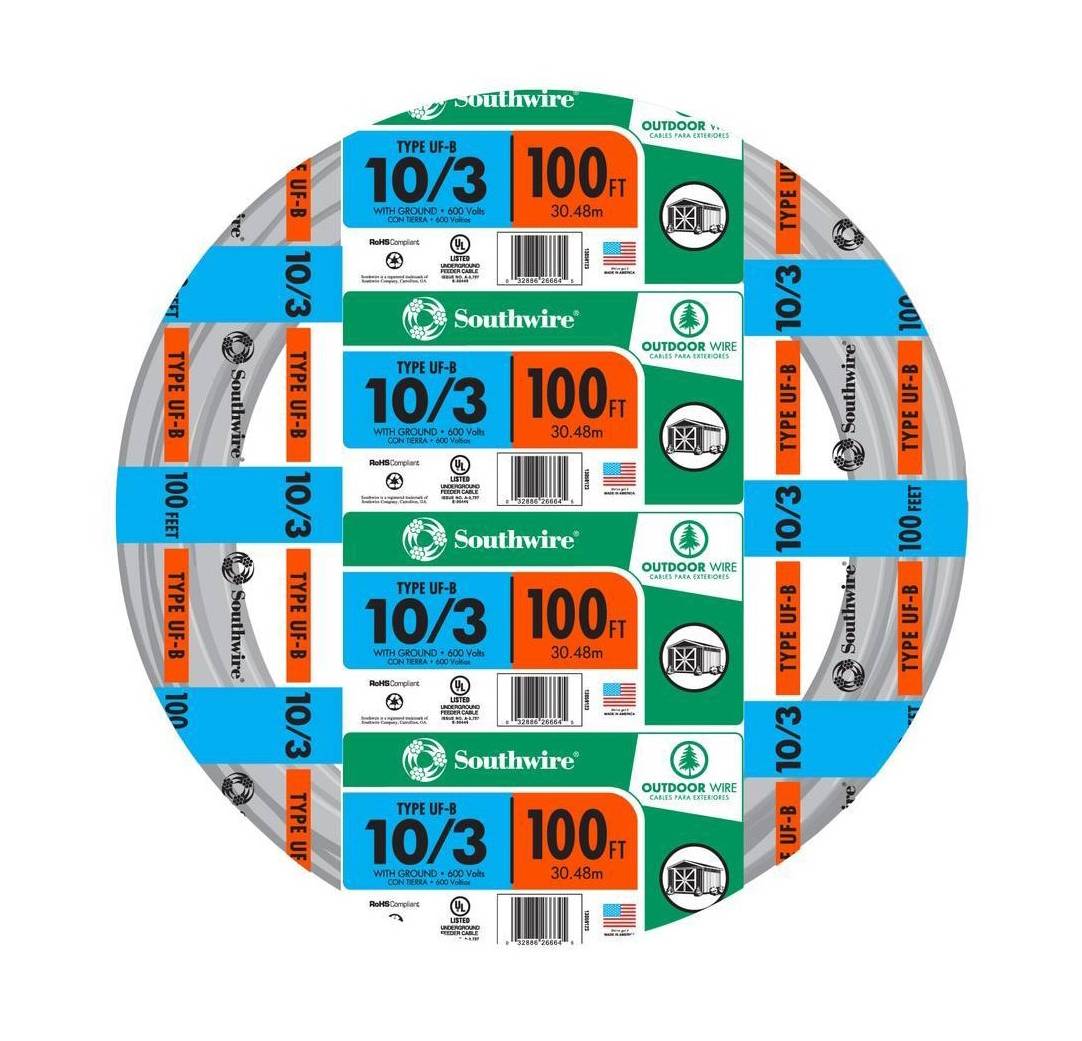

Southwire 100-ft 10 / 3 W/G ( By-the-roll )
Original price was: $324.00.$281.88Current price is: $281.88.
- Use Location: Indoor/Outdoor
- Voltage Rating: 600
- Wire Cut Type: By-the-roll
- Number of Conductors: 3
- Wire Gauge: 10
- Direct Burial: Yes
- Ground Wire: Yes
- Cable Length (Feet): 100
- Weight (lbs.): 19.0609
Southwire 100-ft 10 / 3 W/G ( By-the-roll )
Southwire’s copper UF-B cable is used in applications that include outside lamp posts, pumps and other loads. It can also be used for outbuildings such as garages and barns. UF-B feeds from a distribution point in an existing building. UF-B has a heat capacity of 90°C and is rated at 600-Volt. UL Listed.
Highlights
- Conductors are made of annealed (soft) copper
- PVC insulation and a nylon, color coded jacket
- Used outdoors for direct burial
- Used indoors for wet or corrosive locations
- Jacketed with sunlight, moisture and fungus resistant gray PVC
Specifications
| General | |||
|---|---|---|---|
| Sub-Brand | N/A | Number of Conductors | 3 |
| Use Location | Indoor/Outdoor | Wire Gauge | 10 |
| Voltage Rating | 600 | Direct Burial | Yes |
| Wire Cut Type | By-the-roll | Ground Wire | Yes |
| Dimensions | |||
|---|---|---|---|
| Cable Length (Feet) | 100 | Weight (lbs.) | 19.0609 |
| Features | |||
|---|---|---|---|
| Commercial/Residential | Commercial/Residential | Moisture Resistant | Yes |
| Fire Resistant | No | Shielded | No |
| Maximum Amperage | 30 | UV Resistant | Yes |
| Compatibility | |||
|---|---|---|---|
| Conduit Compatible | No |
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | RoHs Compliant | No |
| Safety Listing | UL safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 60104900 |
| Brand | Southwire |
|---|
